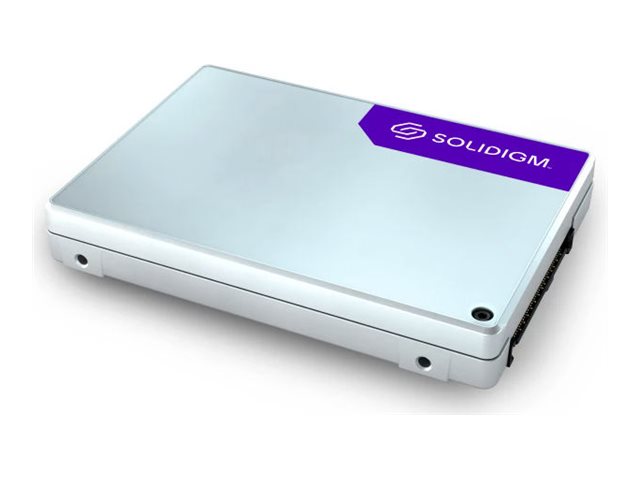

Solidigm P5336 - SSD
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
Solidigm P5336 - SSD
- Read Intensive
- encrypted
- 15.36 TB
- hot-swap
- 2.5"
- U.2 PCIe 4.0 x4 (NVMe)
- TCG Opal Encryption 2.01
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | 4XB7A95048 |
| SHI Part #: | 48632592 |
| Category: | Hard drives |
| UNSPSC: | 43201803 |
| Manufacturer: | Lenovo |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Hard drives |
| Description | Solidigm P5336 - SSD - Read Intensive - encrypted - 15.36 TB - hot-swap - 2.5" - U.2 PCIe 4.0 x4 (NVMe) - TCG Opal Encryption 2.01 |
| Manufacturer | Lenovo |
| MSRP | $29,099.00 |
| UNSPSC | 43201803 |
| Main Specifications | |
| Dimensions & Weight / Depth | 100 mm |
| Dimensions & Weight / Height | 15 mm |
| Dimensions & Weight / Weight | 146 g |
| Dimensions & Weight / Width | 70 mm |
| Hard Drive / Capacity | 15.36 TB |
| Hard Drive / Form Factor | 2.5" |
| Hard Drive / Hard Drive Type | Hot-swap hard drive |
| Hard Drive / Interface | U.2 PCIe 4.0 x4 (NVMe) |
| Hard Drive / Interface | U.2 PCIe 4.0 x4 (NVMe) |
| Header / Brand | Solidigm |
| Packaged Quantity | 1 |
| Service & Support / Type | 1-year warranty |
| Storage / Type | Solid state drive |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 90% (non-condensing) |
| Max Operating Temperature | 70 °C |
| Max Storage Temperature | 95 °C |
| Min Operating Temperature | 0 °C |
| Min Storage Temperature | -55 °C |
| Shock Tolerance (operating) | 1000 g @ 0.5 ms |
| Vibration Tolerance (operating) | 2.17 gRMS @ 5-700 Hz |
| Expansion & Connectivity | |
| Compatible Bay | 2.5" |
| Interfaces | 1 x U.2 PCIe 4.0 x4 (NVMe) |
| General | |
| Capacity | 15.36 TB |
| Depth | 100 mm |
| Device Type | Solid state drive - hot-swap |
| Features | Thermal throttling, Thermal Monitoring, power loss data protection, End-to-end data protection, S.M.A.R.T. |
| Form Factor | 2.5" |
| Hardware Encryption | Yes |
| Height | 15 mm |
| Interface | U.2 PCIe 4.0 x4 (NVMe) |
| NAND Flash Memory Type | 3D quad-level cell (QLC) |
| Weight | 146 g |
| Width | 70 mm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - replacement - 1 year |
| Miscellaneous | |
| Compliant Standards | FCC Title 47, CAN/CSA-CEI/IEC CISPR 22:02, EN 55024:1998, EN 55022:2006, EN 60950-1 Second Edition, UL/CSA EN-60950-1 2nd Edition, Directive 2006/95/EC, C-Tick AS/NZS3584, BSMI CNS 13438, KCC Article 11.1, ROHS Directive 2011/65/EU, WEEE Directive 2002/96/EC |
| Performance | |
| 4KB Random Read | 1005000 IOPS |
| 4KB Random Write | 24000 IOPS |
| Average Latency | 9 ms |
| Drive Class | Read Intensive |
| Drive Writes Per Day (DWPD) | 0.51 |
| Internal Data Rate | 3.4 GBps (read) / 3 GBps (write) |
| SSD Endurance | 14.1 PB |
| Power | |
| Power Consumption |
|
| Reliability | |
| MTBF | 2,000,000 hours |
| Recoverable Errors | 1 per 10^17 |
