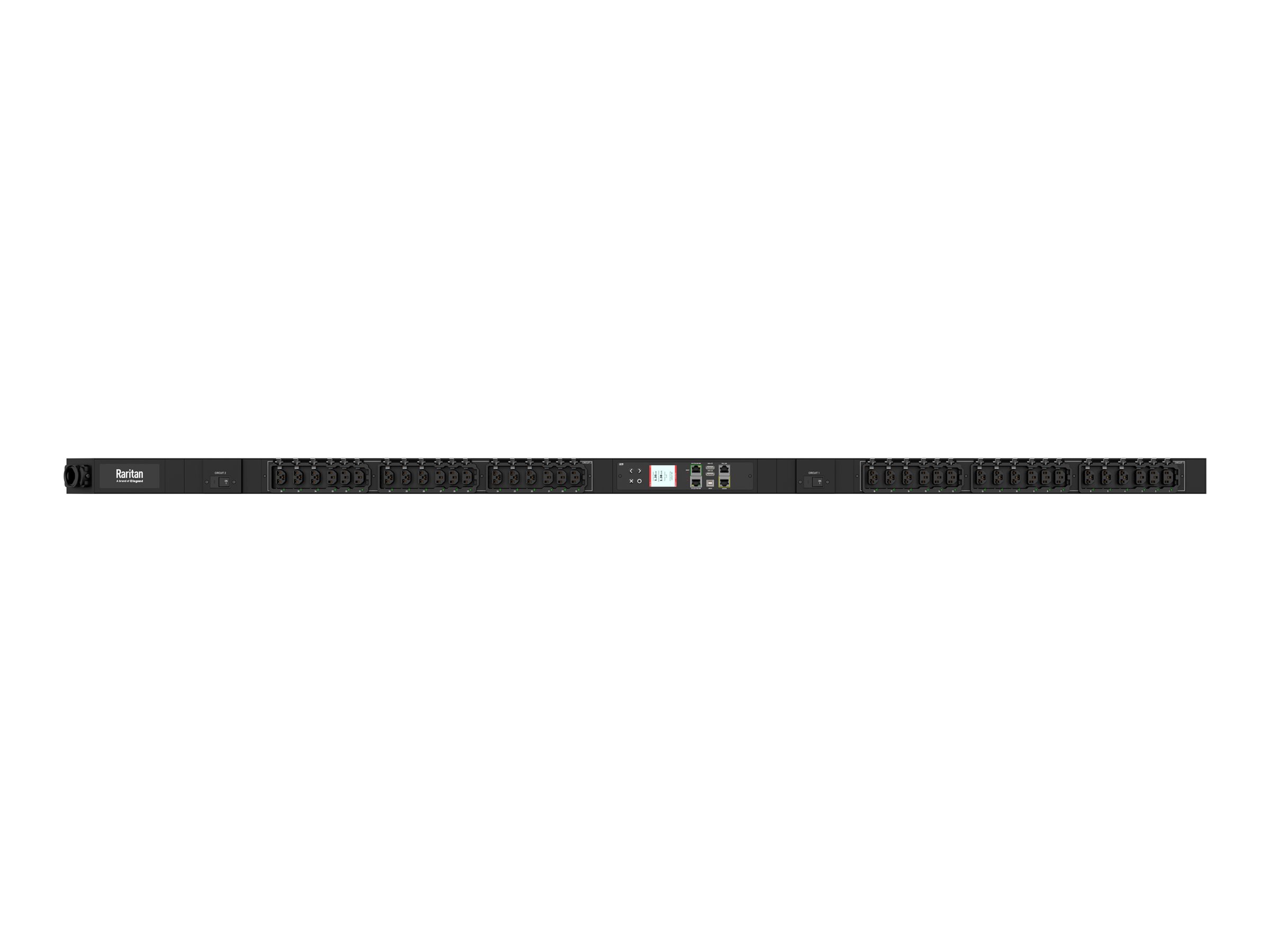

Raritan PX4-57A4-E7 - Power distribution unit (rack-mountable)
MSRP$2,804.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
Raritan PX4-57A4-E7 - Power distribution unit (rack-mountable)
- AC 230 V
- 7400 VA
- Ethernet 10/100/1000, Ethernet 10/100, RS-232, USB
- input: IEC 60309 2P+E
- output connectors: 36 (18 x IEC 60320 C13, 18 x IEC 60320 Cx)
- 3 m cord
- black powder coat
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $2,804.00 |
| Mfr Part #: | PX4-57A4-E7 |
| SHI Part #: | 48499277 |
| Category: | Rack systems for rack mount electroni... |
| UNSPSC: | 24102001 |
| Manufacturer: | Legrand |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Rack systems for rack mount electroni... |
| Description | Raritan PX4-57A4-E7 - Power distribution unit (rack-mountable) - AC 230 V - 7400 VA - Ethernet 10/100/1000, Ethernet 10/100, RS-232, USB - input: IEC 60309 2P+E - output connectors: 36 (18 x IEC 60320 C13, 18 x IEC 60320 Cx) - 3 m cord - black powder coat |
| Manufacturer | Legrand |
| MSRP | $2,804.00 |
| UNSPSC | 24102001 |
| Main Specifications | |
| Dimensions & Weight / Depth | 6.5 cm |
| Dimensions & Weight / Height | 178 cm |
| Dimensions & Weight / Weight | 6.2 kg |
| Dimensions & Weight / Width | 5.6 cm |
| General / Subcategory | Power distribution devices |
| Header / Brand | Raritan |
| Miscellaneous / Product Color | Black |
| Networking / Remote Management Interface |
|
| Packaged Quantity | 1 |
| Power Device / Form Factor | Rack-mountable |
| Power Device / Output Connector Qty | 36 |
| Power Device / Power Capacity (VA) | 7400 VA |
| Power Device / Voltage Required | AC 230 V |
| Product Type | Power distribution unit |
| Service & Support / Type | 2-year warranty |
| Dimensions & Weight | |
| Depth | 6.5 cm |
| Height | 178 cm |
| Weight | 6.2 kg |
| Width | 5.6 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 12.5 cm |
| Shipping Height | 194 cm |
| Shipping Weight | 8.9 kg |
| Shipping Width | 25.5 cm |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Max Operating Temperature | 60 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Color | Black powder coat |
| Cord Length | 3 m |
| Device Type | Power distribution unit - rack-mountable |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Cables Included | Power cable 3 m |
| Compliant Standards | ICES-003, FCC Part 15 A, RoHS |
| Features | Reset button, extruded aluminum housing, voltage meter, current meter, active power meter, real power meter, energy meter, power factor meter, metering per input line, metering per branch circuit breaker, metering per output receptacle, remote outlet switching, crest factor meter, current monitoring, voltage monitoring, environmental sensor ready, hot-swappable controller, cascadable, bottom-front feed cord entry, LCD display, 2 x LEJBXV6-16 overload protection |
| Networking | |
| Remote Management Interface | Ethernet 10/100/1000, Ethernet 10/100, RS-232, USB |
| Remote Management Protocol | HTTP, HTTPS, SSH, Telnet, SNMP 2, SNMP 3, SMTP, JSON-RPC, Modbus TCP |
| Power Device | |
| Circuit Protection | Circuit breaker |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x power IEC 60309 2P+E |
| Input Voltage | AC 230 V |
| Input Voltage Range | AC 200 - 240 V |
| Max Electric Current | 32 A |
| Output Voltage | AC 230 V |
| Power Capacity | 7400 VA |
| Power Capacity Details | 6.4 kVA at 200 V, 7.7 kVA at 240 V |
| Power Output Connectors Details |
|
