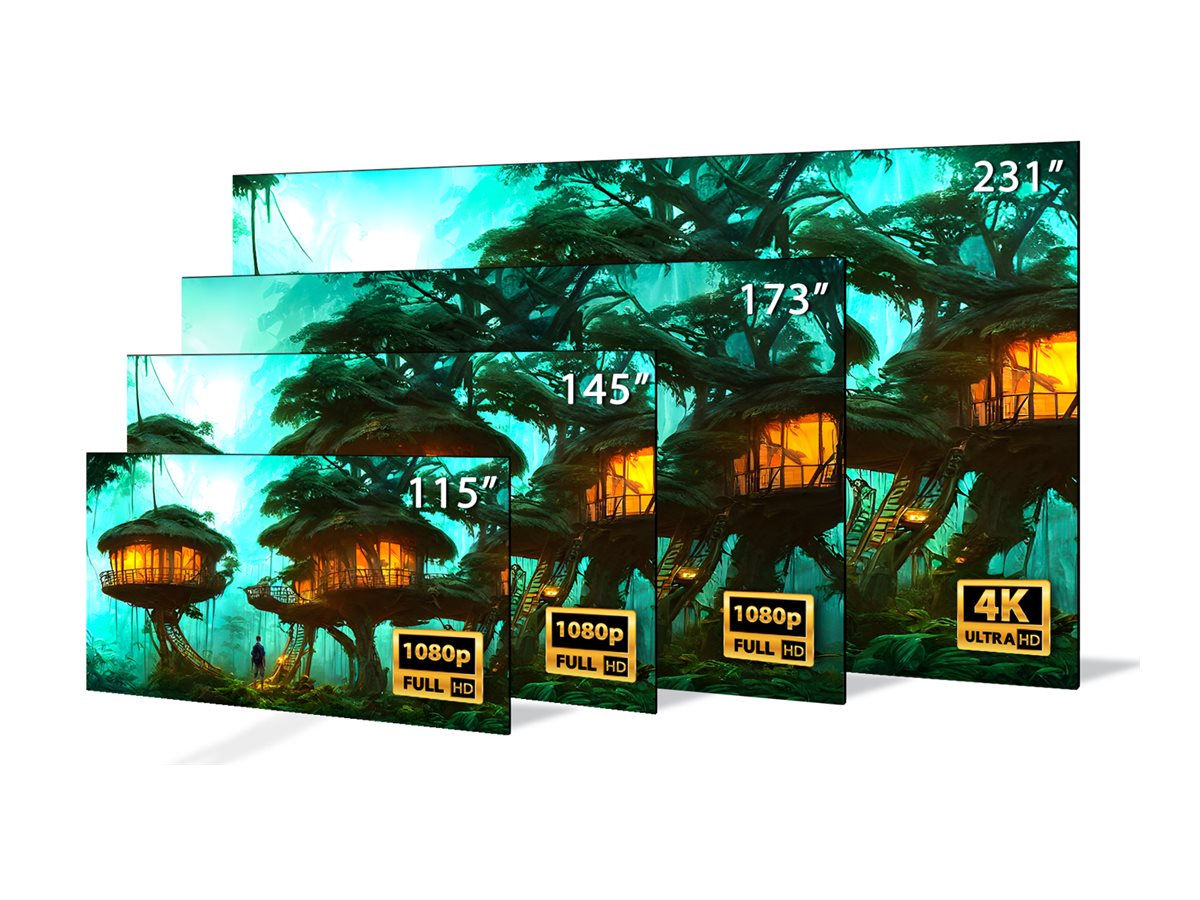

Planar HD 145 - Luminate Ultra W Series LED video wall
MSRP$65,297.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
Planar HD 145 - Luminate Ultra W Series LED video wall
- MicroLED
- interactive digital signage
- 1920 x 1080 145"
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $65,297.00 |
| Mfr Part #: | 998-4019-00 |
| SHI Part #: | 48462899 |
| Category: | Televisions |
| UNSPSC: | 52161505 |
| Manufacturer: | Planar |
| Product Type: | Hardware |
| Product Line: | Planar Systems |
| General Information | |
|---|---|
| Category | Televisions |
| Description | Planar HD 145 - Luminate Ultra W Series LED video wall - MicroLED - interactive digital signage - 1920 x 1080 145" |
| Manufacturer | Planar |
| MSRP | $65,297.00 |
| UNSPSC | 52161505 |
| Main Specifications | |
| Dimensions & Weight / Depth | 9.55 cm |
| Dimensions & Weight / Height | 179.832 cm |
| Dimensions & Weight / Weight | 236.321 kg |
| Dimensions & Weight / Width | 320.04 cm |
| Header / Brand | Planar |
| Miscellaneous / Product Color | Black |
| Service & Support / Type | 3-year warranty |
| Television / Brightness | 3000 cd/m² |
| Television / Image Contrast Ratio | 10000:1 |
| Television / Type | LED video wall |
| Television / Viewing Angle | 170° |
| Display | |
| Additional Features | 97% brightness uniformity, Glue-on-Board (GOB) surface treatment technology, front serviceability |
| Brightness | 3000 cd/m² |
| Color Temperature | 3000 - 10000K |
| Frame Rate & Enhancement Technology | 3840 Hz Frame Rate |
| Image Contrast Ratio | 10000:1 |
| LCD Backlight Technology | LED backlight |
| Operation Hours / Days | 24 / 7 |
| Pixel Pitch | 1.6 mm |
| Viewing Angle | 170° |
| Viewing Angle (Vertical) | 170° |
| Environmental Parameters | |
| Humidity Range Operating | 10 - 80% RH (non-condensing) |
| Max Operating Temperature | 50 °C |
| Min Operating Temperature | -20 °C |
| General | |
| Commercial Use | Yes - interactive digital signage |
| Depth | 9.55 cm |
| Dimensions | With wall mounting |
| Height | 179.832 cm |
| Product Type | LED video wall - MicroLED |
| Series | Luminate Ultra W Series |
| TV Tuner Presence | No |
| Video Interface | HDMI |
| Weight | 236.321 kg |
| Width | 320.04 cm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Cables Included |
|
| Compliant Standards | IP65 front, IP65 back |
| Included Accessories | Wall mount, trim kit, video controller, signal cables, spare module, power cables |
| Power | |
| Input Voltage | (50/60 Hz) |
| Power Device | Power supply |
| Video Wall Display Unit Power Consumption (Max) | 5250 W |
| Remote Control | |
| Type | Remote control |
| Stands & Mounts | |
| Wall Mount Included | Yes |
| Video Wall | |
| Diagonal Size | 145" |
| Resolution | 1920 x 1080 |
