ATEN VS1828KIT - Video/audio splitter
MSRP$844.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with

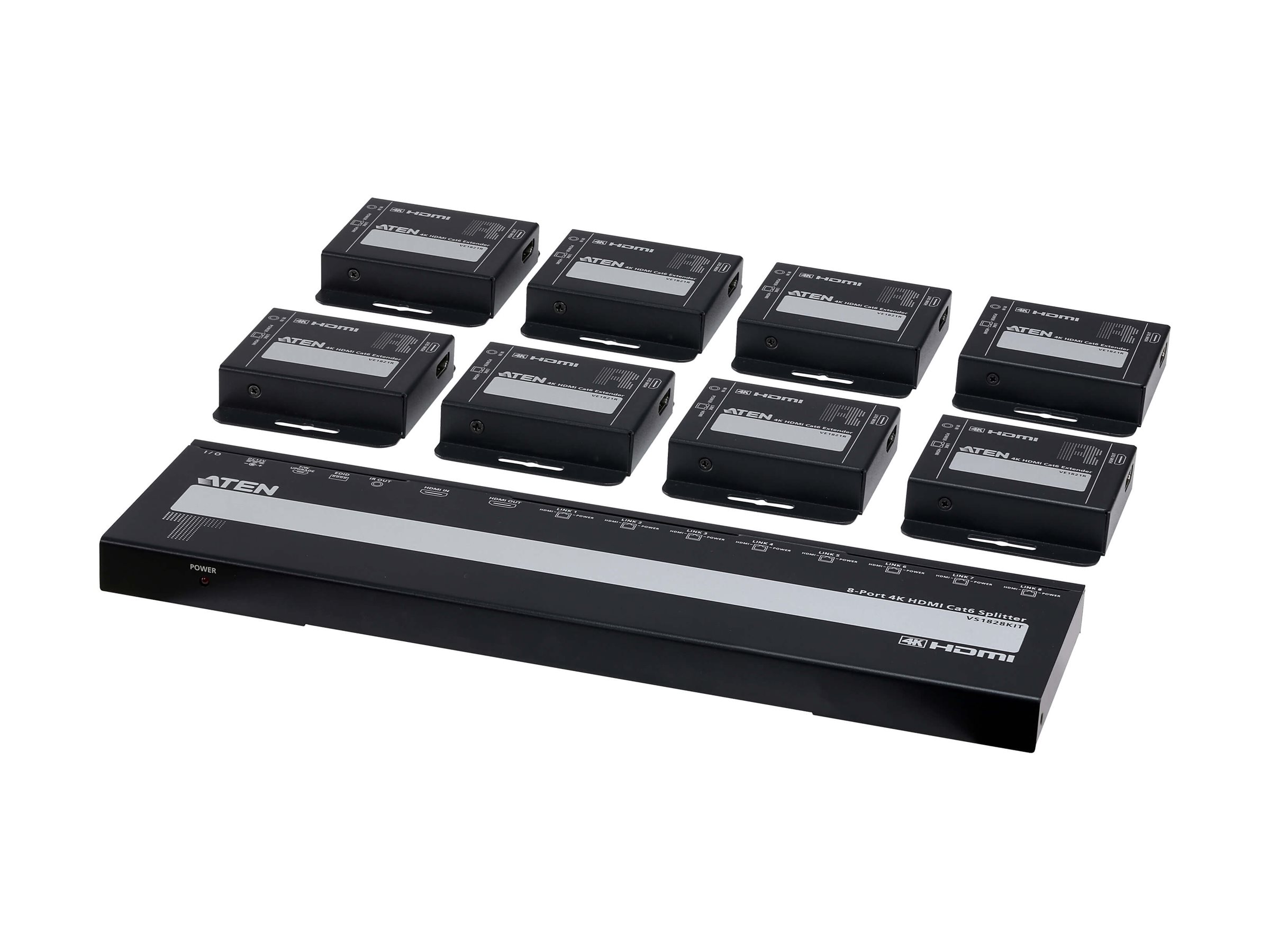

ATEN VS1828KIT - Video/audio splitter
- HDMI
- over CAT 6
- 8 ports
- up to 50 m
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $844.00 |
| Mfr Part #: | VS1828KIT |
| SHI Part #: | 48461692 |
| Category: | Serial port cards |
| UNSPSC: | 43201559 |
| Manufacturer: | ATEN |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Serial port cards |
| Description | ATEN VS1828KIT - Video/audio splitter - HDMI - over CAT 6 - 8 ports - up to 50 m |
| Manufacturer | ATEN |
| MSRP | $844.00 |
| UNSPSC | 43201559 |
| Main Specifications | |
| Dimensions & Weight / Depth | 8.2 cm |
| Dimensions & Weight / Height | 1.8 cm |
| Dimensions & Weight / Weight | 560 g |
| Dimensions & Weight / Width | 29.5 cm |
| Header / Brand | ATEN |
| Networking / Connectivity Technology | Wired |
| Networking / Data Link Protocol | HDMI |
| Networking / Form Factor | Rack-mountable |
| Networking / Type | Video/audio splitter |
| Packaged Quantity | 1 |
| Service & Support / Type | 3-year warranty |
| Dimensions & Weight | |
| Depth | 8.2 cm |
| Height | 1.8 cm |
| Weight | 560 g |
| Width | 29.5 cm |
| Environmental Parameters | |
| Humidity Range Operating | 20 - 90% (non-condensing) |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Device Type | Video/audio splitter |
| Form Factor | Rack-mountable |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Cables Included |
|
| Compliant Standards | EDID compatible, Plug and Play |
| Included Accessories | 8 x receivers, power cable |
| Networking | |
| Compliant Standards | HDCP 1.4 |
| Connectivity Technology | Wired |
| Data Link Protocol | HDMI |
| Features | Power over cable (PoC), 4:4:4 chroma subsampling support, LPCM 7.1 support, Dolby TrueHD support, Dolby Digital Plus support, DTS-HD Master Audio support, EDID changeover switch, 3D support, Deep Color support, 4KV ESD Protector, 8KV ESD Protector, 10.2 Gbps bandwidth, metal housing |
| Max Resolution | 4096 x 2160 / 3840 x 2160 @ 30 Hz |
| Max Transfer Distance | 50 m |
| Max Video Bandwidth | 340 MHz |
| Ports Qty | 8 |
| Status Indicators | Power, link/activity |
| Power | |
| Power Device | External power adapter |
