Vivotek C Series IB9383-HV
MSRP$526.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with

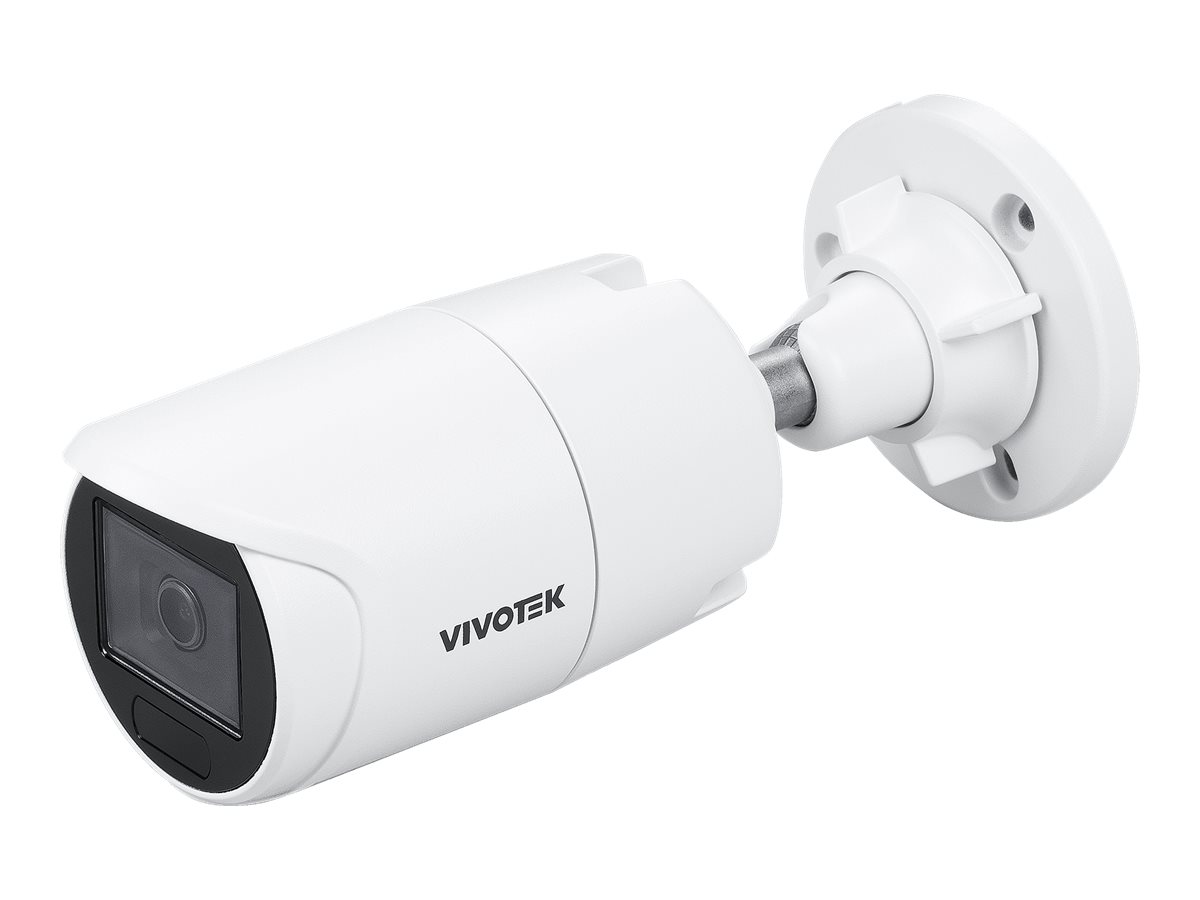

Vivotek C Series IB9383-HV
- Network surveillance camera
- bullet
- outdoor
- dustproof / weatherproof / vandal-proof
- color (Day&Night)
- 5 MP
- 2560 x 1920
- fixed iris
- fixed focal
- audio
- LAN 10/100
- MJPEG, H.264, H.265
- PoE Class 3
- TAA Compliant
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $526.00 |
| Mfr Part #: | IB9383-HV |
| SHI Part #: | 48409177 |
| Category: | Digital cameras |
| UNSPSC: | 45121504 |
| Manufacturer: | Vivotek |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Digital cameras |
| Description | Vivotek C Series IB9383-HV - Network surveillance camera - bullet - outdoor - dustproof / weatherproof / vandal-proof - color (Day&Night) - 5 MP - 2560 x 1920 - fixed iris - fixed focal - audio - LAN 10/100 - MJPEG, H.264, H.265 - PoE Class 3 - TAA Compliant |
| Manufacturer | Vivotek |
| MSRP | $526.00 |
| UNSPSC | 45121504 |
| Main Specifications | |
| Dimensions & Weight / Depth | 22.66 cm |
| Dimensions & Weight / Height | 9.1 cm |
| Dimensions & Weight / Weight | 925 g |
| Dimensions & Weight / Width | 9.1 cm |
| Header / Brand | Vivotek |
| Miscellaneous / Product Color |
|
| Packaged Quantity | 1 |
| Service & Support / Type | 5-year warranty |
| System Requirements / OS Required |
|
| Camera | |
| Digital Video Capture Resolution | 2560 x 1920, 2048 x 1536, 1920 x 1440, 1600 x 1200, 1280 x 960, 800 x 600, 640 x 480, 2560 x 1440, 1920 x 1080, 1600 x 904, 1360 x 768, 1280 x 720, 640 x 360 |
| Digital Video Format | MJPEG, H.264, H.265 |
| Digital Zoom | 48 |
| Exposure Range | 1/5 sec - 1/32000 sec |
| Features | AI-powered, Object Detection, secure boot, signed firmware, Smart Motion Detection, Smart VCA, STARVIS II sensor, Wide Dynamic Range (WDR) Pro, Removable IR-Cut Filter, 180° rotation, ePTZ, Pixel Calculator, 3 streams capability, 56 dB signal-to-noise ratio, 120 dB wide dynamic range, ONVIF (Profile S) support, ONVIF (Profile G) support, ONVIF (Profile T) support, attribute extraction, Audio Detection, Camera Tampering Detection, manual trigger, motion detection, shock detection, 78.3 m detection distance, 31.3m observation distance, 15.6 recognition distance, 7.8m identification distance |
| Flash Memory | 8 GB |
| Frame Rate (max) | 60 frames per second |
| Infrared Distance | 30 m |
| Infrared LEDs | 2 |
| Max Digital Video Resolution | 2560 x 1920 |
| Minimum Illumination |
|
| Motion Detection | Yes |
| RAM | 2 GB |
| Type | Color - Day&Night - fixed - outdoor - dustproof / weatherproof / vandal-proof |
| Environmental Parameters | |
| Max Operating Temperature | 50 °C |
| Min Operating Temperature | -10 °C |
| Relative Humidity (operating) | 0 - 90% |
| Expansion / Connectivity | |
| Ports | LAN/power - RJ-45 |
| Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
| General | |
| Audio Formats | G.711, G.726, AAC-LC, MPEG 2 Audio |
| Audio Support | Yes: one-way audio capability, built-in microphone |
| Connectivity Technology | Wired |
| Depth | 22.66 cm |
| Device Type | Network surveillance camera |
| Form Factor | Bullet |
| Height | 9.1 cm |
| Weight | 925 g |
| Width | 9.1 cm |
| Image Sensor | |
| Type | 5 MP Progressive Scan CMOS 1/2.8" |
| Interfaces | |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, RTCP, PPPoE, SMB, IGMP, SSL, QOS, CoS, CIFS |
| Lens Construction | |
| Diagonal Field of View (degree) | 105.8 |
| Focal Length | 3.6 mm |
| Horizontal Field of View (degree) | 79.6 |
| Lens Iris | F/2.0 fixed iris |
| Type | Fixed focal |
| Vertical Field of View (degree) | 57.8 |
| Miscellaneous | |
| Compliant Standards | IP66, IK10, IEEE 802.3af, EN 55032, EN 55035 Class A, UKCA, FCC, FCC Part 15 Subpart B, RCM, AS/NZS CISPR 32 Class A, VCCI, VCCI-CISPR 32 Class A, ICES-003 issue 7 Class A, UL, UL 62368-1, CB, EN 62368-1, EN 60950-22, LVD, IEC 62262, IEC 60529, IS 13252, CNS 15936, CNS 15598-1 |
| Included Accessories | Screw kit, alignment sticker, cable gland |
| TAA Compliant | Yes |
| Power | |
| Power Device | 6 watt |
| Power Requirements | PoE Class 3 |
| Software / System Requirements | |
| OS Required | Microsoft Windows 7, Windows 8, Windows 10, Apple macOS 10.12 or later |
| Tilting | |
| Range (degree) | 90 |
