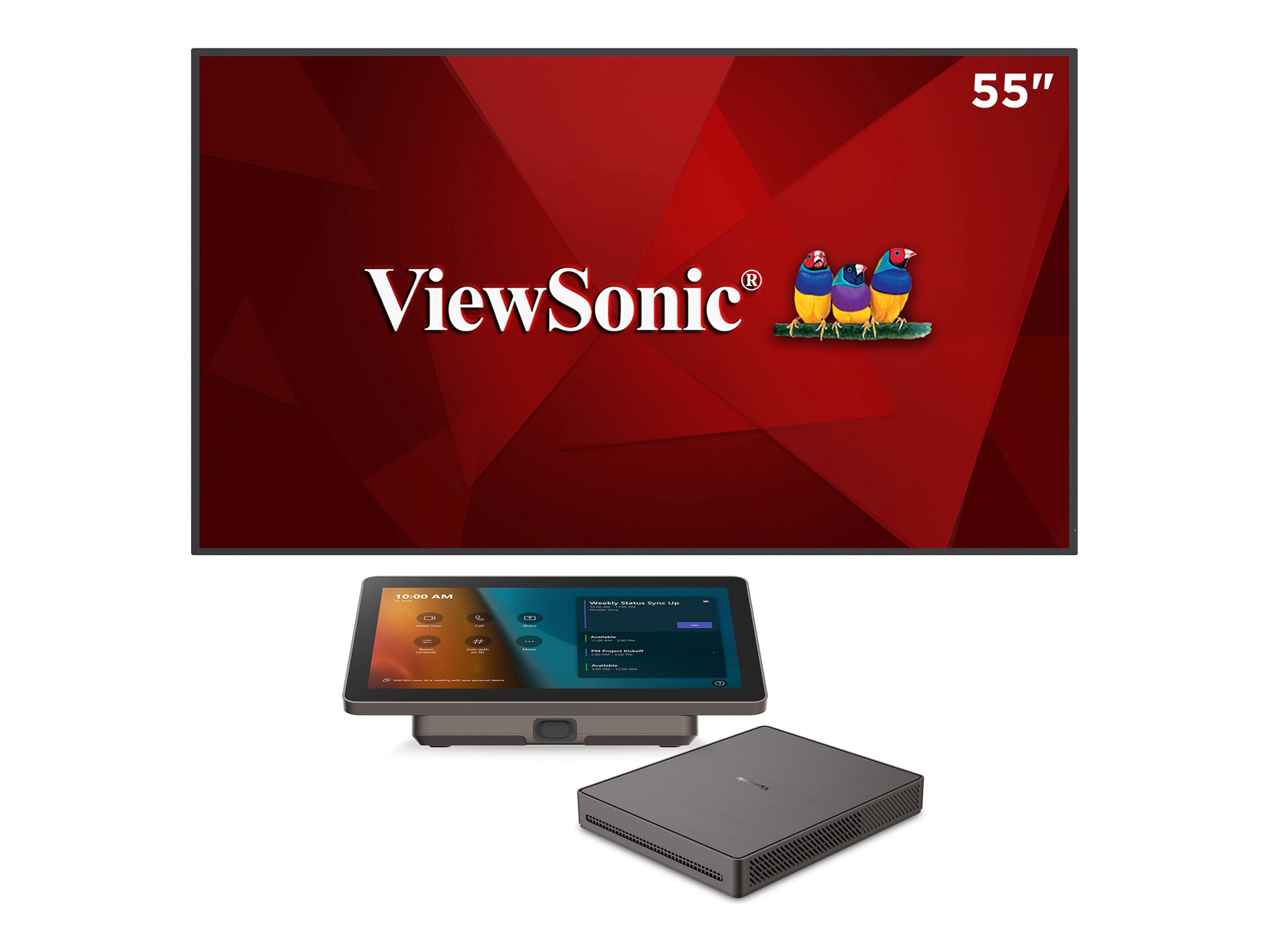

ViewSonic MN CDE5530-MTRC TeamJoin TRS10-UB w 55 Display Bundle MPC310-W31-TU
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
ViewSonic MN CDE5530-MTRC TeamJoin TRS10-UB w 55 Display Bundle MPC310-W31-TU
| Additional Details | |
|---|---|
| Mfr Part #: | CDE5530-MTRC |
| SHI Part #: | 48408440 |
| Category: | Televisions |
| UNSPSC: | 52161505 |
| Manufacturer: | ViewSonic |
| Product Type: | Other |
| General Information | |
|---|---|
| Category | Televisions |
| Description | ViewSonic MN CDE5530-MTRC TeamJoin TRS10-UB w 55 Display Bundle MPC310-W31-TU |
| Manufacturer | ViewSonic |
| UNSPSC | 52161505 |
| Main Specifications | |
| Height | 32.24 |
| Length | 6.14 |
| UPC | 0766907017472 |
| Width | 52.44 |
| Audio Input | |
| Microphone Operation Mode | Beamforming |
| Type | 6 beam-forming microphones - integrated |
| Audio Output | |
| Output Power / Channel | 11 Watt |
| Type | Speaker(s) |
| Display | |
| Diagonal Size | 55" |
| Image Aspect Ratio | 16:9 |
| Image Brightness | 450 cd/m² |
| Image Contrast Ratio | 1200:1 |
| Monitor Features | LED-backlit, anti-glare, landscape mode, portrait mode, Direct LED, 25% haze |
| Native Resolution | 3840 x 2160 |
| Response Time | 6.5 ms |
| Technology | TFT active matrix |
| Expansion / Connectivity | |
| Expansion Slots | M.2 (SATA) |
| Interfaces |
|
| General | |
| Built-in Devices | Speaker, camera, antenna, presence sensor, microphone array, motion sensor |
| Device Type | Video conferencing kit |
| Dimensions & Weight Details |
|
| Kit Content | Viewsonic TeamJoin MPC310-W31-TU computing engine, Viewsonic TeamJoin MRC1010-TN touch console, ViewSonic UMB202 4K Video Bar System, ViewSonic CDE5530 presentation display |
| Video Codecs | MJPEG, H.264 AVC, YUY2, NV12 |
| Input Device | |
| Connectivity Technology | Wired |
| Features | LED backlight, 1920 x 1200 resolution, multi-touch, security slot (Kensington security lock compatible) |
| Type | 10.1" touchscreen |
| Miscellaneous | |
| Cables Included |
|
| Compliant Standards | FCC, RoHS, LVD, TSCA, FCC-ID, IC ID |
| Included Accessories | Remote control, wall mount screws |
| Mounting Kit | Included |
| Software Certification | Certified for Microsoft Teams Rooms |
| Networking | |
| Compliant Standards | Bluetooth 5.3 |
| Connectivity Technology | Wireless, wired |
| Data Link Protocol | Gigabit Ethernet, Bluetooth 5.3 |
| Features | Cable management |
| Performance | Frame rate: 30 fps |
| Type | Network adapter |
| Power | |
| Power Consumption Operational | 111.9 Watt |
| Power Device | Power supply - internal |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Software / System Requirements | |
| OS Required | Windows 11 IoT Enterprise |
| Software Included | Windows 11 IoT Enterprise |
| Video Input | |
| Digital Video Capture Resolution | 1280 x 720, 640 x 480, 320 x 240, 352 x 288, 800 x 600, 1920 x 1080, 640 x 360, 2560 x 1440, 3840 x 2160, 1024 x 576, 960 x 540, 480 x 270 |
| Digital Zoom | 5 |
| Features | Digital noise reduction, white balance, ePTZ, auto-framing, voice tracking, exposure mode, 117.8° diagonal field of view (DFOV), 109° horizontal field of view (HFOV), 74.4° vertical field of view (VFOV), Direction-of-Arrival (DOA) voice tracking technology, 8 m microphone pick up range |
| Interface Type | SuperSpeed USB 3.0 |
| Type | Digital camera |
| Video Output | |
| PC Configuration | Core i3-1220P, 8GB RAM, 128GB SSD |
