Server Technology PRO4X Smart POPS PDU C4T36RA-2CBE2FE2
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with

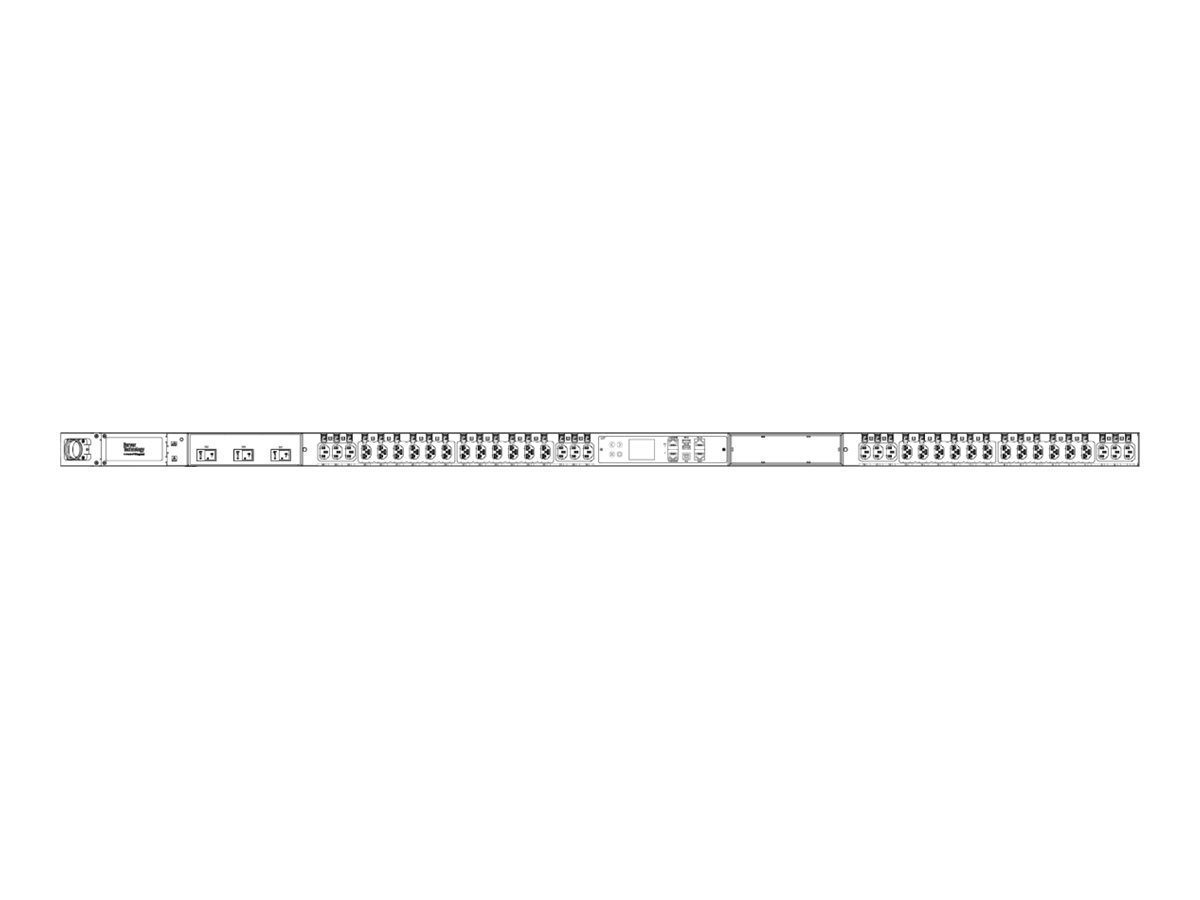

Server Technology PRO4X Smart POPS PDU C4T36RA-2CBE2FE2
- Power distribution unit (rack-mountable)
- AC 208 V
- 5 kW
- Ethernet 10/100/1000, USB, RS-232
- input: NEMA L6-30P
- output connectors: 36 (12 x IEC 60320 C13, 24 x IEC 60320 Cx)
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | C4T36RA-2CBE2FE2 |
| SHI Part #: | 48398205 |
| Category: | Rack systems for rack mount electroni... |
| UNSPSC: | 24102001 |
| Manufacturer: | Legrand |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Rack systems for rack mount electroni... |
| Description | Server Technology PRO4X Smart POPS PDU C4T36RA-2CBE2FE2 - Power distribution unit (rack-mountable) - AC 208 V - 5 kW - Ethernet 10/100/1000, USB, RS-232 - input: NEMA L6-30P - output connectors: 36 (12 x IEC 60320 C13, 24 x IEC 60320 Cx) |
| Manufacturer | Legrand |
| MSRP | $3,622.00 |
| UNSPSC | 24102001 |
| Main Specifications | |
| Dimensions & Weight / Depth | 6.4 cm |
| Dimensions & Weight / Height | 177.8 cm |
| Dimensions & Weight / Width | 5.6 cm |
| Header / Brand | Server Technology |
| Networking / Remote Management Interface |
|
| Packaged Quantity | 1 |
| Power Device / Form Factor | Rack-mountable |
| Power Device / Output Connector Qty | 36 |
| Power Device / Voltage Required | AC 208 V |
| Product Type | Power distribution unit |
| Service & Support / Type | 2-year warranty |
| Dimensions & Weight | |
| Depth | 6.4 cm |
| Height | 177.8 cm |
| Width | 5.6 cm |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 90% RH (non-condensing) |
| Max Operating Temperature | 60 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Device Type | Power distribution unit - rack-mountable |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts and labor - 2 years |
| Miscellaneous | |
| Compliant Standards | UL 489, CSA C22.2 No. 5, EN 60947-5-2, IEC 62368-1, CISPR32/EN55032, CISPR 35/EN 55035, EN 61000-3-2, IEC 61000-3-2, EN61000-3-3, IEC 61000-3-3, RoHS 2011/65/EU, UCKA, RoHS |
| Features | Waveform capture, High Density Outlet Technology (HDOT), Per Input Power Sensing (PIPS), Per Outlet Power Sensing (POPS), Branch Circuit Protection, temperature monitoring, humidity monitoring, multi-color LCD, Branch Current Monitoring, 45° angled infeed, Multi-Unit Linking and Cascading, hot-swappable controller, network monitoring, outlet control, Ramlock Locking Outlets, alternating-phase outlets, email alerts support, environmental sensor ready, locking outlets, power factor meter, energy meter, apparent power meter, active power meter, current meter |
| Networking | |
| Remote Management Interface | Ethernet 10/100/1000, USB, RS-232 |
| Remote Management Protocol | HTTP, HTTPS, SSH, Telnet, SNMP, SFTP, SMTP, LDAP, CLI, SSH-2, SNMP 2c, SNMP 3, IPv4, IPv6, TACACS+, RADIUS |
| Power Device | |
| Circuit Protection | Circuit breaker |
| Input Connectors | 1 x power NEMA L6-30P |
| Input Voltage | AC 208 V |
| Max Electric Current | 30 A |
| Output Voltage | AC 208 V |
| Power Capacity | 5 kW |
| Power Output Connectors Details |
|
