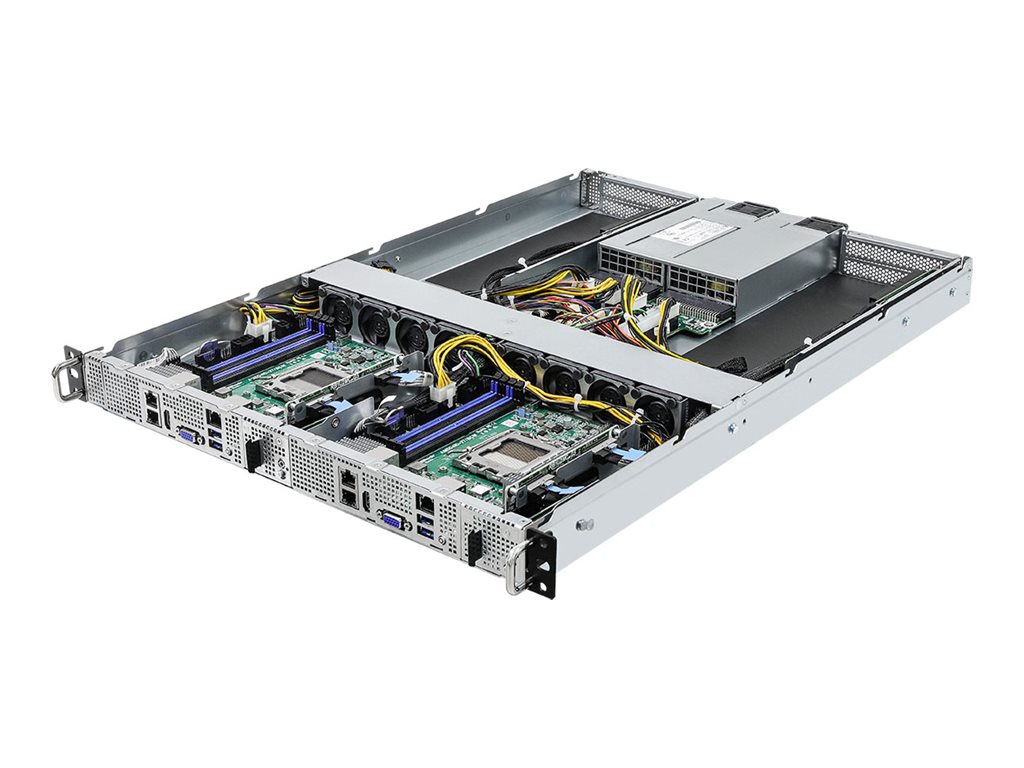

ASRock Rack 1U2N2G-AM5/2T
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
ASRock Rack 1U2N2G-AM5/2T
- 2 nodes
- cluster
- rack-mountable 1U
- 1-way
- no CPU
- RAM 0 GB
- no HDD
- AST2600
- Gigabit Ethernet, 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, 10 Gigabit Ethernet
- no OS
- monitor: none
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | 1U2N2G-AM5/2T |
| SHI Part #: | 48381391 |
| Category: | Servers |
| UNSPSC: | 43211501 |
| Manufacturer: | ASRock |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Servers |
| Description | ASRock Rack 1U2N2G-AM5/2T - 2 nodes - cluster - rack-mountable 1U - 1-way - no CPU - RAM 0 GB - no HDD - AST2600 - Gigabit Ethernet, 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, 10 Gigabit Ethernet - no OS - monitor: none |
| Manufacturer | ASRock |
| UNSPSC | 43211501 |
| Main Specifications | |
| Chassis / Form Factor | Rack-mountable |
| Dimensions & Weight / Depth | 65 cm |
| Dimensions & Weight / Height | 4.35 cm |
| Dimensions & Weight / Width | 43.8 cm |
| Display / Type | None. |
| Header / Brand | ASRock Rack |
| Mainboard / Chipset Type | KNOLL3 X300 |
| Mainboard / Processor Socket | LGA1718 Socket |
| Miscellaneous / Product Color | Silver |
| Networking / Data Link Protocol |
|
| Optical Storage / Drive Type | No optical drive |
| Optical Storage / Type | None |
| OS Provided / Type | No operating system |
| Packaged Quantity | 1 |
| Processor / Type | No CPU |
| RAM / Data Integrity Check | ECC |
| RAM / Form Factor | DIMM 288-pin |
| RAM / Technology | DDR5 SDRAM |
| System / Hard Drive Capacity | 0 GB |
| System / Type | Cluster |
| Video Output / Graphics Processor | ASPEED AST2600 |
| Cluster | |
| Power Supply Capacity | 2x1600 Watt |
| Shared Storage Power Supply | 2 redundant hot plug power supplies |
| Dimensions & Weight | |
| Depth | 65 cm |
| Height | 4.35 cm |
| Width | 43.8 cm |
| Environmental Parameters | |
| Max Operating Temperature | 35 °C |
| Min Operating Temperature | 10 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| Slots |
|
| General | |
| Built-in Devices | LED panel, system temperature monitor, voltage monitor, fan tachometer, 8 x 40x56 mm fan |
| Cluster Configuration | 2 - computing node |
| Product Form Factor | Rack-mountable - 1U |
| Server Scalability | 1-way |
| Type | Cluster (2 nodes) |
| Graphics Controller | |
| Graphics Processor | ASPEED AST2600 |
| Video Interfaces | VGA, HDMI |
| Hard Drive | |
| Type | No HDD |
| Miscellaneous | |
| Compliant Standards | SMBIOS 2.3, Plug and Play, ACPI 5.1 |
| Monitor | |
| Monitor Type | None. |
| Networking | |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, 10 Gigabit Ethernet |
| Ethernet Controller | Broadcom BCM57416, RTL8211F |
| Ethernet Ports | 2 x 10 Gigabit Ethernet |
| Remote Management Controller | Aspeed AST2600 |
| Operating System / Software | |
| OS Provided | No operating system |
| Optical Storage | |
| Type | No optical drive |
| Power | |
| 80 PLUS Certification | 80 PLUS Titanium |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Processor / Chipset | |
| Chipset Type | KNOLL3 X300 |
| CPU | No CPU |
| CPU Socket | LGA1718 Socket |
| CPU Upgradability | Upgradable |
| Max CPU Qty | 1 |
| Motherboard Name | ASRock Rack AM5D4ID-2T/BCM |
| RAM | |
| Features | Unbuffered |
| Form Factor | DIMM 288-pin |
| Installed Size | 0 GB (installed) / 192 GB (max) |
| Slots | 4 (total) / 4 (empty) |
| Technology | DDR5 SDRAM - ECC |
