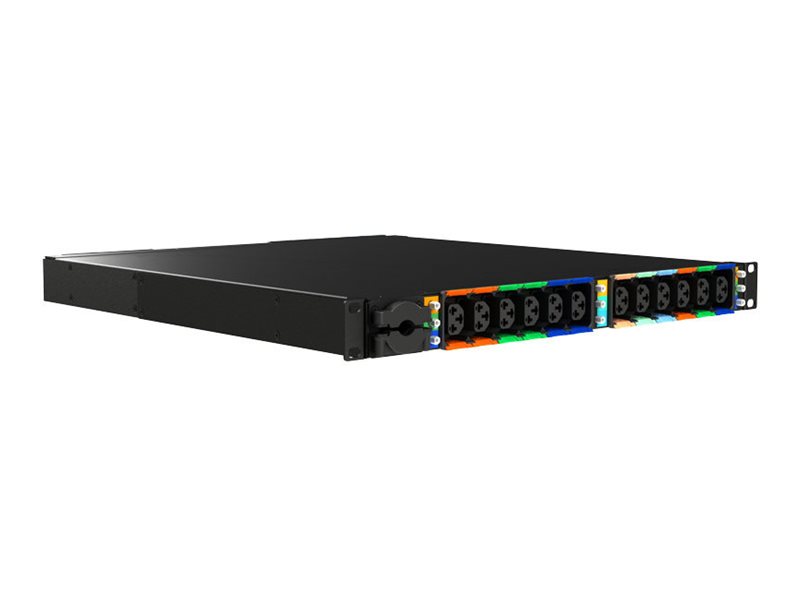

Lenovo - Power distribution unit (rack-mountable)
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
Lenovo - Power distribution unit (rack-mountable)
- switched and monitored
- AC 200-240 V
- 3-phase delta
- Ethernet 10/100/1000
- input: IEC 60309 3P+E
- output connectors: 18 (IEC 60320 C13/C19)
- 1U
- 19"
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | 4PU7A90810 |
| SHI Part #: | 48309301 |
| Category: | Rack systems for rack mount electroni... |
| UNSPSC: | 24102001 |
| Manufacturer: | Lenovo |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Rack systems for rack mount electroni... |
| Description | Lenovo - Power distribution unit (rack-mountable) - switched and monitored - AC 200-240 V - 3-phase delta - Ethernet 10/100/1000 - input: IEC 60309 3P+E - output connectors: 18 (IEC 60320 C13/C19) - 1U - 19" |
| Manufacturer | Lenovo |
| MSRP | $12,659.00 |
| UNSPSC | 24102001 |
| Main Specifications | |
| Dimensions & Weight / Depth | 48.3 cm |
| Dimensions & Weight / Height | 4.4 cm |
| Dimensions & Weight / Weight | 15.9 kg |
| Dimensions & Weight / Width | 44.8 cm |
| Header / Brand | Lenovo |
| Miscellaneous / Product Color | Black |
| Networking / Remote Management Interface | Ethernet 10/100/1000 |
| Packaged Quantity | 1 |
| Power Device / Form Factor | Rack-mountable |
| Power Device / Output Connector Qty | 18 |
| Power Device / Voltage Required | AC 200-240 V |
| Product Type | Power distribution unit |
| Service & Support / Type | 3-year warranty |
| Dimensions & Weight | |
| Depth | 48.3 cm |
| Height | 4.4 cm |
| Weight | 15.9 kg |
| Width | 44.8 cm |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Max Operating Temperature | 60 °C |
| Min Operating Temperature | 10 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Device Type | Power distribution unit - rack-mountable |
| Height (Rack Units) | 1U |
| Rack Size | 19" |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Cables Included | Power cable - external - 3 m |
| Compliant Standards | RoHS, UL 62368, FCC Part 15 A |
| Features | 4-digit display, color-coded, horizontal orientation, vertical orientation, Interchangeable Monitoring Device (IMD) module |
| Rack Mounting Kit | Included |
| Networking | |
| Remote Management Interface | Ethernet 10/100/1000 |
| Remote Management Protocol | SNMP 1, SNMP 2c, SNMP 3, DHCP, HTTP, HTTPS, IPv4, IPv6, LDAP, NTP, RADIUS, RSTP, SMTP, SSH, TACACS+, Syslog |
| Power Device | |
| Circuit Protection | Circuit breaker |
| Frequency Provided | 50 - 60 Hz |
| Input Connectors | 1 x power IEC 60309 3P+E |
| Input Voltage | AC 200-240 V |
| Input Wiring | 3-phase delta |
| Max Electric Current | 80 A |
| Output Voltage | 50 - 60 Hz |
| Power Output Connectors Details | 18 x power IEC 60320 C13/C19 |
