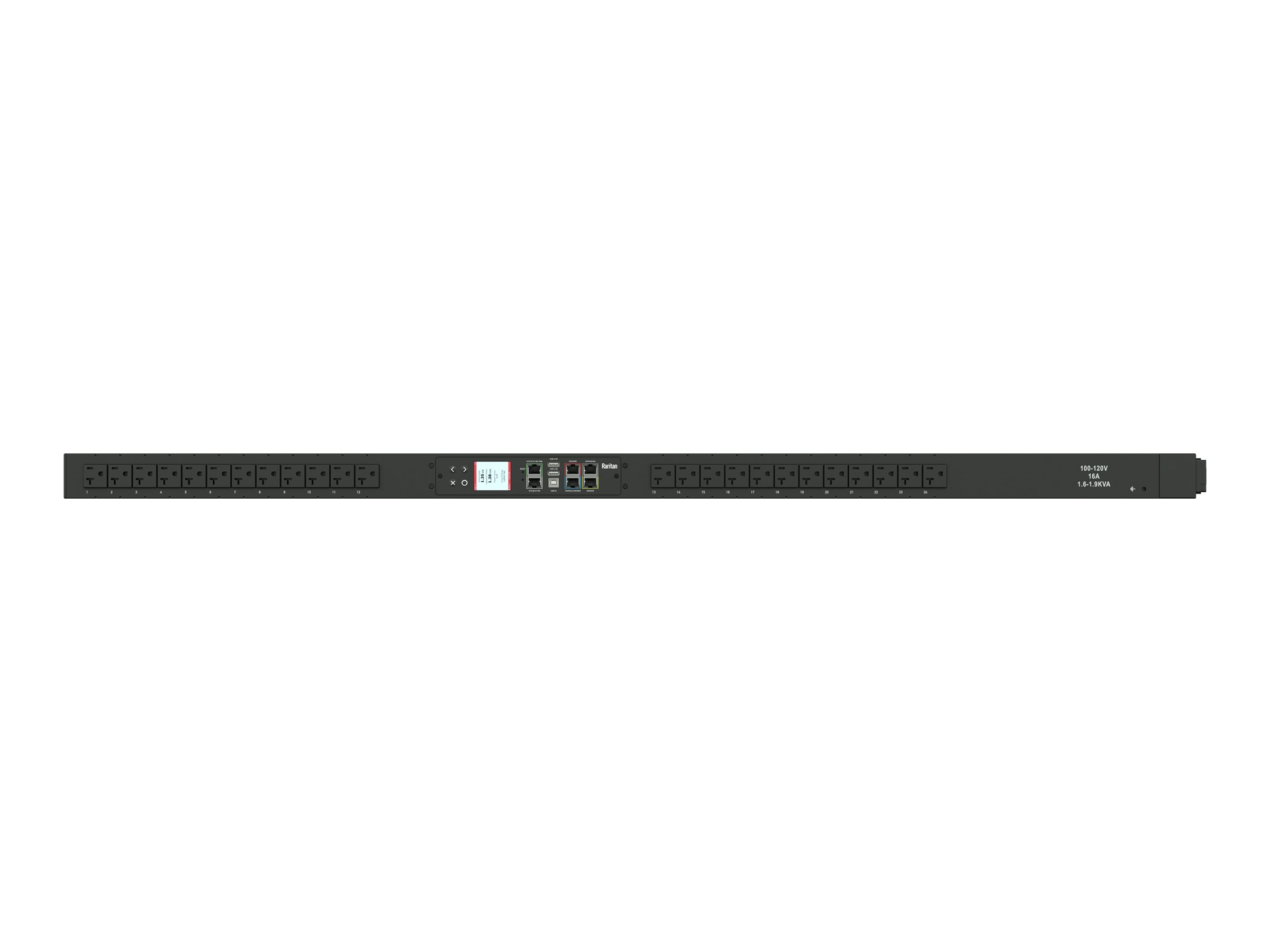

Raritan PX3-1475V - Power distribution unit (rack-mountable)
MSRP$775.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
Raritan PX3-1475V - Power distribution unit (rack-mountable)
- AC 120 V
- 1900 VA
- 1-phase
- Ethernet 10/100/1000, USB, RS-232
- input: NEMA L5-20P
- output connectors: 24 (24 x NEMA 5-20R)
- 0U
- 3 m cord
- blue
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $775.00 |
| Mfr Part #: | PX3-1475V-K2 |
| SHI Part #: | 48209276 |
| Category: | Rack systems for rack mount electroni... |
| UNSPSC: | 24102001 |
| Manufacturer: | Legrand |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Rack systems for rack mount electroni... |
| Description | Raritan PX3-1475V - Power distribution unit (rack-mountable) - AC 120 V - 1900 VA - 1-phase - Ethernet 10/100/1000, USB, RS-232 - input: NEMA L5-20P - output connectors: 24 (24 x NEMA 5-20R) - 0U - 3 m cord - blue |
| Manufacturer | Legrand |
| MSRP | $775.00 |
| UNSPSC | 24102001 |
| Main Specifications | |
| Dimensions & Weight / Depth | 4.3 cm |
| Dimensions & Weight / Height | 129.8 cm |
| Dimensions & Weight / Weight | 3.2 kg |
| Dimensions & Weight / Width | 5.2 cm |
| General / Subcategory | Power distribution devices |
| Header / Brand | Raritan |
| Miscellaneous / Product Color | Blue |
| Networking / Remote Management Interface |
|
| Packaged Quantity | 1 |
| Power Device / Form Factor | Rack-mountable |
| Power Device / Output Connector Qty | 24 |
| Power Device / Power Capacity (VA) | 1900 VA |
| Power Device / Voltage Required | AC 120 V |
| Product Type | Power distribution unit |
| Service & Support / Type | 2-year warranty |
| Dimensions & Weight | |
| Depth | 4.3 cm |
| Height | 129.8 cm |
| Weight | 3.2 kg |
| Width | 5.2 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 18.5 cm |
| Shipping Height | 140.8 cm |
| Shipping Weight | 6 kg |
| Shipping Width | 18.5 cm |
| Environmental Parameters | |
| Humidity Range Operating | 85% |
| Max Operating Temperature | 60 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Color | Blue |
| Cord Length | 3 m |
| Device Type | Power distribution unit - rack-mountable |
| Height (Rack Units) | 0U |
| Image Color Disclaimer | The displayed product image may be a different color |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Cables Included | Power cable 3 m |
| Compliant Standards | cULus, IEC 62053-21, ISO 62053-21, UL, ICES-003, FCC Part 15 A, RoHS |
| Features | Tool-less button mount, vertical orientation, removable controller, active power meter, current meter, energy meter, power factor meter, real power meter, voltage meter, metering per input line, environmental sensor ready, cascadable, LCD display, Auto-Flip Current Display, vertical orientation, replaceable controller, power cable IP44 compliant, cord retention |
| Networking | |
| Remote Management Interface | Ethernet 10/100/1000, USB, RS-232 |
| Remote Management Protocol | JSON-RPC, Telnet, SSH, Modbus, SNMP 3, TFTP, DHCP, CLI, HTTP, HTTPS, SNMP 2, SMTP |
| Power Device | |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x power NEMA L5-20P |
| Input Voltage | AC 120 V |
| Input Voltage Range | AC 100 - 120 V |
| Input Wiring | 1-phase |
| Max Electric Current | 20 A |
| Output Voltage | AC 120 V |
| Power Capacity | 1900 VA |
| Power Capacity Details | 1.6 kVA at 100 V, 1.9 kVA at 120 V |
| Power Output Connectors Details | 24 x power NEMA 5-20R 16 A |
