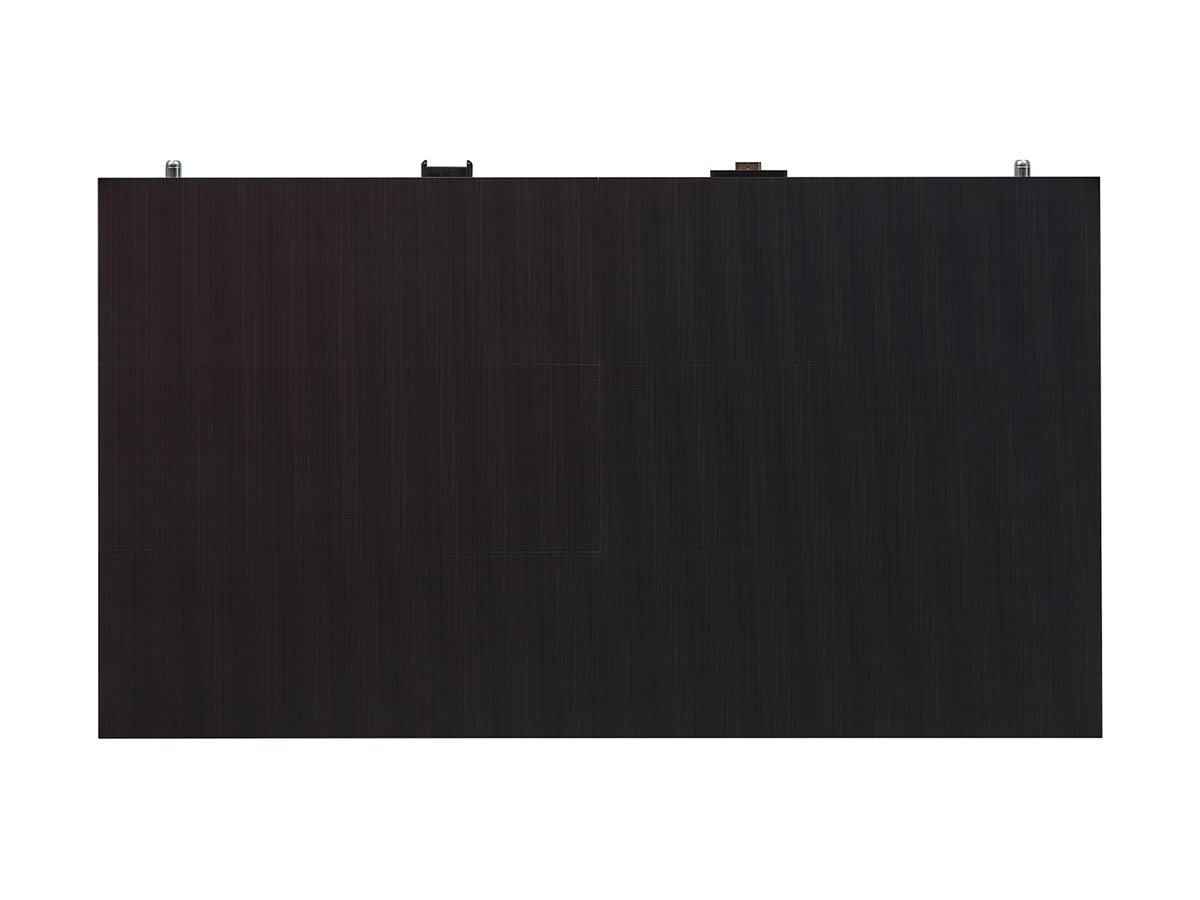

LG MAGNIT LSAB007-U22
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
LG MAGNIT LSAB007-U22
- LSAB VI Series LED display unit
- digital signage 384 x 144 (LED unit) / 768 x 432 (cabinet) per unit
- Fused COB
- HDR
- Direct View LED
- Premium
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | LSAB007-U22 |
| SHI Part #: | 48189638 |
| Category: | Televisions |
| UNSPSC: | 52161505 |
| Manufacturer: | LG Electronics |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Televisions |
| Description | LG MAGNIT LSAB007-U22 - LSAB VI Series LED display unit - digital signage 384 x 144 (LED unit) / 768 x 432 (cabinet) per unit - Fused COB - HDR - Direct View LED - Premium |
| Manufacturer | LG Electronics |
| MSRP | $14,032.00 |
| UNSPSC | 52161505 |
| Main Specifications | |
| Dimensions & Weight / Height | 11.25 cm |
| Dimensions & Weight / Weight | 0.18 kg |
| Dimensions & Weight / Width | 30 cm |
| Header / Brand | LG |
| Miscellaneous / Product Color | Black |
| Television / Brightness | 1000 cd/m² |
| Television / Image Contrast Ratio | 28000:1 |
| Television / Type | LED display unit |
| Television / Viewing Angle | 150° |
| Dimensions & Weight Details | |
| Dimensions & Weight Details |
|
| Display | |
| Additional Features | 20-bit processing, 95% brightness uniformity |
| Brightness | 1000 cd/m² |
| Color Temperature | 3200 - 9300K |
| Commercial Features | Main top cabinet |
| Frame Rate & Enhancement Technology | 60 Hz Frame Rate, 50 Hz Frame Rate, 3840 Hz Refresh Rate |
| Image Contrast Ratio | 28000:1 |
| LCD Backlight Technology | Direct View LED |
| Viewing Angle | 150° |
| Viewing Angle (Vertical) | 150° |
| Environmental Parameters | |
| Humidity Range Operating | 10 - 80% RH |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| General | |
| Commercial Use | Yes - digital signage |
| Dimensions | Display unit |
| HDR Capable | Yes |
| HDR Format | HDR10 |
| HDR Technology | HDR10 Pro |
| Height | 11.25 cm |
| Pricing Type | Premium |
| Product Type | LED display unit |
| Series | LSAB VI Series |
| TV Tuner | No tuner |
| TV Tuner Presence | No |
| Weight | 0.18 kg |
| Width | 30 cm |
| Miscellaneous | |
| Compliant Standards | RoHS, EMC Class B, BS 476 Part 7 Class 1, Safety 60950-1, IP20 rear, IP50 front |
| Power | |
| Features | Signal+Power Redundancy |
| Heat Generation Details |
|
| Input Voltage | AC 100-240 V |
| Power Device | Power supply |
| Video Wall Display Unit Power Consumption (Max) | 60 W |
| Video Wall Display Unit Power Consumption (Typical) | 40 W |
| Video Wall Power Consumption (Max) | 296 W/m² |
| Video Wall Display Unit | |
| Area | 0.2 m² |
| Cabinet Frame Material | Die-casting aluminum |
| LED Lifetime | 100000 hours |
| LED Type | Fused COB |
| Maintenance | Front |
| Modules Configuration (Per Cabinet) | 2x3 |
| Pixel Configuration | Micro LED |
| Pixel Density | 1638400 pixels/m² |
| Pixel Pitch | 0.78 mm |
| Resolution | 384 x 144 (LED unit) / 768 x 432 (cabinet) |
