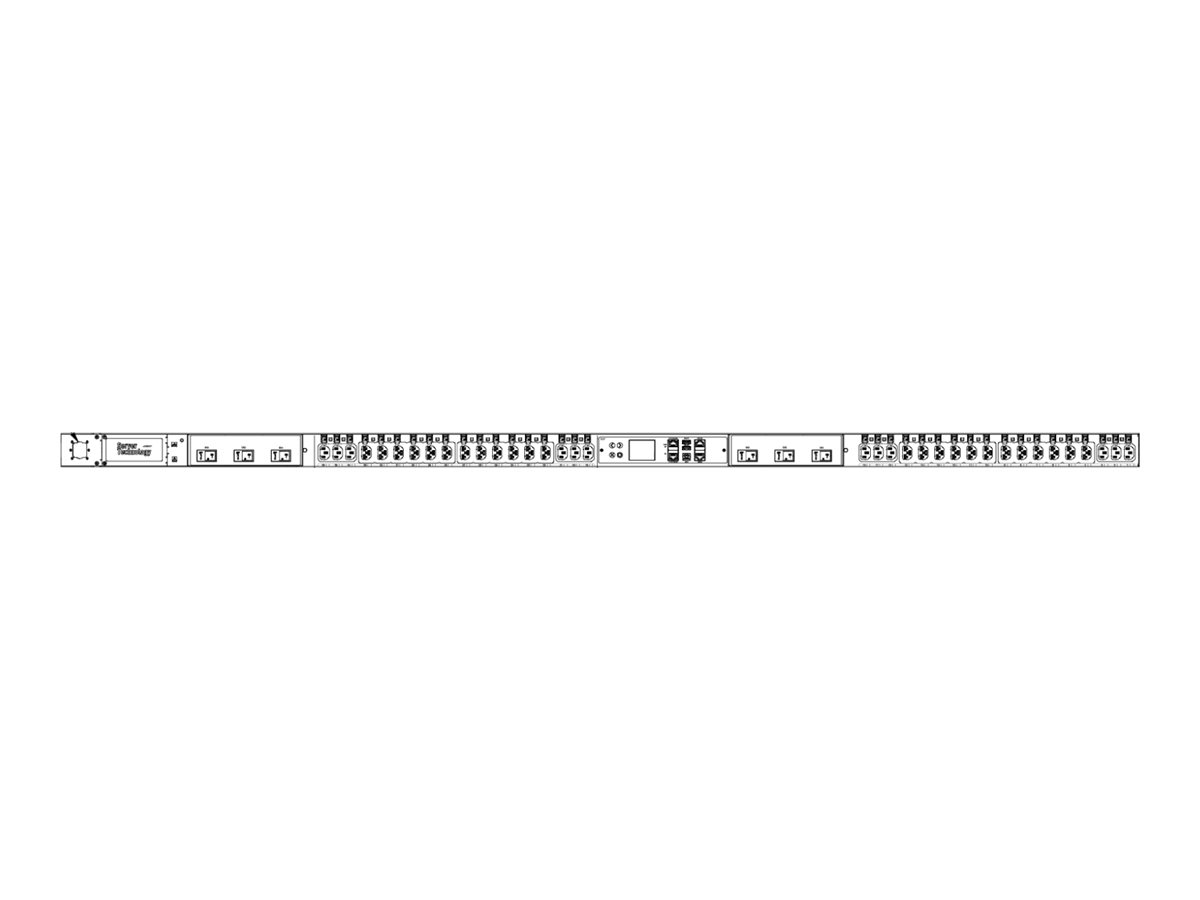

Server Technology PRO4X Switched PDU C4W36RA-GPBD2FE1
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
Server Technology PRO4X Switched PDU C4W36RA-GPBD2FE1
- Power distribution unit (rack-mountable)
- AC 415 V
- 17.3 kW
- Ethernet 10/100/1000, RS-232, USB
- input: IEC 60309 3P+N+G 6Hr
- output connectors: 36 (12 x IEC 60320 C13, 24 x IEC 60320 Cx)
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | C4W36RA-GPBD2FE1 |
| SHI Part #: | 48127611 |
| Category: | Rack systems for rack mount electroni... |
| UNSPSC: | 24102001 |
| Manufacturer: | Legrand |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Rack systems for rack mount electroni... |
| Description | Server Technology PRO4X Switched PDU C4W36RA-GPBD2FE1 - Power distribution unit (rack-mountable) - AC 415 V - 17.3 kW - Ethernet 10/100/1000, RS-232, USB - input: IEC 60309 3P+N+G 6Hr - output connectors: 36 (12 x IEC 60320 C13, 24 x IEC 60320 Cx) |
| Manufacturer | Legrand |
| MSRP | $3,469.00 |
| UNSPSC | 24102001 |
| Main Specifications | |
| Dimensions & Weight / Depth | 6.4 cm |
| Dimensions & Weight / Height | 1.778 m |
| Dimensions & Weight / Width | 5.6 cm |
| General / Subcategory | Power distribution devices |
| Header / Brand | Server Technology |
| Networking / Remote Management Interface |
|
| Packaged Quantity | 1 |
| Power Device / Form Factor | Rack-mountable |
| Power Device / Output Connector Qty | 36 |
| Power Device / Voltage Required | AC 415 V |
| Product Type | Power distribution unit |
| Service & Support / Type | 2-year warranty |
| Dimensions & Weight | |
| Depth | 6.4 cm |
| Height | 1.778 m |
| Width | 5.6 cm |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 90% RH (non-condensing) |
| Max Operating Temperature | 60 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Device Type | Power distribution unit - rack-mountable |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts and labor - 2 years |
| Miscellaneous | |
| Compliant Standards | UL 489, UL 62368-1, CSA C22.2 No. 62368-1, ICES-003 Class A, FCC Part 15 B Class A, IEC/EN 62368-1, IEC 62368-1, EMC, EN 55032, CISPR 32, EN 55035, CISPR 35, EN 61000-3-2, EN 61000-3-3, IEC 61000-3-2, IEC 61000-3-3, ROHS Directive 2011/65/EU, LVD 2014/35/EU, EMCD 2014/30/EU, UKCA, RoHS |
| Features | High Density Outlet Technology (HDOT), environmental sensor ready, cascadable, outlet control, 45° angled infeed, LCD display, multi-color outlet LEDs, Per Input Power Sensing (PIPS), current monitoring, voltage monitoring, power measuring, apparent power meter, crest factor meter, power factor meter, energy meter, alternating-phase outlets, Branch Circuit Protection |
| Networking | |
| Remote Management Interface | Ethernet 10/100/1000, RS-232, USB |
| Remote Management Protocol | HTTP, HTTPS, TLS 1.2, SSH-2, Telnet, SNMP 3, SNMP 2c, IPv4, IPv6, LDAP 3.0, LDAPS, RADIUS, TACACS+, SFTP |
| Power Device | |
| Circuit Protection | Circuit breaker |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x power IEC 60309 3P+N+G 6Hr |
| Input Voltage | AC 415 V |
| Max Electric Current | 20 A |
| Output Voltage | AC 208/230 V |
| Power Capacity | 17.3 kW |
| Power Output Connectors Details |
|
