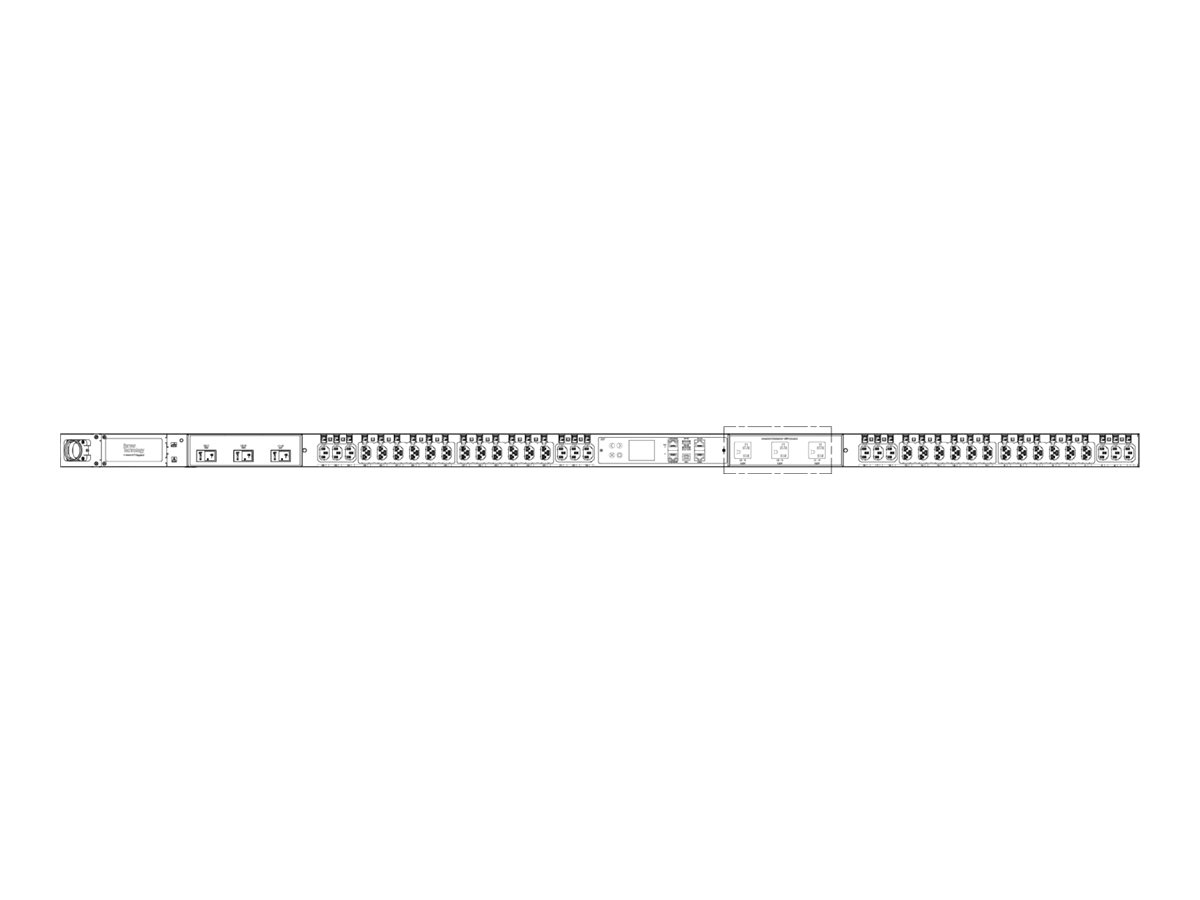

Server Technology PRO4X Smart POPS PDU C4G36RA-DBBE2FE2
MSRP$4,200.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
Server Technology PRO4X Smart POPS PDU C4G36RA-DBBE2FE2
- Power distribution unit (rack-mountable)
- switched
- AC 208 V
- 5.7 kW
- RS-232, Ethernet 10/100/1000, USB
- input: NEMA L15-20P
- output connectors: 36 (12 x IEC 60320 C13, 24 x IEC 60320 Cx)
- black
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $4,200.00 |
| Mfr Part #: | C4G36RA-DBBE2FE2 |
| SHI Part #: | 48076577 |
| Category: | Rack systems for rack mount electroni... |
| UNSPSC: | 24102001 |
| Manufacturer: | Legrand |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Rack systems for rack mount electroni... |
| Description | Server Technology PRO4X Smart POPS PDU C4G36RA-DBBE2FE2 - Power distribution unit (rack-mountable) - switched - AC 208 V - 5.7 kW - RS-232, Ethernet 10/100/1000, USB - input: NEMA L15-20P - output connectors: 36 (12 x IEC 60320 C13, 24 x IEC 60320 Cx) - black |
| Manufacturer | Legrand |
| MSRP | $4,200.00 |
| UNSPSC | 24102001 |
| Main Specifications | |
| Dimensions & Weight / Depth | 6.4 cm |
| Dimensions & Weight / Height | 177.8 cm |
| Dimensions & Weight / Width | 5.6 cm |
| Header / Brand | Server Technology |
| Miscellaneous / Product Color | Black |
| Networking / Remote Management Interface |
|
| Packaged Quantity | 1 |
| Power Device / Form Factor | Rack-mountable |
| Power Device / Output Connector Qty | 36 |
| Power Device / Voltage Required | AC 208 V |
| Product Type | Power distribution unit |
| Service & Support / Type | 2-year warranty |
| Dimensions & Weight | |
| Depth | 6.4 cm |
| Height | 177.8 cm |
| Width | 5.6 cm |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 90% RH (non-condensing) |
| Max Operating Temperature | 60 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Color | Black |
| Device Type | Power distribution unit - rack-mountable |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts and labor - 2 years |
| Miscellaneous | |
| Compliant Standards | UL 489, CSA C22.2 No. 5, IEC/EN 60947-2, UL 62368-1, CSA C22.2 No. 62368-1, FCC Subpart B 15.107 Class A, FCC Subpart B 15.109 Class A, CANICES-003 Class A |
| Features | High Density Outlet Technology (HDOT), multi-color LCD, power measuring, waveform capture, environmental monitoring, Per Outlet Power Sensing (POPS), outlet control, 45° angled infeed, Multi-Unit Linking and Cascading, hot-swappable controller, LED indicators, Ramlock Locking Outlets, Per Input Power Sensing (PIPS), Branch Circuit Protection, alternating-phase outlets, 20A trip circuit breakers, 10 kAIC Interrupt Rating |
| Networking | |
| Remote Management Interface | RS-232, Ethernet 10/100/1000, USB |
| Remote Management Protocol | HTTP, HTTPS, SSH, Telnet, SNMP, SFTP, SMTP, Syslog, LDAP, LDAPS, TLS 1.2, SSH-2, CLI, SNMP 2c, SNMP 3, IPv4, IPv6, TACACS+, RADIUS, LDAP 3.0 |
| Power Device | |
| Circuit Protection | Circuit breaker |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x power NEMA L15-20P |
| Input Voltage | AC 208 V |
| Max Electric Current | 20 A |
| Output Voltage | AC 208 V |
| Power Capacity | 5.7 kW |
| Power Output Connectors Details |
|
