EnGenius EXT1109P - Network/power extender
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with

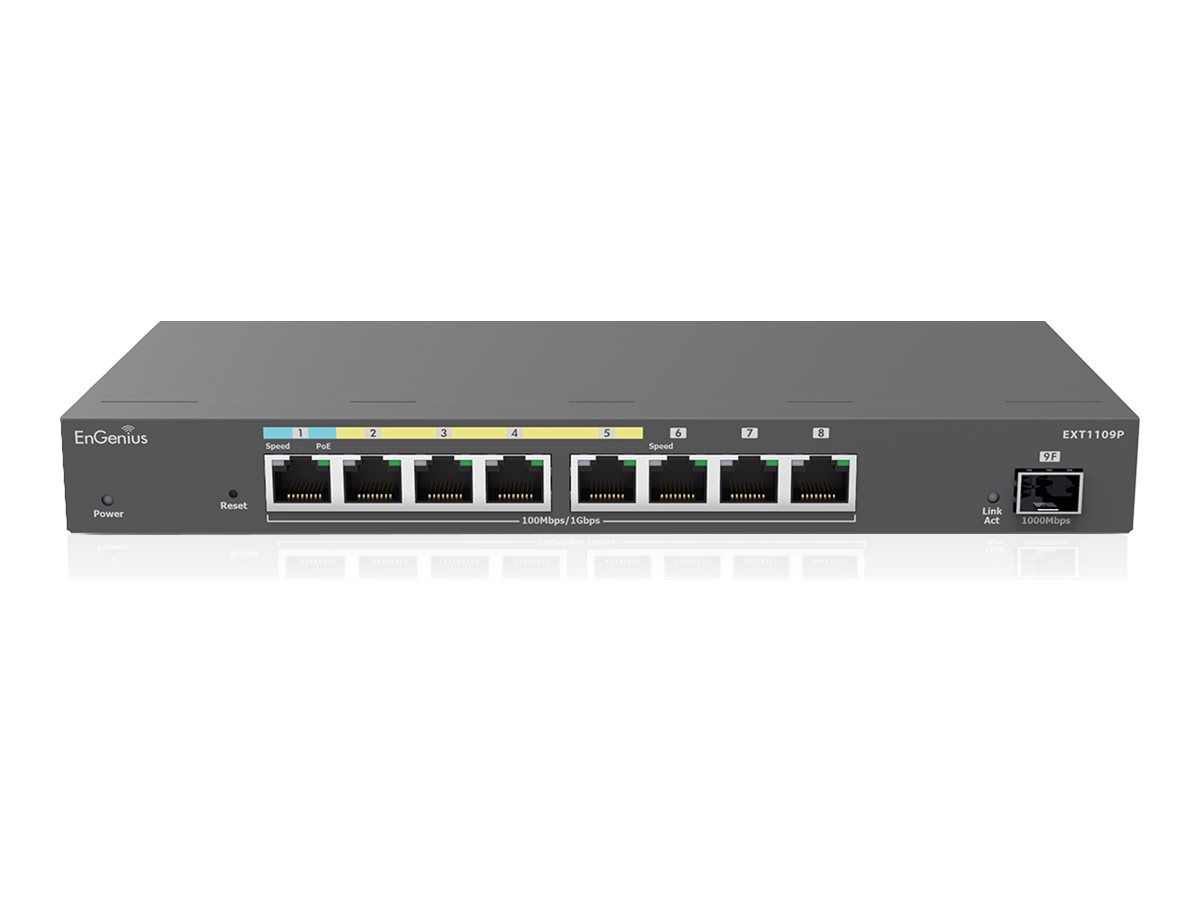

EnGenius EXT1109P - Network/power extender
- 1GbE
- 10Base-T, 100Base-TX, 1000Base-T
- 8 ports
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | EXT1109P |
| SHI Part #: | 48039744 |
| Category: | Serial port cards |
| UNSPSC: | 43201559 |
| Manufacturer: | EnGenius |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Serial port cards |
| Description | EnGenius EXT1109P - Network/power extender - 1GbE - 10Base-T, 100Base-TX, 1000Base-T - 8 ports |
| Manufacturer | EnGenius |
| MSRP | $129.00 |
| UNSPSC | 43201559 |
| Main Specifications | |
| Dimensions & Weight / Depth | 10.5 cm |
| Dimensions & Weight / Height | 2.7 cm |
| Dimensions & Weight / Weight | 620 g |
| Dimensions & Weight / Width | 24 cm |
| Header / Brand | EnGenius |
| Networking / Connectivity Technology | Wired |
| Networking / Data Link Protocol |
|
| Networking / Form Factor | External |
| Networking / Type | Network/power extender |
| Packaged Quantity | 1 |
| Dimensions & Weight | |
| Depth | 10.5 cm |
| Height | 2.7 cm |
| Weight | 620 g |
| Width | 24 cm |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Max Operating Temperature | 50 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Built-in Devices | 32MB flash |
| Device Type | Network/power extender |
| Form Factor | External |
| Miscellaneous | |
| Included Accessories | Wall mounting kit, adhesive label, rubber feet |
| Networking | |
| Cabling Type | 10Base-T, 100Base-TX, 1000Base-T |
| Compliant Standards | IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.1p, IEEE 802.1w, IEEE 802.1Q |
| Connectivity Technology | Wired |
| Data Link Protocol | 10Mb LAN, 100Mb LAN, 1GbE |
| Features | Cloud managed, 60 W total power budget, Jumbo Frames support (up to 10000 bytes), Class of Service (CoS), DiffServ Code Point (DSCP) support, DSCP based CoS, bandwidth control, Rapid Spanning Tree Protocol (RSTP) support, DNS support, Multicast filtering function, IGMP snooping, IGMP fast leave, VLAN support, Voice VLAN, port-based VLAN, LLDP, Weighted Round Robin (WRR), SNTP support, Syslog support, Find-me support |
| MAC Address Table Size | 8K entries |
| Ports Qty | 8 |
| Status Indicators | Link/activity, speed, power, PoE |
| Power | |
| Power Device | External power adapter / power injector (not included) |
| Power Over Ethernet (PoE) | PoE++ |
| Voltage Required | AC 100-240 V (50/60 Hz) |
