Raritan PX4-53A8C-C8E7A0
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with

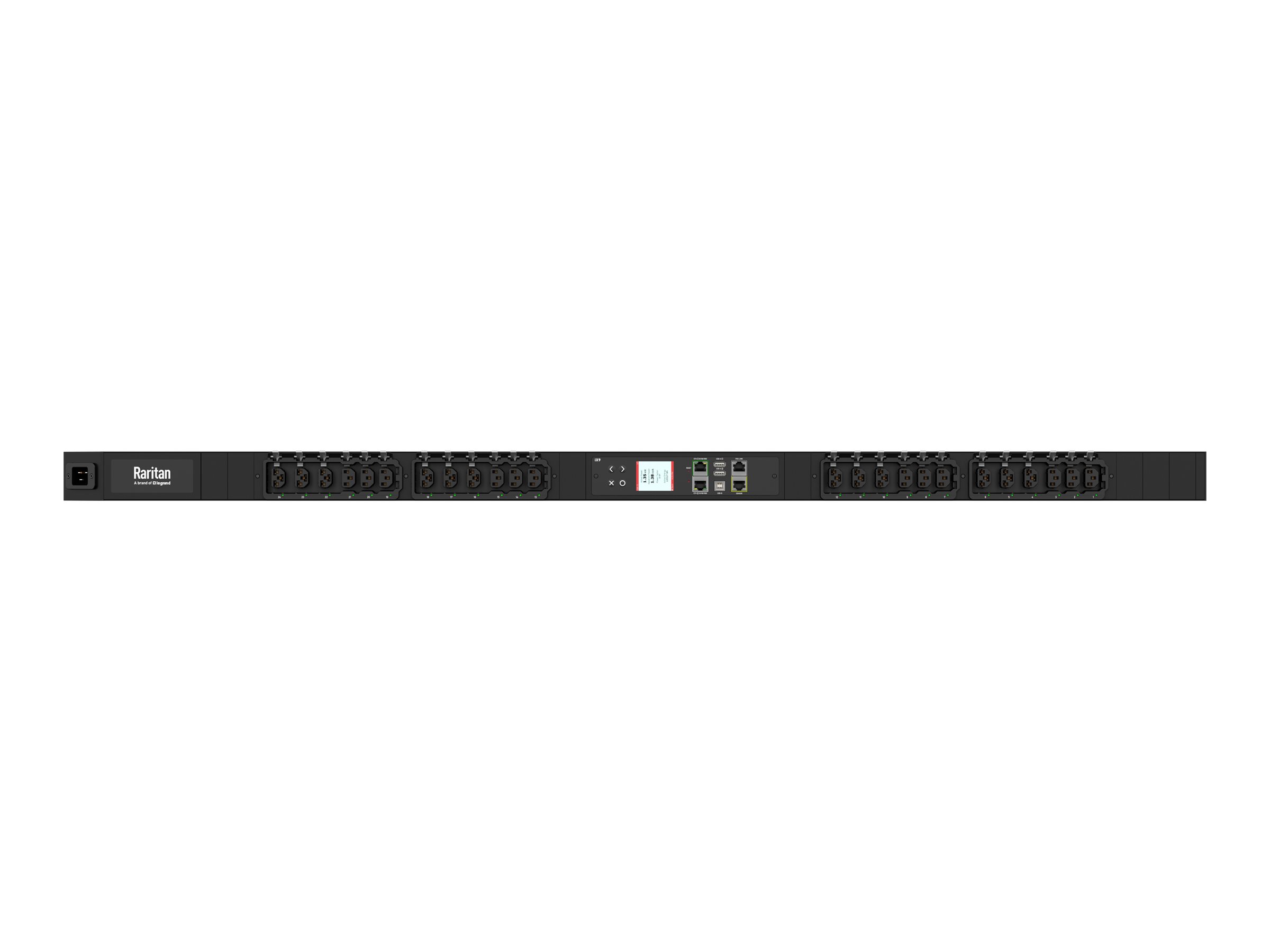

Raritan PX4-53A8C-C8E7A0
- Power distribution strip (rack-mountable)
- AC 230 V
- 3700 VA
- 1-phase
- Ethernet 10/100/1000, RS-232, USB
- input: IEC 60320 C20
- output connectors: 24 (12 x IEC 60320 C13, 12 x IEC 60320 Cx)
- 0U
- 3 m cord
- black powder coat
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | PX4-53A8C-C8E7A0 |
| SHI Part #: | 47950962 |
| Category: | Power distribution units PDUs |
| UNSPSC: | 39121017 |
| Manufacturer: | Legrand |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Power distribution units PDUs |
| Description | Raritan PX4-53A8C-C8E7A0 - Power distribution strip (rack-mountable) - AC 230 V - 3700 VA - 1-phase - Ethernet 10/100/1000, RS-232, USB - input: IEC 60320 C20 - output connectors: 24 (12 x IEC 60320 C13, 12 x IEC 60320 Cx) - 0U - 3 m cord - black powder coat |
| Manufacturer | Legrand |
| MSRP | $2,059.00 |
| UNSPSC | 39121017 |
| Main Specifications | |
| Dimensions & Weight / Depth | 6.5 cm |
| Dimensions & Weight / Height | 129.8 cm |
| Dimensions & Weight / Weight | 3.63 kg |
| Dimensions & Weight / Width | 5.6 cm |
| Header / Brand | Raritan |
| Miscellaneous / Product Color | Black |
| Networking / Remote Management Interface |
|
| Packaged Quantity | 1 |
| Power Device / Form Factor | Rack-mountable |
| Power Device / Output Connector Qty | 24 |
| Power Device / Power Capacity (VA) | 3700 VA |
| Power Device / Voltage Required | AC 230 V |
| Product Type | Power distribution strip |
| Service & Support / Type | 2-year warranty |
| Dimensions & Weight | |
| Depth | 6.5 cm |
| Height | 129.8 cm |
| Weight | 3.63 kg |
| Width | 5.6 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 12.3 cm |
| Shipping Height | 145.4 cm |
| Shipping Weight | 5.77 kg |
| Shipping Width | 25 cm |
| Environmental Parameters | |
| Humidity Range Operating | 85% RH |
| Max Operating Temperature | 60 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Color | Black powder coat |
| Cord Length | 3 m |
| Device Type | Power distribution strip - rack-mountable |
| Height (Rack Units) | 0U |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Cables Included | Power cable 3 m |
| Compliant Standards | UL, ICES-003, FCC Part 15 A, RoHS |
| Features | Hot-swappable controllers, vertical orientation, extruded aluminum housing, tool-less button mount, voltage meter, current meter, active power meter, real power meter, energy meter, power factor meter, LCD display, metering per input line, metering per branch circuit breaker, metering per output receptacle, remote outlet switching, replaceable controller, environmental sensor ready, cascadable, Auto-Flip Current Display, bottom-front feed cord entry, LED indicators, locking outlets, P-lock power cord, overload protection, switched |
| Networking | |
| Remote Management Interface | Ethernet 10/100/1000, RS-232, USB |
| Remote Management Protocol | HTTP, HTTPS, SSH, Telnet, SNMP 2, SNMP 3, SMTP, JSON-RPC, Modbus TCP |
| Power Device | |
| Frequency Required | 50/60 Hz |
| Input Connectors | Power IEC 60320 C20 |
| Input Voltage | AC 230 V |
| Input Voltage Range | AC 100 - 240 V |
| Input Wiring | 1-phase |
| Max Electric Current | 20 A |
| Output Voltage | AC 230 V |
| Power Capacity | 3700 VA |
| Power Capacity Details | 1.6 kVA at 100 V, 3.8 kVA at 240 V |
| Power Output Connectors Details |
|
