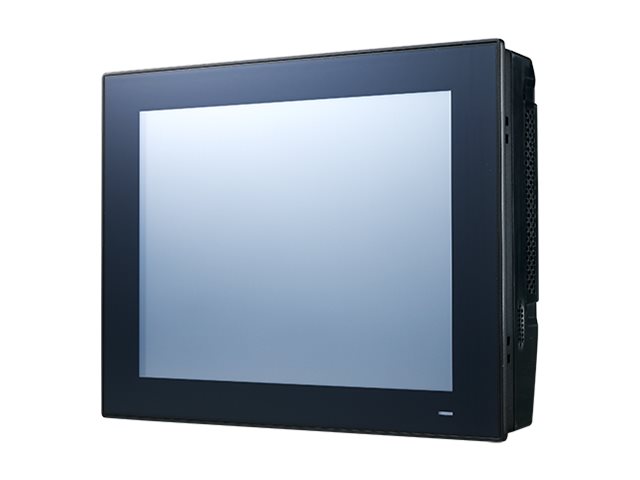

Advantech PPC-6121 - Barebone
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
Advantech PPC-6121 - Barebone
- panel PC Intel Q370
- no CPU
- RAM 0 GB
- Gigabit Ethernet
- monitor: LED 12.1" 1024 x 768 (XGA) touchscreen
| Additional Details | |
|---|---|
| Mfr Part #: | PPC-6121-R8IA |
| SHI Part #: | 47942159 |
| Category: | Desktop computers |
| UNSPSC: | 43211507 |
| Manufacturer: | Advantech |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Desktop computers |
| Description | Advantech PPC-6121 - Barebone - panel PC Intel Q370 - no CPU - RAM 0 GB - Gigabit Ethernet - monitor: LED 12.1" 1024 x 768 (XGA) touchscreen |
| Manufacturer | Advantech |
| UNSPSC | 43211507 |
| Main Specifications | |
| Chassis / Form Factor | All-in-one |
| Dimensions & Weight / Depth | 7.3 cm |
| Dimensions & Weight / Height | 24.6 cm |
| Dimensions & Weight / Weight | 3.8 kg |
| Dimensions & Weight / Width | 31.7 cm |
| Display / Diagonal Size | 12.1 in |
| Display / Diagonal Size (metric) | 30.7 cm |
| Display / Native Resolution | 1024 x 768 |
| Display / Type | LED |
| Display / Widescreen Display | No |
| Header / Brand | Advantech |
| Mainboard / Chipset Type | Intel Q370 |
| Miscellaneous / Product Color | Black |
| Networking / Data Link Protocol |
|
| Optical Storage / Drive Type | No optical drive |
| Optical Storage / Type | None |
| OS Provided / Type | No operating system |
| Packaged Quantity | 1 |
| Processor / Type | No CPU |
| RAM / Form Factor | SO-DIMM 260-pin |
| RAM / Technology | DDR4 SDRAM |
| System / Hard Drive Capacity | 0 GB |
| System / Type | PC barebone |
| Audio Output | |
| Speakers Included | 2 x right / left channel |
| Dimensions & Weight | |
| Depth | 7.3 cm |
| Height | 24.6 cm |
| Weight | 3.8 kg |
| Width | 31.7 cm |
| Environmental Parameters | |
| Humidity Range Operating | 10 - 95% (non-condensing) |
| Max Operating Temperature | 50 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Bays |
|
| Interfaces |
|
| Slots |
|
| General | |
| Built-in Devices | Watchdog timer, dual 1 W speakers |
| Product Form Factor | Panel PC |
| Type | PC barebone |
| Graphics Controller | |
| Video Interfaces | HDMI, VGA |
| Hard Drive | |
| Type | No HDD |
| Miscellaneous | |
| Compliant Standards | FCC Class A certified, BSMI, VCCI, UKCA, CB, UL, CCC, IP66 |
| VESA Mounting Interface | 75 x 75 mm |
| Monitor | |
| Diagonal Size | 12.1" |
| Horizontal Viewing Angle | +89 / -89 |
| Image Brightness | 600 cd/m² |
| Image Contrast Ratio | 1000:1 |
| Monitor Features | 5-Wire Resistive Touch Screen Technology, 50,000 backlight life |
| Monitor Type | LED |
| Native Resolution | 1024 x 768 (XGA) |
| Touchscreen | Yes |
| Vertical Viewing Angle | +89 / -89 |
| Widescreen Display | No |
| Networking | |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Ethernet Ports | 2 x Gigabit Ethernet |
| Operating System / Software | |
| OS Certified | Windows 10 IoT Enterprise LTSC, Microsoft Windows 11, Ubuntu, Fedora |
| OS Provided | No operating system |
| Optical Storage | |
| Type | No optical drive |
| Power | |
| Power Consumption Operational | 120 Watt |
| Processor / Chipset | |
| Chipset Type | Intel Q370 |
| CPU | No CPU |
| CPU Upgradability | Upgradable |
| RAM | |
| Form Factor | SO-DIMM 260-pin |
| Installed Size | 0 GB (installed) / 32 GB (max) |
| Rated Memory Speed | 1333 MHz |
| Slots | 2 (total) / 2 (empty) |
| Technology | DDR4 SDRAM |
