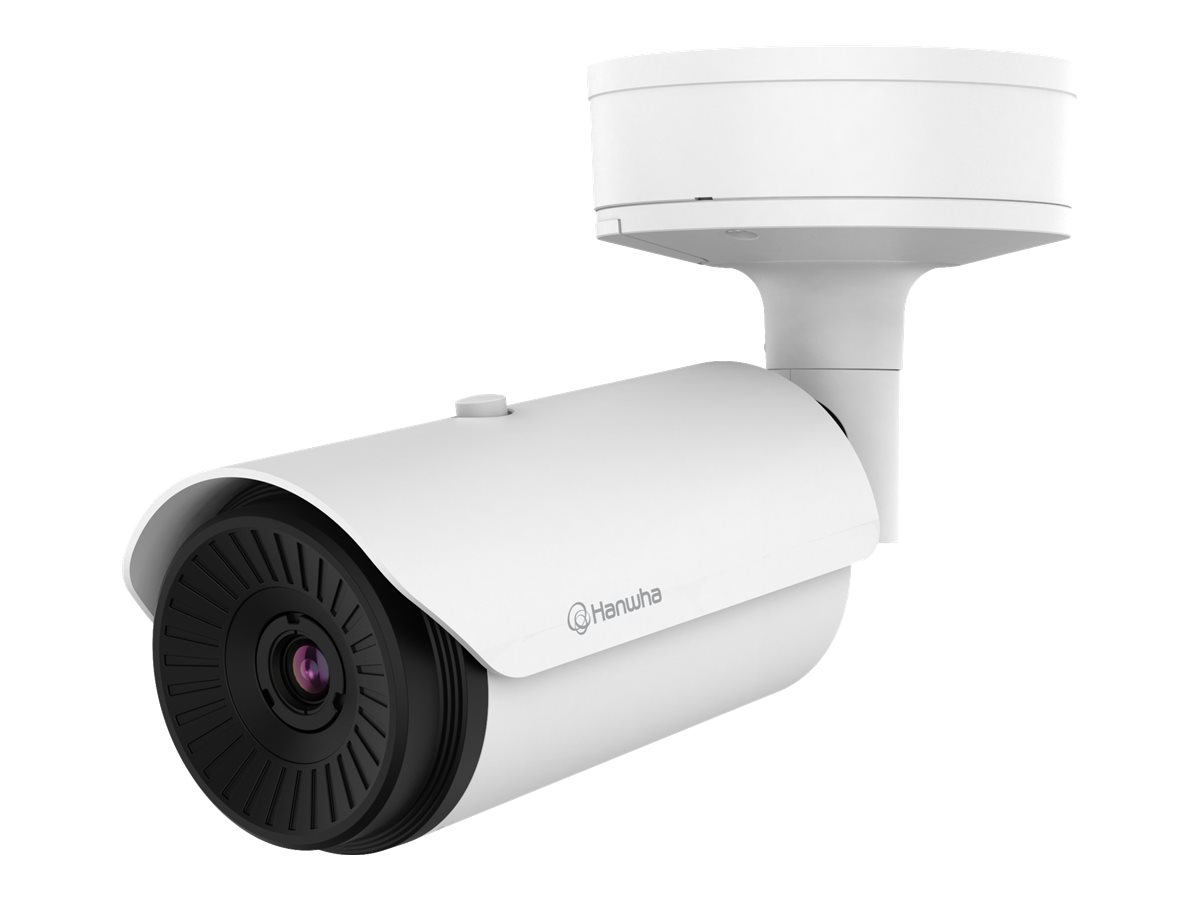

Hanwha Vision TNO-L3030T
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
Hanwha Vision TNO-L3030T
- Thermal network camera
- bullet
- 320 x 240
- fixed focal
- audio
- composite, USB
- LAN 10/100
- MJPEG, H.264, H.265
- DC 12 V / AC 24 V / PoE Plus Class 3
| Additional Details | |
|---|---|
| Mfr Part #: | TNO-L3030T |
| SHI Part #: | 47875355 |
| Category: | Surveillance and detection equipment |
| UNSPSC: | 46171600 |
| Manufacturer: | HANWHA VISION |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Surveillance and detection equipment |
| Description | Hanwha Vision TNO-L3030T - Thermal network camera - bullet - 320 x 240 - fixed focal - audio - composite, USB - LAN 10/100 - MJPEG, H.264, H.265 - DC 12 V / AC 24 V / PoE Plus Class 3 |
| Manufacturer | HANWHA VISION |
| UNSPSC | 46171600 |
| Main Specifications | |
| Dimensions & Weight / Depth | 14.751 cm |
| Dimensions & Weight / Height | 37.53 cm |
| Dimensions & Weight / Weight | 2.512 kg |
| Dimensions & Weight / Width | 14.751 cm |
| Header / Brand | Hanwha Vision |
| Miscellaneous / Product Color | White |
| Packaged Quantity | 1 |
| Camera | |
| Digital Video Format | MJPEG, H.264, H.265 |
| Features | Handover, tamper-detection, loitering detection, entrance / exit detection, appearing / disappearing detection, direction detection, Virtual Line detection, Audio Detection, sound classification, temperature detection, shock detection, Hallway View, WiseStream II support, thermal sensitivity 60 mK (NETD), built-in gyroscope, Privacy Mask Function, image flip, image mirror, network disconnection trigger, alarm function, notification picture to FTP, notification picture to E-mail, NAS alerts, WiseNR II, Variable Bitrate (VBR), Constant Bitrate (CBR), Multicast Streaming, Unicast Streaming, digest authentication, IP address filtering, user access log, 802.1x authentication, ONVIF (Profile S) support, ONVIF (Profile G) support, ONVIF (Profile T) support |
| Flash Memory | 256 MB |
| Max Digital Video Resolution | 320 x 240 |
| Motion Detection | Yes |
| RAM | 1 GB |
| Type | - fixed |
| Video Capture | 320 x 240 @ 8 fps |
| Environmental Parameters | |
| Max Operating Temperature | 60 °C |
| Min Operating Temperature | -40 °C |
| Relative Humidity (operating) | 0 - 90% RH |
| Expansion / Connectivity | |
| Ports |
|
| Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
| General | |
| Audio Formats | G.711 u-law, ADPCM, AAC-LC, G.711u, U-LAW |
| Audio Support | Yes |
| Connectivity Technology | Wired |
| Depth | 14.751 cm |
| Device Type | Thermal network camera |
| Form Factor | Bullet |
| Height | 37.53 cm |
| Weight | 2.512 kg |
| Width | 14.751 cm |
| Image Sensor | |
| Type | Uncooled Micro bolometer |
| Interfaces | |
| Alarm Inputs Qty | 1 |
| Alarm Outputs Qty | 2 |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | IPv4, IPv6, TCP/IP, UDP/IP, RTP, RTCP, RTSP, NTP, HTTP, HTTPS, SSL, TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMP 1, SNMP 2c, SNMP 3, ARP, DNS, DDNS, QOS, UPnP, LLDP, SRTP, Bonjour, EAP, PIM-SM |
| Video | Composite video, USB |
| Lens Construction | |
| Diagonal Field of View (degree) | 20 |
| Focal Length | 13.7 mm |
| Horizontal Field of View (degree) | 16 |
| Lens Iris | F/1.0 |
| Min Focus Distance | 8 m |
| Type | Fixed focal |
| Vertical Field of View (degree) | 12 |
| Miscellaneous | |
| Color | White, RAL 9003 |
| Compliant Standards | NEMA Type 4X, IP66, IK10, IEEE 802.3af, IEEE 802.1x |
| Power | |
| Power Requirements | DC 12 V / AC 24 V / PoE Plus Class 3 |
