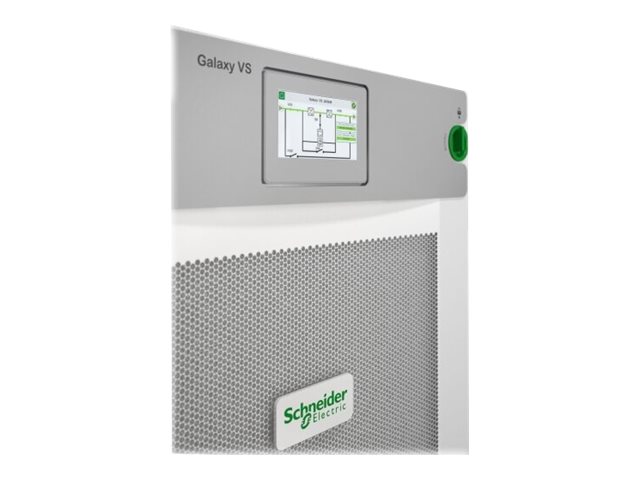

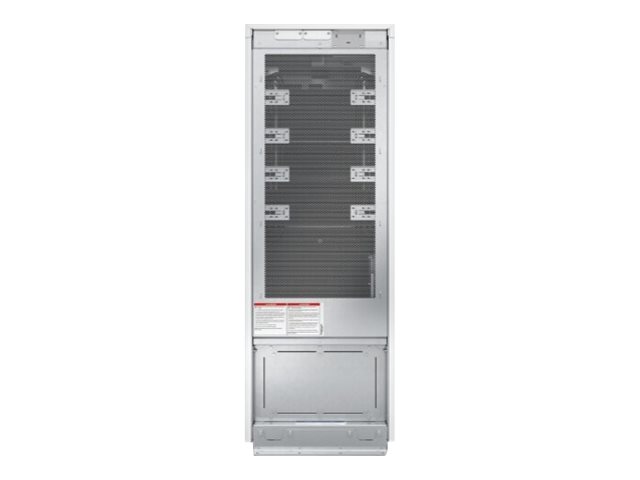

GALAXY VS UPS 30KW 480V FOR UP GALAXY VS UPS 30KW 480V FOR UP TO 4
MSRP$35,045.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
GALAXY VS UPS 30KW 480V FOR UP GALAXY VS UPS 30KW 480V FOR UP TO 4
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $35,045.00 |
| Mfr Part #: | GVSUPS30K0B4GS |
| SHI Part #: | 47794021 |
| Category: | Power conditioning equipment |
| UNSPSC: | 39121000 |
| Manufacturer: | APC by Schneider Electric |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Power conditioning equipment |
| Description | GALAXY VS UPS 30KW 480V FOR UP GALAXY VS UPS 30KW 480V FOR UP TO 4 |
| Manufacturer | APC by Schneider Electric |
| MSRP | $35,045.00 |
| UNSPSC | 39121000 |
| Main Specifications | |
| Height | 0.00 |
| Length | 0.00 |
| Width | 0.00 |
| Battery | |
| Quantity | 4 (supported) |
| Type | No battery expandable |
| Dimensions & Weight | |
| Depth | 84.7 cm |
| Height | 148.5 cm |
| Width | 52.1 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 99 cm |
| Shipping Height | 168 cm |
| Shipping Width | 64 cm |
| Environmental Parameters | |
| Humidity Range Operating | 0 - 95% (non-condensing) |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| Sound Emission | 61 dBA |
| Expansion / Connectivity | |
| Interfaces | Management (Ethernet) |
| General | |
| Bundled Services | Start-Up Service 5X8 |
| Color | White, RAL 9003 |
| Device Type | UPS - external |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year - on-site |
| Miscellaneous | |
| Compliant Standards | IEC 62040-3, IEC 62040-1-1, IEC 62040-2, FCC Part 15 A, CSA C22.2 No. 107.3, IP20, OSHPD, UL 1778 5th edition |
| Features | Audible alarm, built-in static bypass, overload protection, touch screen LCD display, VRLA battery support |
| Included Accessories | Dust filter |
| Networking | |
| Remote Management Interface | Ethernet |
| Remote Management Protocol | SNMP, Modbus |
| Power Device | |
| Efficiency | 96.2% at 50% Load, 94.7% at 25% Load, 96.7% at 75% Load, 97% at 100% Load |
| Frequency Provided | 50/60 Hz |
| Frequency Required | 40 - 70 Hz |
| Input Voltage | AC 480 V |
| Input Voltage Range | AC 408 - 552 V |
| Input Wiring | 3-phase |
| Output Voltage | AC 480 V ± 5% - 50/60 Hz |
| Output Waveform | Sinewave |
| Power Capacity | 30 kW / 30000 VA |
| Power Factor (PF) | 0.99 |
| Total Harmonic Distortion (THD) | 1 % |
| UPS Technology | On-line |
| Sustainability Information | |
| ENERGY STAR | Yes |
