Shuttle XPC slim DS50U7
MSRP$1,425.99
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|

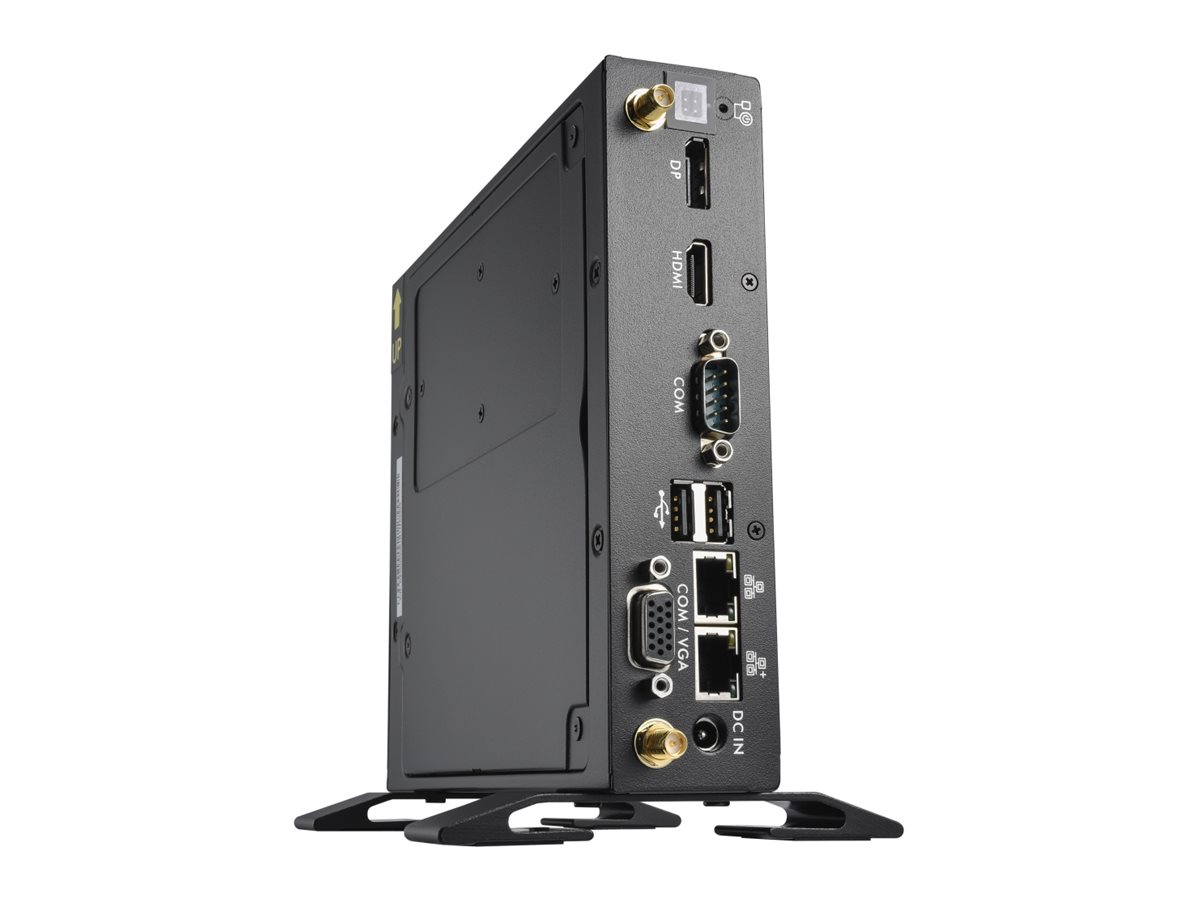

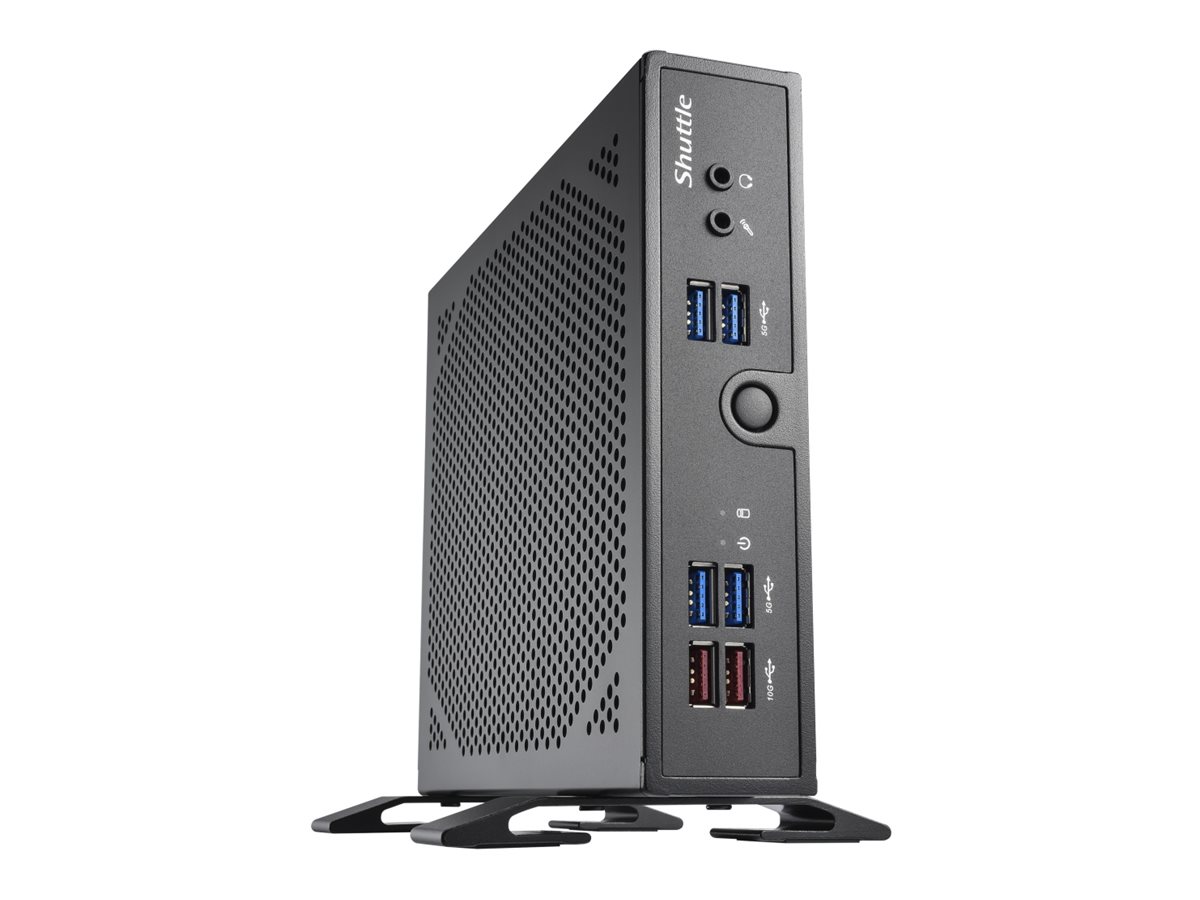

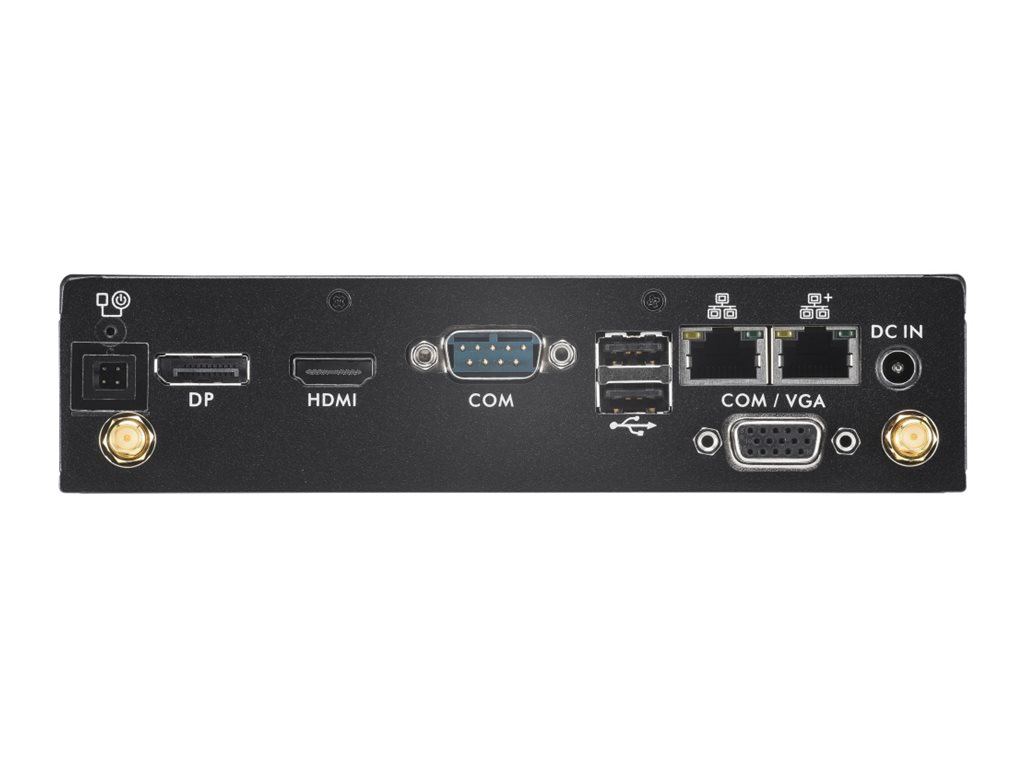

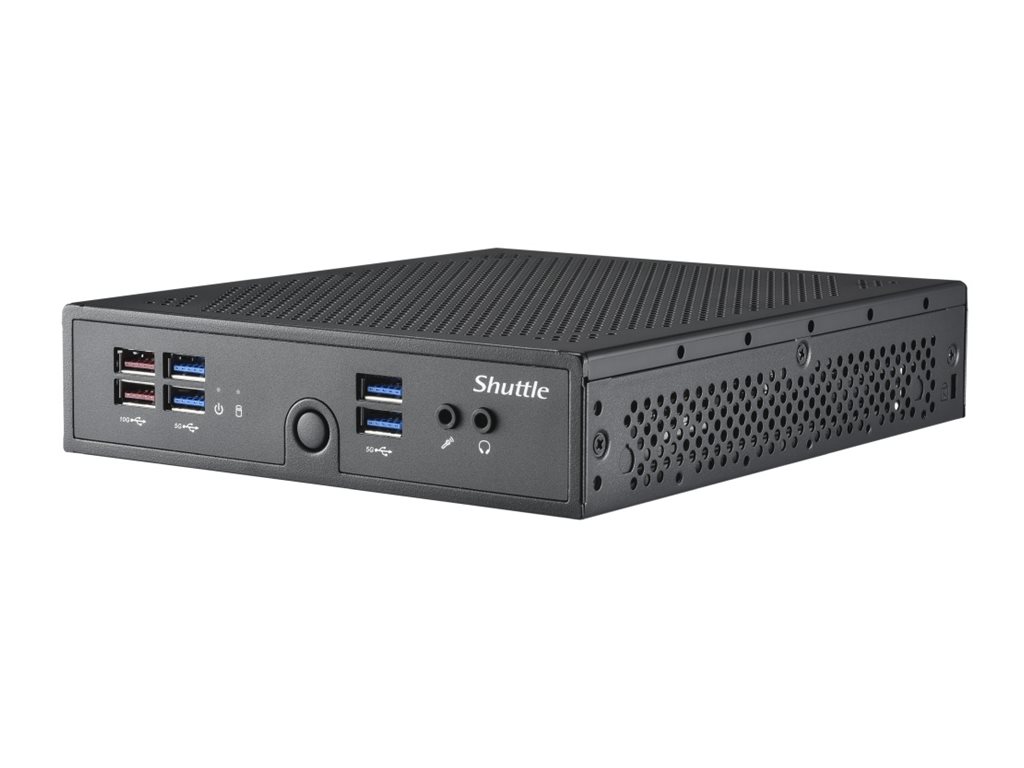

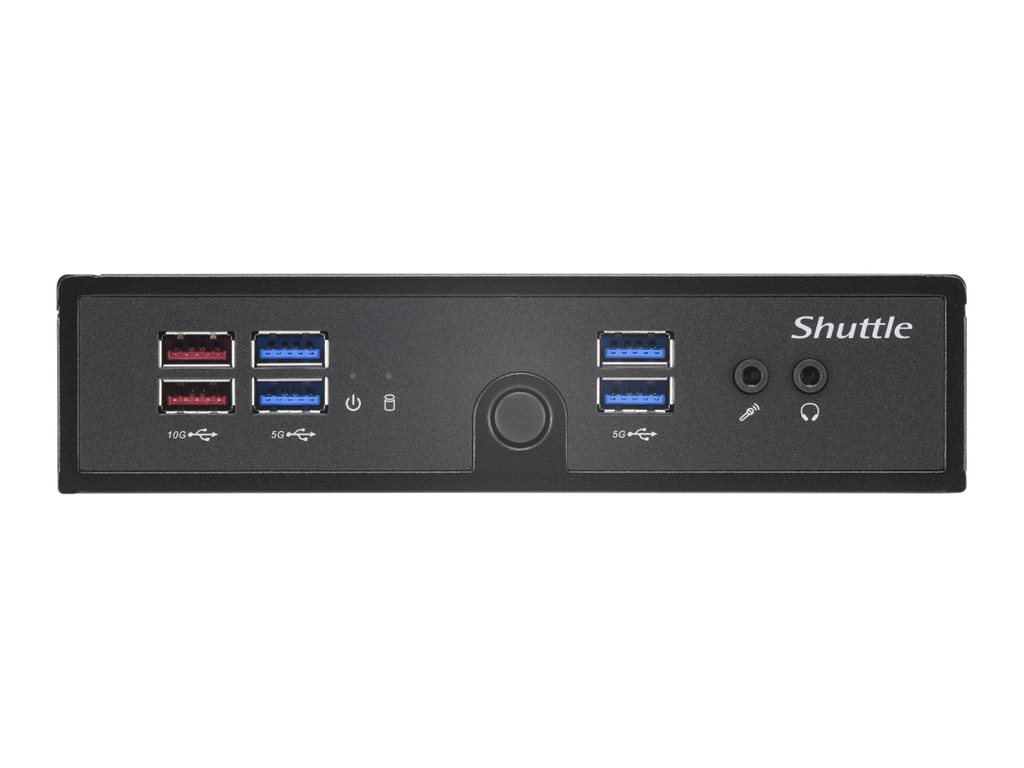

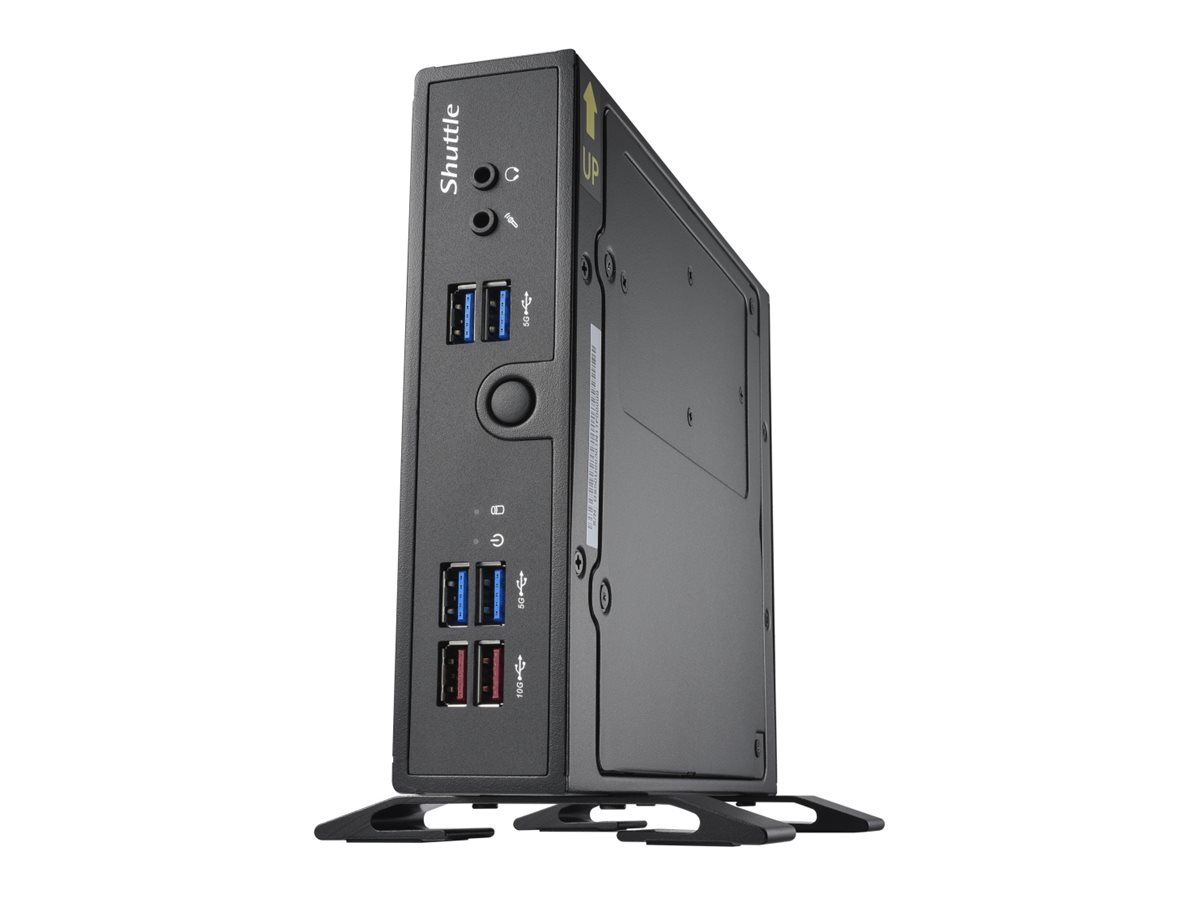

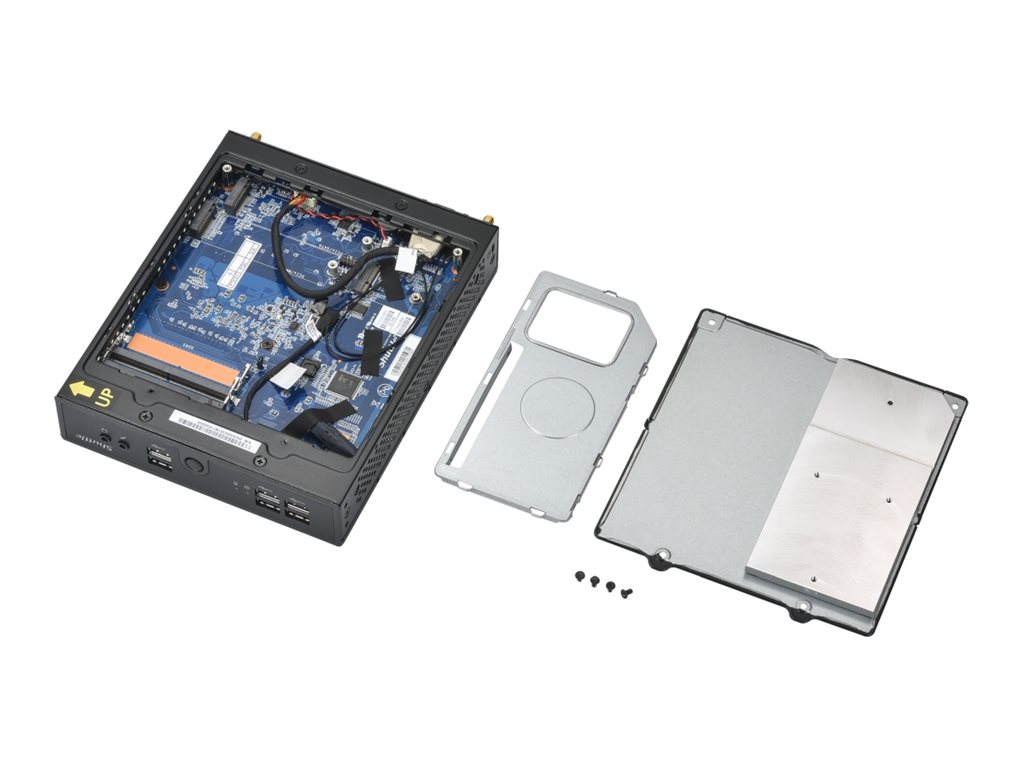

Shuttle XPC slim DS50U7
- Barebone
- Slim-PC 1 x Core i7 1355U / up to 5 GHz ULV
- RAM 0 GB
- Intel Iris Xe Graphics
- Gigabit Ethernet
- black
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $1,425.99 |
| Mfr Part #: | DS50U7 |
| SHI Part #: | 47788720 |
| Category: | Desktop computers |
| UNSPSC: | 43211507 |
| Manufacturer: | Shuttle Computer |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Desktop computers |
| Description | Shuttle XPC slim DS50U7 - Barebone - Slim-PC 1 x Core i7 1355U / up to 5 GHz ULV - RAM 0 GB - Intel Iris Xe Graphics - Gigabit Ethernet - black |
| Manufacturer | Shuttle Computer |
| MSRP | $1,425.99 |
| UNSPSC | 43211507 |
| Main Specifications | |
| Chassis / Form Factor | Ultra small form factor |
| Dimensions & Weight / Depth | 16.5 cm |
| Dimensions & Weight / Height | 3.95 cm |
| Dimensions & Weight / Weight | 1.6 kg |
| Dimensions & Weight / Width | 20 cm |
| Display / Type | None. |
| Header / Brand | Shuttle |
| Miscellaneous / Product Color | Black |
| Networking / Data Link Protocol |
|
| Optical Storage / Drive Type | No optical drive |
| Optical Storage / Type | None |
| OS Provided / Type | No operating system |
| Packaged Quantity | 1 |
| Processor / Clock Speed | 1.7 GHz |
| Processor / Generation | 13 |
| Processor / Manufacturer | Intel |
| Processor / Number of Cores | 10-core |
| Processor / Processor Number | I7-1355U |
| Processor / Type | Core i7 |
| RAM / Form Factor | SO-DIMM 262-pin |
| RAM / Technology | DDR5 SDRAM |
| System / Hard Drive Capacity | 0 GB |
| System / Type | PC barebone |
| Video Output / Graphics Processor | Intel Iris Xe Graphics |
| Audio Output | |
| Compliant Standards | High Definition Audio |
| Cache Memory | |
| Cache Per Processor | 12 MB |
| Installed Size | 12 MB |
| Dimensions & Weight | |
| Depth | 16.5 cm |
| Height | 3.95 cm |
| Weight | 1.6 kg |
| Width | 20 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Weight | 2.3 kg |
| Environmental Parameters | |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Bays | 1 (total) / 1 (free) x internal 2.5" |
| Interfaces |
|
| Slots |
|
| General | |
| Color | Black |
| Embedded Security | Firmware Trusted Platform Module (TPM 2.0) Security Chip |
| Product Form Factor | Slim-PC |
| Type | PC barebone |
| Graphics Controller | |
| Graphics Processor | Intel Iris Xe Graphics |
| Max Monitors Supported | 3 |
| Video Interfaces | VGA, HDMI, DisplayPort |
| Hard Drive | |
| Type | No HDD |
| Miscellaneous | |
| Compliant Standards | BSMI, FCC, RCM, VCCI, RoHS |
| Included Accessories | VESA mounting kit, screw set |
| Security Slot Type | Kensington security slot |
| Theft/Intrusion Protection | Security lock slot (cable lock sold separately) |
| VESA Mounting Interface | 100 x 100 mm, 75 x 75 mm |
| Monitor | |
| Monitor Type | None. |
| Networking | |
| Data Link Protocol | Ethernet, Gigabit Ethernet, Fast Ethernet |
| Ethernet Ports | 1 x 2.5 Gigabit Ethernet, 1 x Gigabit Ethernet |
| Operating System / Software | |
| OS Provided | No operating system |
| Optical Storage | |
| Type | No optical drive |
| Power | |
| Device Type | Power adapter |
| Power Provided | 90 Watt |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Processor / Chipset | |
| Clock Speed | 1.7 GHz (P-core) / 1.2 GHz (E-core) |
| CPU | Intel Core i7 (13th Gen) 1355U |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
| Max Turbo Speed | 5 GHz (P-core) / 3.7 GHz (E-core) |
| Number of Cores | 10-core |
| Power Efficiency | Ultra Low Voltage (ULV) |
| RAM | |
| Features | Unbuffered, dual channel memory architecture |
| Form Factor | SO-DIMM 262-pin |
| Installed Size | 0 GB (installed) / 64 GB (max) |
| Slots | 2 (total) / 2 (empty) |
| Technology | DDR5 SDRAM |
| Storage Controller | |
| Type | 1 x SATA |
