Hanwha Vision WiseNet T TNO-4040TR
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with

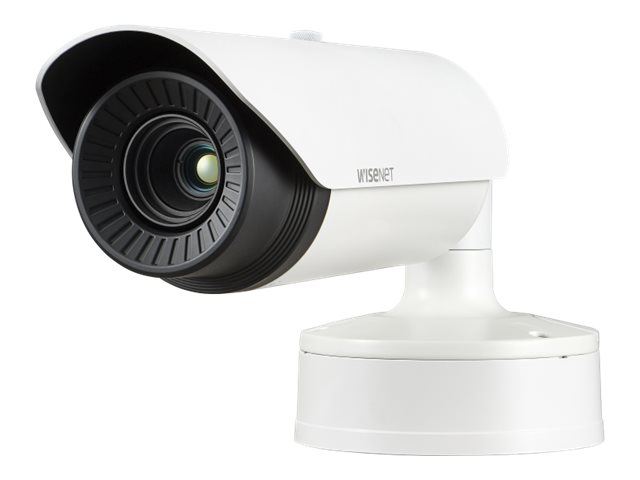

Hanwha Vision WiseNet T TNO-4040TR
- Thermal network camera
- 640 x 480
- fixed focal
- audio
- composite
- LAN 10/100
- MJPEG, H.264, H.265
- DC 12 V / AC 24 V / PoE Class 3
| Additional Details | |
|---|---|
| Mfr Part #: | TNO-4040TR |
| SHI Part #: | 47787455 |
| Category: | Surveillance and detection equipment |
| UNSPSC: | 46171600 |
| Manufacturer: | HANWHA VISION |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Surveillance and detection equipment |
| Description | Hanwha Vision WiseNet T TNO-4040TR - Thermal network camera - 640 x 480 - fixed focal - audio - composite - LAN 10/100 - MJPEG, H.264, H.265 - DC 12 V / AC 24 V / PoE Class 3 |
| Manufacturer | HANWHA VISION |
| UNSPSC | 46171600 |
| Main Specifications | |
| Dimensions & Weight / Depth | 40.18 cm |
| Dimensions & Weight / Height | 10.197 cm |
| Dimensions & Weight / Weight | 3.124 kg |
| Dimensions & Weight / Width | 10.197 cm |
| Header / Brand | Hanwha Techwin |
| Miscellaneous / Product Color | White |
| Packaged Quantity | 1 |
| System Requirements / OS Required |
|
| Camera | |
| Digital Video Format | MJPEG, H.264, H.265 |
| Features | Image flip, image mirror, Motion Detection Technology, Privacy Mask Function, tamper-detection, shock detection, Variable Bitrate (VBR), Constant Bitrate (CBR), Audio Detection, Multicast Streaming, Smart Codec, ONVIF (Profile S) support, ONVIF (Profile G) support, loitering detection, WiseStream II support, IP address filtering, Hallway View, built-in gyroscope, motion detection, Unicast Streaming, Handover, ONVIF (Profile T) support, Virtual Line detection, Directional Detection |
| Flash Memory | 256 MB |
| Max Digital Video Resolution | 640 x 480 |
| Motion Detection | Yes |
| RAM | 1 GB |
| Type | - fixed |
| Video Capture | 640 x 480 @ 30 fps |
| Environmental Parameters | |
| Max Operating Temperature | 60 °C |
| Min Operating Temperature | -40 °C |
| Relative Humidity (operating) | 0 - 90% |
| Expansion / Connectivity | |
| Ports |
|
| Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
| General | |
| Audio Formats | G.726, ADPCM, AAC-LC, G.711, G.711u |
| Audio Support | Yes: two-way audio capability |
| Connectivity Technology | Wired |
| Depth | 40.18 cm |
| Device Type | Thermal network camera |
| Height | 10.197 cm |
| Weight | 3.124 kg |
| Width | 10.197 cm |
| Image Sensor | |
| Type | Uncooled Micro bolometer |
| Interfaces | |
| Alarm Inputs Qty | 1 |
| Alarm Outputs Qty | 2 |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP 1, SNMP 2c, SNMP 3, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, IGMP, SSL, QOS, EAP, PIM-SM |
| Video | Composite video |
| Lens Construction | |
| Diagonal Field of View (degree) | 39.2 |
| Focal Length | 19 mm |
| Horizontal Field of View (degree) | 32 |
| Lens Iris | F/1.0 |
| Min Focus Distance | 11 m |
| Type | Fixed focal |
| Vertical Field of View (degree) | 24.3 |
| Miscellaneous | |
| Color | White, RAL 9003 |
| Compliant Standards | NEMA Type 4X, IK10, IP66, IEEE 802.3af, IEEE 802.1x |
| Power | |
| Power Device | 10.5 Watt |
| Power Requirements | DC 12 V / AC 24 V / PoE Class 3 |
| Software / System Requirements | |
| OS Required | Microsoft Windows 7, Windows 8.1, Apple MacOS X 10.10, Windows 10, Apple MacOS X 10.11, Apple macOS 10.12 |
