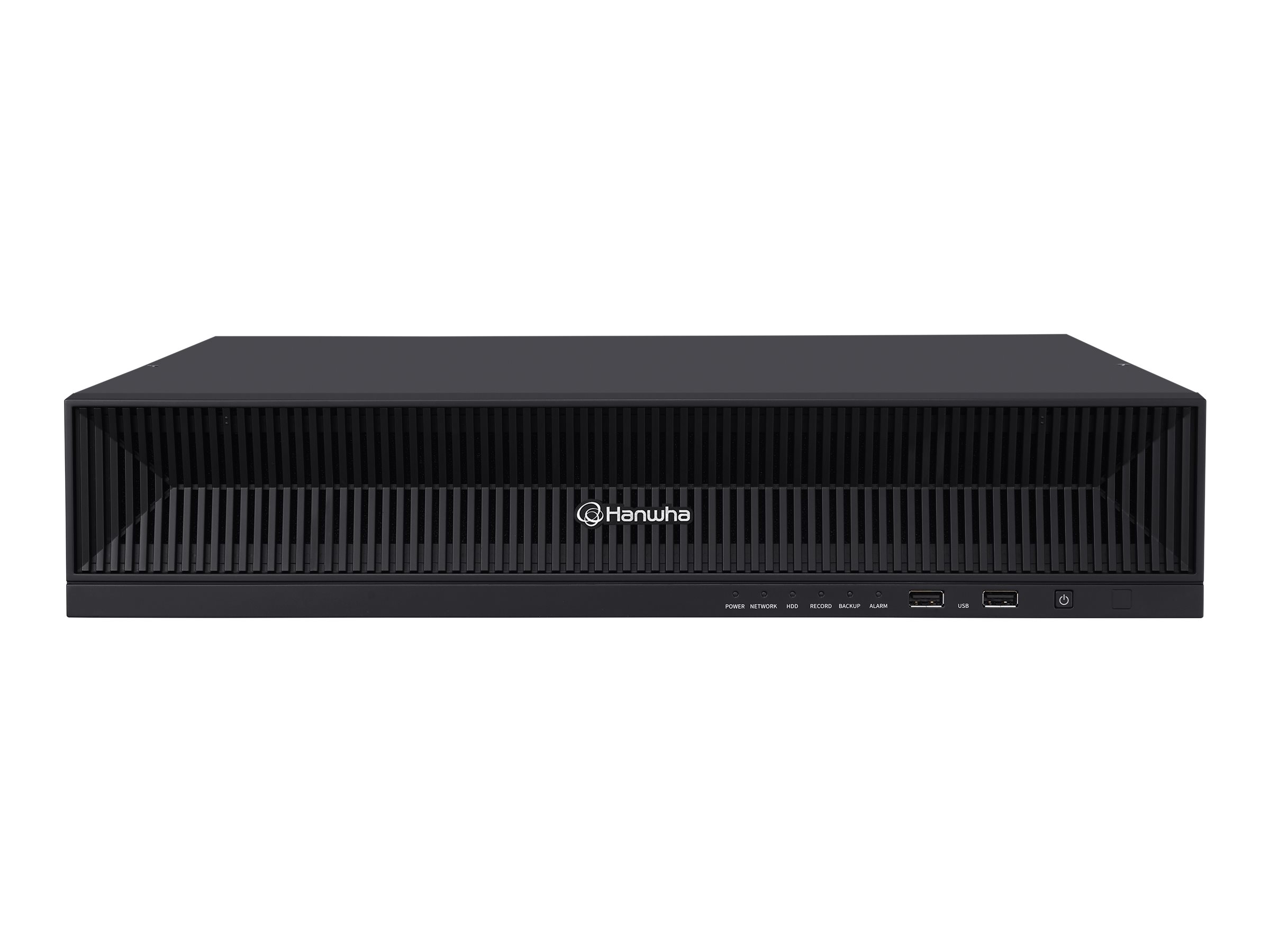

Hanwha Vision WiseNet P PRN-1600B2
MSRP$6,200.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
Hanwha Vision WiseNet P PRN-1600B2
- NVR
- 16 channels
- networked
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $6,200.00 |
| Mfr Part #: | PRN-1600B2 |
| SHI Part #: | 47787127 |
| Category: | Surveillance video or audio recorders |
| UNSPSC: | 46171621 |
| Manufacturer: | HANWHA VISION |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Surveillance video or audio recorders |
| Description | Hanwha Vision WiseNet P PRN-1600B2 - NVR - 16 channels - networked |
| Manufacturer | HANWHA VISION |
| MSRP | $6,200.00 |
| UNSPSC | 46171621 |
| Main Specifications | |
| Dimensions & Weight / Depth | 43.49 cm |
| Dimensions & Weight / Height | 8.6 cm |
| Dimensions & Weight / Weight | 9.1 kg |
| Dimensions & Weight / Width | 43.8 cm |
| Header / Brand | Hanwha Techwin |
| Miscellaneous / Product Color | Black |
| Packaged Quantity | 1 |
| Connections | |
| Alarm Ports | Alarm input x 8, alarm output x 4 |
| Audio Output Ports | Mini-phone 3.5 mm x 1 |
| Network Port | 10/100/1000Base-T x 3 |
| Other Ports | iSCSI, USB 2.0 x 2, USB 3.0 x 2 |
| Video Output Ports | HDMI x 2 |
| Dimensions & Weight | |
| Depth | 43.49 cm |
| Height | 8.6 cm |
| Weight | 9.1 kg |
| Width | 43.8 cm |
| Environmental Parameters | |
| Humidity Range Operating | 20 - 85% |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| General | |
| Audio Channels | 16 |
| Color | Black |
| Compliant Standards | Plug and Play, NDAA, FCC, CE/EAC |
| Compression Format | H.265, H.264, MJPEG, G.711, G.726, AAC, JPEG, AVI |
| Device Type | NVR |
| Image Resolution | 3840x2160, 1920x1080 |
| IP Cameras Supported | 16 |
| OS Provided | Linux |
| Video Channels | 16 |
| Hard Drive | |
| Interface | Serial ATA |
| Quantity Supported | 8 |
| Supported Max Total Capacity | 80 TB |
| Networking | |
| DDNS Support | Yes |
| Features | IP address filtering, ONVIF support, Hanwha DDNS, 802.1x authentication, GOP control, Hallway view |
| Network Interfaces | Ethernet 10Base-T/100Base-TX/1000Base-T |
| Supported Protocols | IPv4, IPv6, TCP/IP, UDP/IP, RTP, RTSP, NTP, HTTP, DHCP, SMTP, ICMP, IGMP, ARP, DNS, DDNS, UPnP, HTTPS, SNMP, SSM, CGI |
| Power | |
| Frequency | 50/60 Hz |
| Voltage | 100 - 240 V |
| Security DVR | |
| Display Modes | 2 split screens, 3 split screens, 4 split screens, 6 split screens, 8 split screens, 9 split screens |
| Features | RAID 5 support, RAID 6 support, Auto Recovery Backup (ARB), recording data rate up to 250 Mbps, Fisheye Dewarp function, 300 PTZ position presets, Pan/Tilt/Zoom support, smartphone support, metal housing, SmartViewer, Webviewer, Mobile Viewer, brightness adjustment, contrast adjustment |
| Frame Rate (Playback) | 15 fps, 30 fps, 120 fps, 480 fps, 960 fps, 1920 fps |
| Networked | Yes |
| Playback Search | Date/time, event, text, smart search |
| Record Events | Alarm, motion detection, scheduled, event, continuous, video loss |
| Video Server | |
| Features | Dual stream support |
