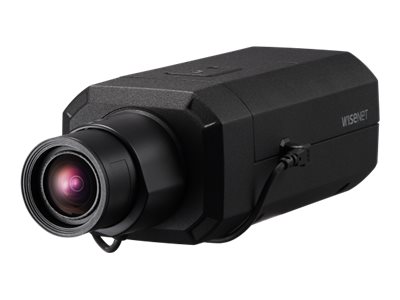

Hanwha Vision WiseNet P PNB-A6001
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
Hanwha Vision WiseNet P PNB-A6001
- Network surveillance camera
- box
- color (Day&Night)
- 2 MP
- 1920 x 1080
- auto iris
- audio
- composite
- GbE
- MJPEG, H.264, H.265
- DC 12 V / PoE Plus
| Additional Details | |
|---|---|
| Mfr Part #: | PNB-A6001 |
| SHI Part #: | 47787062 |
| Category: | Digital cameras |
| UNSPSC: | 45121504 |
| Manufacturer: | HANWHA VISION |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Digital cameras |
| Description | Hanwha Vision WiseNet P PNB-A6001 - Network surveillance camera - box - color (Day&Night) - 2 MP - 1920 x 1080 - auto iris - audio - composite - GbE - MJPEG, H.264, H.265 - DC 12 V / PoE Plus |
| Manufacturer | HANWHA VISION |
| UNSPSC | 45121504 |
| Main Specifications | |
| Dimensions & Weight / Depth | 6.7 cm |
| Dimensions & Weight / Height | 16.5 cm |
| Dimensions & Weight / Weight | 880 g |
| Dimensions & Weight / Width | 8.1 cm |
| Header / Brand | Hanwha Techwin |
| Miscellaneous / Product Color | Black |
| Packaged Quantity | 1 |
| Service & Support / Type | 3-year warranty |
| Camera | |
| Digital Video Format | MJPEG, H.264, H.265 |
| Exposure Range | 1/5 sec - 1/12000 sec |
| Features | Backlight Compensation (BLC), image flip, image mirror, Object Detection, Wide Dynamic Range (WDR), face detection, Privacy Mask Function, Samsung Super Dynamic Range (SSDR), Digital Image Stabilization (DIS), Lens Distortion Compensation (LDC), Camera Tampering Detection, Variable Bitrate (VBR), Constant Bitrate (CBR), Audio Detection, Multicast Streaming, auto gain control, auto white balance, Defocus Detection, ONVIF (Profile S) support, ONVIF (Profile G) support, Samsung Super Noise Reduction (SSNR), loitering detection, entrance / exit detection, appearing / disappearing detection, people counting, digest authentication, WiseStream II support, Vehicle Detection, IP address filtering, Hallway View, i-CS lens, motion detection, Unicast Streaming, Person Detection, aluminum housing, ONVIF (Profile T) support, Virtual Line detection, Directional Detection, license plate tracking, sound classification, digital auto tracking, queue management, social distancing detection |
| Flash Memory | 512 MB |
| Max Digital Video Resolution | 1920 x 1080 |
| Minimum Illumination |
|
| Motion Detection | Yes |
| RAM | 4096 MB |
| Type | Color - Day&Night - fixed |
| Video Capture | 1920 x 1080 @ 120 fps |
| Environmental Parameters | |
| Max Operating Temperature | 55 °C |
| Min Operating Temperature | -10 °C |
| Relative Humidity (operating) | 0 - 90% RH |
| Expansion / Connectivity | |
| Ports |
|
| Supported Memory Cards | SD Memory Card, SDXC Memory Card, SDHC Memory Card |
| General | |
| Audio Formats | G.726, ADPCM, AAC-LC, G.711, G.711u |
| Audio Support | Yes: two-way audio capability, built-in microphone |
| Connectivity Technology | Wired |
| Depth | 6.7 cm |
| Device Type | Network surveillance camera |
| Form Factor | Box |
| Height | 16.5 cm |
| Weight | 880 g |
| Width | 8.1 cm |
| Image Sensor | |
| Type | 2 MP CMOS 1/2" |
| Interfaces | |
| Alarm Inputs Qty | 1 |
| Alarm Outputs Qty | 1 |
| Control Interface | RS-485 |
| Network Interface | Ethernet 10Base-T/100Base-TX/1000Base-T |
| Network Protocols | DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP 1, SNMP 2c, SNMP 3, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, IGMP, SSL, QOS, SRTP, EAP, LLDP |
| Video | Composite video |
| Lens Construction | |
| Lens Iris | Auto iris (DC, P-Iris) |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Color | Black |
| Compliant Standards | FIPS 140-2 Level 2, FCC, cULus, EAC, IEEE 802.3at, IEEE 802.1x |
| Power | |
| Power Device | 17.5 Watt |
| Power Requirements | DC 12 V / PoE Plus |
