Raritan PX4-1851-E7V2
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with

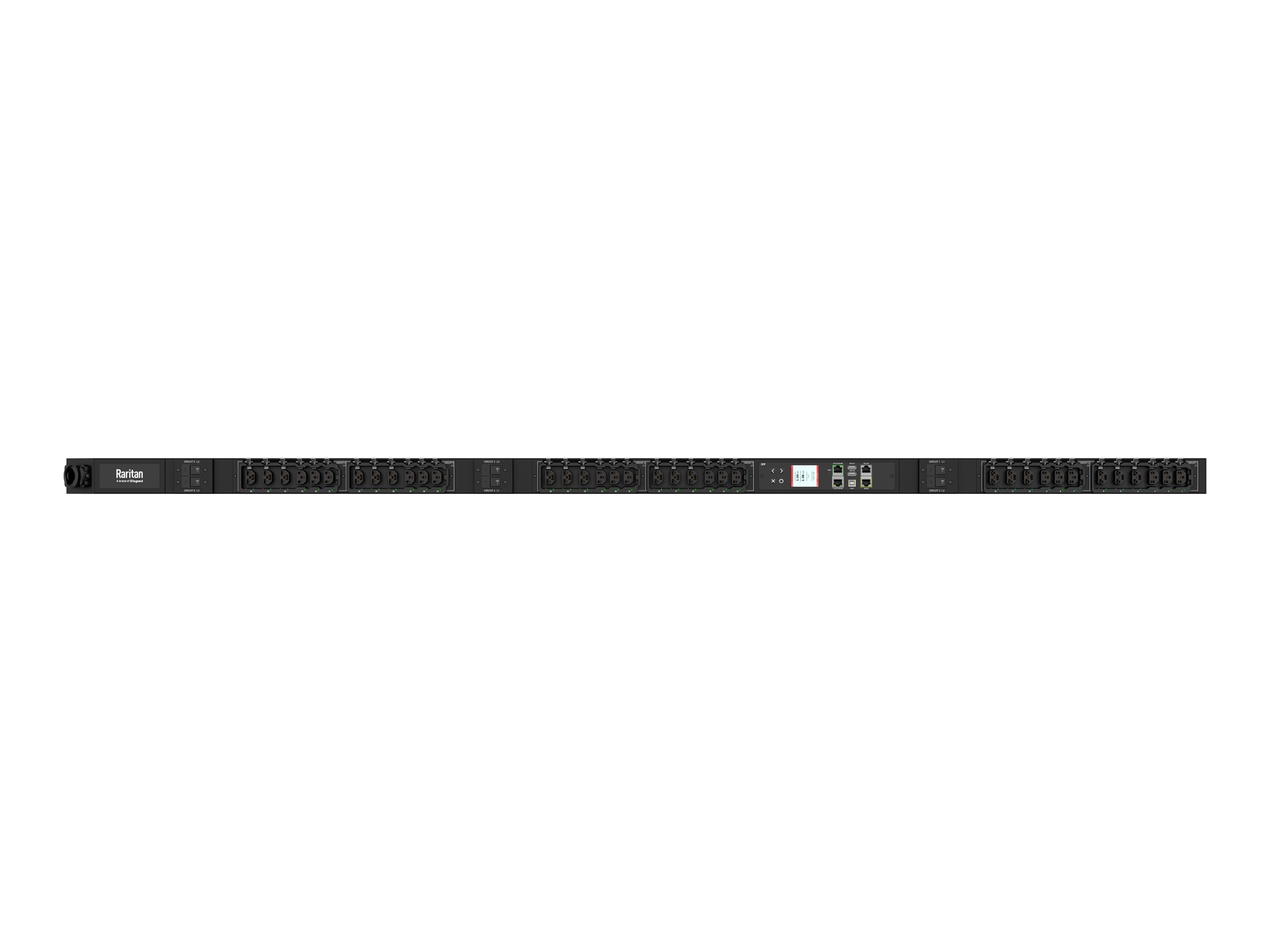

Raritan PX4-1851-E7V2
- Power distribution strip (rack-mountable)
- 24A
- AC 415 V
- 17300 VA
- 3-phase
- Ethernet 10/100/1000, RS-232, USB
- input: NEMA L22-30P
- output connectors: 36 (18 x IEC 60320 C13, 18 x IEC 60320 Cx)
- 3 m cord
- black powder coat
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | PX4-1851-E7V2 |
| SHI Part #: | 47775871 |
| Category: | Rack systems for rack mount electroni... |
| UNSPSC: | 24102001 |
| Manufacturer: | Legrand |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Rack systems for rack mount electroni... |
| Description | Raritan PX4-1851-E7V2 - Power distribution strip (rack-mountable) - 24A - AC 415 V - 17300 VA - 3-phase - Ethernet 10/100/1000, RS-232, USB - input: NEMA L22-30P - output connectors: 36 (18 x IEC 60320 C13, 18 x IEC 60320 Cx) - 3 m cord - black powder coat |
| Manufacturer | Legrand |
| MSRP | $2,199.00 |
| UNSPSC | 24102001 |
| Main Specifications | |
| Dimensions & Weight / Depth | 6.5 cm |
| Dimensions & Weight / Height | 178 cm |
| Dimensions & Weight / Weight | 6.35 kg |
| Dimensions & Weight / Width | 5.6 cm |
| Header / Brand | Raritan |
| Miscellaneous / Product Color | Black |
| Networking / Remote Management Interface |
|
| Packaged Quantity | 1 |
| Power Device / Form Factor | Rack-mountable |
| Power Device / Output Connector Qty | 36 |
| Power Device / Power Capacity (VA) | 17300 VA |
| Power Device / Voltage Required | AC 415 V |
| Product Type |
|
| Service & Support / Type | 2-year warranty |
| Dimensions & Weight | |
| Depth | 6.5 cm |
| Height | 178 cm |
| Weight | 6.35 kg |
| Width | 5.6 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 25.5 cm |
| Shipping Height | 194 cm |
| Shipping Width | 12.5 cm |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Max Operating Temperature | 60 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Color | Black powder coat |
| Cord Length | 3 m |
| Device Type | Power distribution strip - rack-mountable |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Cables Included | Power cable 3 m |
| Compliant Standards | UL, ISO 27001, ICES-003, FCC Part 15 A, RoHS |
| Features | Extruded aluminum housing, tool-less button mount, voltage meter, current meter, active power meter, real power meter, energy meter, power factor meter, metering per input line, metering per branch circuit breaker, hot-swappable controller, environmental sensor ready, cascadable, PDU Linking, LCD display, locking outlets, Raritan SecureLock Ready, 6 x J61-X0 overload protection |
| Networking | |
| Remote Management Interface | Ethernet 10/100/1000, RS-232, USB |
| Remote Management Protocol | HTTP, HTTPS, SSH, Telnet, SNMP 2, SNMP 3, SMTP, JSON-RPC, Modbus TCP |
| Power Device | |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x power NEMA L22-30P |
| Input Voltage | AC 415 V |
| Input Voltage Range | AC 360 - 415 V |
| Input Wiring | 3-phase |
| Max Electric Current | 30 A |
| Output Voltage | AC 208 V |
| Power Capacity | 17300 VA |
| Power Capacity Details | 15 kVA at 360 V, 17.3 kVA at 415 V |
| Power Output Connectors Details |
|
