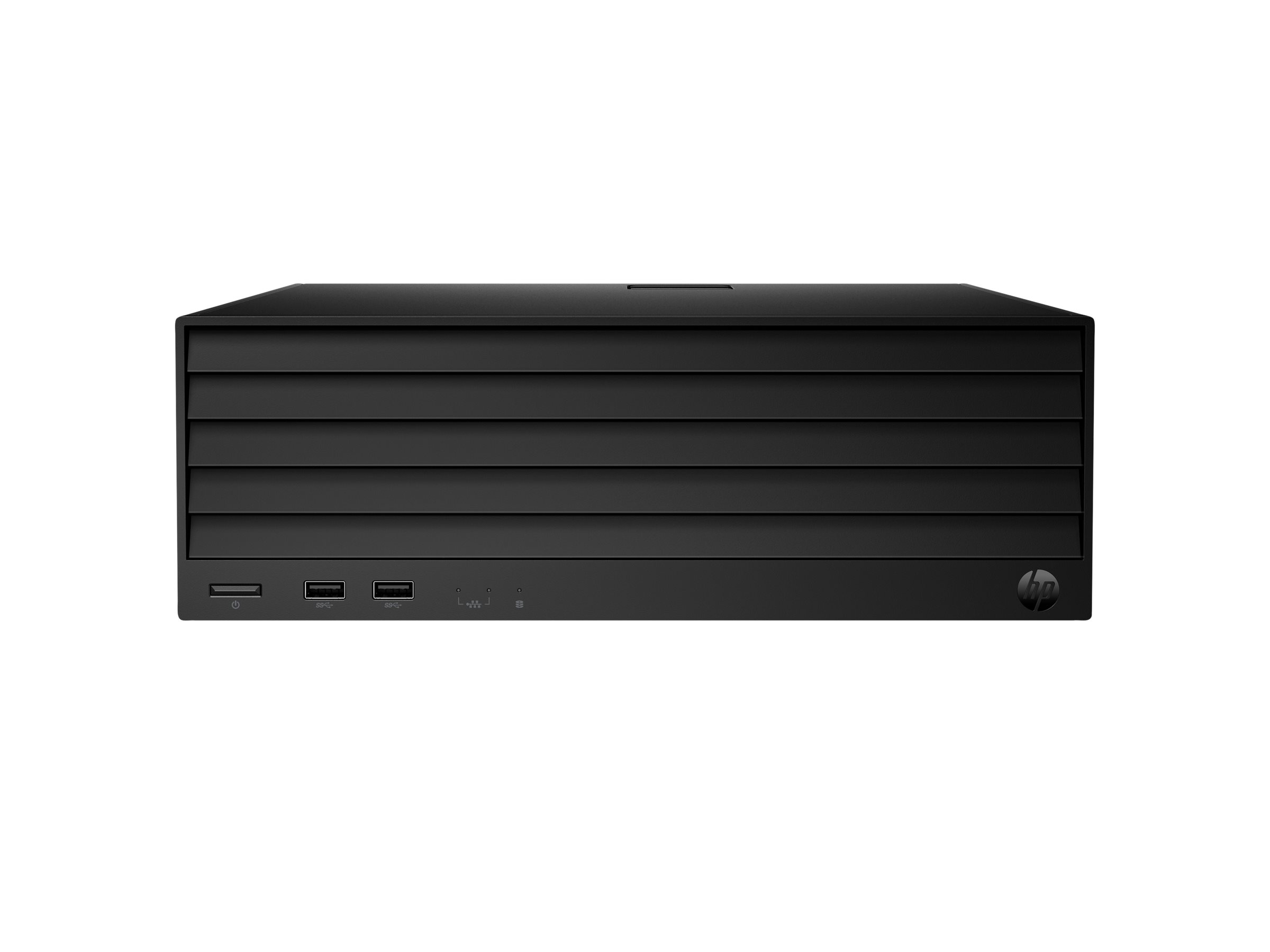

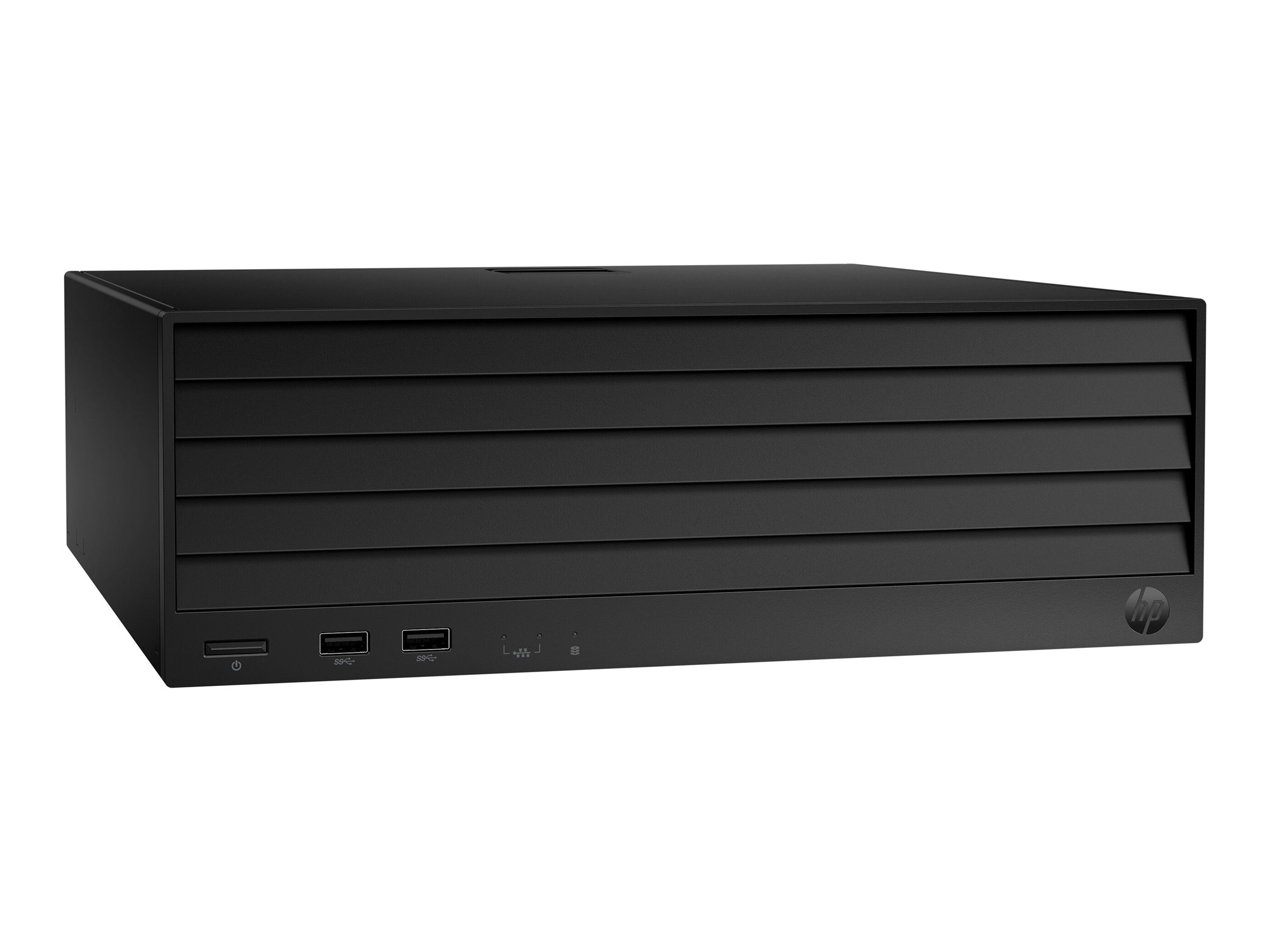

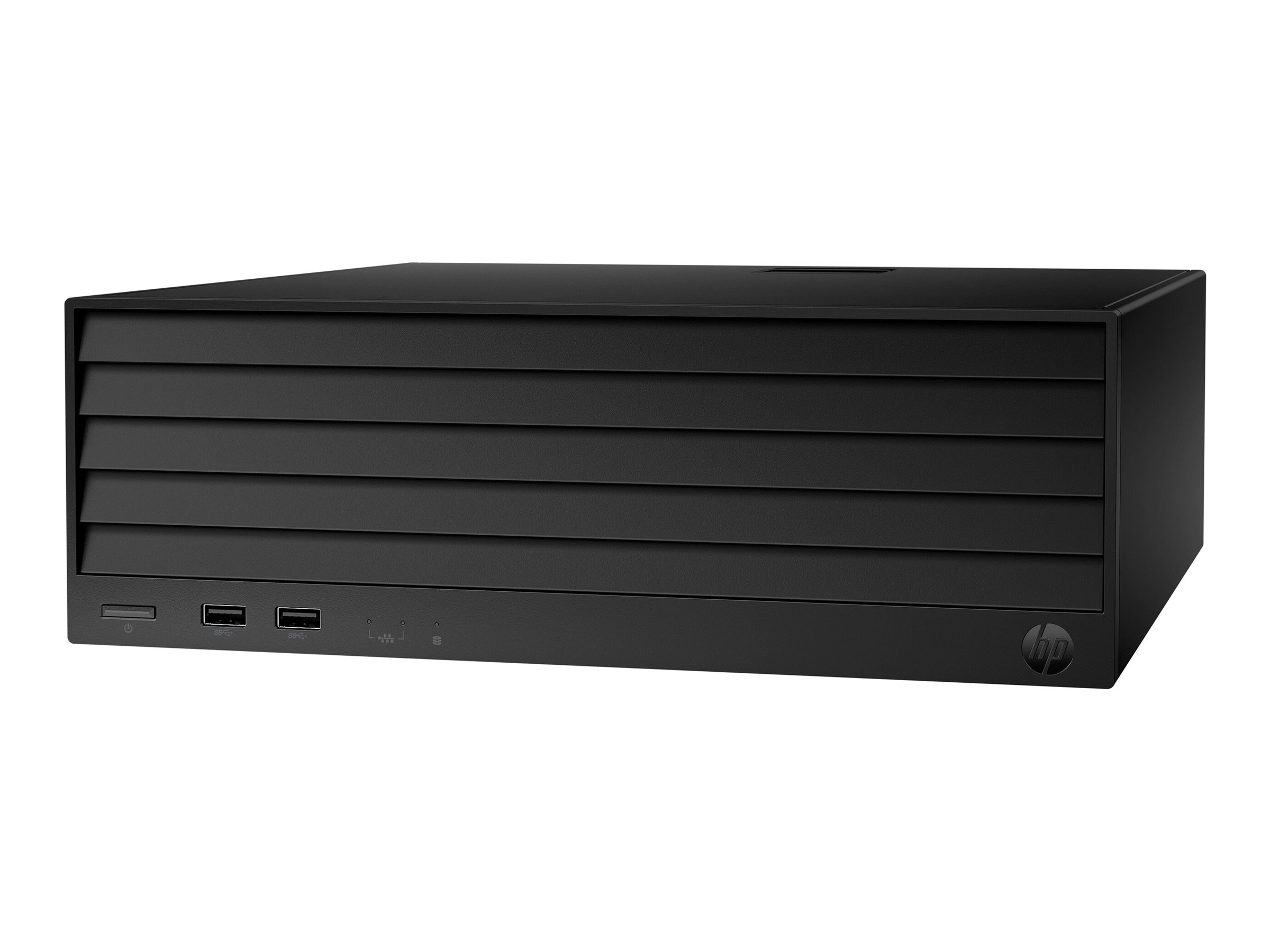

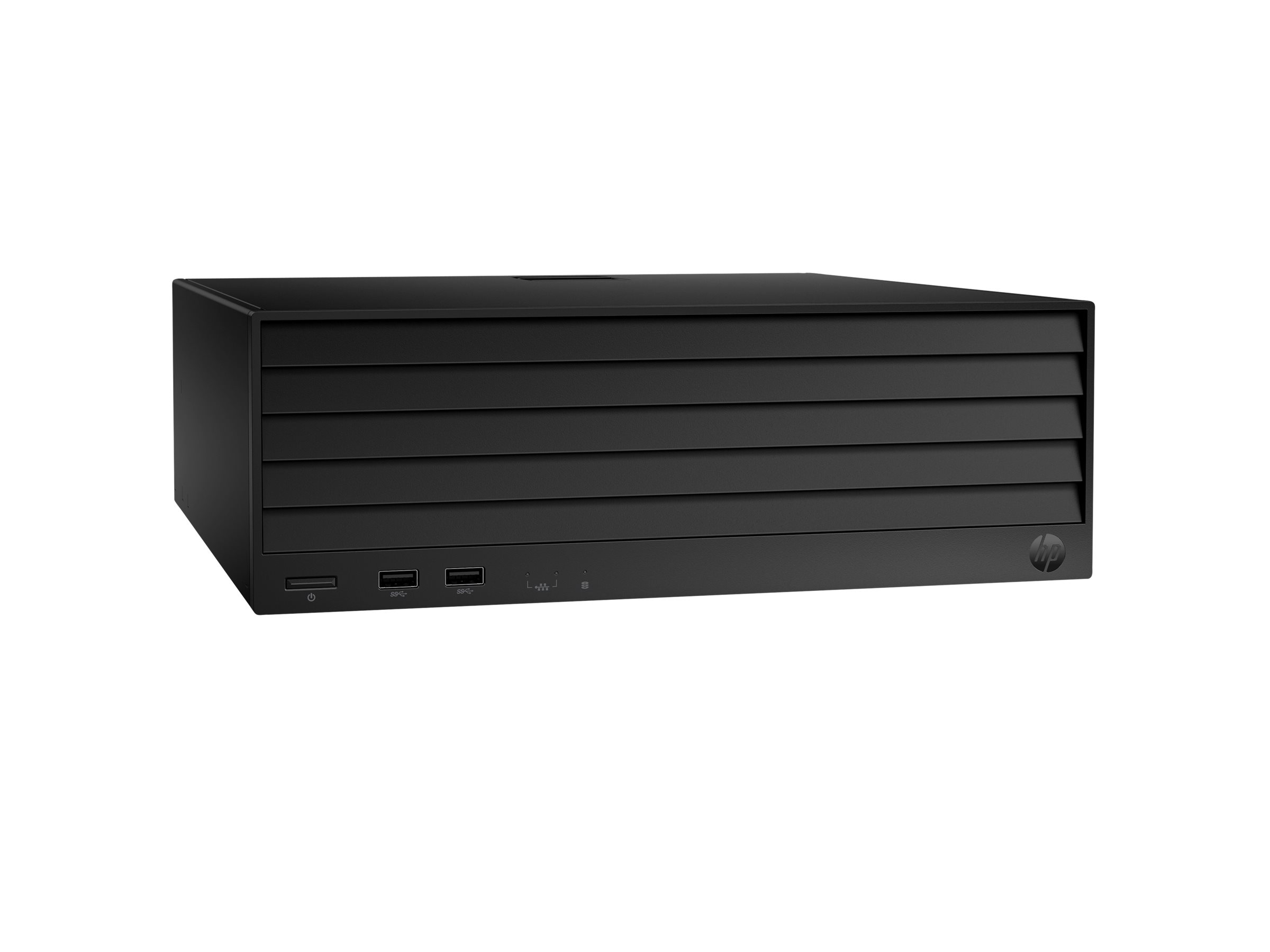

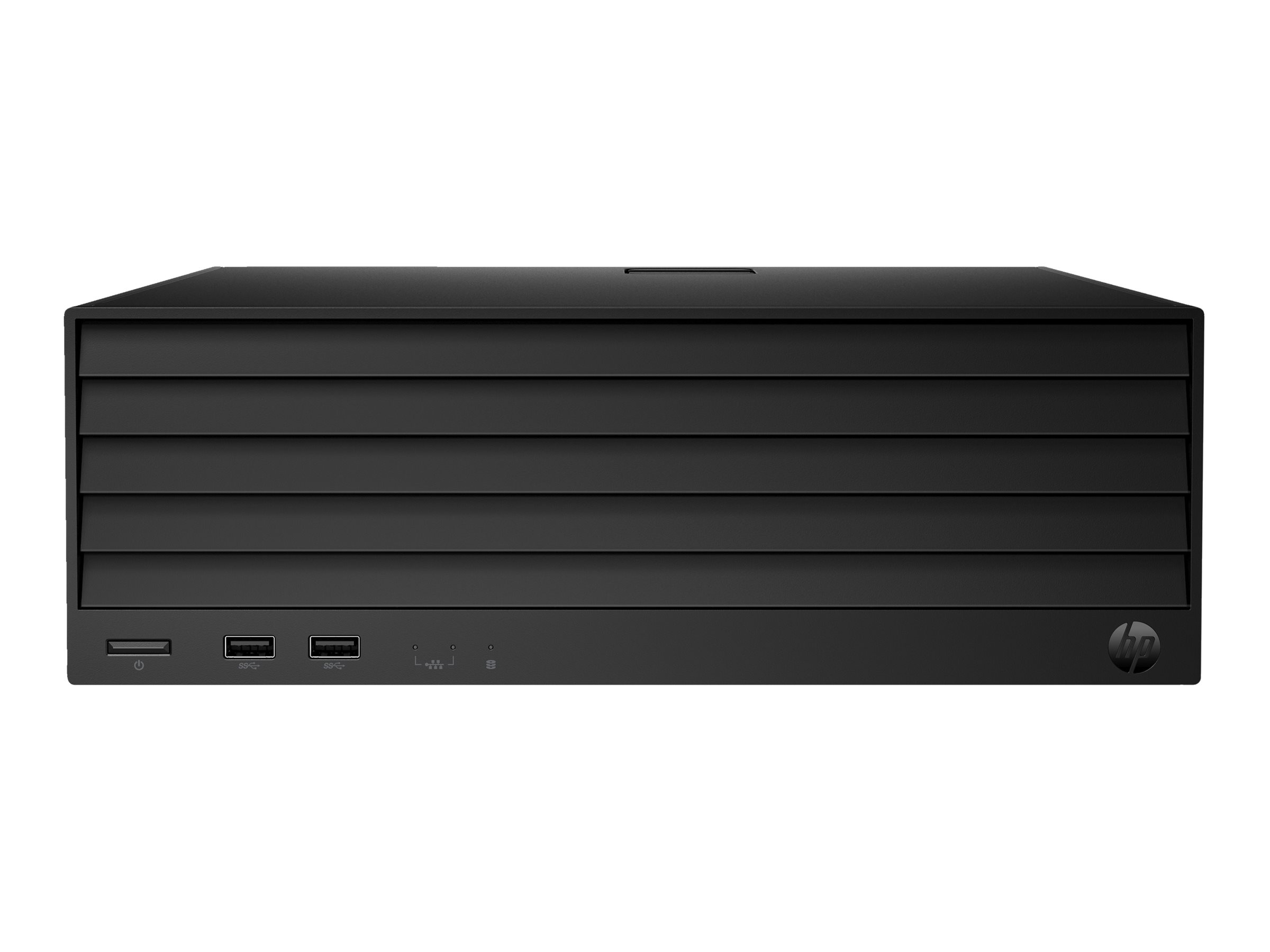

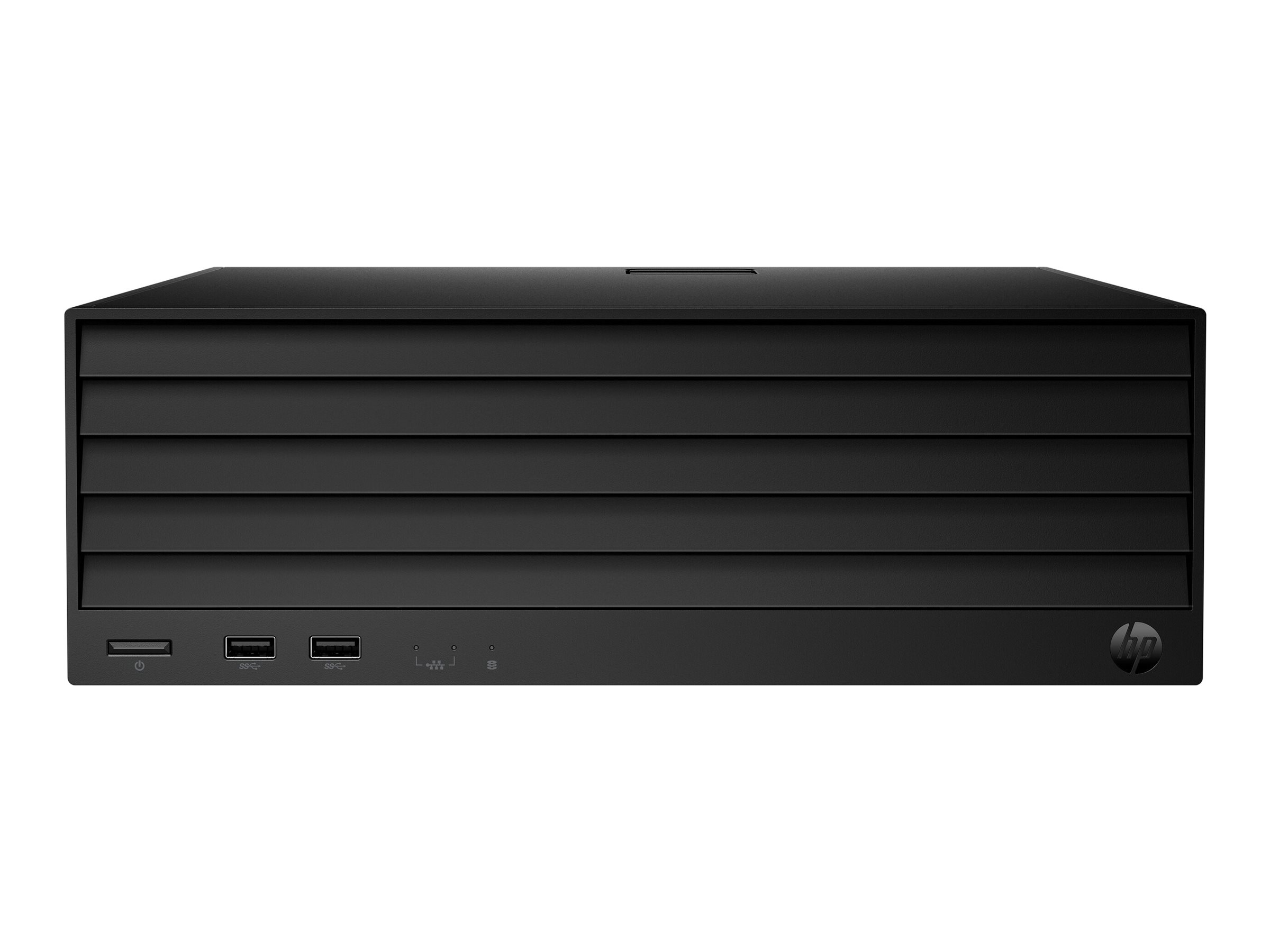

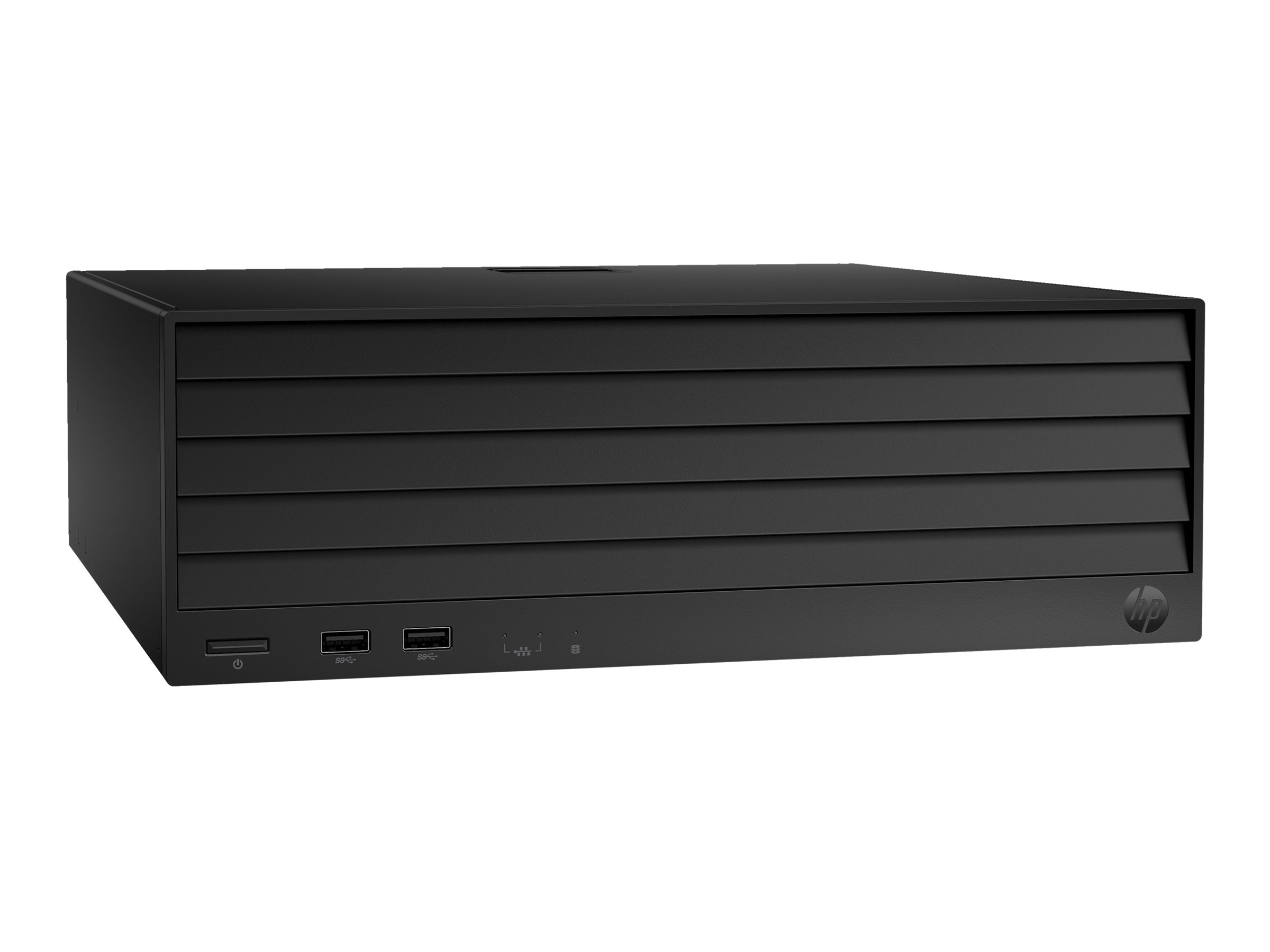

HP Engage Flex Pro-C G2 Retail System

Login for Price
HP Engage Flex Pro-C G2 Retail System
Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • SFF 1 x Core i5 i5-13500E / up to 4.6 GHz
  • RAM 16 GB
  • SSD 512 GB
  • NVMe, SSD 256 GB
  • UHD Graphics 770
HP Engage Flex Pro-C G2 Retail System
  • SFF 1 x Core i5 i5-13500E / up to 4.6 GHz
  • RAM 16 GB
  • SSD 512 GB
  • NVMe, SSD 256 GB
  • UHD Graphics 770
  • Gigabit Ethernet
  • Win 10 IoT Enterprise 2021 LTSC
  • monitor: none
  • Smart Buy
  Additional Details
Mfr Part #: 9Y099UT#ABA
SHI Part #: 47723805
Category: Point of sale (POS) terminals
UNSPSC: 43211505
Manufacturer: HP, Inc.
Product Type: Hardware
General Information
CategoryPoint of sale (POS) terminals
DescriptionHP Engage Flex Pro-C G2 Retail System - SFF 1 x Core i5 i5-13500E / up to 4.6 GHz - RAM 16 GB - SSD 512 GB - NVMe, SSD 256 GB - UHD Graphics 770 - Gigabit Ethernet - Win 10 IoT Enterprise 2021 LTSC - monitor: none - Smart Buy
ManufacturerHP, Inc.
UNSPSC43211505
Main Specifications
Chassis / Form FactorSmall form factor
Dimensions & Weight / Depth30.2 cm
Dimensions & Weight / Height10 cm
Dimensions & Weight / Weight3.9 kg
Dimensions & Weight / Width30 cm
Display / TypeNone.
Hard Drive / Capacity512 GB
Header / BrandHP
Header / Country KitsUnited States
Header / LocalizationEnglish
Mainboard / Chipset TypeIntel Q670
Miscellaneous / Product ColorBlack
Networking / Data Link Protocol
  • Ethernet
  • Fast Ethernet
  • Gigabit Ethernet
Optical Storage / Drive TypeNo optical drive
Optical Storage / TypeNone
OS Provided / TypeWindows 10 IoT Enterprise 2021 LTSC
Packaged Quantity1
Processor / Clock Speed2.4 GHz
Processor / Generation13
Processor / ManufacturerIntel
Processor / Number of Cores14-core
Processor / Processor NumberI5-13500E
Processor / TypeCore i5
RAM / Data Integrity CheckNon-ECC
RAM / Form FactorDIMM 288-pin
RAM / Memory Speed4800 MHz
RAM / TechnologyDDR5 SDRAM
Service & Support / Type1-year warranty
System / Hard Drive Capacity768 GB
System / TypePoint of sale terminal
Video Output / Graphics ProcessorIntel UHD Graphics 770
Video Output / HDCP compatibleYes
Audio Output
Compliant StandardsHigh Definition Audio
Max Sampling Rate192 kHz
Sound Output ModeStereo
Cache Memory
Cache Per Processor24 MB
Installed SizeL3 cache - 24 MB
Dimensions & Weight
Depth30.2 cm
Height10 cm
Weight3.9 kg
Width30 cm
Dimensions & Weight (Shipping)
Shipping Depth40 cm
Shipping Height49.9 cm
Shipping Width22.9 cm
Environmental Parameters
Humidity Range Operating20 - 85% (non-condensing)
Max Operating Temperature40 °C
Min Operating Temperature10 °C
Expansion / Connectivity
Bays2 internal 2.5"
Interfaces
  • 3 x USB 3.2 Gen 1 (charging)
  • 2 x USB 3.2 Gen 1
  • 2 x USB 2.0
  • 1 x DisplayPort 1.4
  • 1 x LAN (Gigabit Ethernet)
  • 1 x headphones/microphone
  • 1 x VGA
Slots
  • 2 (total) / 2 (free) x PCIe - full-height (x1 mode)
  • 1 (total) / 1 (free) x PCIe 4.0 x16 - half-height (x16 mode)
  • 1 (total) / 1 (free) x PCIe 4.0 x16 - half-height (x4 mode)
  • 2 (total) / 1 (free) x M.2 Card
General
Embedded SecurityTrusted Platform Module (TPM 2.0) Security Chip
LocalizationLanguage: English / region: United States
Product Form FactorSFF
SensorsHP Tamper Lock
TypePoint of sale terminal
Graphics Controller
Graphics ProcessorIntel UHD Graphics 770 Dynamic Video Memory Technology
HDCP CompatibleYes
Video InterfacesDisplayPort
Hard Drive
Capacity1 x 512 GB
FeaturesNVM Express (NVMe)
Interface TypePCI Express
TypeSSD - M.2
Hard Drive (2nd)
Capacity1 x 256 GB
FeaturesNVM Express (NVMe)
Interface ClassPCI Express
TypeSSD - M.2
Input Device
TypeNo keyboard, no mouse
Manufacturer Warranty
Service & SupportLimited warranty - parts and labor - 1 year - on-site
Miscellaneous
Compliant StandardsIEC 60601-1-2
Manufacturer Selling ProgramHP Smart Buy
Security Slot TypeKensington security slot
Theft/Intrusion ProtectionSecurity lock slot (cable lock sold separately), chassis intrusion sensor
Monitor
Monitor TypeNone.
Networking
Data Link ProtocolEthernet, Fast Ethernet, Gigabit Ethernet
Ethernet ControllerIntel I219-LM
FeaturesWake on LAN (WoL), ACPI support, auto-uplink (auto MDI/MDI-X), PXE 2.1 support
Remote Management ProtocolSNMP 2
Operating System / Software
OS ProvidedWindows 10 IoT Enterprise 2021 LTSC English
SoftwareHP PC Hardware Diagnostics UEFI, HP Driver Packs, HP Image Assistant, HP Privacy Settings, HP QuickDrop, myHP, Touchpoint Customizer for Commercial, HSA Fusion for Commercial, HSA Telemetry for Commercial, HP Easy Clean, HP PC Hardware Diagnostics Windows, HP Easy Clean Keyboard Driver
Optical Storage
TypeNo optical drive
Power
Device TypePower supply
Efficiency90%
Power Factor CorrectionYes (active)
Power Provided250 watt
Voltage RequiredAC 90-264 V (50/60 Hz)
Processor / Chipset
Chipset TypeIntel Q670
Clock Speed2.4 GHz (P-core) / 1.5 GHz (E-core)
CPUIntel Core i5 (13th Gen) i5-13500E
CPU Qty1
CPU UpgradabilityUpgradable
L2 cache11.5 MB
Max CPU Qty1
Max Turbo Speed4.6 GHz (P-core) / 3.3 GHz (E-core)
Number of Cores14-core
Processor Main FeaturesIntel Turbo Boost Technology
RAM
Configuration Features2 x 8 GB
Effective Memory Speed4800 MHz
Form FactorDIMM 288-pin
Installed Size16 GB (installed) / 64 GB (max)
Rated Memory Speed4800 MHz
Slots4 (total) / 2 (empty)
TechnologyDDR5 SDRAM - non-ECC
Storage Controller
Controller Interface TypeSATA 6Gb/s
Type1 x SATA
Sustainability Information
ENERGY STAR CertifiedYes
