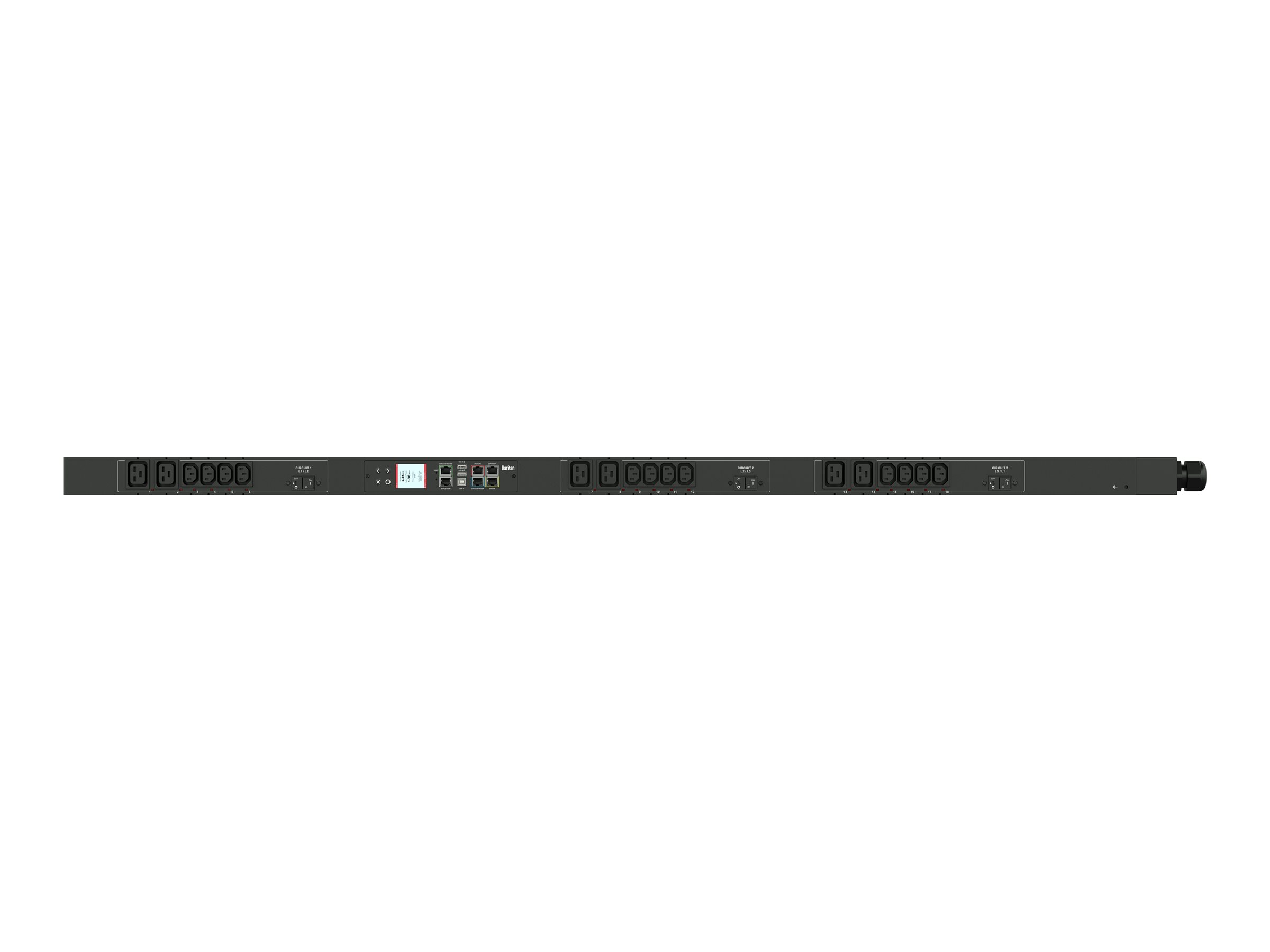

Raritan PX3-5599JV - Power distribution strip (rack-mountable)
MSRP$2,375.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
Raritan PX3-5599JV - Power distribution strip (rack-mountable)
- AC 200 V
- 10400 VA
- 3-phase delta
- RS-232, USB, Ethernet 10/100/1000
- input: NEMA L15-30P
- output connectors: 18 (6 x IEC 60320 C19, 12 x IEC 60320 C13)
- 0U
- 3 m cord
- black powder coat
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $2,375.00 |
| Mfr Part #: | PX3-5599JV |
| SHI Part #: | 47705100 |
| Category: | Rack systems for rack mount electroni... |
| UNSPSC: | 24102001 |
| Manufacturer: | Legrand |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Rack systems for rack mount electroni... |
| Description | Raritan PX3-5599JV - Power distribution strip (rack-mountable) - AC 200 V - 10400 VA - 3-phase delta - RS-232, USB, Ethernet 10/100/1000 - input: NEMA L15-30P - output connectors: 18 (6 x IEC 60320 C19, 12 x IEC 60320 C13) - 0U - 3 m cord - black powder coat |
| Manufacturer | Legrand |
| MSRP | $2,375.00 |
| UNSPSC | 24102001 |
| Main Specifications | |
| Dimensions & Weight / Depth | 6.5 cm |
| Dimensions & Weight / Height | 153.9 cm |
| Dimensions & Weight / Width | 5.2 cm |
| General / Subcategory | Power distribution devices |
| Header / Brand | Raritan |
| Miscellaneous / Product Color | Black |
| Networking / Remote Management Interface |
|
| Packaged Quantity | 1 |
| Power Device / Form Factor | Rack-mountable |
| Power Device / Output Connector Qty | 18 |
| Power Device / Power Capacity (VA) | 10400 VA |
| Power Device / Voltage Required | AC 200 V |
| Product Type | Power distribution strip |
| Service & Support / Type | 2-year warranty |
| Dimensions & Weight | |
| Depth | 6.5 cm |
| Height | 153.9 cm |
| Width | 5.2 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 11.5 cm |
| Shipping Height | 181.5 cm |
| Shipping Width | 28 cm |
| Environmental Parameters | |
| Humidity Range Operating | 85% |
| Max Operating Temperature | 60 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Color | Black powder coat |
| Cord Length | 3 m |
| Device Type | Power distribution strip - rack-mountable |
| Height (Rack Units) | 0U |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Cables Included | Power cable 3 m |
| Compliant Standards | ICES-003, RoHS, FCC Part 15 A, PSE Mark |
| Features | Vertical orientation, LCD display, current meter, LED indicators, cascadable, active power meter, real power meter, energy meter, power factor meter, Raritan SecureLock Ready, remote outlet switching, metering per input line, replaceable controller, bottom-bottom feed cord entry, power cable IP44 compliant, cord retention, Auto-Flip Current Display, voltage meter, environmental sensor ready, 3 x LEJBXA66-20 overload protection, Power IQ technology, ARM Cortex A5 CPU, 16MB SPI Flash, 64MB DDR2 RAM |
| Networking | |
| Remote Management Interface | RS-232, USB, Ethernet 10/100/1000 |
| Remote Management Protocol | SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH, JSON-RPC, SMTP, Modbus TCP |
| Power Device | |
| Frequency Required | 50/60 Hz |
| Input Connectors | Power NEMA L15-30P |
| Input Voltage | AC 200 V |
| Input Wiring | 3-phase delta |
| Max Electric Current | 30 A |
| Output Voltage | AC 200 V |
| Power Capacity | 10400 VA |
| Power Capacity Details | 10.4 kVA at 200 V |
| Power Output Connectors Details |
|
