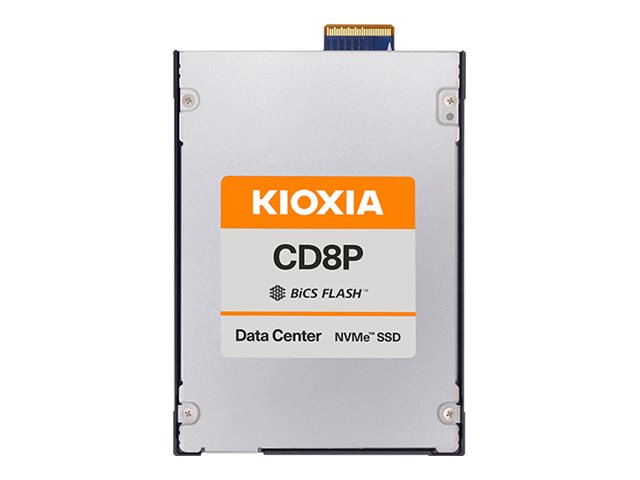

KIOXIA CD8P-R Series KCD8XPJE1T92
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
KIOXIA CD8P-R Series KCD8XPJE1T92
- SSD
- Data Center, Read Intensive
- 1920 GB
- internal
- E3.S
- PCI Express 5.0 x4 (NVMe)
| Additional Details | |
|---|---|
| Mfr Part #: | KCD8XPJE1T92 |
| SHI Part #: | 47686407 |
| Category: | Hard drives |
| UNSPSC: | 43201803 |
| Manufacturer: | Kioxia |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Hard drives |
| Description | KIOXIA CD8P-R Series KCD8XPJE1T92 - SSD - Data Center, Read Intensive - 1920 GB - internal - E3.S - PCI Express 5.0 x4 (NVMe) |
| Manufacturer | Kioxia |
| UNSPSC | 43201803 |
| Main Specifications | |
| Dimensions & Weight / Depth | 112.75 mm |
| Dimensions & Weight / Height | 7.5 mm |
| Dimensions & Weight / Weight | 110 g |
| Dimensions & Weight / Width | 76 mm |
| Hard Drive / Capacity | 1920 GB |
| Hard Drive / Form Factor | E3.S |
| Hard Drive / Hard Drive Type | Internal hard drive |
| Hard Drive / Interface | PCI Express 5.0 x4 (NVMe) |
| Hard Drive / Interface | PCI Express 5.0 x4 (NVMe) |
| Header / Brand | KIOXIA |
| Packaged Quantity | 1 |
| Service & Support / Type | 5-year warranty |
| Storage / Type | Solid state drive |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 95% RH |
| Max Operating Temperature | 76 °C |
| Max Storage Temperature | 85 °C |
| Min Operating Temperature | 0 °C |
| Min Storage Temperature | -40 °C |
| Shock Tolerance (operating) | 1000 g @ 0.5 ms |
| Vibration Tolerance (operating) | 2.17 gRMS @ 5-800 Hz |
| Expansion & Connectivity | |
| Compatible Bay | E3.S |
| Interfaces | 1 x PCI Express 5.0 x4 (NVMe) |
| General | |
| Capacity | 1920 GB |
| Depth | 112.75 mm |
| Device Type | Solid state drive - internal |
| Features | 24x7 continuous operation, Open Compute Project 2.0, single port, Power Loss Protection (PLP), End-to-end data protection, Sanitize Instant Erase (SIE), NVMe 2.0 |
| Form Factor | E3.S |
| Height | 7.5 mm |
| Interface | PCI Express 5.0 x4 (NVMe) |
| NAND Flash Memory Type | Triple-level cell (TLC) |
| Weight | 110 g |
| Width | 76 mm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Performance | |
| 4KB Random Read | 1600000 IOPS |
| 4KB Random Write | 150000 IOPS |
| Drive Class | Data Center, Read Intensive |
| Drive Writes Per Day (DWPD) | 1 |
| Internal Data Rate | 12000 MBps (read) / 3500 MBps (write) |
| Power | |
| Power Consumption |
|
| Reliability | |
| 24x7 Operation | Yes |
| MTBF | 2,500,000 hours |
