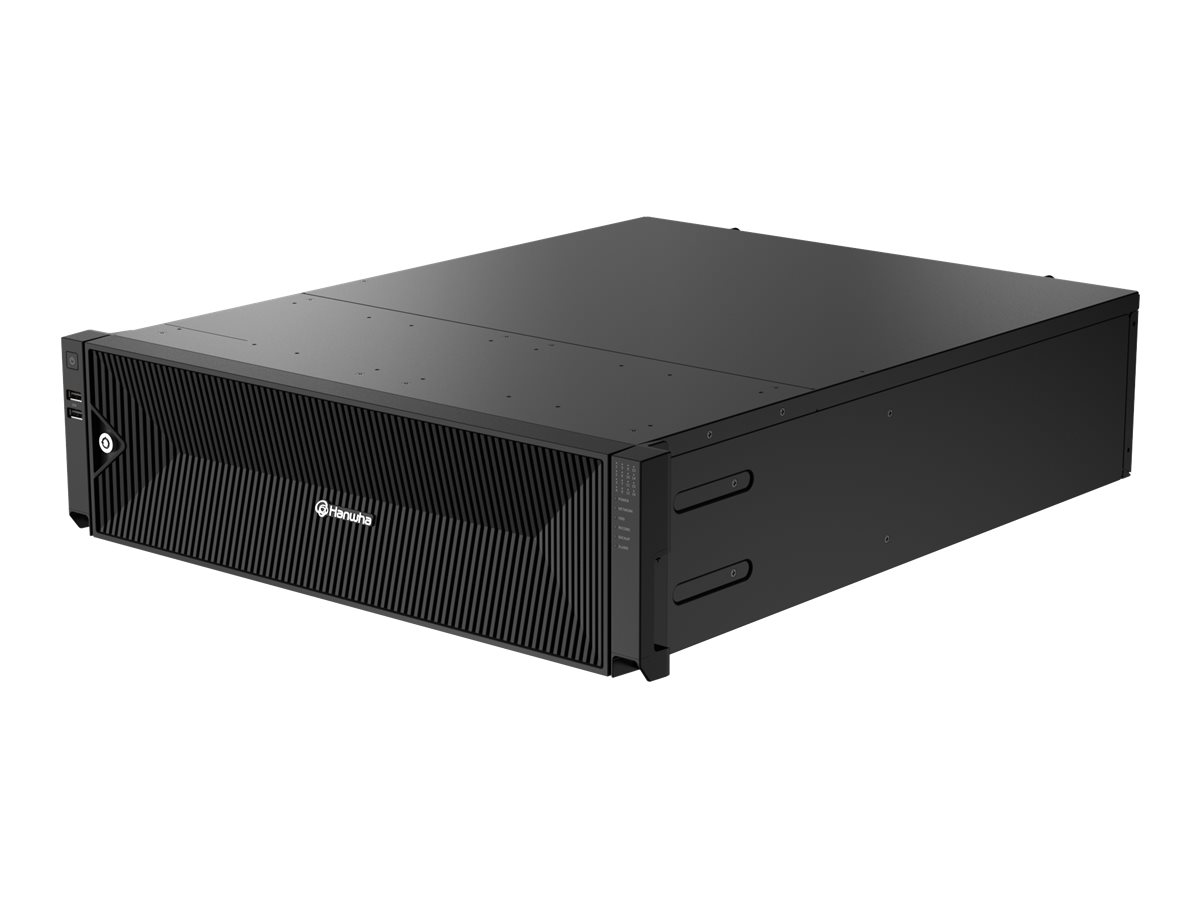

Hanwha Vision XRN-6420DB4
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
Hanwha Vision XRN-6420DB4
- NVR
- 64 channels 104 TB
- networked
| Additional Details | |
|---|---|
| Mfr Part #: | XRN-6420DB4-104TB |
| SHI Part #: | 47650553 |
| Category: | Surveillance video or audio recorders |
| UNSPSC: | 46171621 |
| Manufacturer: | HANWHA VISION |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Surveillance video or audio recorders |
| Description | Hanwha Vision XRN-6420DB4 - NVR - 64 channels 104 TB - networked |
| Manufacturer | HANWHA VISION |
| UNSPSC | 46171621 |
| Main Specifications | |
| Dimensions & Weight / Depth | 57.11 cm |
| Dimensions & Weight / Height | 13.2 cm |
| Dimensions & Weight / Weight | 15.1 kg |
| Dimensions & Weight / Width | 44 cm |
| Header / Brand | Hanwha Vision |
| Miscellaneous / Product Color | Black |
| Packaged Quantity | 1 |
| Connections | |
| Alarm Ports | Alarm output x 4, alarm input x 8 |
| Audio Output Ports | Mini-phone 3.5 mm x 1 |
| Network Port | 10/100/1000Base-T x 3 |
| Other Ports | USB 2.0 x 2, USB 3.0 x 2 |
| Video Output Ports | HDMI x 2 |
| Dimensions & Weight | |
| Depth | 57.11 cm |
| Height | 13.2 cm |
| Weight | 15.1 kg |
| Width | 44 cm |
| Environmental Parameters | |
| Humidity Range Operating | 20 - 85% RH |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| General | |
| Audio Channels | 64 |
| Color | Black |
| Compliant Standards | IEEE 802.1x, TLS, NDAA, EAC, cULus, FCC |
| Compression Format | H.265, H.264, MJPEG, G.711, G.726, AAC |
| Device Type | NVR |
| Image Resolution | 3840x2160, 1920x1080 |
| OS Provided | Linux |
| Package Content | Keyboard, mouse |
| Video Channels | 64 |
| Hard Drive | |
| Capacity | 104 TB |
| Interface | Serial ATA |
| Quantity Supported | 16 |
| Supported Max Total Capacity | 160 TB |
| Networking | |
| DDNS Support | Yes |
| Features | Automatic shutdown, Trusted Platform Module (TPM), signed firmware, Source-Specific Multicast (SSM), IP address filtering, data compression, GOP control, Hallway view, failover support, CGI support, Hanwha Techwin Root CA encryption, user access log, multicast mode, Hanwha DDNS, built-in buzzer |
| Network Interfaces | Ethernet 10Base-T/100Base-TX/1000Base-T |
| Supported Protocols | ONVIF, IPv4, IPv6, TCP/IP, UDP/IP, RTP, UDP, TCP, RTSP, RTCP, NTP, HTTP, DHCP, SMTP, ICMP, IGMP, ARP, DNS, DDNS, UPnP, HTTPS, SNMP, SUNAPI |
| Power | |
| Frequency | 50/60 Hz |
| Power Consumption | 265 watt |
| Voltage | 100 - 240 V |
| Security DVR | |
| Display Modes | 2 split screens, 3 split screens, 4 split screens, 6 split screens, 8 split screens, 9 split screens, 32 split screens, 36 split screens, 64 split screens, dynamic layout |
| Features | Recording data rate up to 520 Mbps, Fisheye Dewarp function, RAID 5 support, RAID 6 support, 2-way audio communication, Webviewer, mirror image, brightness adjustment, contrast adjustment, Auto Recovery Backup (ARB), alarm push, 300 PTZ position presets, push notification support, event notification, e-mail alarm notifications |
| Frame Rate (Playback) | 30 fps, 15 fps |
| Networked | Yes |
| Playback Search | Date/time, event, text, bookmark, smart search |
| Record Events | Alarm, event, video loss, sensor, analytics, defocus detection, audio detection, pre-event, post-event, scheduled, continuous |
| Video Recording Resolution | CIF, 32 Megapixels |
| System Requirements | |
| Browser | Edge/Safari/Google Chrome |
| Operating Systems | Apple iOS, Android, Windows 10, macOS 13.5.2 |
| Video Server | |
| Features | Dual stream support |
