Hanwha Vision TNO-C3012TRA
MSRP$6,329.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with

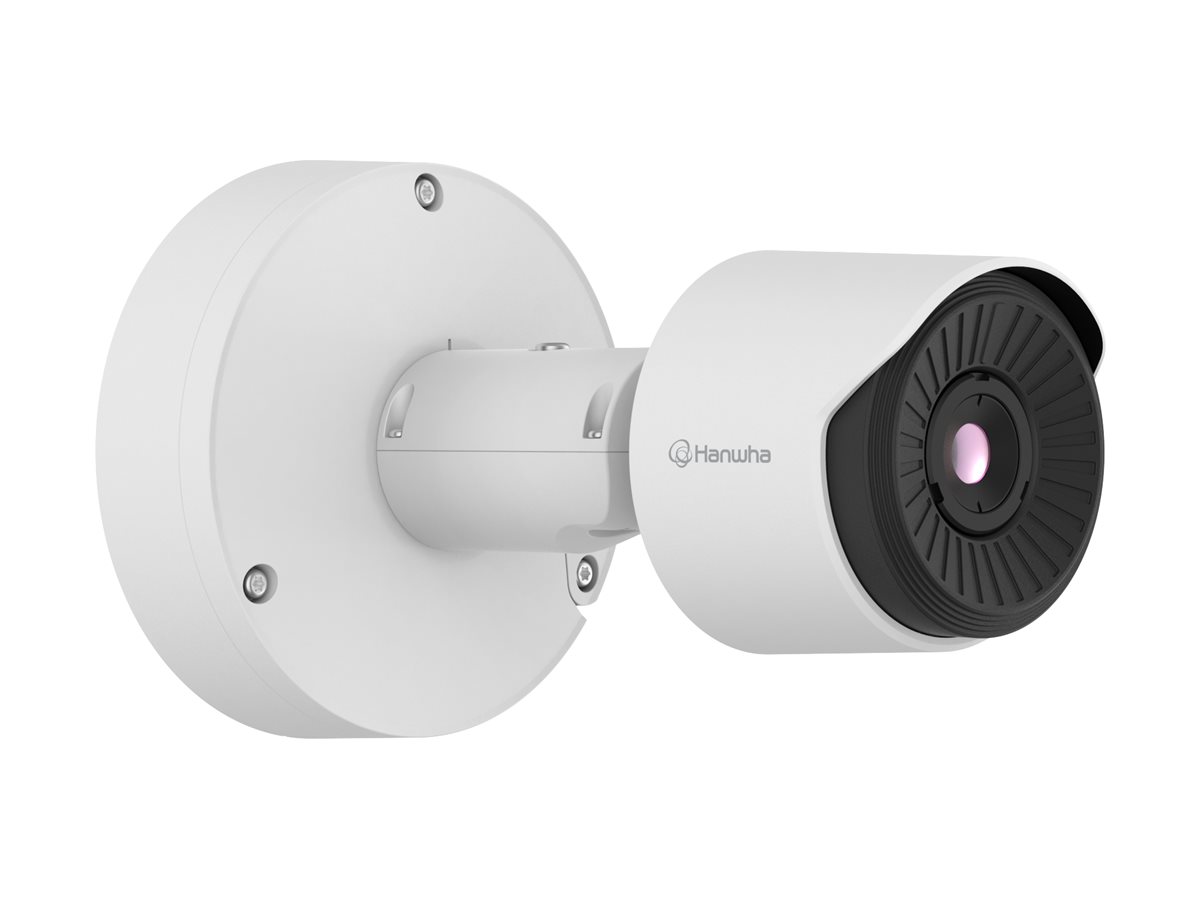

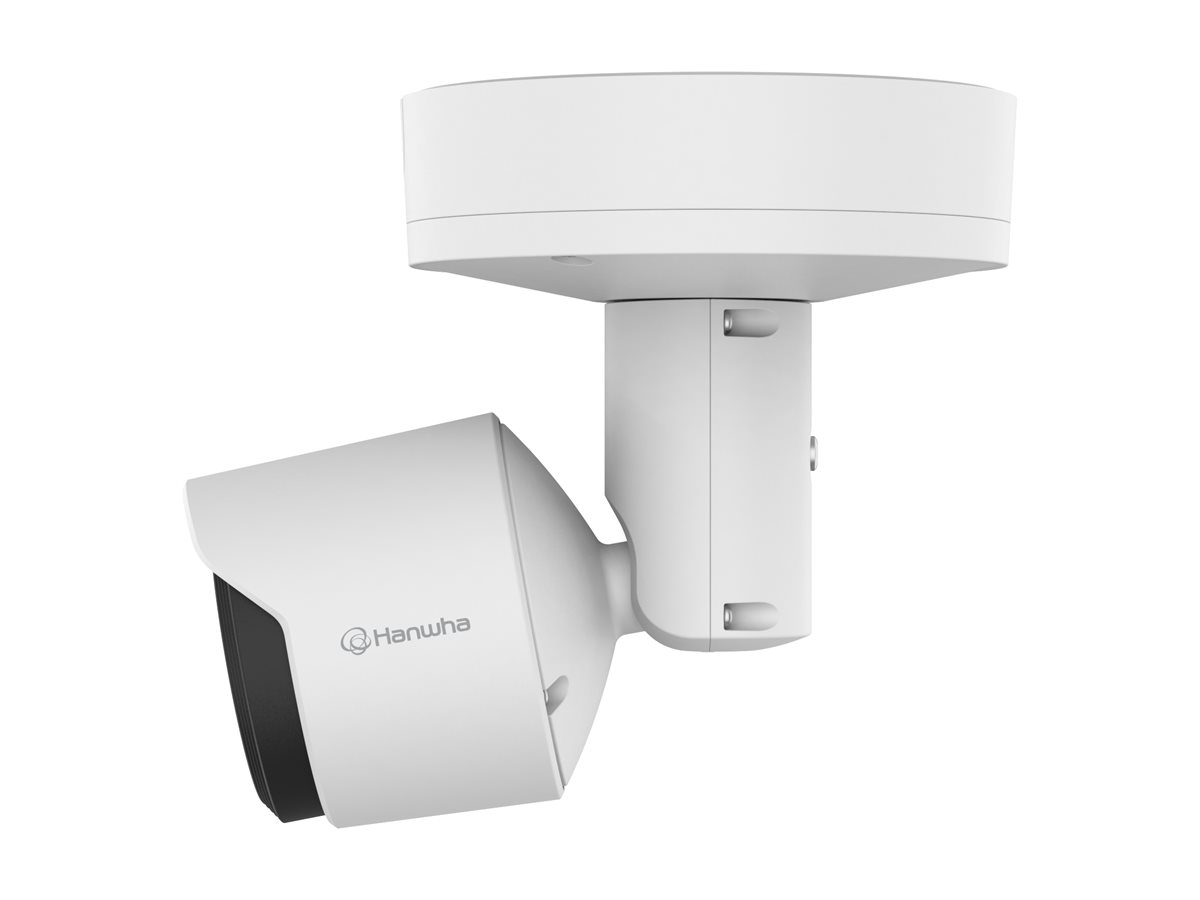

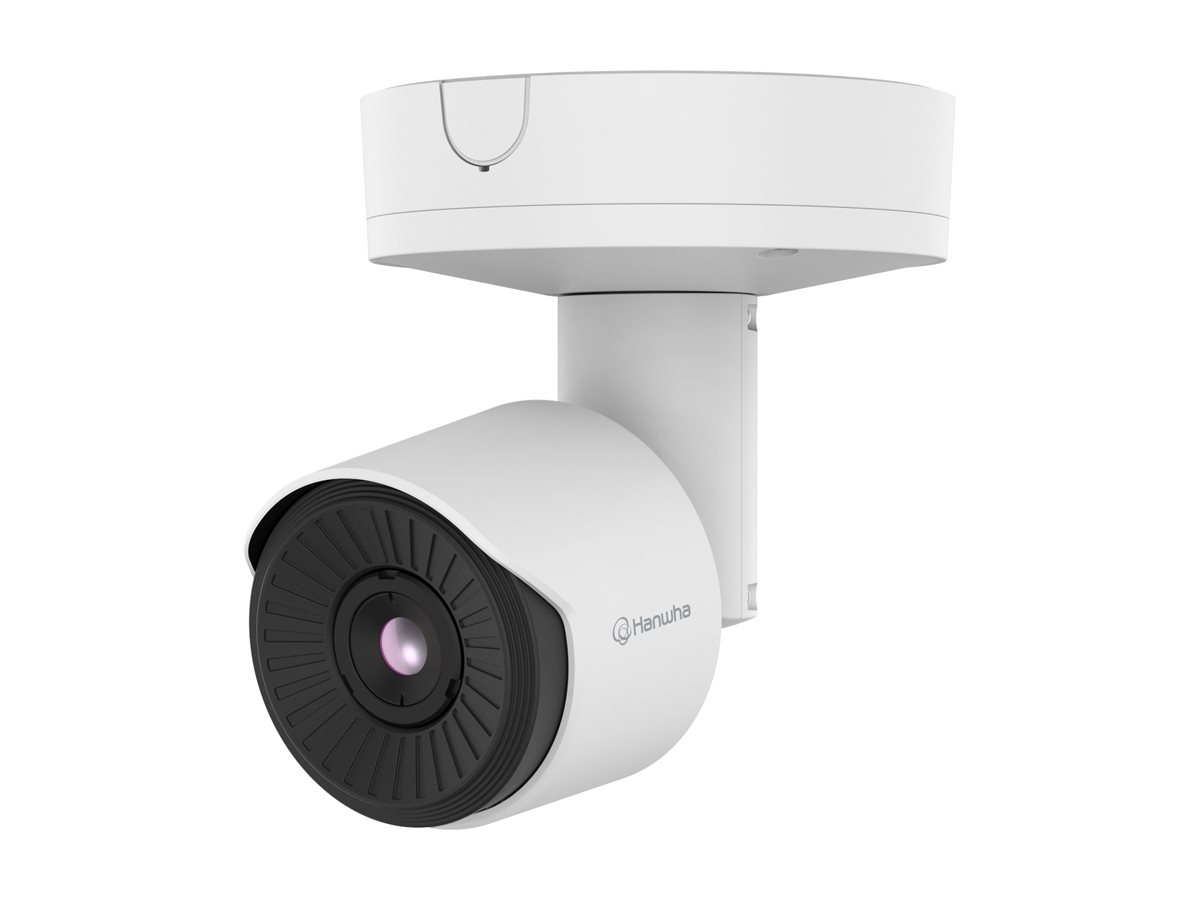

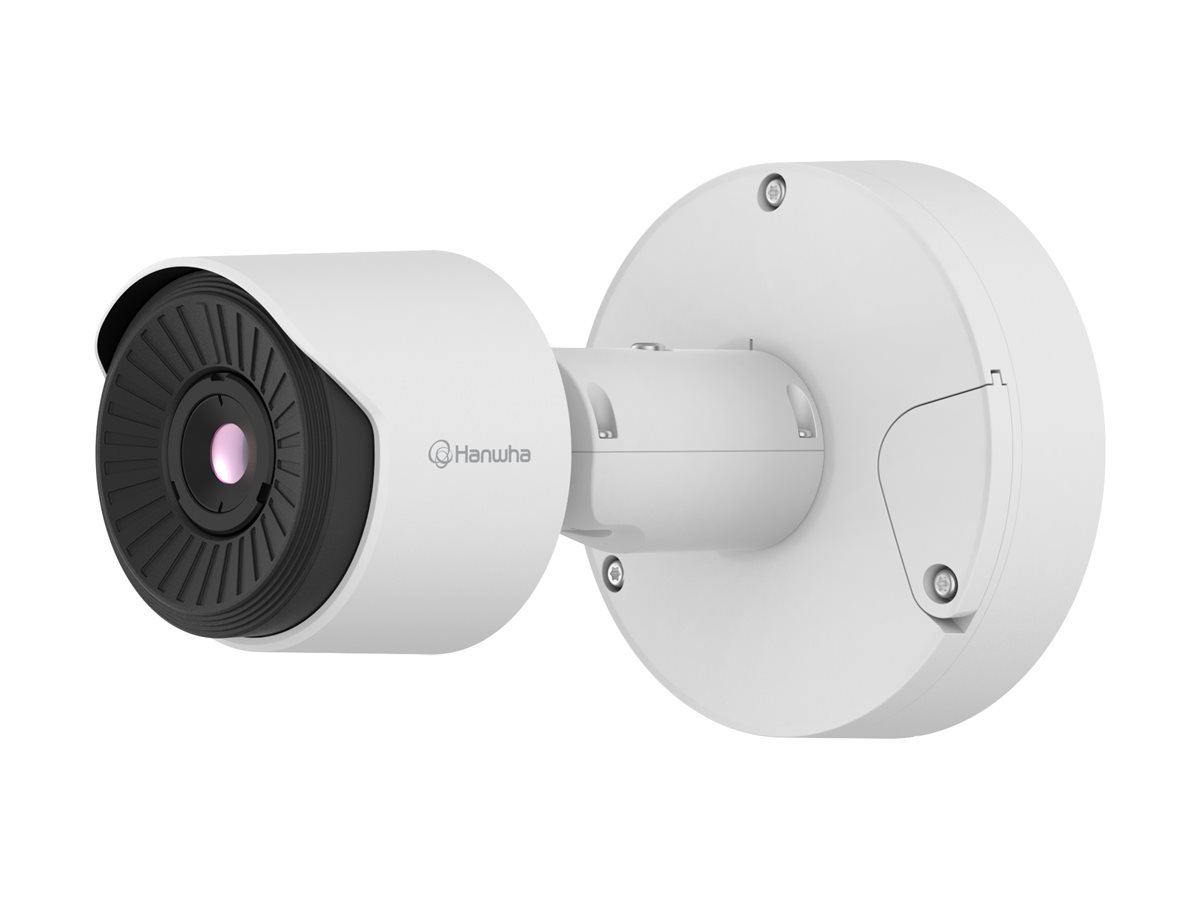

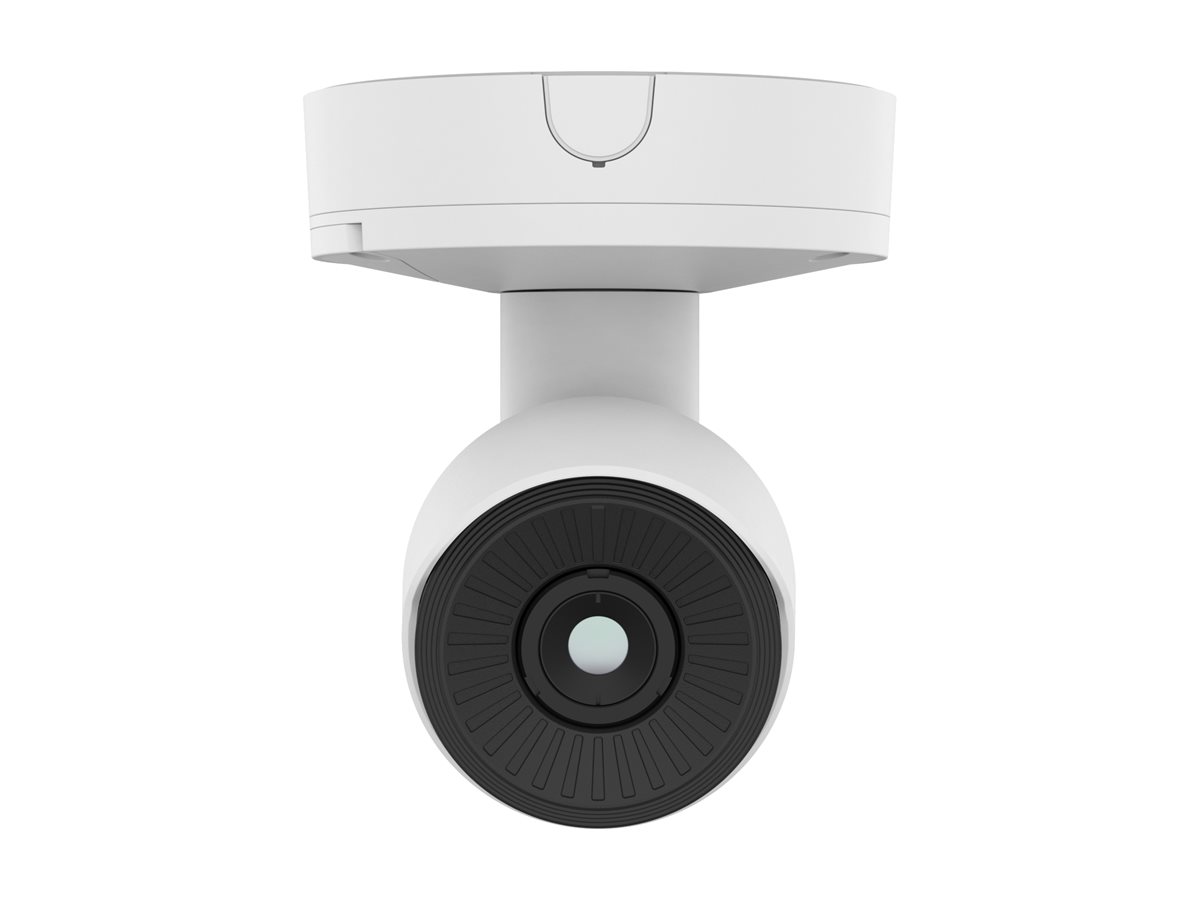

Hanwha Vision TNO-C3012TRA
- Thermal network camera
- pan / tilt
- bullet
- 768 x 576
- fixed focal
- audio
- USB
- LAN 10/100
- MJPEG, H.264, H.265
- DC 12 V / PoE Class 3
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $6,329.00 |
| Mfr Part #: | TNO-C3012TRA |
| SHI Part #: | 47650522 |
| Category: | Surveillance and detection equipment |
| UNSPSC: | 46171600 |
| Manufacturer: | HANWHA VISION |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Surveillance and detection equipment |
| Description | Hanwha Vision TNO-C3012TRA - Thermal network camera - pan / tilt - bullet - 768 x 576 - fixed focal - audio - USB - LAN 10/100 - MJPEG, H.264, H.265 - DC 12 V / PoE Class 3 |
| Manufacturer | HANWHA VISION |
| MSRP | $6,329.00 |
| UNSPSC | 46171600 |
| Main Specifications | |
| Dimensions & Weight / Depth | 9.38 cm |
| Dimensions & Weight / Height | 23.35 cm |
| Dimensions & Weight / Weight | 1.7 kg |
| Dimensions & Weight / Width | 9.38 cm |
| Header / Brand | Hanwha Vision |
| Miscellaneous / Product Color | White |
| Packaged Quantity | 1 |
| Camera | |
| Digital Video Format | MJPEG, H.264, H.265 |
| Features | Radiometric calibrated temperature measurement, 350° rotation, image masking, vertical flip and mirror, Hallway View, object classification, Object Detection, loitering detection, intrusion detection, entrance / exit detection, AI Analytics, tamper-detection, Audio Detection, sound classification, shock detection, appearing / disappearing detection, network disconnection trigger, alarm function, notification picture to FTP, notification picture to E-mail, Handover, WiseStream II support, WiseStream III support, WiseNR II, Variable Bitrate (VBR), Constant Bitrate (CBR), Multicast Streaming, Unicast Streaming, digest authentication, IP address filtering, user access log, 802.1x authentication, ONVIF (Profile S) support, ONVIF (Profile G) support, ONVIF (Profile T) support, ONVIF (Profile M) support, Trusted Platform Module (TPM), thermal sensitivity 30 mK (NETD) |
| Flash Memory | 512 GB |
| Max Digital Video Resolution | 768 x 576 |
| Motion Detection | Yes |
| RAM | 2 GB |
| Type | - pan / tilt |
| Video Capture | 320 x 240 @ 8 fps |
| Environmental Parameters | |
| Max Operating Temperature | 60 °C |
| Min Operating Temperature | -40 °C |
| Relative Humidity (operating) | 0 - 95% RH |
| Expansion / Connectivity | |
| Encryption Algorithm | FIPS 140-2 |
| Ports |
|
| Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
| General | |
| Audio Formats | G.711 u-law, G.726, ADPCM, AAC-LC |
| Audio Support | Yes |
| Connectivity Technology | Wired |
| Depth | 9.38 cm |
| Device Type | Thermal network camera |
| Form Factor | Bullet |
| Height | 23.35 cm |
| Weight | 1.7 kg |
| Width | 9.38 cm |
| Image Sensor | |
| Type | Uncooled Micro bolometer |
| Interfaces | |
| Alarm Outputs Qty | 2 |
| Control Interface | RS-485 |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | IPv4, IPv6, TCP/IP, UDP/IP, RTP, RTCP, RTSP, NTP, HTTP, HTTPS, SSL, TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMP 1, SNMP 2c, SNMP 3, ARP, DNS, DDNS, QOS, UPnP, LLDP, SRTP, Bonjour, EAP, PIM-SM |
| Video | USB |
| Lens Construction | |
| Diagonal Field of View (degree) | 118.6 |
| Focal Length | 4.4 mm |
| Horizontal Field of View (degree) | 90 |
| Lens Iris | F/1.0 |
| Min Focus Distance | 60 cm |
| Type | Fixed focal |
| Vertical Field of View (degree) | 65.3 |
| Miscellaneous | |
| Color | White, RAL 9003 |
| Compliant Standards | EN 55032:2015 + A11:2020, EN 50130-4:2011+A1:2014, BS EN 61000-3-2:2014, BS EN 61000-3-3:2013, FCC 47 CFR Part 15 Subpart B Class A, ICES-003 issue 7, RCM, EN/IEC 63000:2018, KS C 9832, KS C 9835:2019, UL/CSA 62368-1, RoHS, IEC 62262 IK10, IEC 60529 IP66, NEMA 250 Type 4X |
| Panning | |
| Range (degree) | 0 to 350 |
| Power | |
| Power Requirements | DC 12 V / PoE Class 3 |
| Tilting | |
| Range (degree) | 90 |
