Hanwha Vision WiseNet TNO-C3010TRA
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with

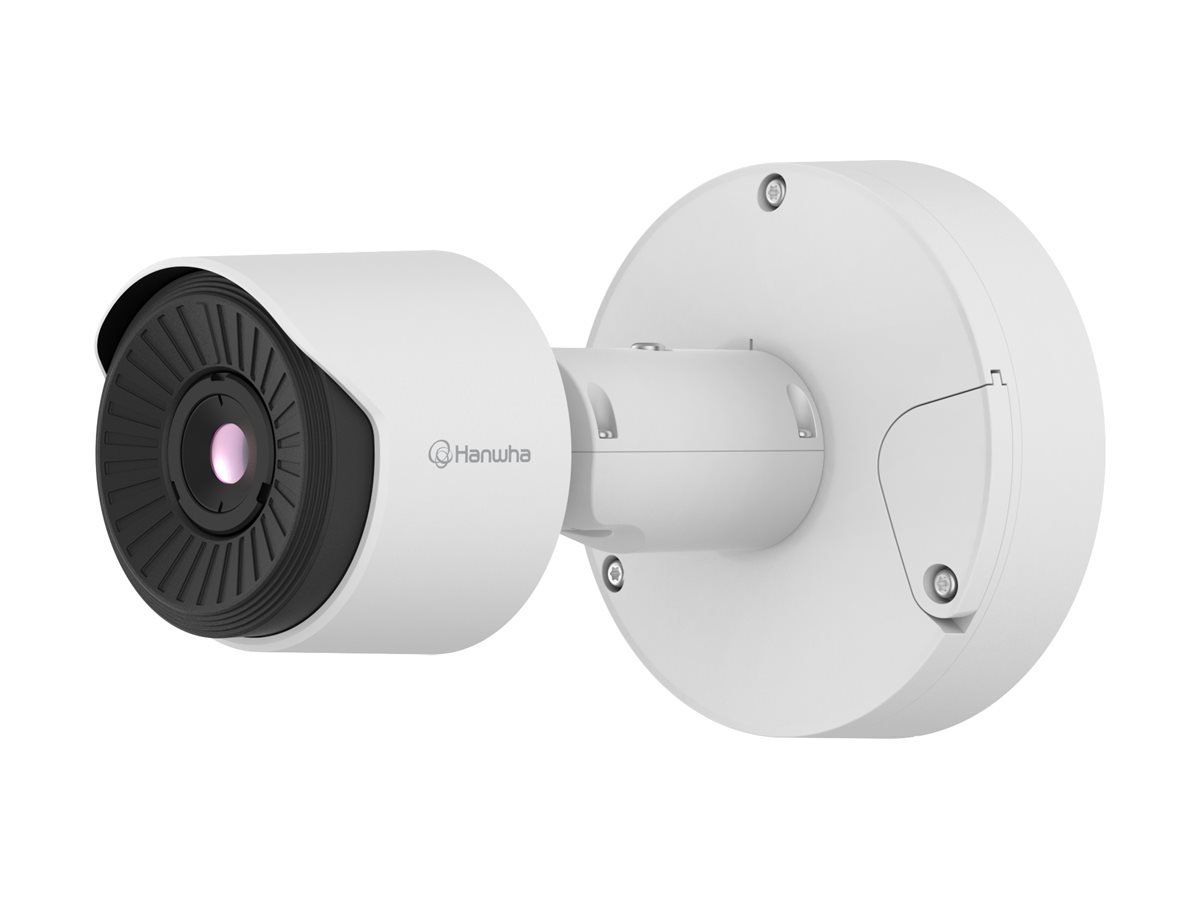

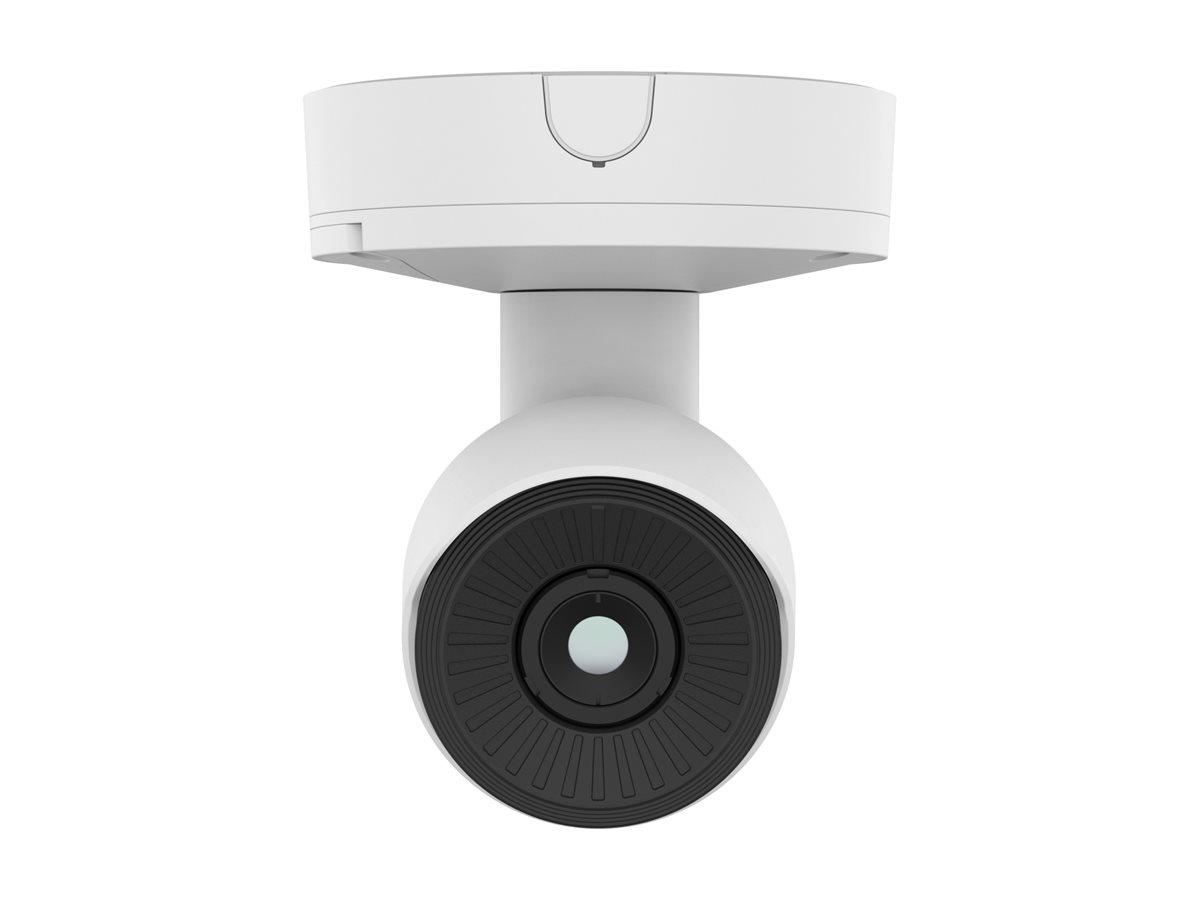

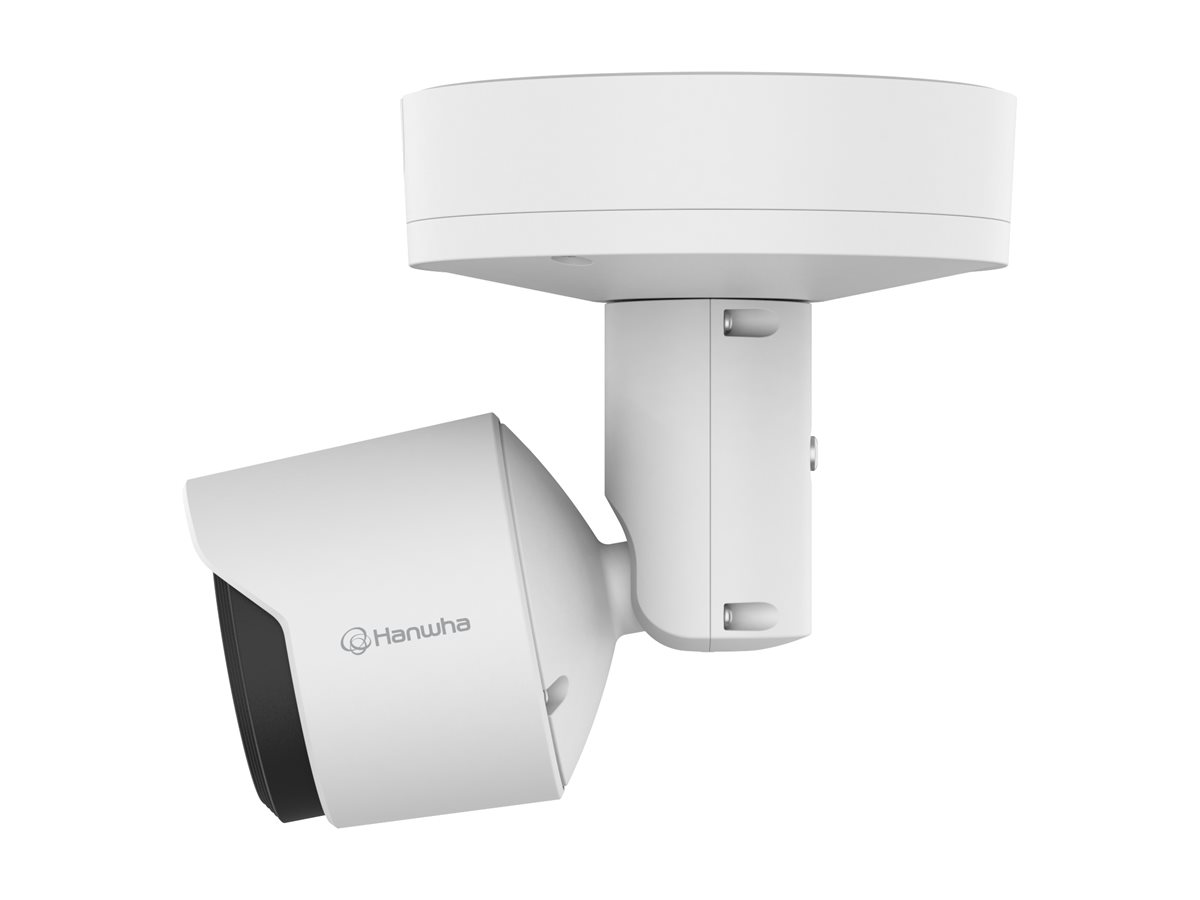

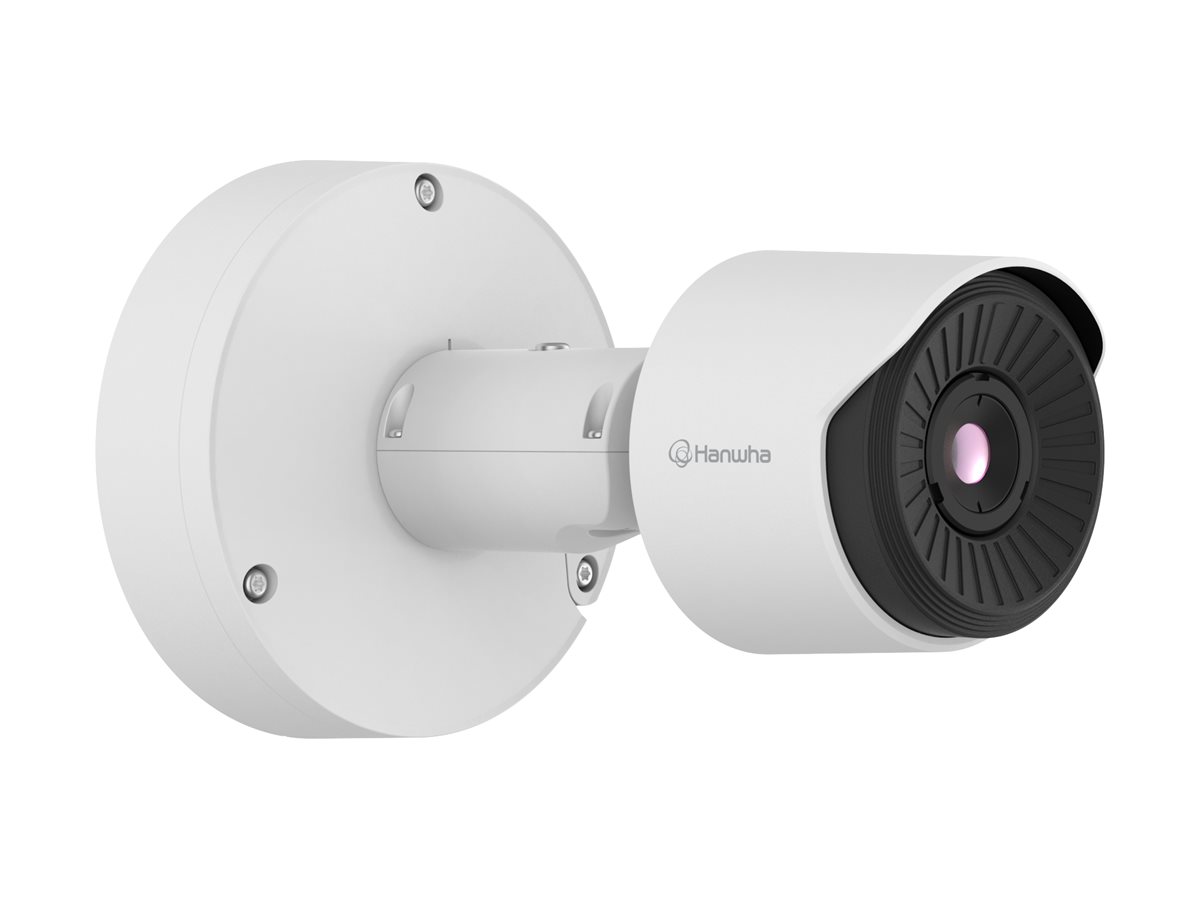

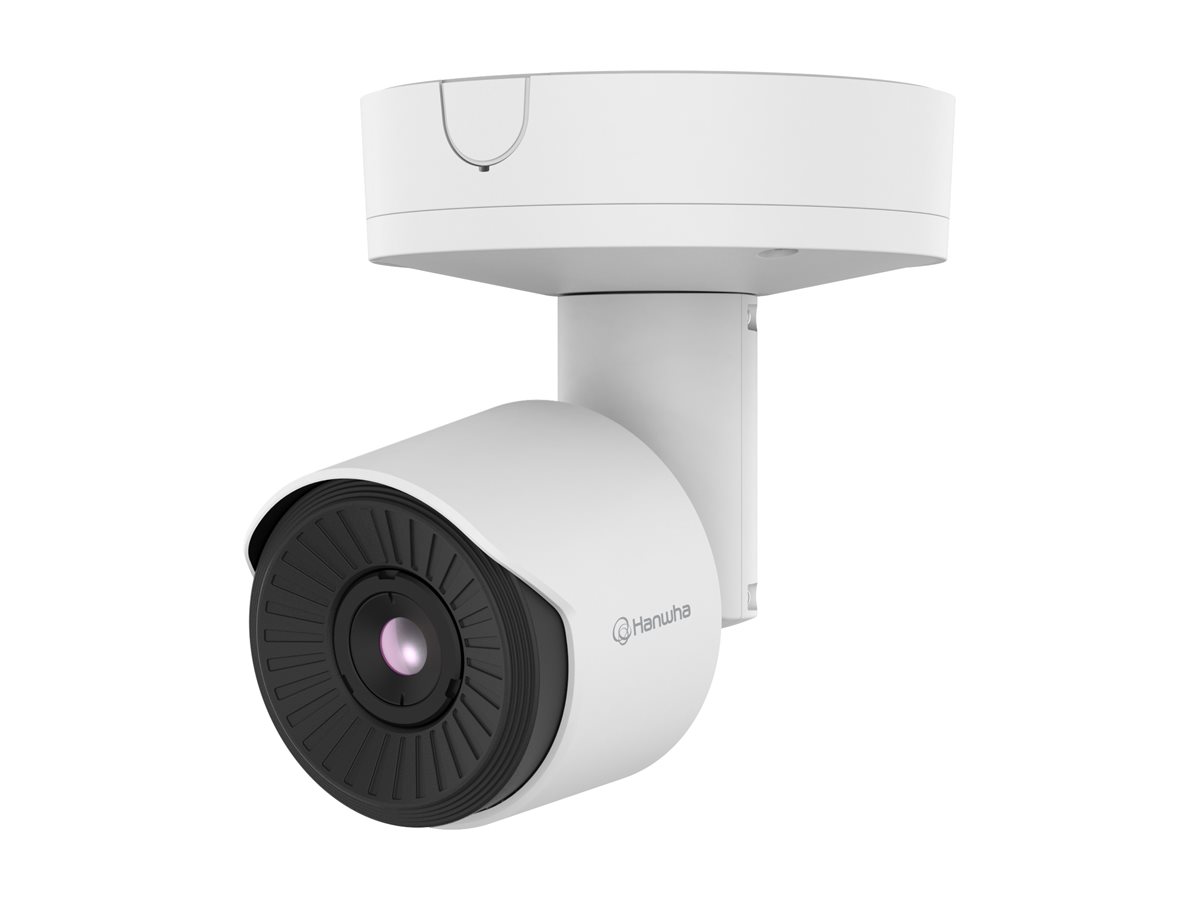

Hanwha Vision WiseNet TNO-C3010TRA
- Thermal network camera
- pan / tilt / roll
- bullet
- color
- 768 x 576
- fixed focal
- audio
- USB
- GbE
- MJPEG, H.264, H.265
- DC 12 V / PoE Class 3
| Additional Details | |
|---|---|
| Mfr Part #: | TNO-C3010TRA |
| SHI Part #: | 47644825 |
| Category: | Surveillance and detection equipment |
| UNSPSC: | 46171600 |
| Manufacturer: | HANWHA VISION |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Surveillance and detection equipment |
| Description | Hanwha Vision WiseNet TNO-C3010TRA - Thermal network camera - pan / tilt / roll - bullet - color - 768 x 576 - fixed focal - audio - USB - GbE - MJPEG, H.264, H.265 - DC 12 V / PoE Class 3 |
| Manufacturer | HANWHA VISION |
| UNSPSC | 46171600 |
| Main Specifications | |
| Dimensions & Weight / Depth | 9.38 cm |
| Dimensions & Weight / Height | 23.35 cm |
| Dimensions & Weight / Weight | 1.7 kg |
| Dimensions & Weight / Width | 9.38 cm |
| Header / Brand | Hanwha Vision |
| Miscellaneous / Product Color | White |
| Packaged Quantity | 1 |
| Camera | |
| Digital Video Capture Resolution | 768 x 576, 384 x 288 |
| Digital Video Format | MJPEG, H.264, H.265 |
| Features | Radiometric calibrated temperature measurement, thermal sensitivity 30 mK (NETD), 350° rotation, Privacy Mask Function, image flip, image mirror, Hallway View, Object Detection, Person Detection, Vehicle Detection, Best Shot Selector (BSS), Virtual Line detection, Line Crossing Detection, loitering detection, intrusion detection, entrance / exit detection, Tampering detection, sound classification, shock detection, appearing / disappearing detection, network disconnection trigger, alarm function, notification picture to E-mail, notification picture to FTP, Handover, multiple color palettes, Smart Codec, WiseStream II support, WiseStream III support, Constant Bitrate (CBR), Variable Bitrate (VBR), Multicast Streaming, Unicast Streaming, ONVIF (Profile S) support, ONVIF (Profile G) support, ONVIF (Profile T) support, ONVIF (Profile M) support, firmware encryption, secure boot, signed firmware, digest authentication, 802.1x authentication, Trusted Platform Module (TPM), aluminum/polycarbonate housing, object classification, AI Analytics, IP address filtering, user access log |
| Flash Memory | 512 MB |
| Frame Rate (max) | 30 frames per second |
| Max Digital Video Resolution | 768 x 576 |
| Motion Detection | Yes |
| RAM | 2 GB |
| Type | Color - pan / tilt / roll |
| Environmental Parameters | |
| Max Operating Temperature | 60 °C |
| Min Operating Temperature | -40 °C |
| Relative Humidity (operating) | 0 - 95% RH |
| Expansion / Connectivity | |
| Encryption Algorithm | EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2 |
| Ports |
|
| Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
| General | |
| Audio Formats | G.711 u-law, G.726, ADPCM, AAC-LC |
| Audio Support | Yes |
| Connectivity Technology | Wired |
| Depth | 9.38 cm |
| Device Type | Thermal network camera |
| Form Factor | Bullet |
| Height | 23.35 cm |
| Weight | 1.7 kg |
| Width | 9.38 cm |
| Image Sensor | |
| Type | Uncooled Micro bolometer |
| Interfaces | |
| Control Interface | RS-485 |
| Network Interface | Ethernet 10Base-T/100Base-TX/1000Base-T |
| Network Protocols | IPv4, IPv6, TCP/IP, UDP/IP, RTP, UDP, TCP, RTCP, RTSP, NTP, HTTP, HTTPS, SSL, TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMP 1, SNMP 2c, SNMP 3, ARP, DNS, DDNS, QOS, UPnP, Bonjour, LLDP, CDP, SRTP, MQTT, SUNAPI |
| Video | USB |
| Lens Construction | |
| Diagonal Field of View (degree) | 118.6 |
| Focal Length | 4.4 mm |
| Horizontal Field of View (degree) | 90 |
| Lens Iris | F/1.0 |
| Min Focus Distance | 60 cm |
| Type | Fixed focal |
| Vertical Field of View (degree) | 65.3 |
| Miscellaneous | |
| Color | White, RAL 9003 |
| Compliant Standards | FCC, cULus, EAC, NDAA, IEEE 802.1x, FIPS 140-2 Level 2, EN 55032:2015 + A11:2020, EN 50130-4:2011+A1:2014, BS EN 61000-3-2:2014, BS EN 61000-3-3:2013, FCC 47 CFR Part 15 Subpart B Class A, FCC IC, ICES-003 issue 7, RCM, EN/IEC 63000:2018, VCCI, EN IEC 63000:2018 Class A, KS C 9832:2023 Class A, KS C 9835:2019 Class A, UL/CSA 62368-1, RoHS, IK10, KS C IEC 62262:2005, IP66, IEC 60529:1989+A1:1999+A2:2013, NEMA Type 4X, NEMA 250-2014 |
| Panning | |
| Range (degree) | 0 to 350 |
| Power | |
| Power Device | 10.8 watt |
| Power Requirements | DC 12 V / PoE Class 3 |
| Tilting | |
| Range (degree) | 0 to 90 |
