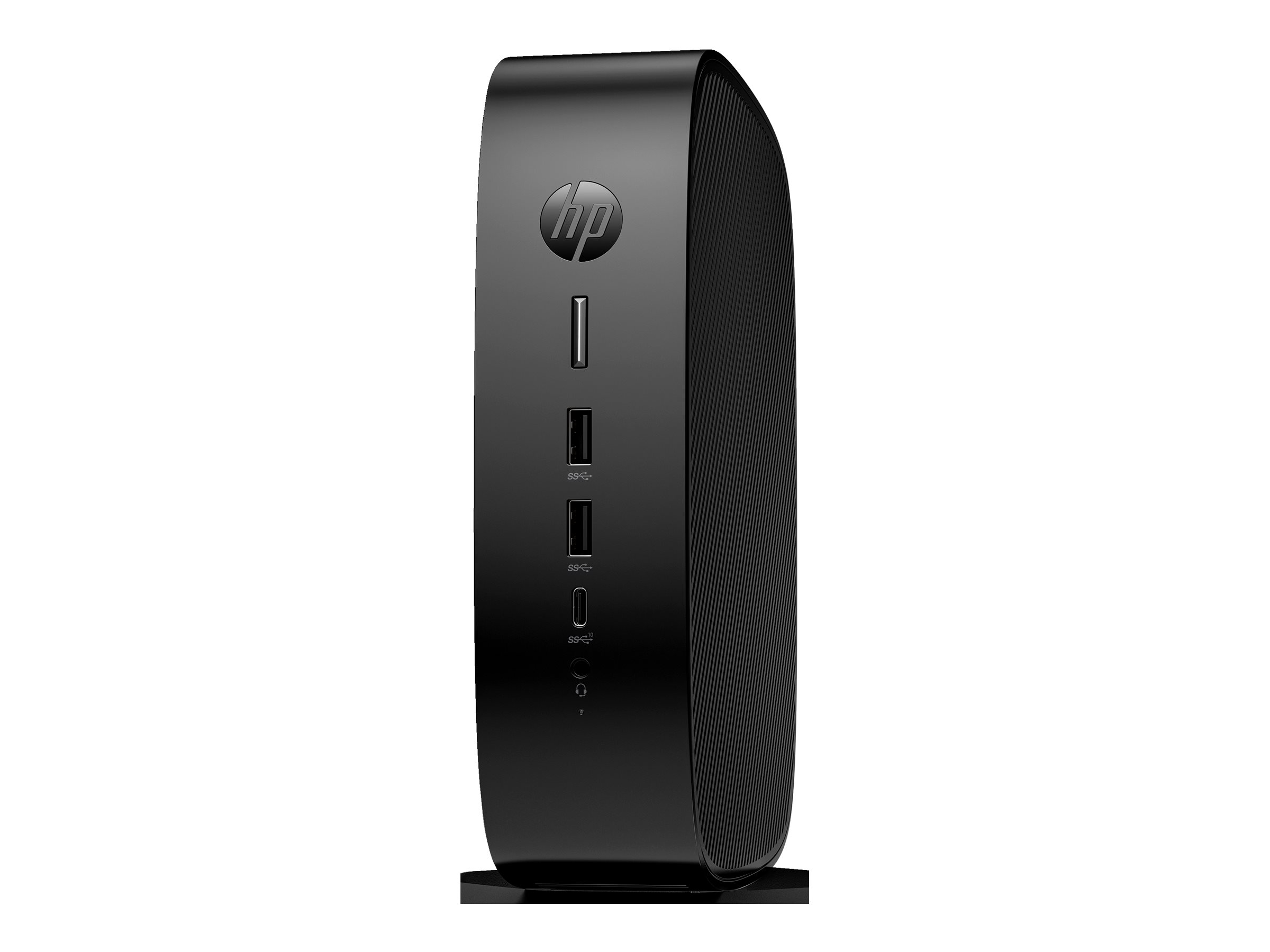

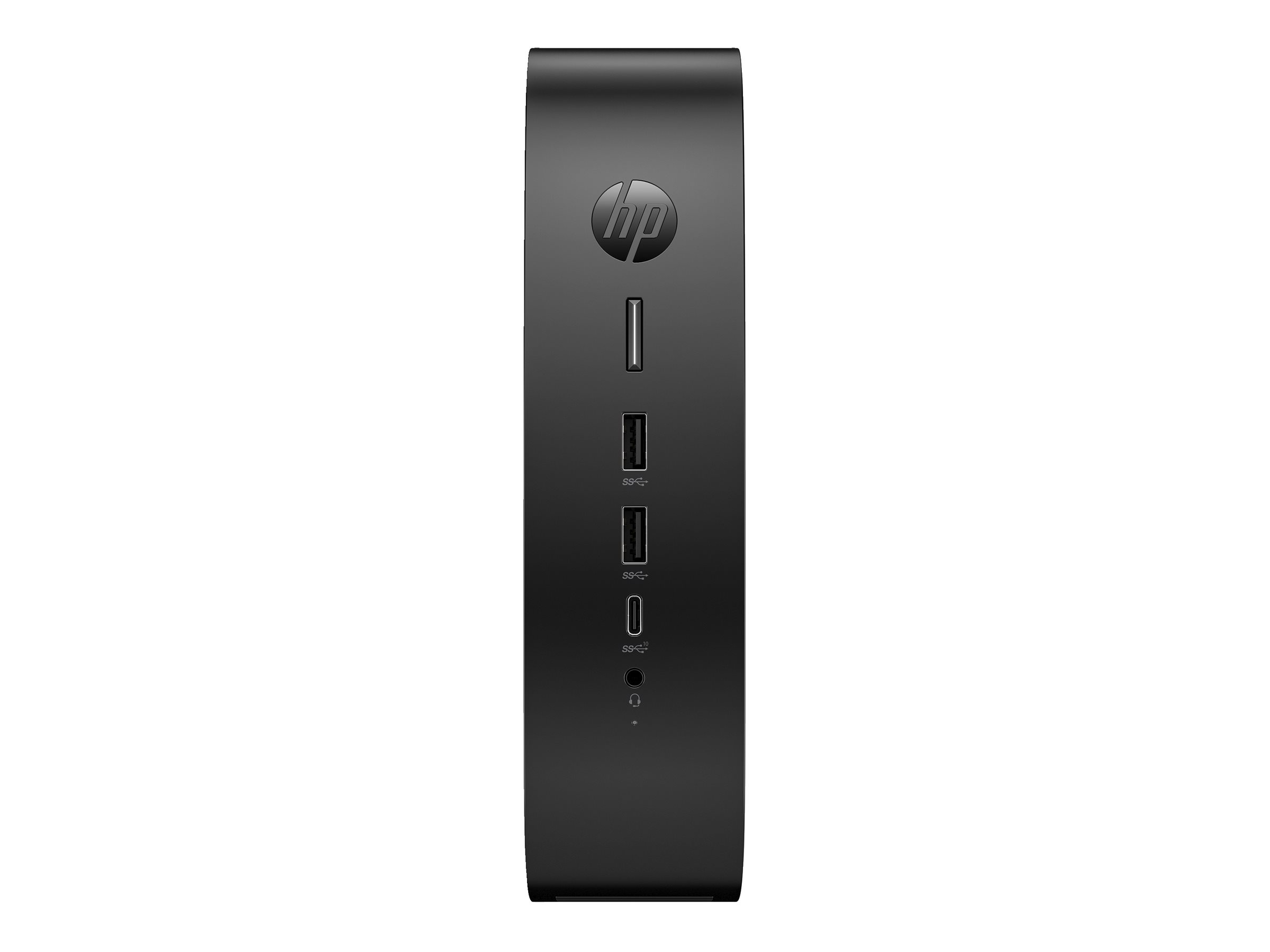

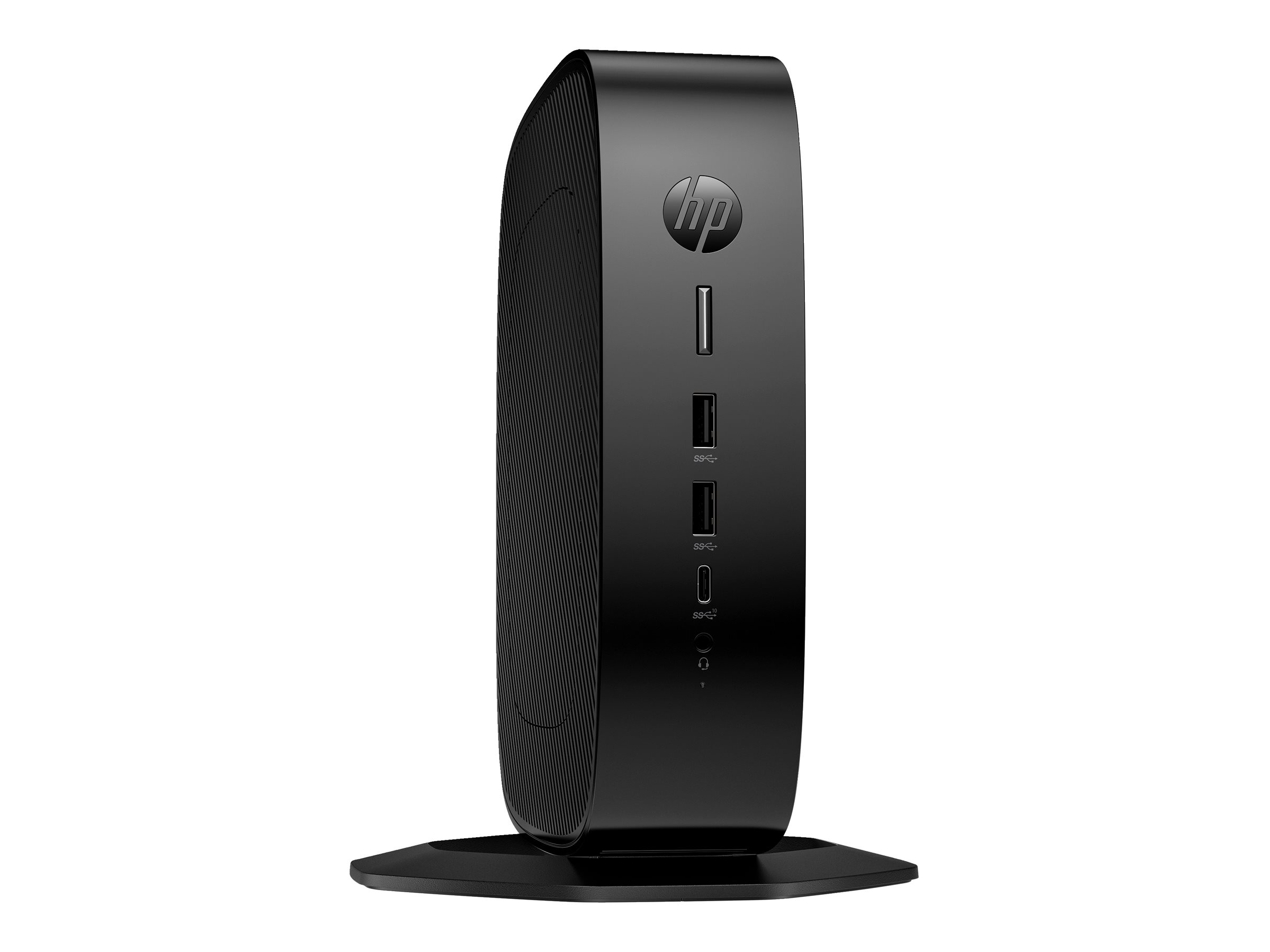

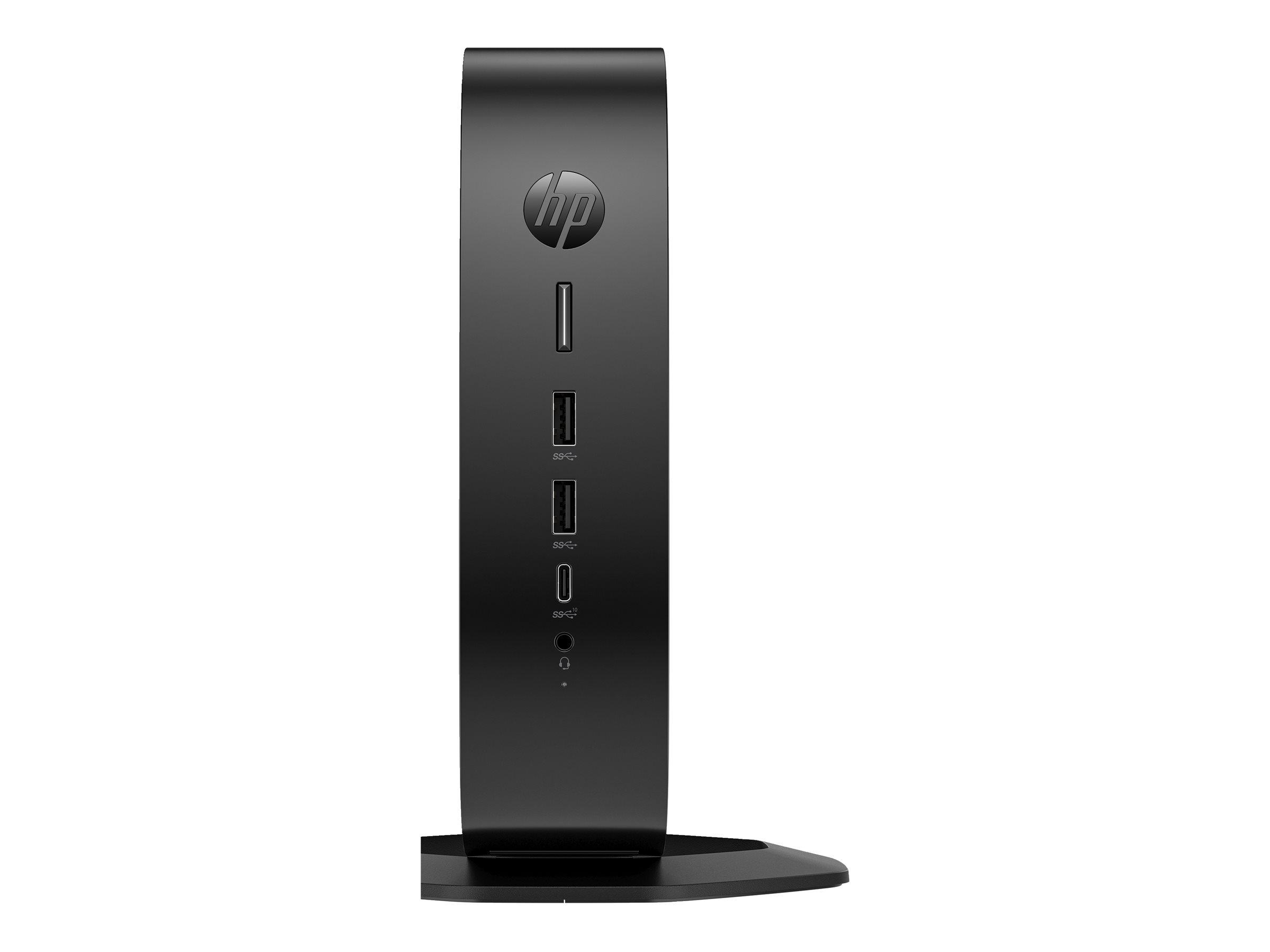

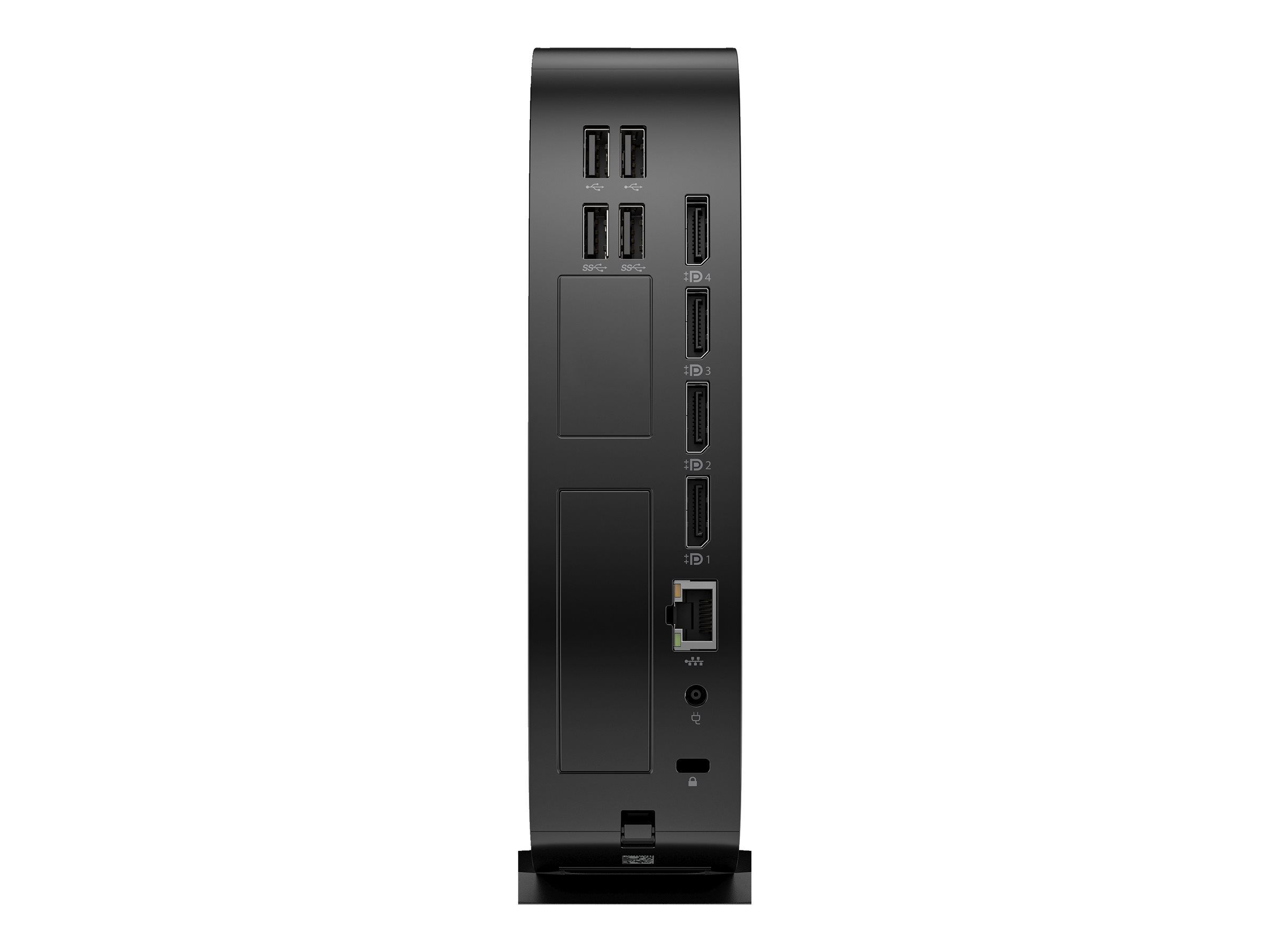

HP Elite t755 - Thin client
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
HP Elite t755 - Thin client
- SFF
- 1 x Ryzen Embedded V2546 / up to 3.95 GHz
- RAM 16 GB
- SSD 256 GB
- NVMe
- Radeon Graphics
- Gigabit Ethernet, Bluetooth 5.3, IEEE 802.11ax (Wi-Fi 6)
- Win 10 IoT Enterprise 2021 LTSC
- monitor: none
- keyboard: US
- Smart Buy
- with HP 3 Years Offsite Hardware Support
- TAA Compliant
| Additional Details | |
|---|---|
| Mfr Part #: | 9S4U8UT#ABA |
| SHI Part #: | 47619762 |
| Category: | Thin client or diskless workstations |
| UNSPSC: | 43211506 |
| Manufacturer: | HP, Inc. |
| Product Type: | Hardware |
Audio/Video Cables
- DisplayPort (M) to DisplayPort (M)
- 2 m
- for Elite t655; Presence Small Space Solution with Zoom Rooms; Pro t550
- USB 3.0
- 14.09 cm
- United States
- for HP 470 G8; Chromebook 11 G9, 14 G7; Chromebook x360; Elite x2; EliteBook 840; ProBook x360
Headsets
- wired
- USB
- shadow black
- for HP 245 G9, 256 G8, 25X G9, 34, 470 G9; EliteBook 1040 G9, 65X G9; ProBook 44X G9, 45X G9
- wired
- 3.5 mm jack
- shadow black
- for HP 245 G9, 256 G8, 25X G9, 34; EliteBook 1040 G9; Pro 260 G9; ProBook 44X G9, 45X G9
| General Information | |
|---|---|
| Category | Thin client or diskless workstations |
| Description | HP Elite t755 - Thin client - SFF - 1 x Ryzen Embedded V2546 / up to 3.95 GHz - RAM 16 GB - SSD 256 GB - NVMe - Radeon Graphics - Gigabit Ethernet, Bluetooth 5.3, IEEE 802.11ax (Wi-Fi 6) - Win 10 IoT Enterprise 2021 LTSC - monitor: none - keyboard: US - Smart Buy - with HP 3 Years Offsite Hardware Support - TAA Compliant |
| Manufacturer | HP, Inc. |
| UNSPSC | 43211506 |
| Main Specifications | |
| Chassis / Form Factor | Small form factor |
| Dimensions & Weight / Depth | 21 cm |
| Dimensions & Weight / Height | 21 cm |
| Dimensions & Weight / Weight | 1.4 kg |
| Dimensions & Weight / Width | 5 cm |
| Display / Type | None. |
| Hard Drive / Capacity | 256 GB |
| Header / Brand | HP |
| Header / Country Kits | United States |
| Header / Localization | English |
| Miscellaneous / Product Color | Black |
| Networking / Data Link Protocol |
|
| Networking / Wireless LAN Supported | Yes |
| Networking / Wireless Protocol |
|
| Optical Storage / Drive Type | No optical drive |
| Optical Storage / Type | None |
| OS Provided / Type | Windows 10 IoT Enterprise 2021 LTSC |
| Packaged Quantity | 1 |
| Processor / Clock Speed |
|
| Processor / Manufacturer | AMD |
| Processor / Number of Cores | 6-core |
| Processor / Processor Number |
|
| Processor / Type | Ryzen Embedded |
| RAM / Data Integrity Check | Non-ECC |
| RAM / Form Factor | SO-DIMM 260-pin |
| RAM / Memory Speed | 3200 MHz |
| RAM / Technology | DDR4 SDRAM |
| Service & Support / Type | 1-year warranty |
| System / Hard Drive Capacity | 256 GB |
| System / Type | Thin client |
| Video Output / Graphics Processor | AMD Radeon Graphics |
| Audio Output | |
| Sound Output Mode | Stereo |
| Cache Memory | |
| Cache Per Processor | 8 MB |
| Installed Size | L3 cache - 8 MB |
| Dimensions & Weight | |
| Depth | 21 cm |
| Height | 21 cm |
| Weight | 1.4 kg |
| Width | 5 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Weight | 3.798 kg |
| Environmental Parameters | |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 10 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| Slots |
|
| General | |
| Bundled Services | HP 3 Years Offsite Hardware Support |
| Embedded Security | Trusted Platform Module (TPM 2.0) Security Chip |
| Localization | Language: English / region: United States |
| Product Form Factor | SFF |
| Type | Thin client |
| Graphics Controller | |
| Graphics Processor | AMD Radeon Graphics |
| Max Monitors Supported | 6 |
| Video Interfaces | DisplayPort |
| Hard Drive | |
| Capacity | 1 x 256 GB |
| Features | NVM Express (NVMe) |
| Interface Type | PCI Express |
| Type | SSD - M.2 |
| Input Device | |
| Type | Mouse, keyboard |
| Keyboard | |
| Keyboard Name | HP 125 |
| Localization & Layout | US |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts and labor - 1 year |
| Miscellaneous | |
| Compliant Standards | FCC Class B certified, UL, BSMI, GS, CB, CCC, FIPS 140-2, ICES Class B, WEEE, KCC Class B, AS/NZS, CECP, RoHS2, VCCI Class B, CISPR Class B, SEPA, low halogen, Energy-Related Products (ErP) Lot 3, HP GSE, EN, CNS, EN60601-1-2 |
| Manufacturer Selling Program | HP Smart Buy |
| Security Slot Type | Kensington security slot |
| TAA Compliant | Yes |
| Theft/Intrusion Protection | Security lock slot (cable lock sold separately) |
| VESA Mounting Interface | 100 x 100 mm, VESA |
| Monitor | |
| Monitor Type | None. |
| Mouse | |
| Interface | USB |
| Mouse Name | HP 125 |
| Networking | |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 5.3, IEEE 802.11ax (Wi-Fi 6) |
| Features | Dual stream (2x2) |
| Wireless LAN Supported | Yes |
| Wireless NIC | Realtek RTL8852BE |
| Operating System / Software | |
| OS Provided | Windows 10 IoT Enterprise 2021 LTSC English |
| Software | Microsoft Internet Explorer, Citrix ICA, Microsoft RDP, Microsoft Firewall, HP Device Manager, LogOn Manager, VMware Horizon View, Citrix HDX, Microsoft RemoteFX, HP ThinUpdate, HP True Graphics, HP Easy Shell, Microsoft Edge, Amazon WorkSpaces, Microsoft SCCM/EDM-agent, HP USB Port Manager, HP Smart Zero Client Services, HP Write Manager, Azure Virtual Desktop, HP User State Tool, HP Easy Update |
| Optical Storage | |
| Type | No optical drive |
| Power | |
| Device Type | Power adapter |
| Power Device Name | HP Smart AC Adapter |
| Power Provided | 90 Watt |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Processor / Chipset | |
| Clock Speed | 3 GHz |
| CPU | AMD Ryzen Embedded V2546 |
| CPU Qty | 1 |
| L2 cache | 3 MB |
| Max CPU Qty | 1 |
| Max Turbo Speed | 3.95 GHz |
| Number of Cores | 6-core |
| Processor Main Features | AMD Memory Guard |
| RAM | |
| Configuration Features | 2 x 8 GB |
| Effective Memory Speed | 3200 MHz |
| Form Factor | SO-DIMM 260-pin |
| Installed Size | 16 GB (installed) / 32 GB (max) |
| Rated Memory Speed | 3200 MHz |
| Slots | 2 (total) / 0 (empty) |
| Technology | DDR4 SDRAM - non-ECC |
| Sustainability Information | |
| ENERGY STAR Certified | Yes |
| EPEAT Compliant | EPEAT Silver |
