Panduit SmartZone - UPS (rack-mountable / external)
MSRP$3,754.82
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with

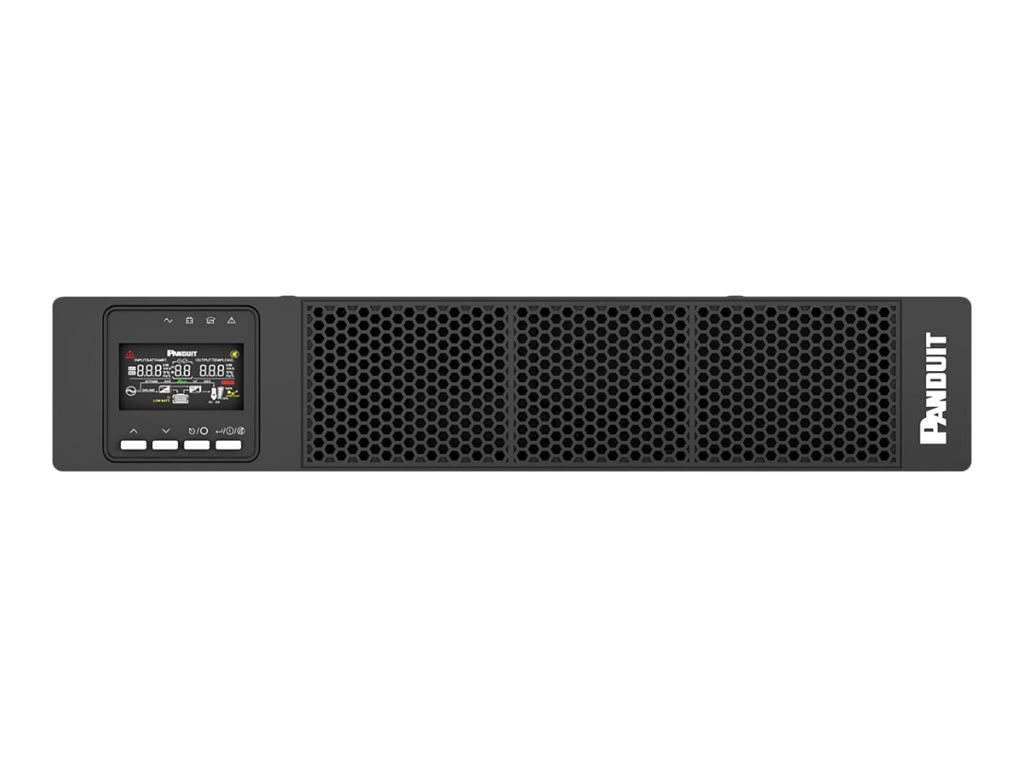

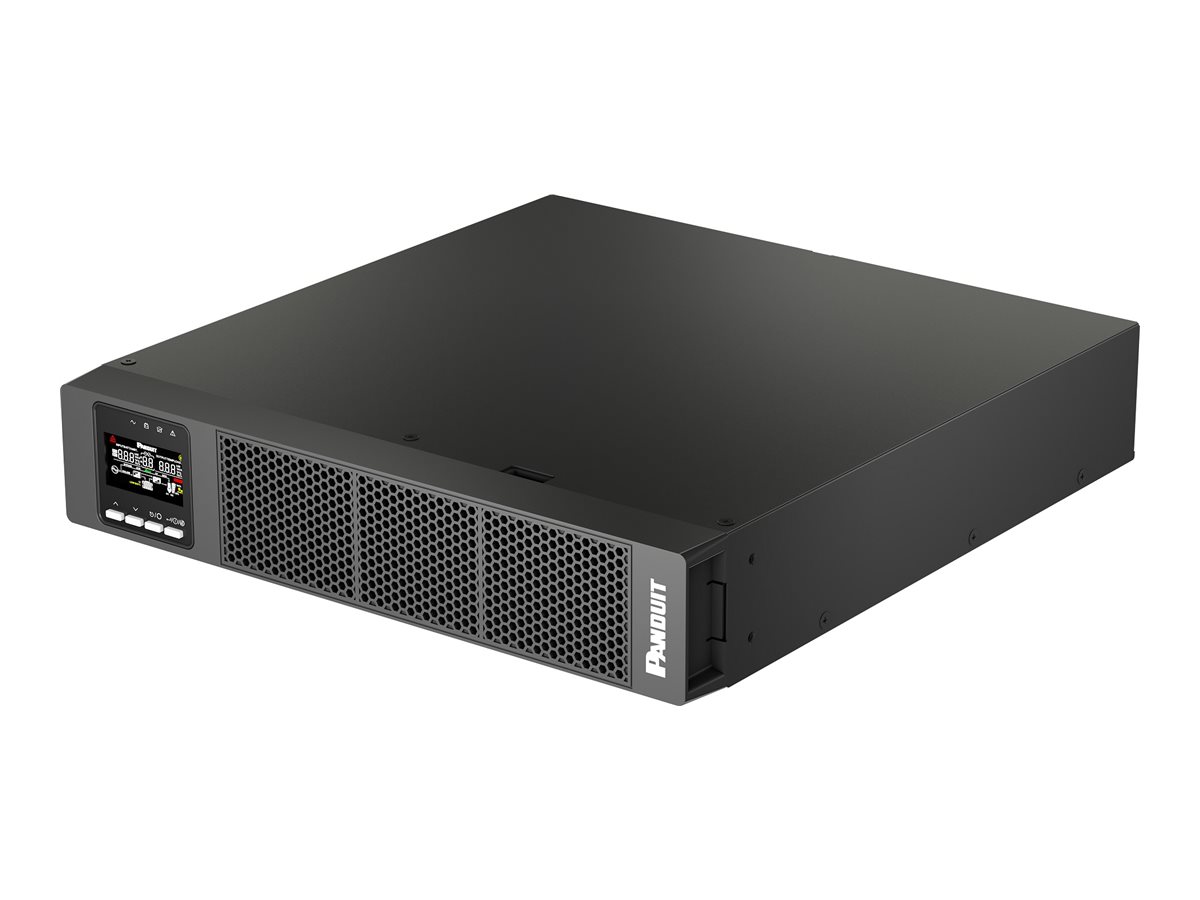

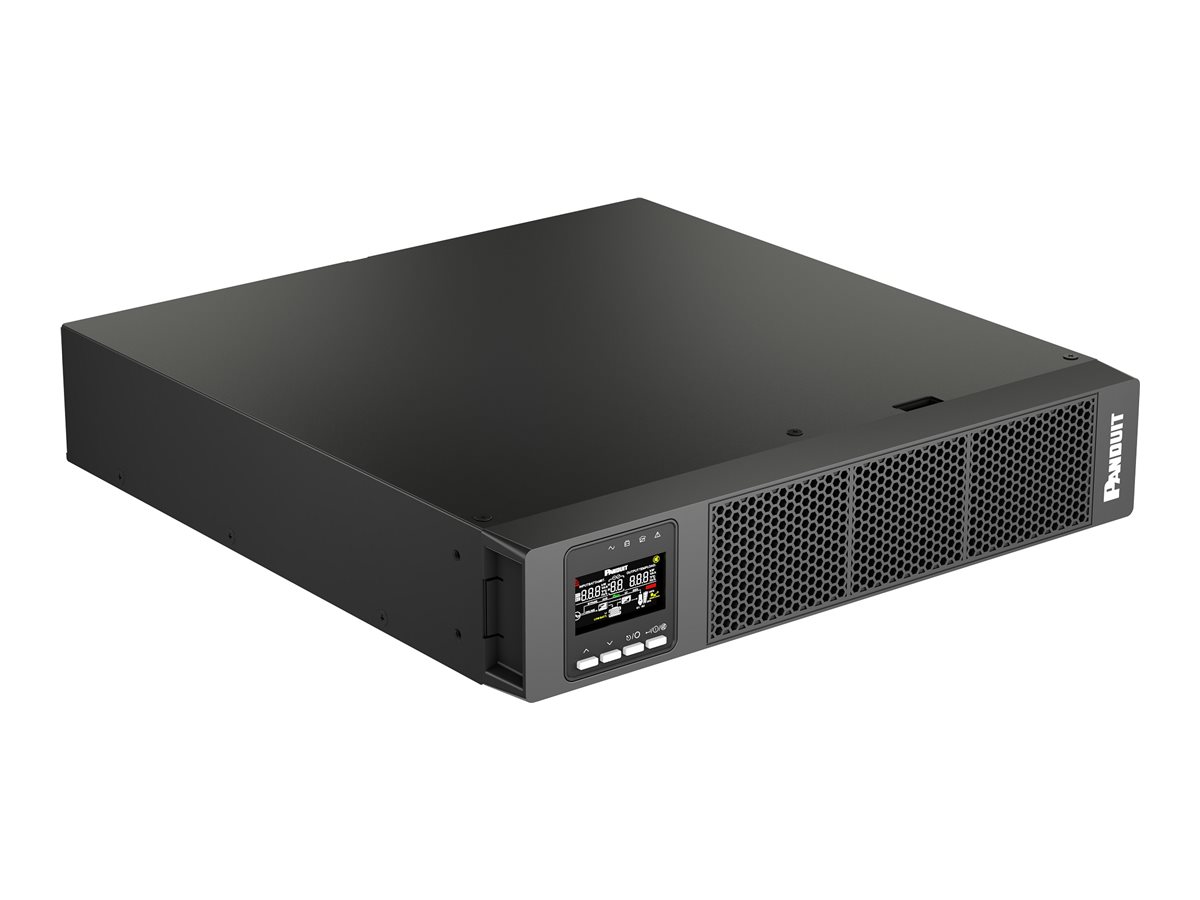

Panduit SmartZone - UPS (rack-mountable / external)
- AC 220/230/240 V
- 2000 Watt
- 2000 VA
- 1-phase
- USB, RS-232, Ethernet
- output connectors: 8
- PFC
- 2U
- EMEA
- black
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $3,754.82 |
| Mfr Part #: | U02N12L |
| SHI Part #: | 47476171 |
| Category: | Rechargeable batteries |
| UNSPSC: | 26111701 |
| Manufacturer: | Panduit |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Rechargeable batteries |
| Description | Panduit SmartZone - UPS (rack-mountable / external) - AC 220/230/240 V - 2000 Watt - 2000 VA - 1-phase - USB, RS-232, Ethernet - output connectors: 8 - PFC - 2U - EMEA - black |
| Manufacturer | Panduit |
| MSRP | $3,754.82 |
| UNSPSC | 26111701 |
| Main Specifications | |
| Dimensions & Weight / Depth | 50 cm |
| Dimensions & Weight / Height | 8.65 cm |
| Dimensions & Weight / Width | 44 cm |
| General / Subcategory | UPS |
| Header / Brand | Panduit |
| Header / Country Kits | EMEA |
| Miscellaneous / Product Color | Black |
| Networking / Remote Management Interface |
|
| Packaged Quantity | 1 |
| Power Device / Form Factor | Rack-mountable / external |
| Power Device / Output Connector Qty | 8 |
| Power Device / Power Capacity (VA) | 2000 VA |
| Power Device / UPS Technology | On-line |
| Power Device / Voltage Required | AC 220/230/240 V |
| Product Type | UPS |
| Service & Support / Type | 5-year warranty |
| Battery | |
| Recharge Time | 3 hours |
| Run Time (Up To) |
|
| Technology | Lithium iron phosphate |
| Transfer Time | 4 ms |
| Voltage Provided | DC 76.8 V |
| Dimensions & Weight | |
| Depth | 50 cm |
| Height | 8.65 cm |
| Width | 44 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 63 cm |
| Shipping Height | 20.2 cm |
| Shipping Weight | 23.6 kg |
| Shipping Width | 55.5 cm |
| Environmental Parameters | |
| Humidity Range Operating | 0 - 95% RH (non-condensing) |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| Sound Emission | 55 dB |
| Expansion / Connectivity | |
| Expansion Slots | 1 (total) / 0 (free) x Intelligent Slot |
| Interfaces |
|
| General | |
| Color | Black |
| Device Type | UPS - Power Factor Correction (PFC) - rack-mountable / external |
| Height (Rack Units) | 2U |
| Localization | EMEA |
| Manufacturer Warranty | |
| Service & Support |
|
| Miscellaneous | |
| Cables Included | Power cable - external - 1.8 m |
| Compliant Standards | IP20, IEC 62040-1:2017, EN 62040-1:2008+A1:2013, IEC 62133, IEC 62619, IEC 62040-2-2016, EN 62040-2-2018, BS 62040-2-2018, ISTA 2A, UN38.3, ANSI C62.41 Category A, RoHS |
| Features | Double conversion, internal bypass, LCD display, audible alarm, emergency power off, outlet bank switching, Automatic Voltage Regulation (AVR), Intelligent Battery Management, generator compatible, hot-swappable batteries, cold-start function, Smart Load Shed, short-circuit protection, overload protection, overheat protection, overcharge protection, overdischarge protection, low voltage protection, 4 programmable sockets |
| Rack Mounting Kit | Included |
| Networking | |
| Remote Management Interface | USB, RS-232, Ethernet |
| Remote Management Protocol | SNMP 3 |
| Power Device | |
| Dataline Surge Protection | Network - RJ-45 |
| Efficiency | 92% online mode, 96% Eco mode |
| Frequency Provided | 50/60 Hz |
| Frequency Required | 40 - 70 Hz |
| Input Connectors | 1 x power IEC 60320 C14 |
| Input Voltage | AC 220/230/240 V |
| Input Voltage Range | AC 176 - 264 / 110 - 300 V |
| Input Wiring | 1-phase |
| Output Voltage | AC 220/230/240 V 50/60 Hz |
| Output Waveform | Sinewave |
| Power Capacity | 2000 Watt / 2000 VA |
| Power Factor (PF) | 1.0 |

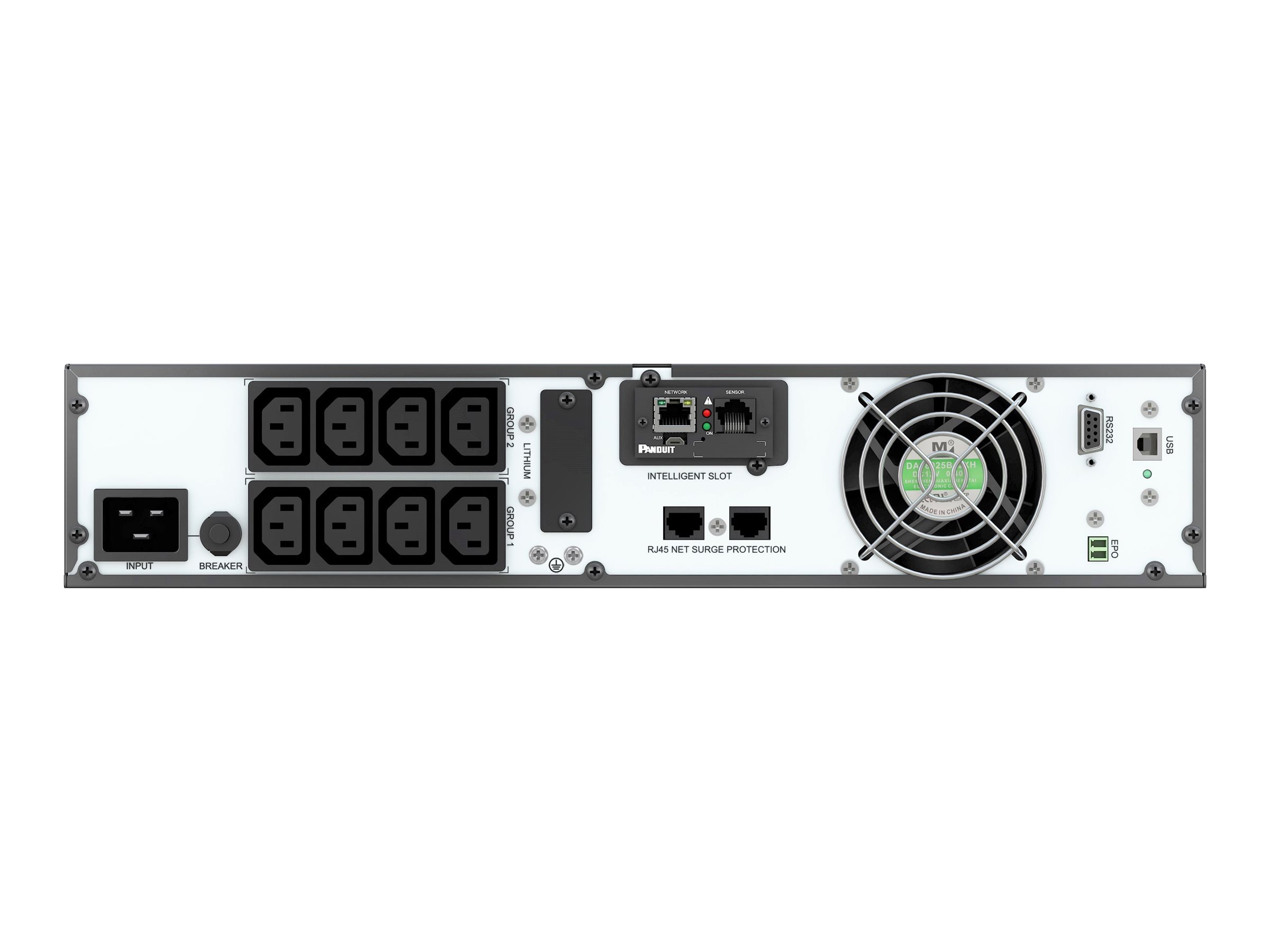

| Power Output Connectors Details | 8 x power IEC 60320 C13 |
| UPS Technology | On-line |
| Software / System Requirements | |
| Software Included | SmartZone mPower, SmartZone Cloud |
