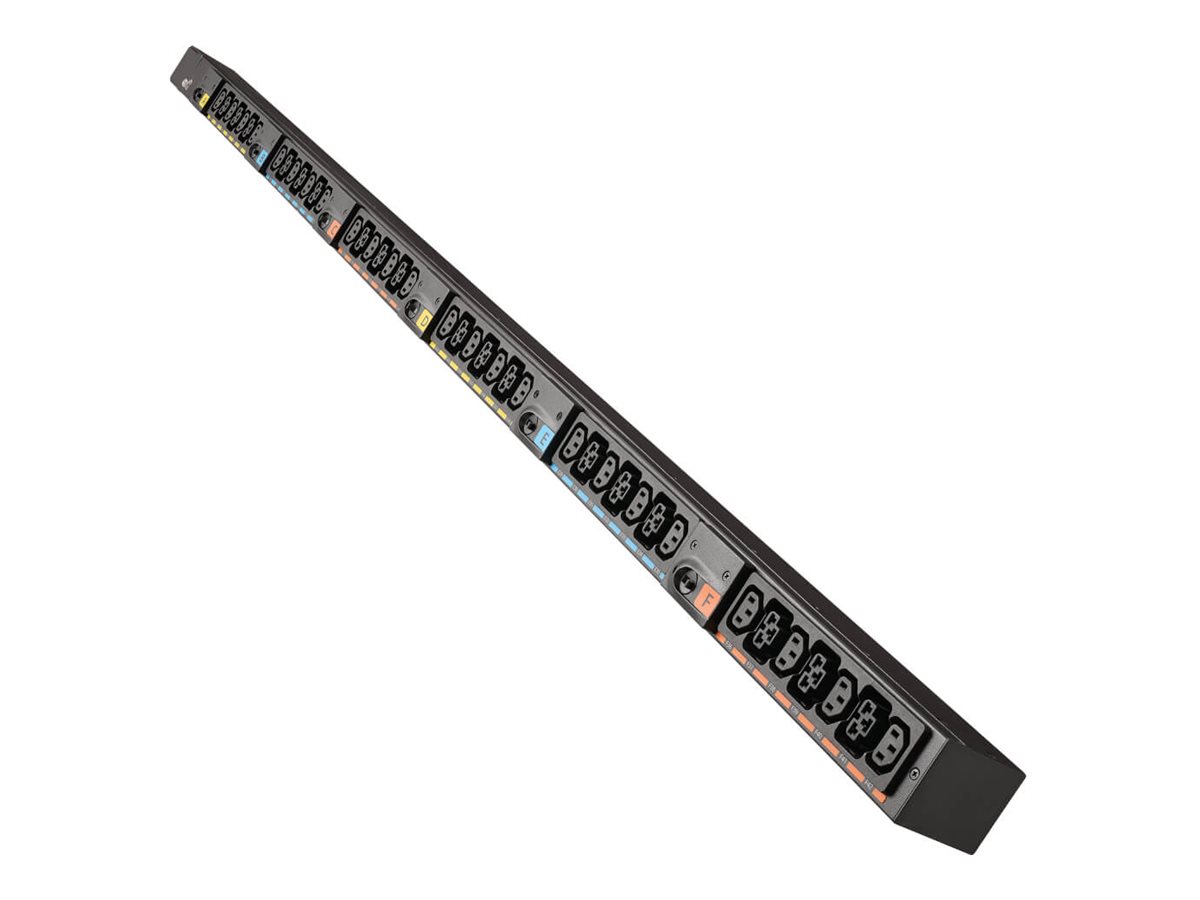

Eaton G4 Universal-Input Basic PDU G4, 208V and 415/240V, 42 Outlets, Input Cable Sold Separately, End-Entry Input, 72-Inch 0U Vertical
MSRP$1,793.52
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
Eaton G4 Universal-Input Basic PDU G4, 208V and 415/240V, 42 Outlets, Input Cable Sold Separately, End-Entry Input, 72-Inch 0U Vertical
- Power distribution unit (rack-mountable)
- 23 kW
- input: 8-pin Souriau UTG

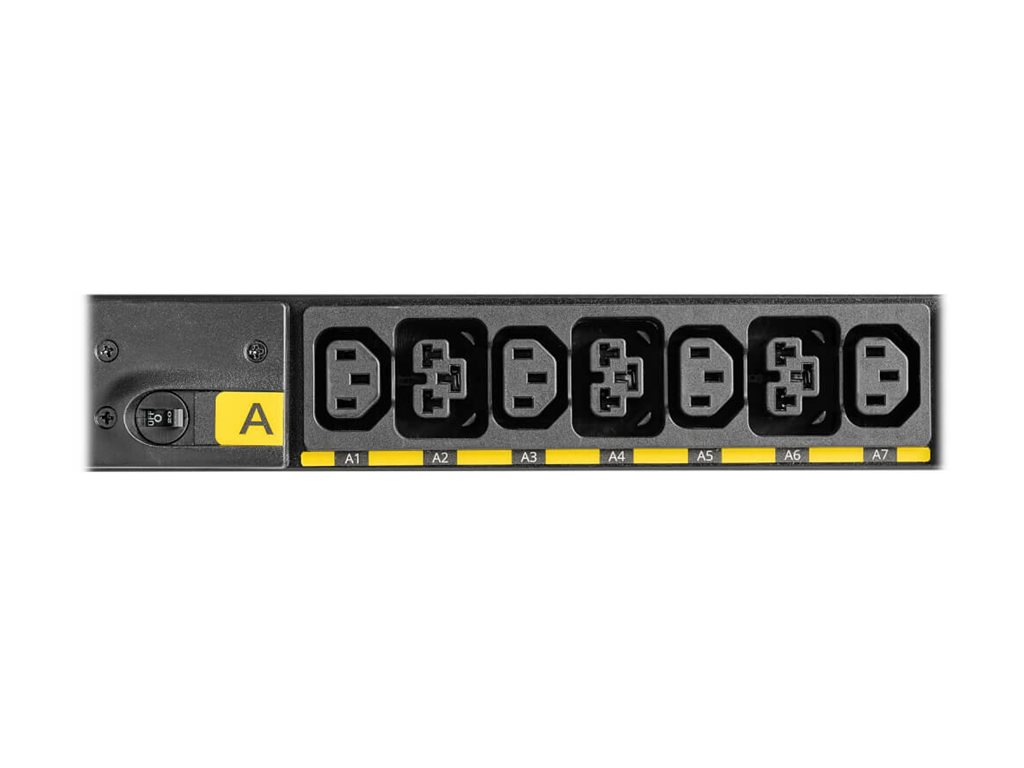

- output connectors: 42 (24 x IEC 60320 C13, 18 x IEC 60320 C39)
- 0U
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $1,793.52 |
| Mfr Part #: | EVBAGU23X-E |
| SHI Part #: | 47465487 |
| Category: | Rack systems for rack mount electroni... |
| UNSPSC: | 24102001 |
| Manufacturer: | Eaton |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Rack systems for rack mount electroni... |
| Description | Eaton G4 Universal-Input Basic PDU G4, 208V and 415/240V, 42 Outlets, Input Cable Sold Separately, End-Entry Input, 72-Inch 0U Vertical - Power distribution unit (rack-mountable) - 23 kW - input: 8-pin Souriau UTG - output connectors: 42 (24 x IEC 60320 C13, 18 x IEC 60320 C39) - 0U |
| Manufacturer | Eaton |
| MSRP | $1,793.52 |
| UNSPSC | 24102001 |
| Main Specifications | |
| Dimensions & Weight / Depth | 6.5 cm |
| Dimensions & Weight / Height | 162.5 cm |
| Dimensions & Weight / Width | 5.3 cm |
| General / Subcategory | Power distribution devices |
| Header / Brand | Eaton |
| Packaged Quantity | 1 |
| Power Device / Form Factor | Rack-mountable |
| Power Device / Output Connector Qty | 42 |
| Product Type | Power distribution unit |
| Dimensions & Weight | |
| Depth | 6.5 cm |
| Height | 162.5 cm |
| Width | 5.3 cm |
| General | |
| Device Type | Power distribution unit - rack-mountable |
| Height (Rack Units) | 0U |
| Miscellaneous | |
| Compliant Standards | UKCA, TUV, RCM, FCC, RoHS 2015/863/EU |
| Features | Vertical orientation, LCD display, low profile, LED indicators, color-coded labels |
| Power Device | |
| Circuit Protection | Circuit breaker |
| Input Connectors | 1 x 8-pin Souriau UTG |
| Max Electric Current | 55 A |
| Power Capacity | 23 kW |
| Power Output Connectors Details |
|
