Eaton Power Protect - UPS (rack-mountable / external)
MSRP$14,353.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with

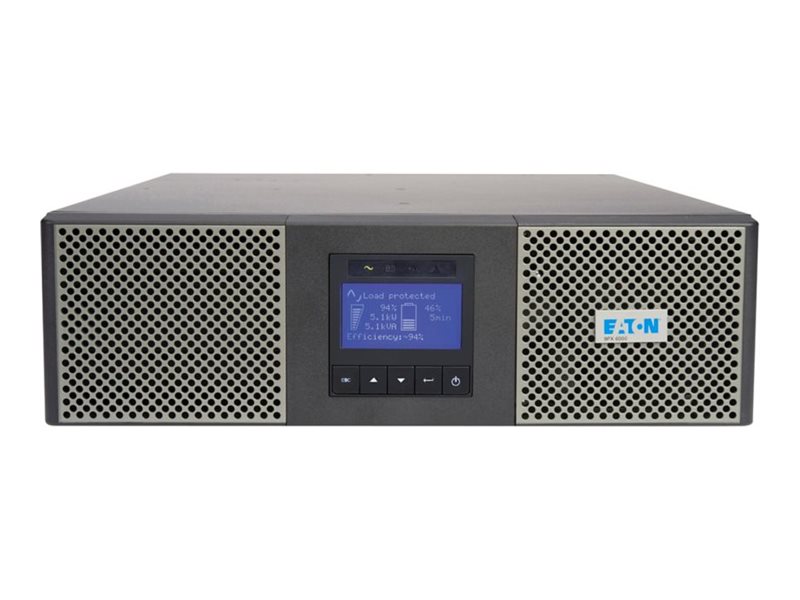

Eaton Power Protect - UPS (rack-mountable / external)
- AC 208 V
- 5400 Watt
- 6000 VA
- RS-232, USB, Ethernet 100/1000
- output connectors: 4
- 3U
- black and silver
- with Eaton three-phase service plan, Eaton UPS onsite service
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $14,353.00 |
| Mfr Part #: | 9PX6K-PP |
| SHI Part #: | 47465484 |
| Category: | Uninterruptible power supplies |
| UNSPSC: | 39121011 |
| Manufacturer: | Eaton |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Uninterruptible power supplies |
| Description | Eaton Power Protect - UPS (rack-mountable / external) - AC 208 V - 5400 Watt - 6000 VA - RS-232, USB, Ethernet 100/1000 - output connectors: 4 - 3U - black and silver - with Eaton three-phase service plan, Eaton UPS onsite service |
| Manufacturer | Eaton |
| MSRP | $14,353.00 |
| UNSPSC | 39121011 |
| Main Specifications | |
| Dimensions & Weight / Depth | 68.7 cm |
| Dimensions & Weight / Height | 13 cm |
| Dimensions & Weight / Weight | 48.1 kg |
| Dimensions & Weight / Width | 43.9 cm |
| General / Subcategory | UPS |
| Header / Brand | Eaton |
| Miscellaneous / Product Color |
|
| Networking / Remote Management Interface |
|
| Packaged Quantity | 1 |
| Power Device / Form Factor | Rack-mountable / external |
| Power Device / Output Connector Qty | 4 |
| Power Device / Power Capacity (VA) | 6000 VA |
| Power Device / UPS Technology | On-line |
| Power Device / Voltage Required | AC 208 V |
| Product Type | UPS |
| Service & Support / Type | 3-year warranty |
| Battery | |
| Features | Maintenance free, sealed |
| Technology | Lead acid |
| Transfer Time | 0 ms |
| Dimensions & Weight | |
| Depth | 68.7 cm |
| Height | 13 cm |
| Weight | 48.1 kg |
| Width | 43.9 cm |
| Environmental Parameters | |
| Humidity Range Operating | 0 - 95% (non-condensing) |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| Sound Emission | 45 dB |
| Expansion / Connectivity | |
| Expansion Slots | 1 (total) / 0 (free) x expansion slot |
| Interfaces |
|
| General | |
| Bundled with | Eaton three-phase service plan, Eaton UPS onsite service |
| Color | Black and silver |
| Device Type | UPS - rack-mountable / external |
| Height (Rack Units) | 3U |
| Manufacturer Warranty | |
| Service & Support |
|
| Miscellaneous | |
| Cables Included |
|
| Compliant Standards | CISPR 22 Class A, NOM, RoHS, FCC Part 15 A, cULus, IEC 62040-2 C2 |
| Features | Advance Battery Management (ABM), LCD display, internal bypass, LED indicators, cold-start function, hot-swappable batteries, double conversion, Zero Touch Provisioning (ZTP), hardwired |
| Included Accessories | Screwdriver, 4-post rail kit, network management card, tower feet, serial configuration cable, cable gland, USB cable |
| Rack Mounting Kit | Included |
| Networking | |
| Remote Management Interface | RS-232, USB, Ethernet 100/1000 |
| Remote Management Protocol | SNMP, HTTP, HTTPS, SSH, SMTP, NTP, SMTPS, DHCP, IPv4, IPv6, LDAP, RADIUS, Syslog, TLS, BOOTP |
| Power Device | |
| Efficiency | 93% |
| Frequency Provided | 50/60 Hz ± 1% |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x power NEMA L6-30P |
| Input Voltage | AC 208 V |
| Input Voltage Range | AC 100 - 276 V |
| Input Voltage Range (Adjustable) | AC 200 / 208 / 220 / 230 / 240 V |
| Output Voltage | AC 208 V 50/60 Hz |
| Output Waveform | Sinewave |
| Power Capacity | 5400 Watt / 6000 VA |
| Power Factor (PF) | 0.9 |
| Power Output Connectors Details |
|
| Surge Suppression | Yes |
| Total Harmonic Distortion (THD) | 2 % |
| UPS Technology | On-line |
| Software / System Requirements | |
| Software Included | Intelligent Power Software Suite |
| Sustainability Information | |
| ENERGY STAR | Yes |
