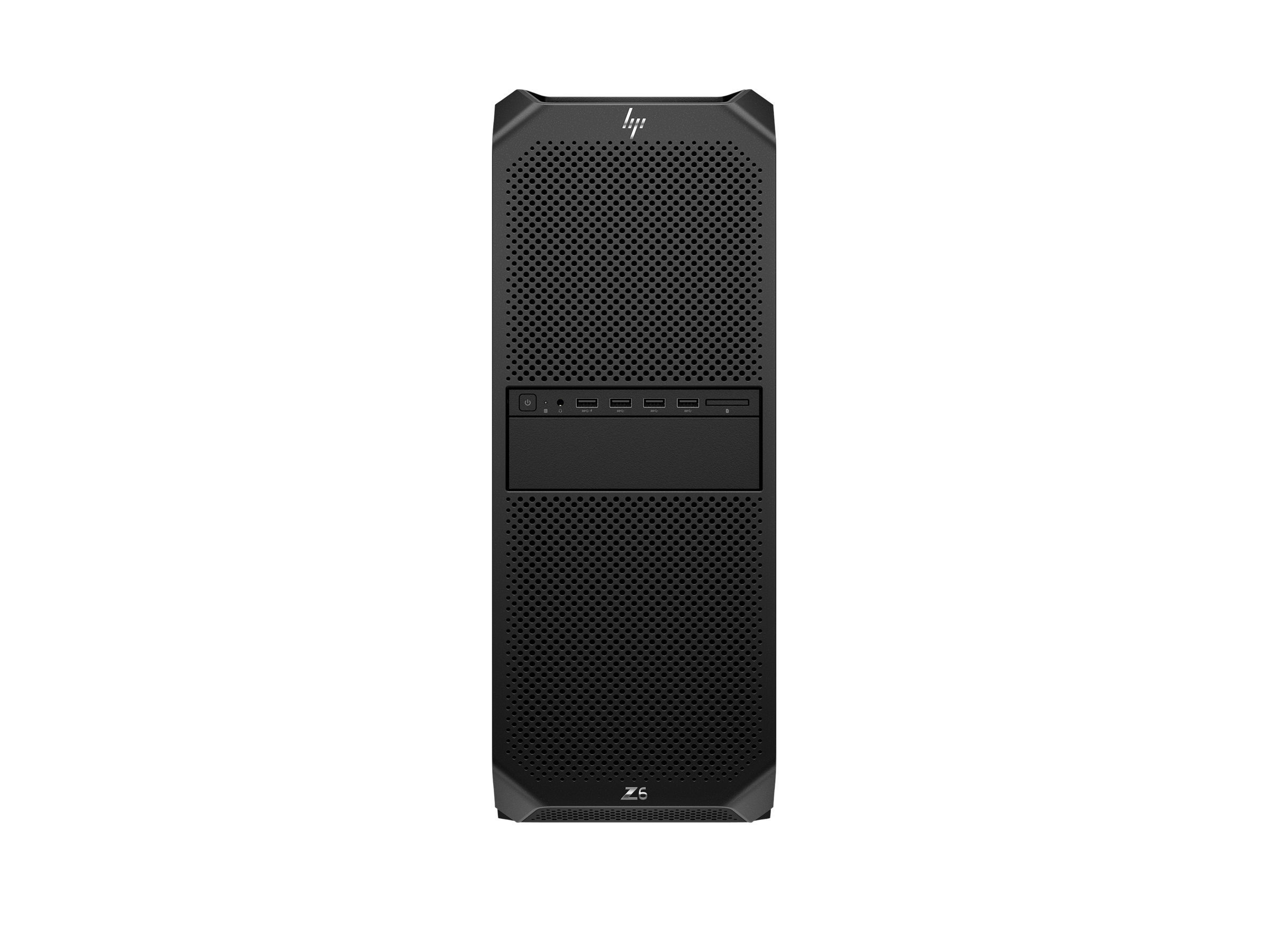

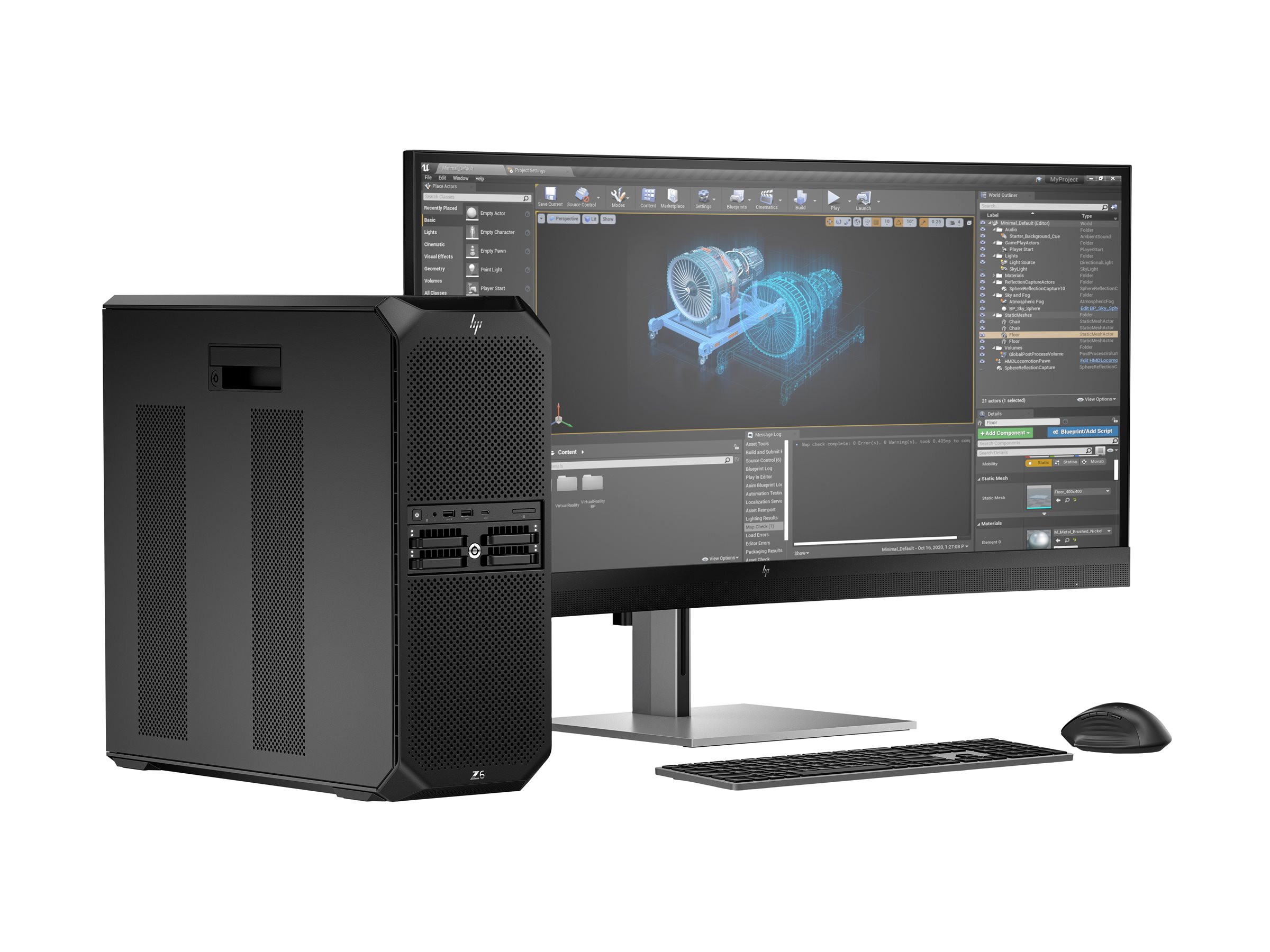

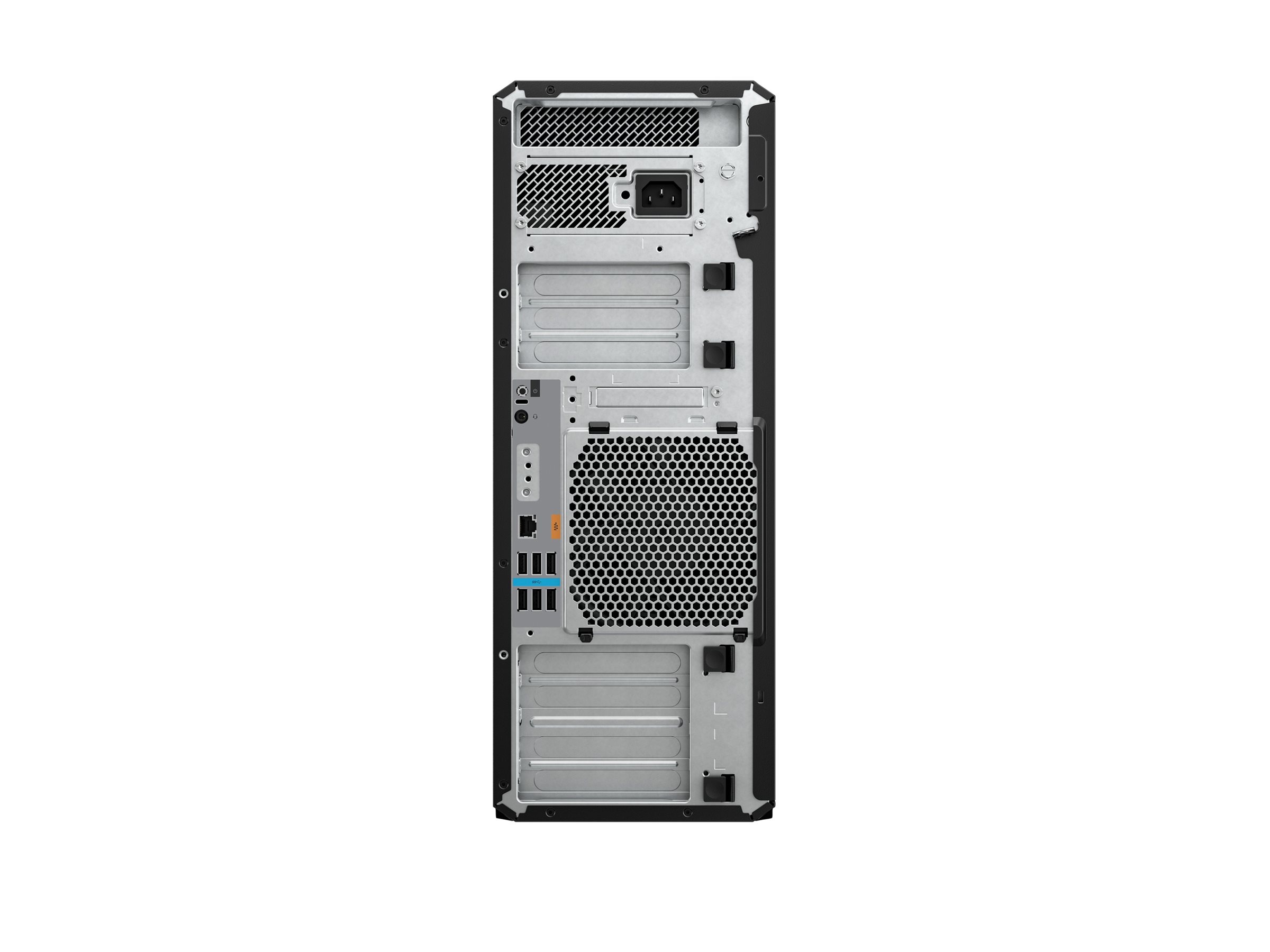

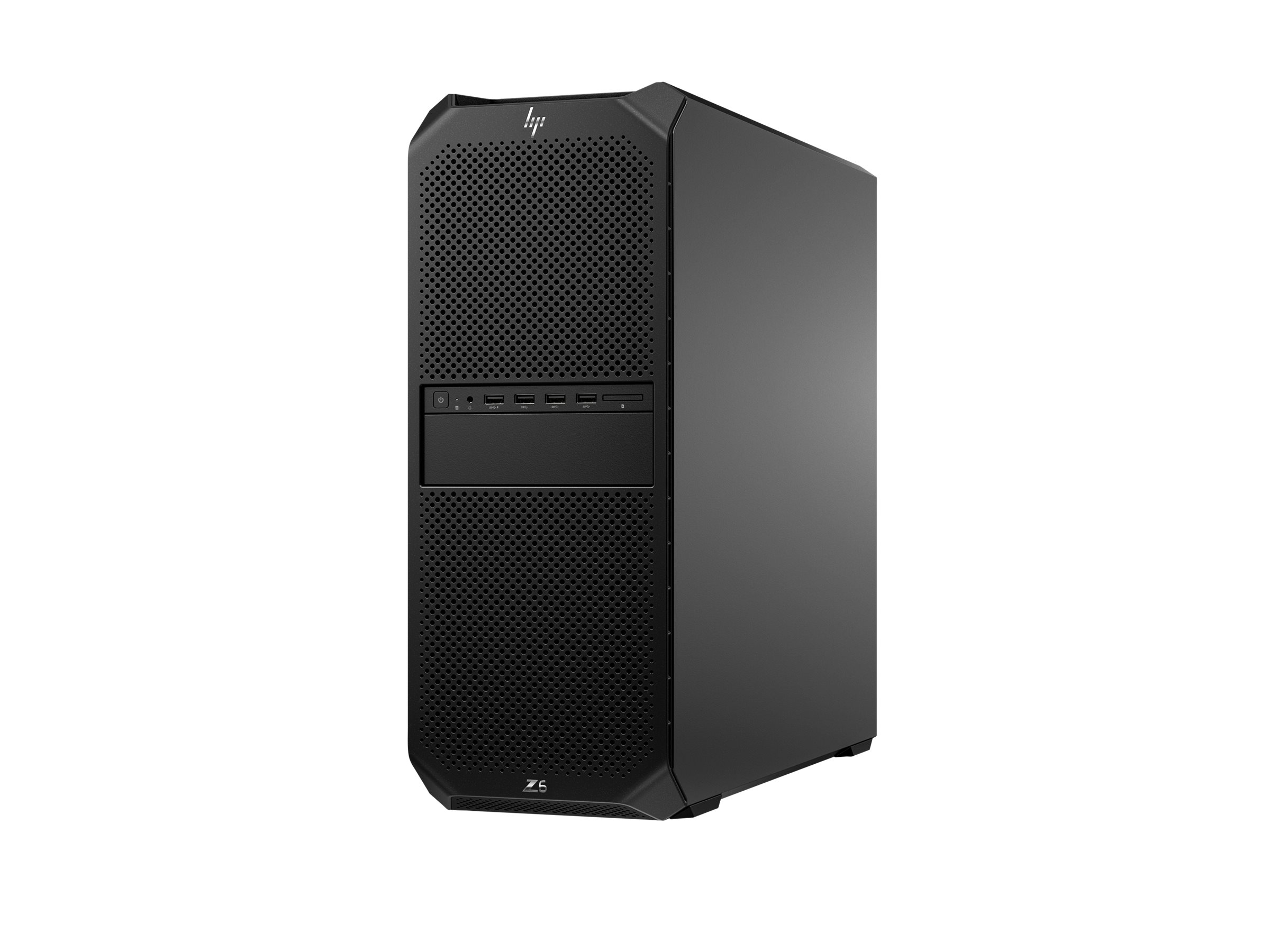

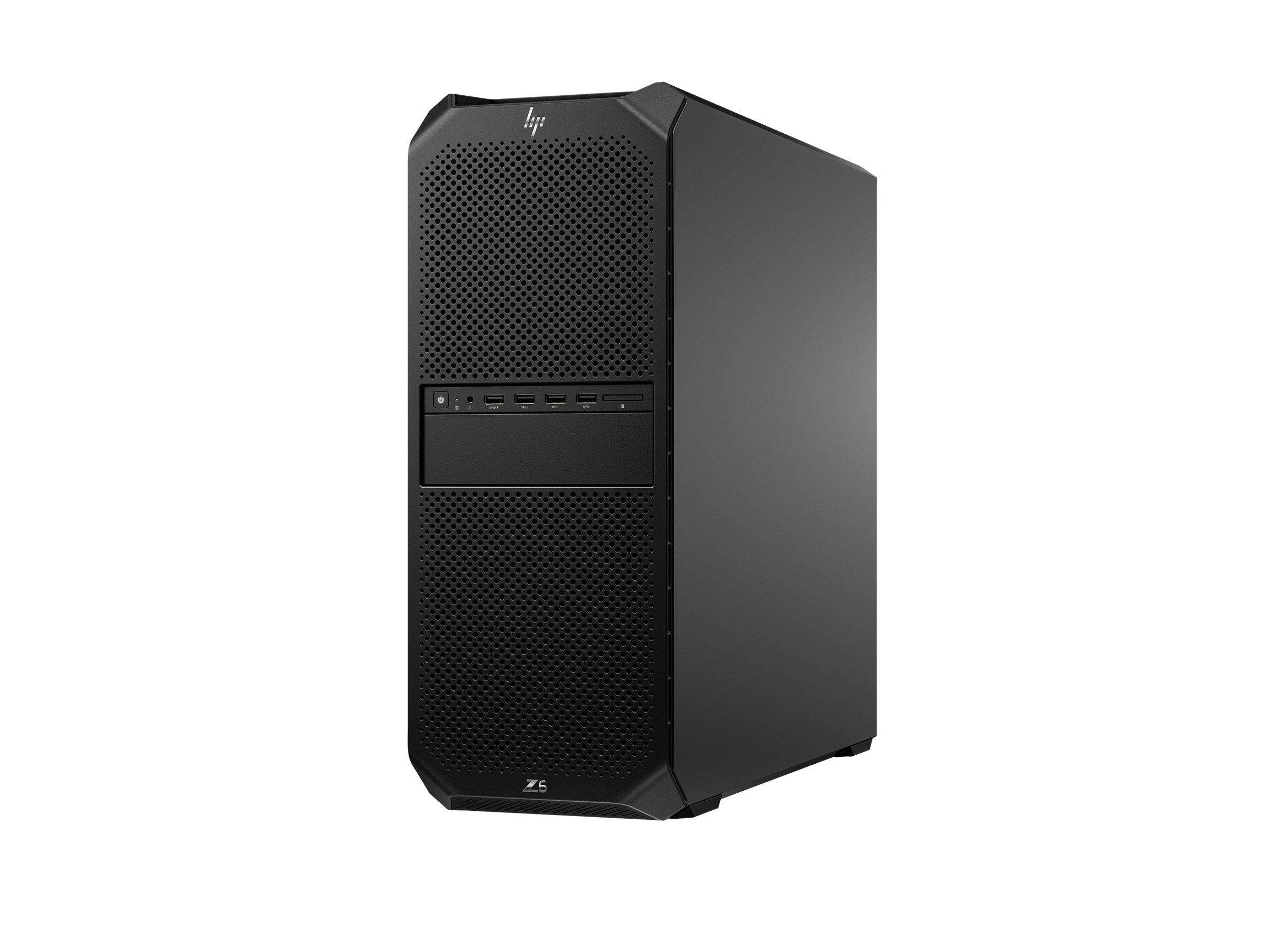

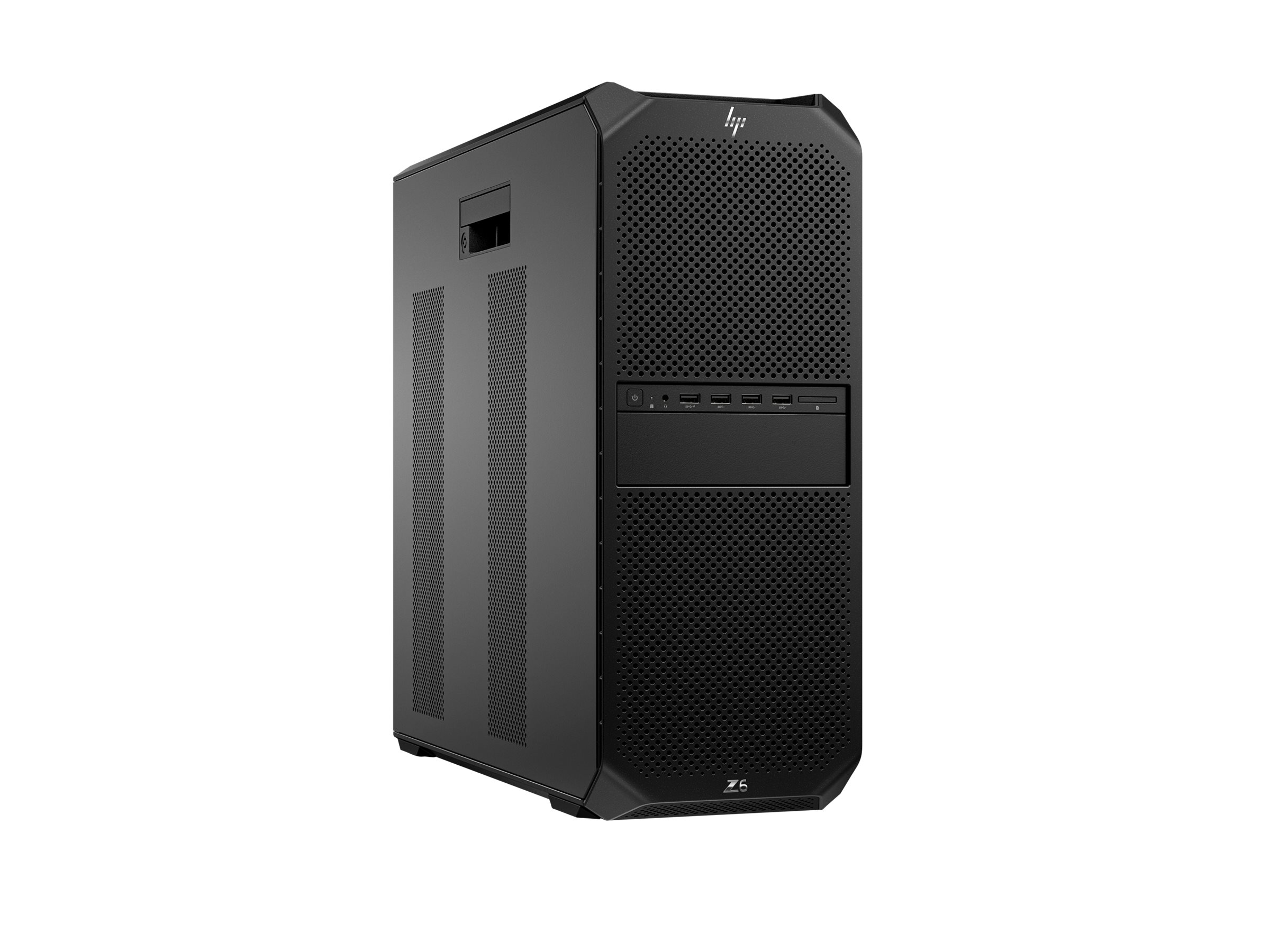

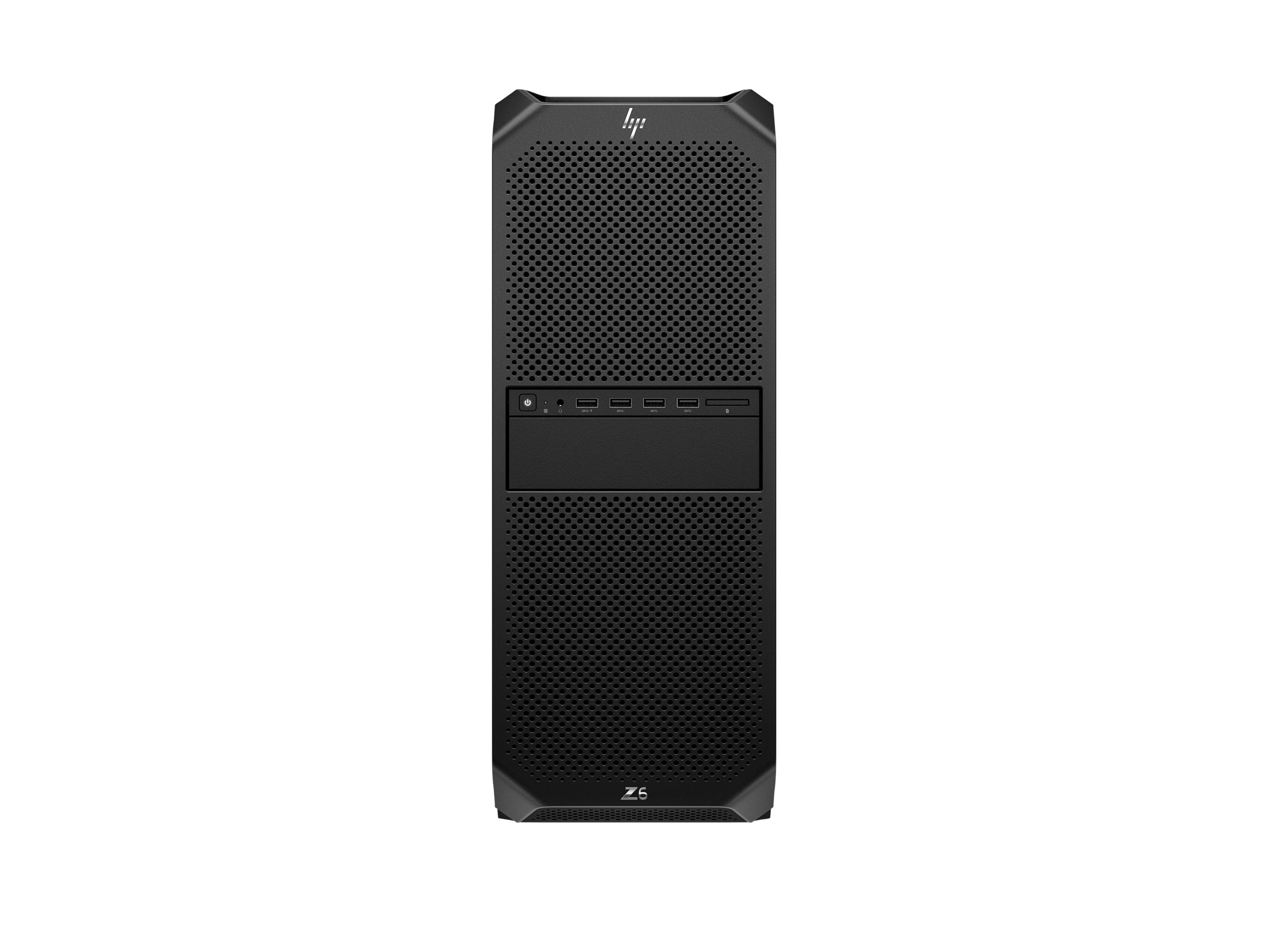

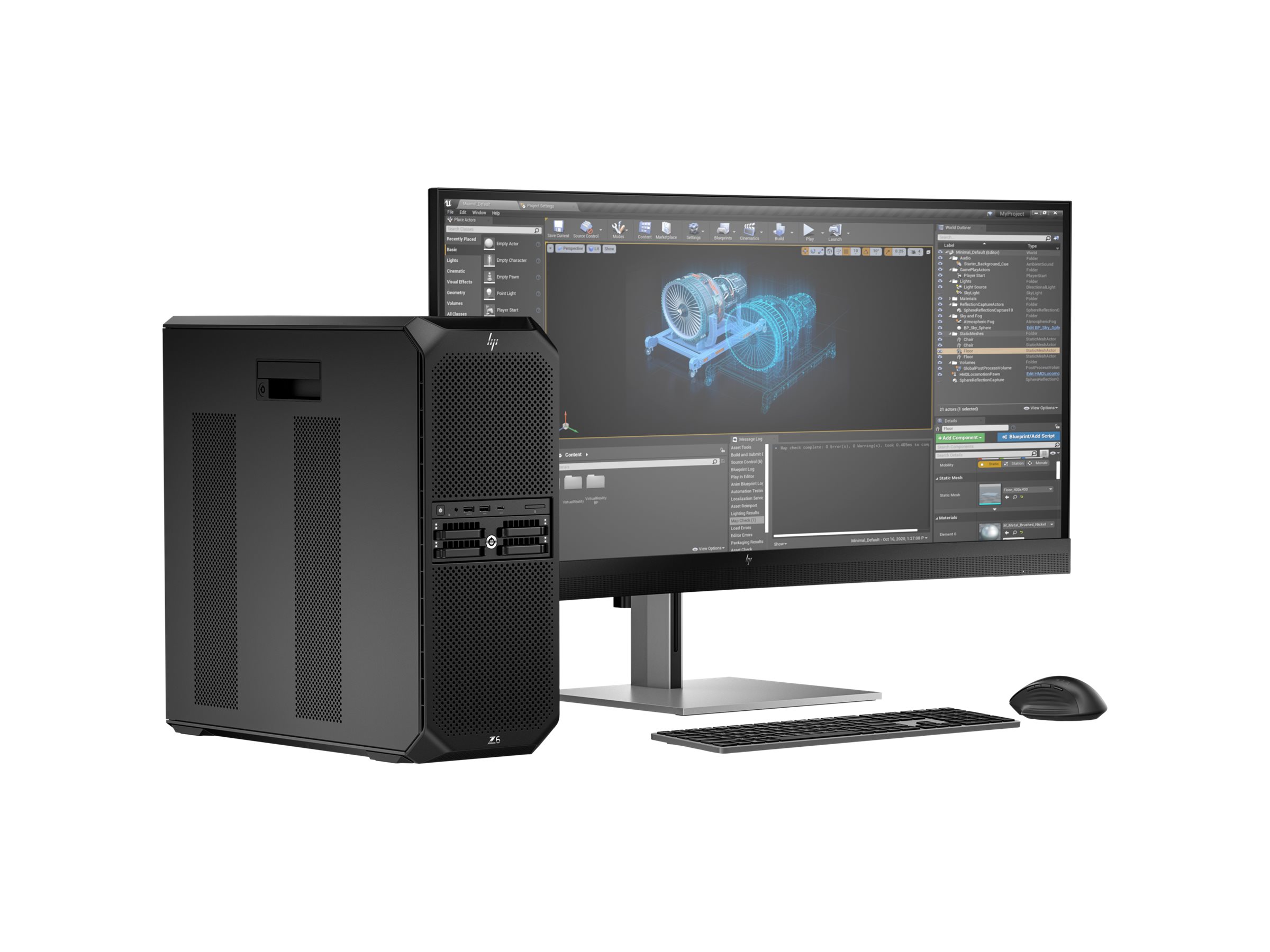

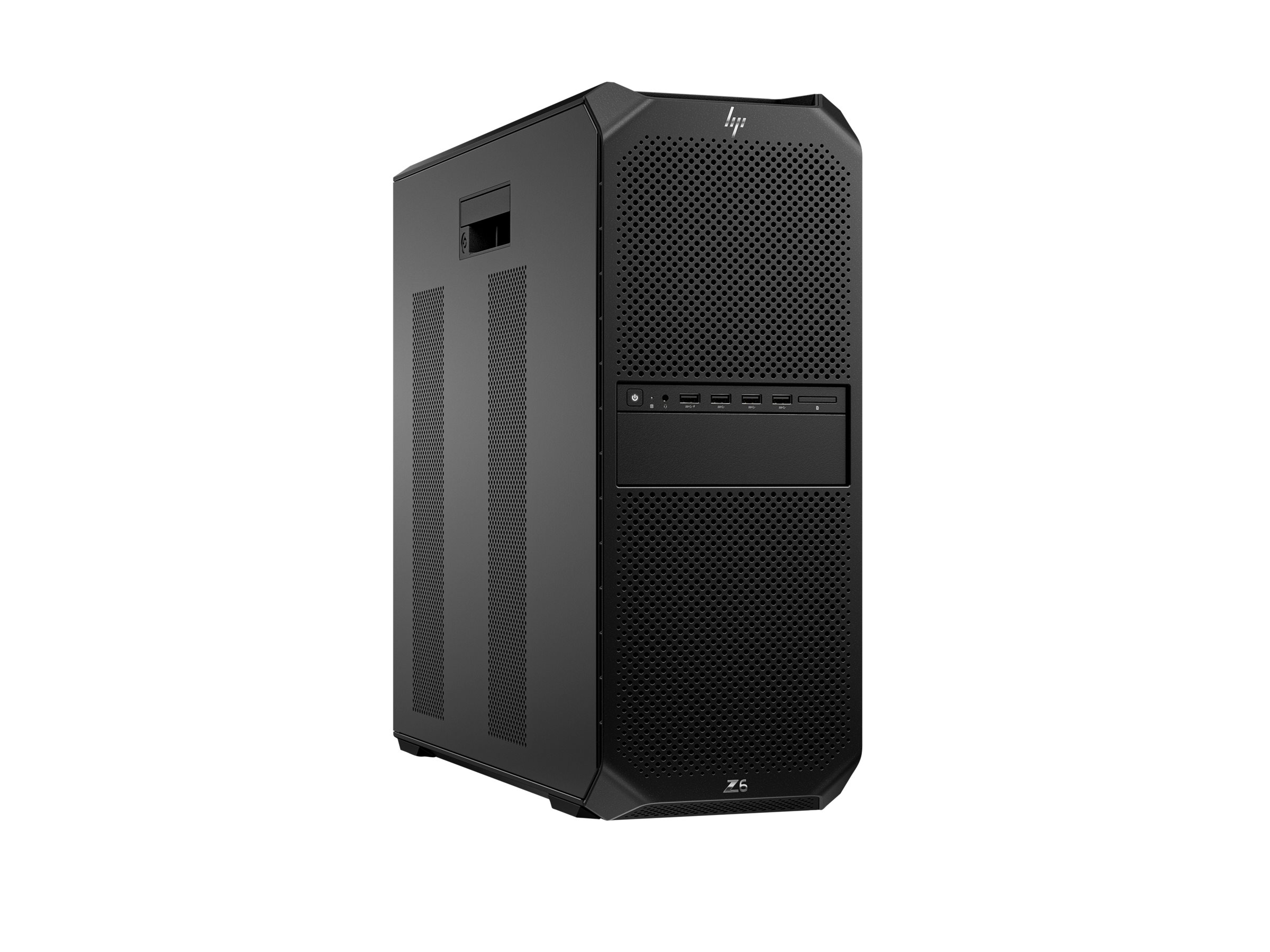

HP Workstation Z6 G5 A
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
HP Workstation Z6 G5 A
- AI Workstation
- tower 4U
- 1 x Ryzen ThreadRipper PRO 7955WX / up to 5.3 GHz
- RAM 16 GB
- SSD 512 GB
- HP Z Turbo Drive, NVMe, TLC
- Radeon Pro W7600
- Gigabit Ethernet
- Win 11 Pro
- monitor: none
- keyboard: US
- black
- Smart Buy
- with HP 3 years Onsite Care Workstation Hardware Support Bundle
- with HP Wolf Pro Security Edition (1 year)
| Additional Details | |
|---|---|
| Mfr Part #: | 9J2L0UT#ABA |
| SHI Part #: | 47413342 |
| Category: | Desktop computers |
| UNSPSC: | 43211507 |
| Manufacturer: | HP, Inc. |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Desktop computers |
| Description | HP Workstation Z6 G5 A - AI Workstation - tower 4U - 1 x Ryzen ThreadRipper PRO 7955WX / up to 5.3 GHz - RAM 16 GB - SSD 512 GB - HP Z Turbo Drive, NVMe, TLC - Radeon Pro W7600 - Gigabit Ethernet - Win 11 Pro - monitor: none - keyboard: US - black - Smart Buy - with HP 3 years Onsite Care Workstation Hardware Support Bundle - with HP Wolf Pro Security Edition (1 year) |
| Manufacturer | HP, Inc. |
| UNSPSC | 43211507 |
| Main Specifications | |
| A/V Interface Type | PCI Express 4.0 x8 |
| Chassis / Form Factor | Tower |
| Dimensions & Weight / Depth | 46.5 cm |
| Dimensions & Weight / Height | 44.45 cm |
| Dimensions & Weight / Weight | 13.2 kg |
| Dimensions & Weight / Width | 16.9 cm |
| Display / Type | None. |
| Hard Drive / Capacity | 512 GB |
| Hard Drive / Interface | PCI Express 4.0 |
| Hard Drive / Interface Type | PCI Express 4.0 |
| Header / Brand | HP |
| Header / Country Kits | United States |
| Header / Localization | English |
| Mainboard / Chipset Type | AMD PRO 695 |
| Mainboard / Processor Socket | Socket SP6 |
| Miscellaneous / Product Color | Black |
| Networking / Data Link Protocol |
|
| Optical Storage / Drive Type | No optical drive |
| Optical Storage / Type | None |
| OS Provided / Type | Windows 11 Pro |
| Packaged Quantity | 1 |
| Processor / Clock Speed | 4.5 GHz |
| Processor / Manufacturer | AMD |
| Processor / Number of Cores | 16-core |
| Processor / Processor Number | 7955WX |
| Processor / Type | Ryzen ThreadRipper PRO |
| RAM / Data Integrity Check | ECC |
| RAM / Form Factor | DIMM 288-pin |
| RAM / Memory Speed | 5200 MHz |
| RAM / Technology | DDR5 SDRAM |
| Service & Support / Type | 1-year warranty |
| System / Hard Drive Capacity | 512 GB |
| System / Type | Workstation |
| Video Memory / Technology | GDDR6 SDRAM |
| Video Output / Graphics Processor | AMD Radeon Pro W7600 |
| Audio Output | |
| Compliant Standards | High Definition Audio |
| Cache Memory | |
| Cache Per Processor | 64 MB |
| Installed Size | L3 cache - 64 MB |
| Dimensions & Weight | |
| Depth | 46.5 cm |
| Height | 44.45 cm |
| Weight | 13.2 kg |
| Width | 16.9 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 59.3 cm |
| Shipping Height | 63 cm |
| Shipping Width | 31.3 cm |
| Environmental Parameters | |
| Humidity Range Operating | 8 - 85% RH (non-condensing) |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 5 °C |
| Expansion / Connectivity | |
| Bays |
|
| Interfaces |
|
| Slots |
|
| General | |
| AI Level | AI Workstation |
| Bundled Services | HP 3 years Onsite Care Workstation Hardware Support Bundle |
| Bundled with | HP Wolf Pro Security Edition (1 year) |
| Color | Black |
| Embedded Security | Trusted Platform Module (TPM 2.0) Security Chip |
| Localization | Language: English / region: United States |
| Product Form Factor | Tower - 4U |
| Sensors | HP Tamper Lock |
| Type | Workstation |
| Graphics Controller | |
| Bandwidth | 288 GBps |
| Graphics Processor | AMD Radeon Pro W7600 |
| Interface Type | PCIe 4.0 x8 |
| Max Monitors Supported | 4 |
| Video Interfaces | DisplayPort |
| Video Memory | 8 GB GDDR6 SDRAM |
| Hard Drive | |
| Capacity | 512 GB |
| Features | HP Z Turbo Drive, NVM Express (NVMe), triple-level cell (TLC) |
| Interface Type | PCI Express 4.0 |
| Type | SSD - M.2 |
| Input Device | |
| Type | Mouse, keyboard |
| Keyboard | |
| Interface | USB |
| Keyboard Name | HP 320K |
| Localization & Layout | US |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts and labor - 1 year - on-site |
| Miscellaneous | |
| Compliant Standards | RoHS, Green Mark, Common Criteria EAL4+, CECP, CEL, SEPA, low halogen, ACPI 6.0, Korea Eco-Label |
| Manufacturer Selling Program | HP Smart Buy |
| Security Slot Type | Kensington security slot |
| Theft/Intrusion Protection | Security lock slot (cable lock sold separately), chassis intrusion sensor |
| Monitor | |
| Monitor Type | None. |
| Mouse | |
| Mouse Name | HP 320M |
| Networking | |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Ethernet Controller | Realtek RTL8111EPP |
| Features | Wake on LAN (WoL), PXE 2.1 support |
| Operating System / Software | |
| OS Provided | Windows 11 Pro English |
| Software | HP Support Assistant, HP Performance Advisor, HP PC Hardware Diagnostics UEFI, HP Secure Erase, HP BIOSphere, HP BIOS Configuration Utility (free download), HP Image Assistant, HP Documentation, HP Notifications, HP System Software Manager (free download), HP Sure Click, HP Sure Run, HP Sure Recover, HP Manageability Integration Kit, HP Privacy Settings, HP Sure Sense, HP Sure Admin, myHP, HP Easy Clean, HP Smart Support, HP PC Hardware Diagnostics Windows, HP Anyware, HP Services Scan, HP Data Science Stack Manager, HP Sure Start |
| Optical Storage | |
| Type | No optical drive |
| Power | |
| Device Type | Power supply |
| Efficiency | 90% |
| Installed Qty | 1 |
| Power Factor Correction | Yes (active) |
| Power Provided | 775 watt |
| Processor / Chipset | |
| Chipset Type | AMD PRO 695 |
| Clock Speed | 4.5 GHz |
| CPU | AMD Ryzen ThreadRipper PRO 7955WX |
| CPU Qty | 1 |
| CPU Socket | Socket SP6 |
| CPU Upgradability | Upgradable |
| L2 cache | 16 MB |
| Max CPU Qty | 1 |
| Max Turbo Speed | 5.3 GHz |
| Number of Cores | 16-core |
| RAM | |
| Configuration Features | 1 x 16 GB |
| Effective Memory Speed | 5200 MHz |
| Form Factor | DIMM 288-pin |
| Installed Size | 16 GB (installed) / 1 TB (max) |
| Rated Memory Speed | 5600 MHz |
| Slots | 8 (total) / 7 (empty) |
| Technology | DDR5 SDRAM - ECC |
| Storage Controller | |
| Controller Interface Type | SATA 6Gb/s |
| RAID Level | RAID 0, RAID 1, RAID 5, RAID 10 |
| Type | SATA |
| Sustainability Information | |
| ENERGY STAR Certified | Yes |
| EOL (kg CO2e) | 4 |
| EPEAT Compliant | EPEAT Gold |
| Logistics (kg CO2e) | 3 |
| Manufacturing (kg CO2e) | 304 |
| TCO Certified | TCO Certified Desktops 9 |
| Total Carbon w/o Use Phase (kg CO2e) | 1150 |
| Use (kg CO2e) | 840 |
