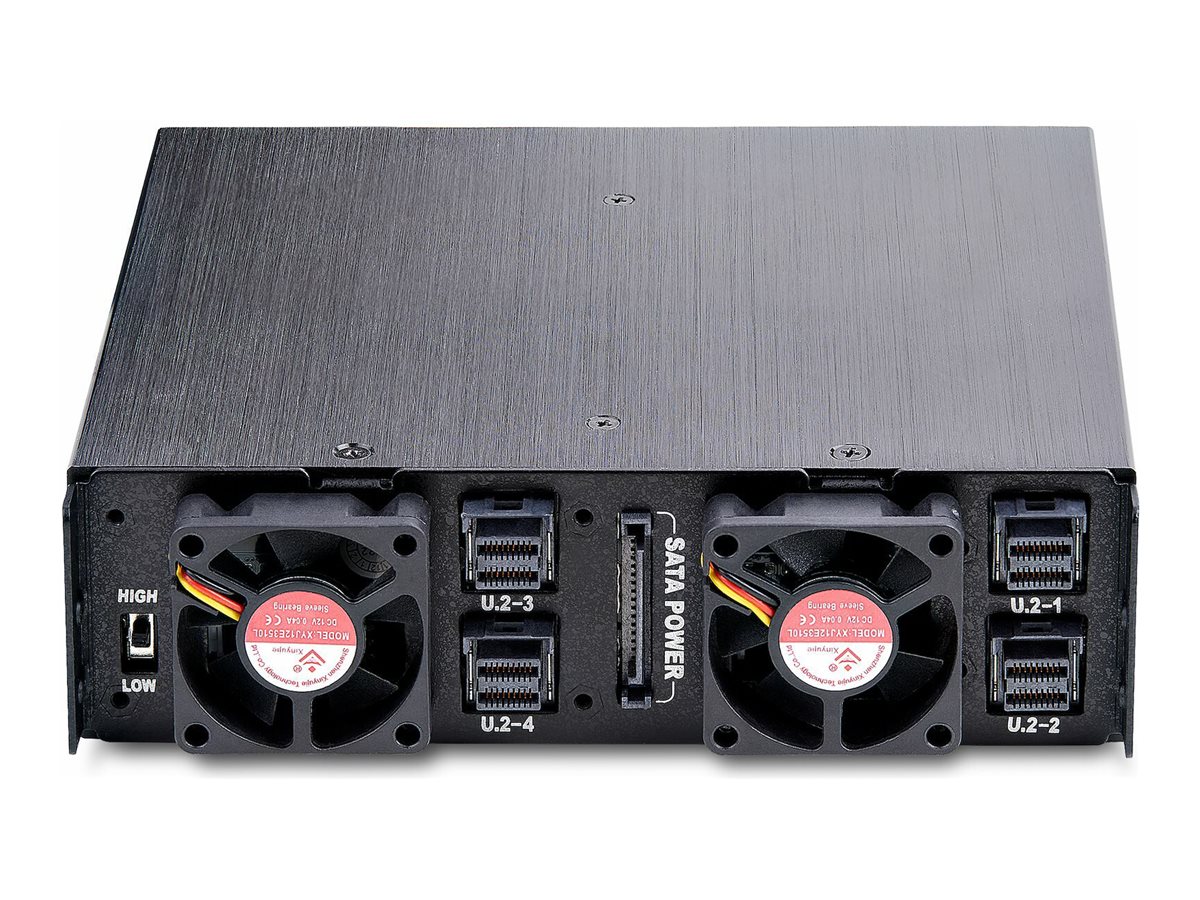

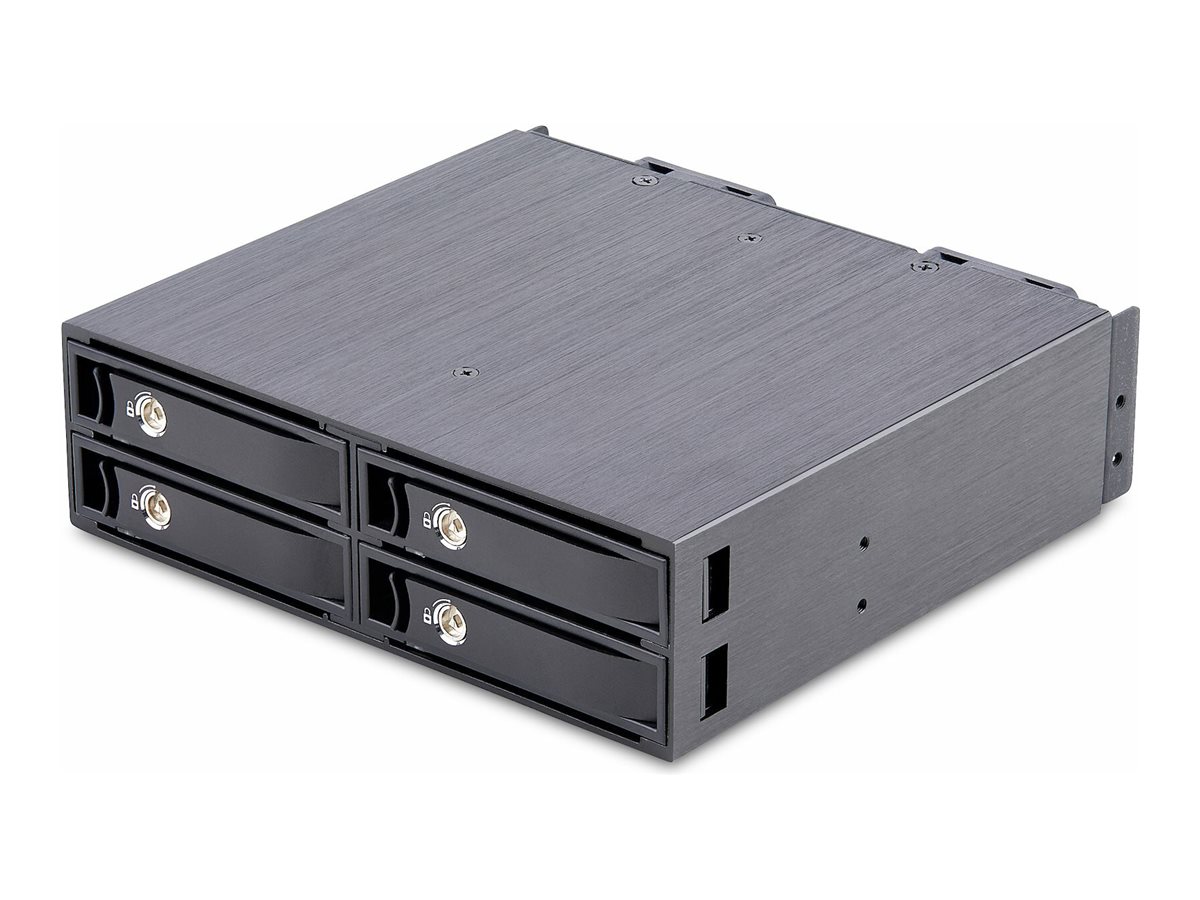

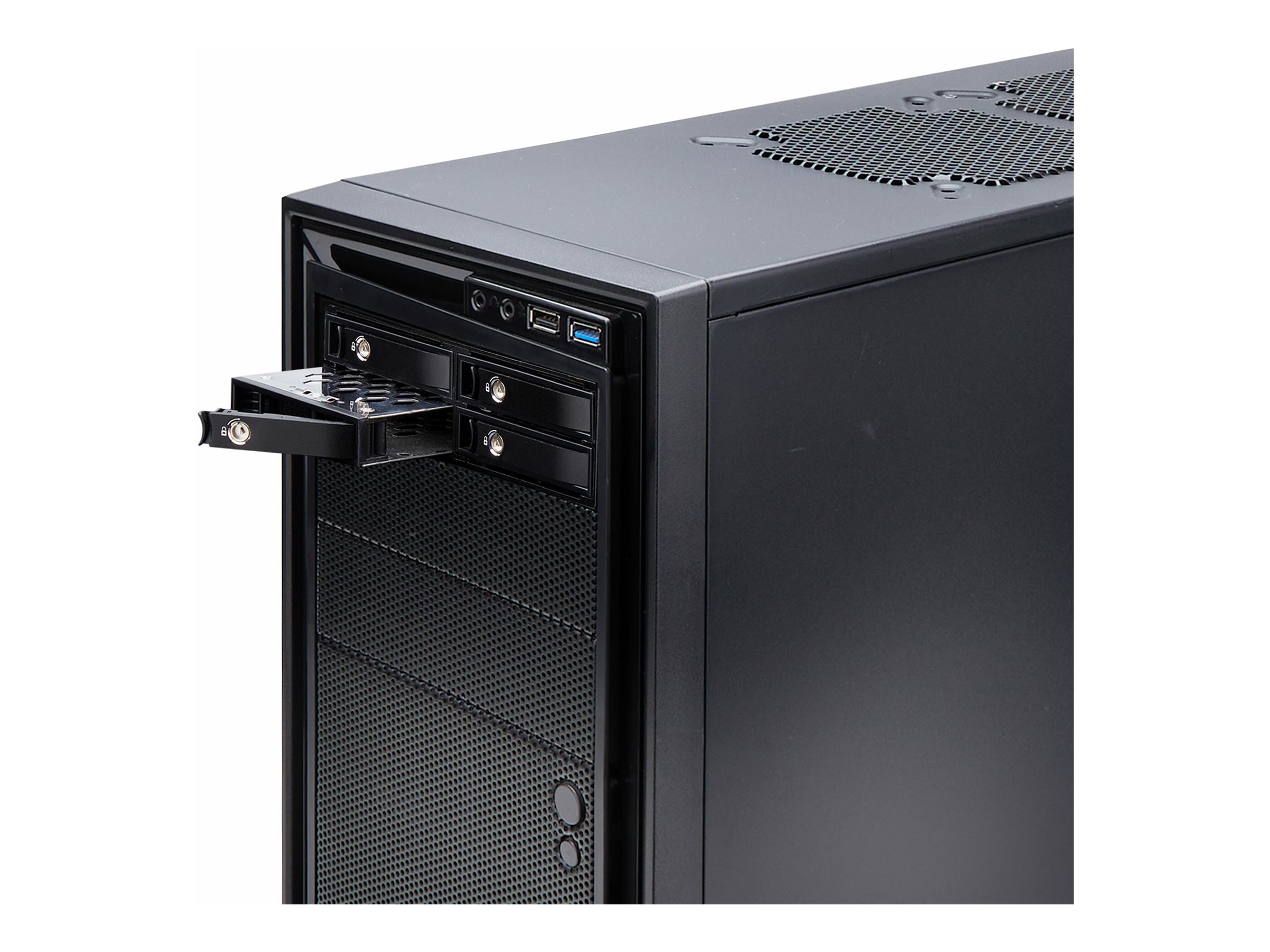

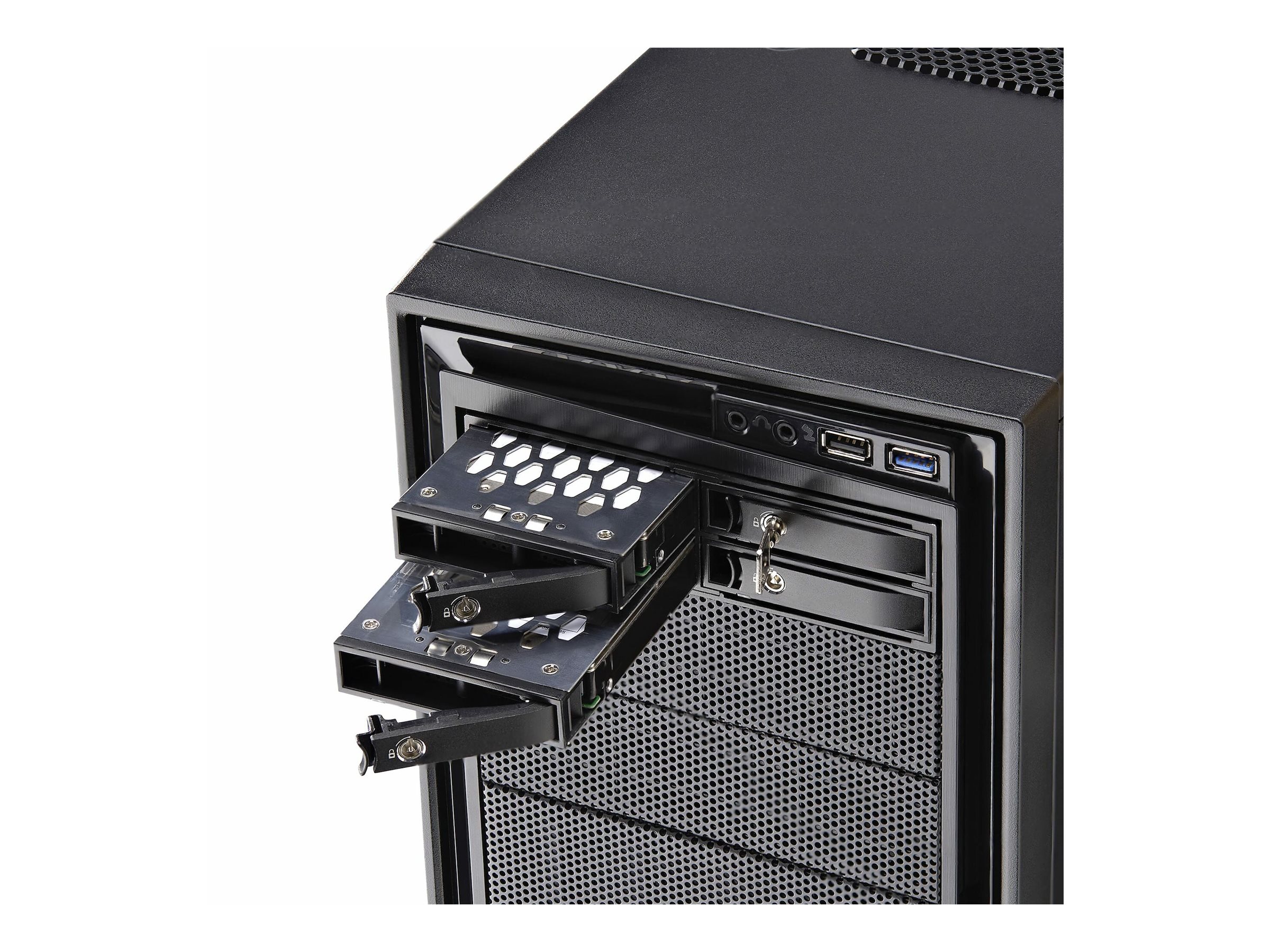

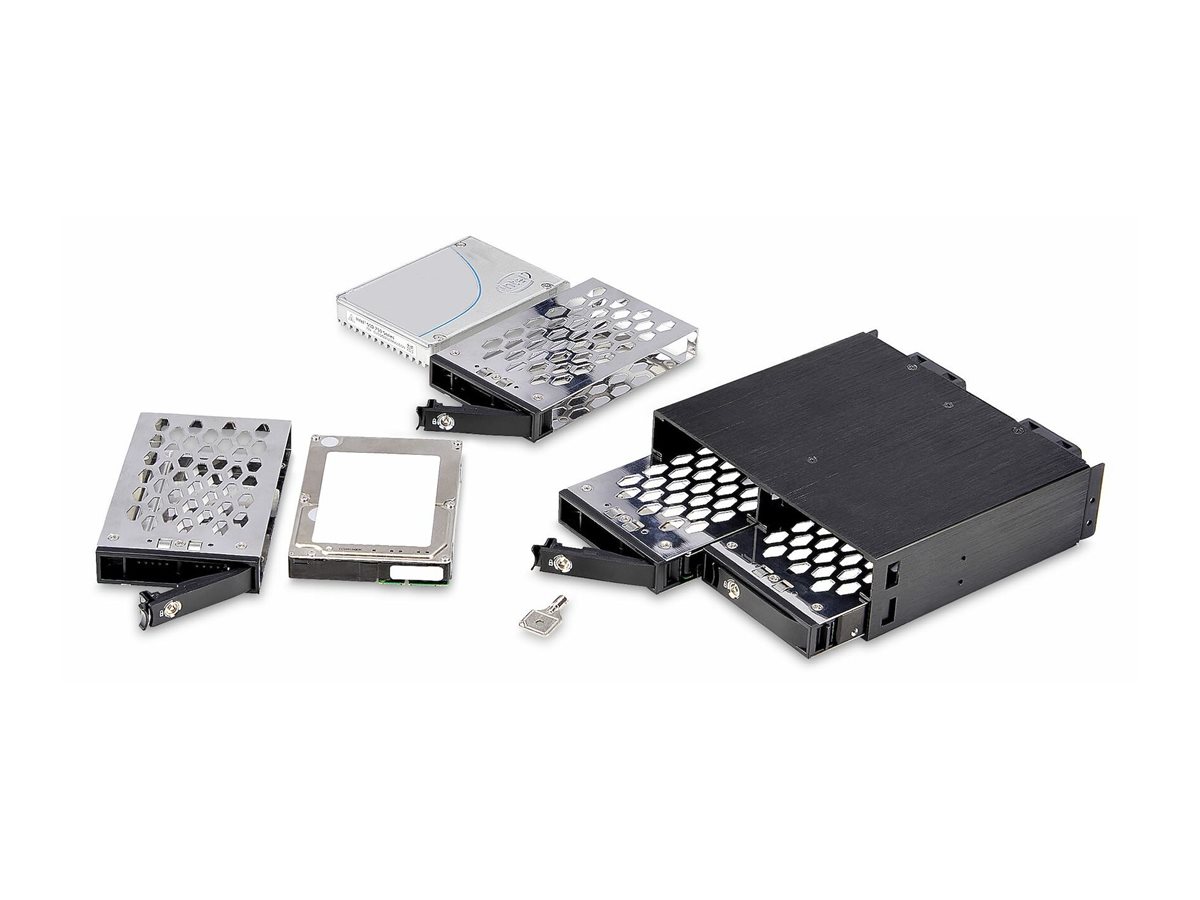

StarTech 4-Bay Backplane for U.2 Drives, Fits in a 5.25inch Bay, Quad-Bay Mobile Rack Enclosure for 2.5inch U.2 (SFF-8639) HDD/SSDs, Includes Mini-SAS HD Cables and Removeable Trays
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
StarTech 4-Bay Backplane for U.2 Drives, Fits in a 5.25inch Bay, Quad-Bay Mobile Rack Enclosure for 2.5inch U.2 (SFF-8639) HDD/SSDs, Includes Mini-SAS HD Cables and Removeable Trays
- Backplane with Fans (4U2525-SAS-BACKPLANE)
- Storage enclosure
- 4 bays (PCIe (NVMe) / U.2)
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | 4U2525-SAS-BACKPLANE |
| SHI Part #: | 47390303 |
| Category: | Chassis |
| UNSPSC: | 43201601 |
| Manufacturer: | StarTech.com |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Chassis |
| Description | StarTech 4-Bay Backplane for U.2 Drives, Fits in a 5.25inch Bay, Quad-Bay Mobile Rack Enclosure for 2.5inch U.2 (SFF-8639) HDD/SSDs, Includes Mini-SAS HD Cables and Removeable Trays - Backplane with Fans (4U2525-SAS-BACKPLANE) - Storage enclosure - 4 bays (PCIe (NVMe) / U.2) |
| Manufacturer | StarTech.com |
| MSRP | $452.99 |
| UNSPSC | 43201601 |
| Main Specifications | |
| Dimensions & Weight / Depth | 14.6 cm |
| Dimensions & Weight / Height | 4.2 cm |
| Dimensions & Weight / Weight | 700 g |
| Dimensions & Weight / Width | 13.9 cm |
| Header / Brand |
|
| Miscellaneous / Product Color | Black |
| Packaged Quantity | 1 |
| Service & Support / Type | 2-year warranty |
| Storage / Type | Storage enclosure |
| Chassis | |
| Built-in Devices | 2 x 35 mm fans |
| Installed Devices / Modules Qty | 0 |
| Supported Devices / Modules Qty | 4 |
| Supported Drives | PCIe (NVMe) / U.2 |
| Dimensions & Weight | |
| Depth | 14.6 cm |
| Height | 4.2 cm |
| Weight | 700 g |
| Width | 13.9 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 18 cm |
| Shipping Height | 13.3 cm |
| Shipping Weight | 1.1 kg |
| Shipping Width | 21.2 cm |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 65% RH (non-condensing) |
| Max Operating Temperature | 55 °C |
| Min Operating Temperature | 0 °C |
| Sound Emission | 21.3 dBA |
| Expansion / Connectivity | |
| Expansion Bays | 4 (total) / 4 (free) x hot-swap - 2.5" |
| Interfaces |
|
| General | |
| Device Type | Storage enclosure |
| Enclosure Color | Black |
| Hard Drive | |
| Type | No HDD |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Cables Included | 4 x mini SAS HD cable - 61 cm |
| Compliant Standards | RoHS, WEEE |
| Features | Key lock, 4Kn drive compatible, aluminum housing, 2.47 CFM airflow, up to 32 Gbps data transfer, 500 cycles insertion rating, fan speed switch |
| Included Accessories | 2 x keys, 8 frame mounting screws, 16 drive mounting screws |
| MTBF | 30,000 hours |
| Processor | |
| CPU | No CPU |
