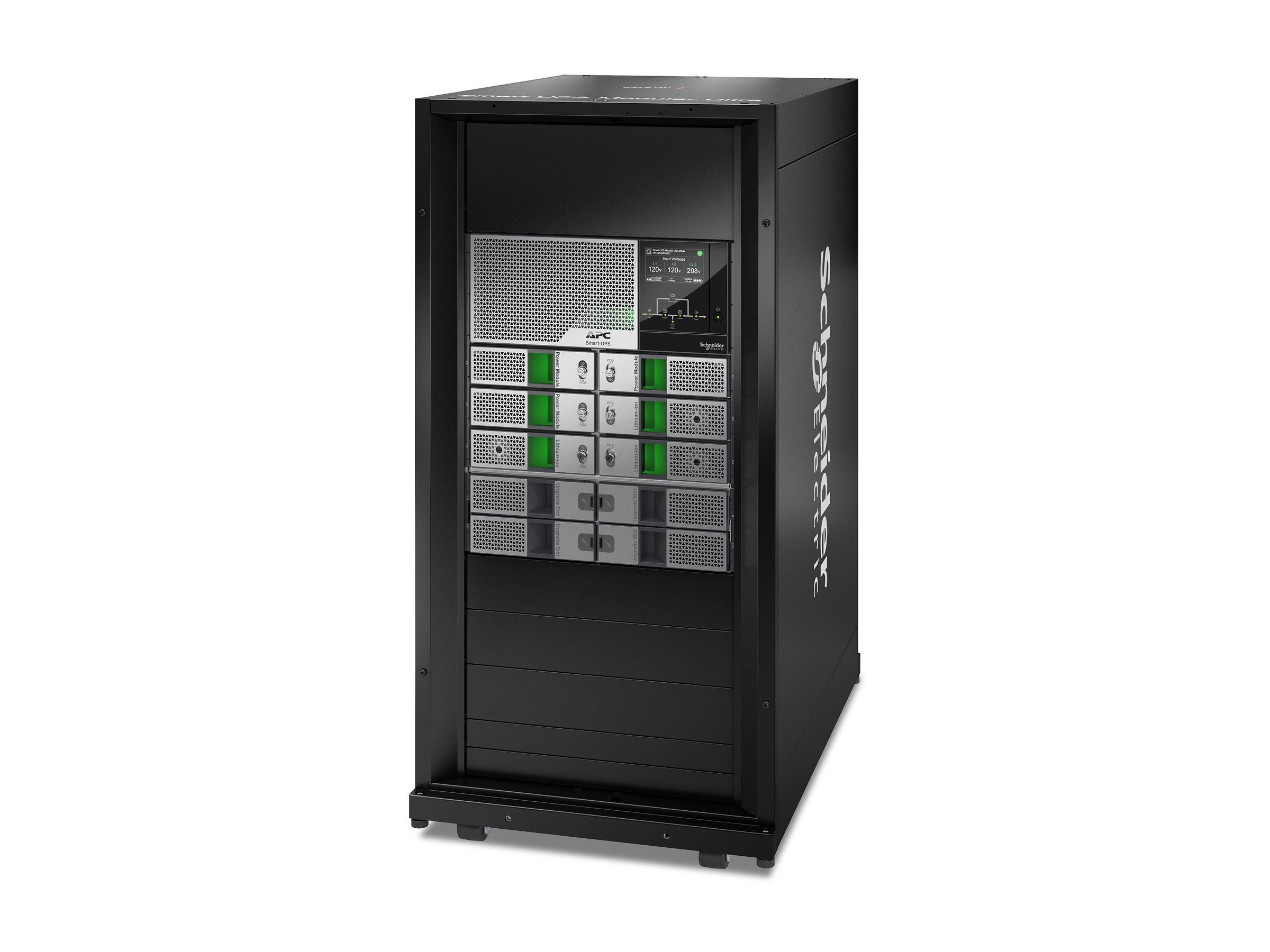

APC Smart-UPS Modular Ultra


MSRP$47,395.00
$35,431.00
APC Smart-UPS Modular Ultra

Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • UPS (rack-mountable)
  • 208/240V, network management card, on-line, touchscreen, tower, scalable to 20kW N+1 redundant
  • AC 208/240 V
  • 15 kW
  • 15000 VA
APC Smart-UPS Modular Ultra
  • UPS (rack-mountable)
  • 208/240V, network management card, on-line, touchscreen, tower, scalable to 20kW N+1 redundant
  • AC 208/240 V
  • 15 kW
  • 15000 VA
  • 24U
  • black, silver
  • for P/N: SRYLBM, SRYLFXBPRM4, SRYLPD2, SRYLPD3, SRYLPD4, SRYLPD5, SRYLPD7, SRYLSBP20KP
  Additional Details
Price: $35,431.00
MSRP: $47,395.00
Mfr Part #: SRYL15K20XLT24
SHI Part #: 47352058
Category: Uninterruptible power supplies
UNSPSC: 39121011
Manufacturer: APC
Product Type: Hardware
Product Line: APC by Schneider Electric
General Information
CategoryUninterruptible power supplies
DescriptionAPC Smart-UPS Modular Ultra - UPS (rack-mountable) - 208/240V, network management card, on-line, touchscreen, tower, scalable to 20kW N+1 redundant - AC 208/240 V - 15 kW - 15000 VA - 24U - black, silver - for P/N: SRYLBM, SRYLFXBPRM4, SRYLPD2, SRYLPD3, SRYLPD4, SRYLPD5, SRYLPD7, SRYLSBP20KP
ManufacturerAPC
MSRP$47,395.00
UNSPSC39121011
Main Specifications
Dimensions & Weight / Depth90 cm
Dimensions & Weight / Height119.8 cm
Dimensions & Weight / Weight234 kg
Dimensions & Weight / Width60 cm
General / SubcategoryUPS
Header / BrandAPC
Miscellaneous / Product Color
  • Black
  • Silver
Packaged Quantity1
Power Device / Form FactorRack-mountable
Power Device / Power Capacity (VA)15000 VA
Power Device / UPS TechnologyOn-line
Power Device / Voltage RequiredAC 208/240 V
Product TypeUPS
Service & Support / Type5-year warranty
Battery
TechnologyLithium ion
TypeExpandable
Compatibility Information
Designed ForP/N: AP9640, AP9641, AP9643, SRYLBM, SRYLFXBPRM4, SRYLPD1, SRYLPD2, SRYLPD3, SRYLPD4, SRYLPD5, SRYLPD7, SRYLSBP20KP
Dimensions & Weight
Depth90 cm
Height119.8 cm
Weight234 kg
Width60 cm
Dimensions & Weight (Shipping)
Shipping Depth99.5 cm
Shipping Height132.2 cm
Shipping Weight256.36 kg
Shipping Width74.6 cm
Environmental Parameters
Max Operating Temperature40 °C
Min Operating Temperature0 °C
Sound Emission68 dB
General
ColorBlack, silver
Device TypeUPS - rack-mountable
Height (Rack Units)24U
Manufacturer Warranty
Service & SupportLimited warranty - 5 years
Miscellaneous
Compliant StandardsRoHS, REACH, China RoHS, EU RoHS, Mercury-free, Green Premium, Energy Star 2.0
FeaturesEmergency power off, internal bypass, touch screen LCD display, double conversion, scalable to 20kW
Included AccessoriesNetwork management card
Power Device
Frequency Required40 - 70 Hz
Input Connectors1 x hardwire 4-wire (2PH+N+G)
Input VoltageAC 208/240 V
Output VoltageAC 120/240 V
Output WaveformSinewave
Power Capacity15 kW / 15000 VA
Power Modules Qty3
Power RedundancyOptional
Power Redundancy SchemeN+1
UPS TechnologyOn-line
Sustainability Information
ENERGY STARYes
