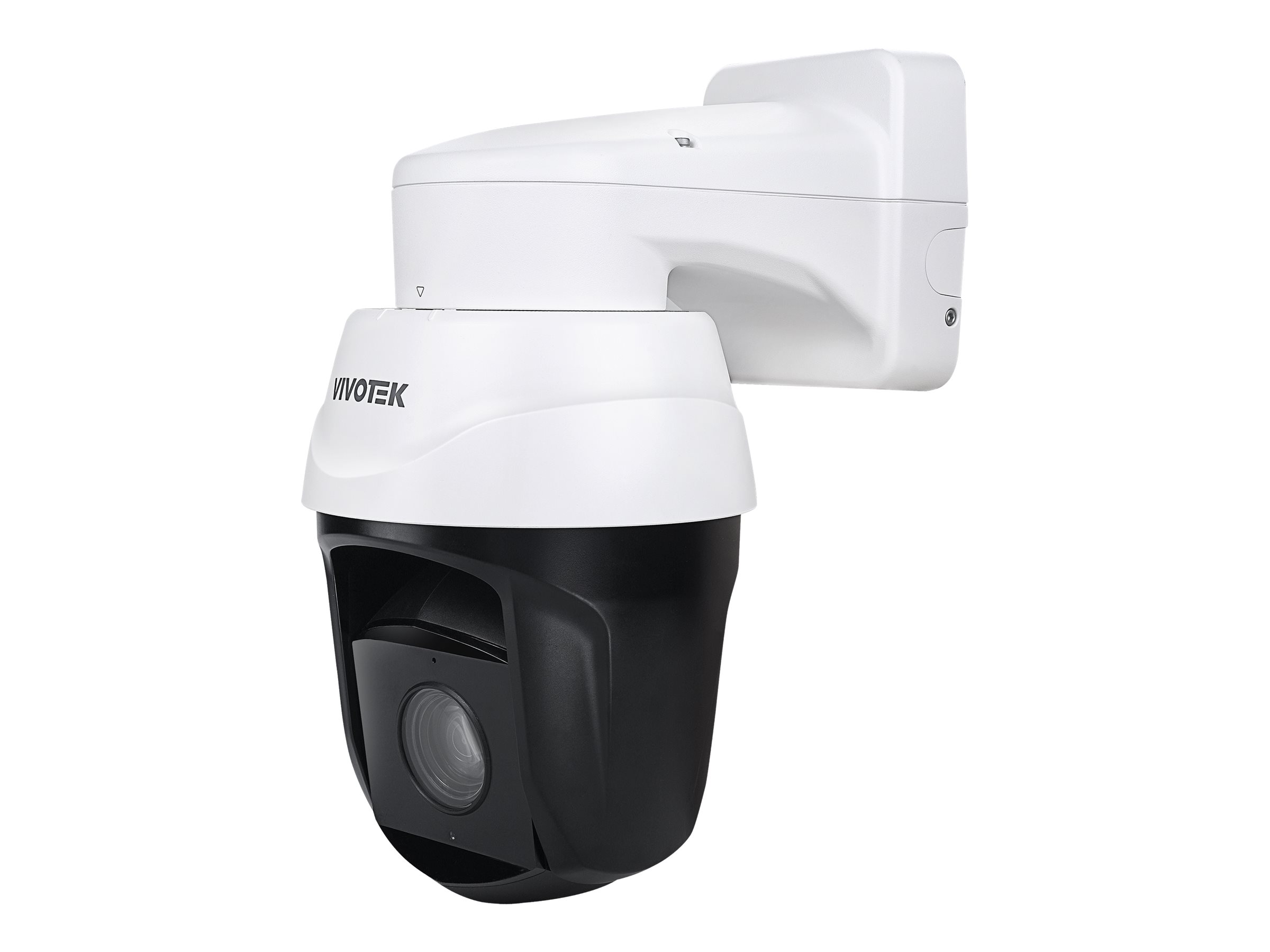

Vivotek V Series SD9394-EHL
MSRP$5,437.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
Vivotek V Series SD9394-EHL
- Network surveillance camera
- PTZ
- dome
- outdoor
- vandal / weatherproof
- color (Day&Night)
- 8.3 MP
- 3840 x 2160
- 2160/30p
- auto iris
- motorized
- audio
- LAN 10/100
- H.265, H.264, MJPEG
- DC 48 V / AC 24 V / PoE++ Class 6
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $5,437.00 |
| Mfr Part #: | SD9394-EHL |
| SHI Part #: | 47317165 |
| Category: | Digital cameras |
| UNSPSC: | 45121504 |
| Manufacturer: | Vivotek |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Digital cameras |
| Description | Vivotek V Series SD9394-EHL - Network surveillance camera - PTZ - dome - outdoor - vandal / weatherproof - color (Day&Night) - 8.3 MP - 3840 x 2160 - 2160/30p - auto iris - motorized - audio - LAN 10/100 - H.265, H.264, MJPEG - DC 48 V / AC 24 V / PoE++ Class 6 |
| Manufacturer | Vivotek |
| MSRP | $5,437.00 |
| UNSPSC | 45121504 |
| Main Specifications | |
| Dimensions & Weight / Height | 33.6 cm |
| Dimensions & Weight / Weight | 7.3 g |
| Dimensions & Weight / Width | 25.6 cm |
| Header / Brand | Vivotek |
| Miscellaneous / Product Color |
|
| Packaged Quantity | 1 |
| Service & Support / Type | 3-year warranty |
| System Requirements / OS Required |
|
| Camera | |
| Digital Video Format | H.265, H.264, MJPEG |
| Digital Zoom | 16 |
| Exposure Range | 1/30000 sec - 1 sec |
| Features | Sharpness control, white balance, auto exposure control, Power over Ethernet, saturation control, contrast control, image flip, image mirror, ONVIF support, 3D Noise Reduction Technology, Camera Tampering Detection, auto tracking, Wide Dynamic Range (WDR) Enhanced, Audio Detection, Gain Control, Defog, 256 preset positions |
| Flash Memory | 8 GB |
| Infrared Distance | 250 m |
| Infrared LEDs | Yes |
| Max Digital Video Resolution | 3840 x 2160 |
| Minimum Illumination |
|
| Motion Detection | Yes |
| RAM | 2 GB |
| Type | Color - Day&Night - pan / tilt / zoom - outdoor - vandal / weatherproof |
| Video Capture | 3840 x 2160 @ 30 fps |
| Video Modes | 2160/30p |
| Environmental Parameters | |
| Max Operating Temperature | 55 °C |
| Min Operating Temperature | -40 °C |
| Relative Humidity (operating) | 98% RH (non-condensing) |
| Expansion / Connectivity | |
| Ports |
|
| Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
| General | |
| Audio Formats | G.711, G.726, AAC |
| Audio Support | Yes: two-way audio capability |
| Camera Mount Type | Wall mount |
| Connectivity Technology | Wired |
| Device Type | Network surveillance camera |
| Form Factor | Dome |
| Height | 33.6 cm |
| Weight | 7.3 g |
| Width | 25.6 cm |
| Image Sensor | |
| Type | 8.3 MP CMOS 1/3" |
| Interfaces | |
| Alarm Inputs Qty | 2 |
| Alarm Outputs Qty | 2 |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | ARP, Bonjour, CIFS, SMB, DDNS, DHCP, DNS, FTP, SFTP, HTTP, HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTCIP, NTP, PPPoE, QOS, CoS, DSCP, RTSP, RTP, RTCP, SMTP, SNMP, SSL, TCP/IP, TLS, UDP, UPnP |
| Lens Construction | |
| Diagonal Field of View (degree) | 2.3 - 70.7 |
| Focal Length | 6.5 mm - 212 mm |
| Horizontal Field of View (degree) | 2 - 63.5 |
| Lens Iris | F/1.4-4.9 auto iris (P-Iris) |
| Optical Zoom | 32 x |
| Type | Motorized zoom |
| Vertical Field of View (degree) | 1.1 - 37.4 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Compliant Standards | FCC, UL, LVD, VCCI, RoHS, WEEE, NEMA 4, IK10, IP66, BIS, UKCA, CB, IEC, RCM |
| Included Accessories | Mounting kit, terminal blocks, waterproof connectors |
| Panning | |
| Range (degree) | 360 |
| Speed (degree/sec) | Up to 400 |
| Power | |
| Power Device | 51 Watt |
| Power Requirements | DC 48 V / AC 24 V / PoE++ Class 6 |
| Software / System Requirements | |
| OS Required | Microsoft Windows 7 / 8 / 10, Apple macOS 10.12 |
| Tilting | |
| Range (degree) | -20 to +90 |
| Speed (degree/sec) | Up to 300 |
