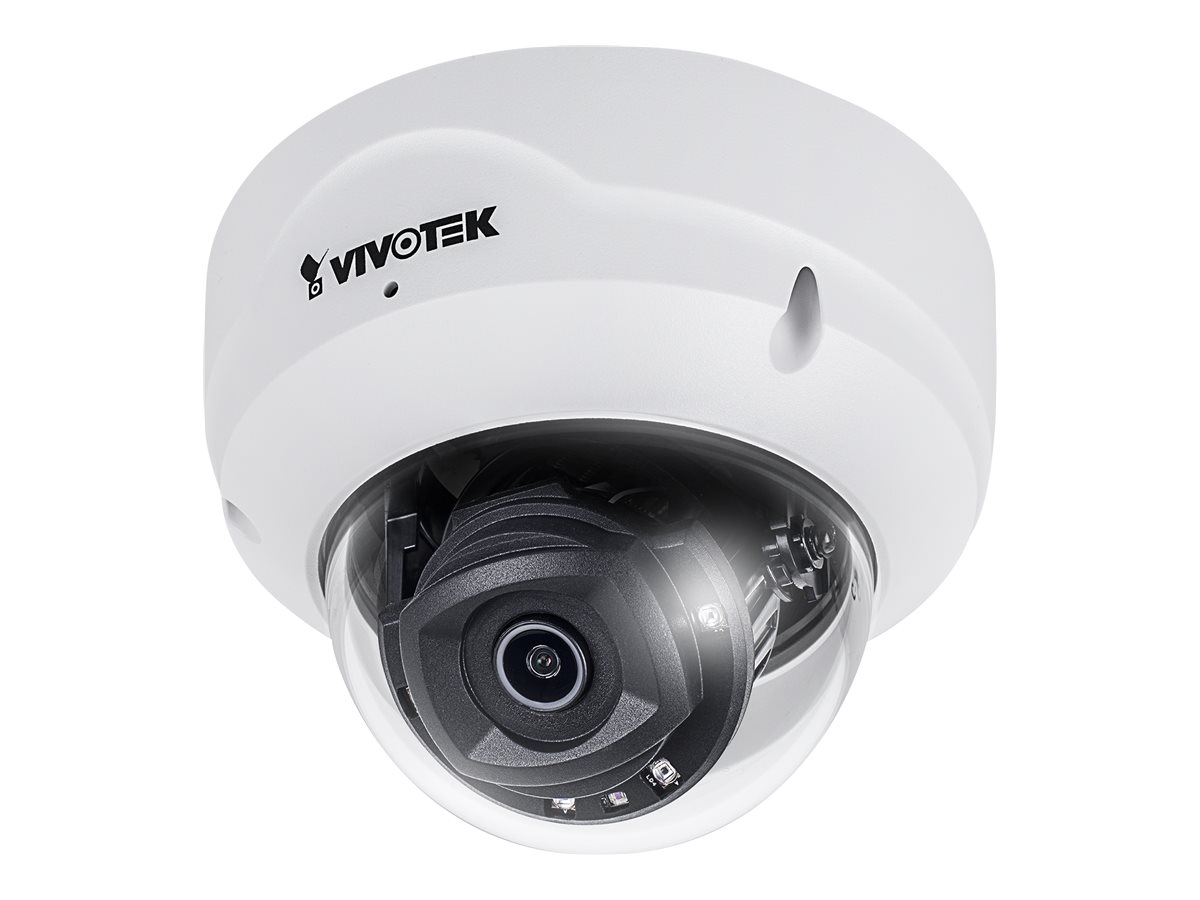

Vivotek VORTEX Essential FD819-H
MSRP$626.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
Vivotek VORTEX Essential FD819-H
- Network surveillance camera
- dome
- indoor
- vandal / weatherproof
- color (Day&Night)
- 5 MP
- 2560 x 1920
- fixed iris
- fixed focal
- audio
- LAN 10/100
- PoE Class 0
- TAA Compliant
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $626.00 |
| Mfr Part #: | FD819-H-1Y |
| SHI Part #: | 47229369 |
| Category: | Digital cameras |
| UNSPSC: | 45121504 |
| Manufacturer: | Vivotek |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Digital cameras |
| Description | Vivotek VORTEX Essential FD819-H - Network surveillance camera - dome - indoor - vandal / weatherproof - color (Day&Night) - 5 MP - 2560 x 1920 - fixed iris - fixed focal - audio - LAN 10/100 - PoE Class 0 - TAA Compliant |
| Manufacturer | Vivotek |
| MSRP | $626.00 |
| UNSPSC | 45121504 |
| Main Specifications | |
| Dimensions & Weight / Depth | 13 cm |
| Dimensions & Weight / Height | 9.5 cm |
| Dimensions & Weight / Weight | 350 g |
| Dimensions & Weight / Width | 13 cm |
| Header / Brand | Vivotek |
| Miscellaneous / Product Color |
|
| Packaged Quantity | 1 |
| Service & Support / Type | 10-year warranty |
| Camera | |
| Digital Video Capture Resolution | 2560 x 1920, 1280 x 960 |
| Exposure Range | 1/5 sec - 1/32000 sec |
| Features | Wide Dynamic Range (WDR) Pro, AI Analytics, intrusion detection, Line Crossing Detection, loitering detection, -175° / +175° rotation, IR-cut filter, 5m microphone pickup range, WebRTC compatible, 6 access users, secure boot, signed firmware, HTTPs encryption, TLS encryption protocol, video encryption, plastic housing, Audio Detection, missing object detection, unattended object detection |
| Flash Memory | 256 GB |
| Frame Rate (max) | 15 frames per second |
| Infrared Distance | 30 m |
| Infrared LEDs | Yes |
| Max Digital Video Resolution | 2560 x 1920 |
| Minimum Illumination |
|
| Motion Detection | Yes |
| Type | Color - Day&Night - fixed - indoor - vandal / weatherproof |
| Environmental Parameters | |
| Max Operating Temperature | 50 °C |
| Min Operating Temperature | -10 °C |
| Relative Humidity (operating) | 90% RH (non-condensing) |
| Expansion / Connectivity | |
| Encryption Algorithm | TLS 1.2 |
| Ports | LAN/power - RJ-45 |
| Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
| General | |
| Audio Support | Yes: built-in microphone, one-way audio capability |
| Connectivity Technology | Wired |
| Depth | 13 cm |
| Device Type | Network surveillance camera |
| Form Factor | Dome |
| Height | 9.5 cm |
| Weight | 350 g |
| Width | 13 cm |
| Image Sensor | |
| Type | 5 MP Progressive Scan CMOS 1/2.7" |
| Interfaces | |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | ARP, DHCP, DNS, HTTP, HTTPS, ICMP, IPv4, IPv6, NTP, QOS, CoS, DSCP, RTSP, RTP, RTCP, SSL, TCP/IP, UDP |
| Lens Construction | |
| Diagonal Field of View (degree) | 134 |
| Focal Length | 2.8 mm |
| Horizontal Field of View (degree) | 103 |
| Lens Iris | F/2.0 fixed iris |
| Type | Fixed focal |
| Vertical Field of View (degree) | 76 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 10 years |
| Miscellaneous | |
| Compliant Standards | FCC, UL, NDAA, IEEE 802.3af, AS/NZS CISPR32 Class B, CE/EMC, EN 50121-4, EN 55032, EN 62368-1, EN55024 Class B, FCC Part 15 Subpart B Class B, IEC 62368-1, IEC/EN 60950-22, IEC/EN 62471, RCM, UL 62368-1, VCCI-CISPR 32 |
| Included Accessories | Alignment sticker, screw pack |
| TAA Compliant | Yes |
| Panning | |
| Range (degree) | 350 |
| Power | |
| Power Device | 6.3 watt |
| Power Requirements | PoE Class 0 |
| Software / System Requirements | |
| Software Included | VORTEX Standard Cloud License (1 year) |
| Tilting | |
| Range (degree) | 80 |
