Raritan PX4-532A-E7V2
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with

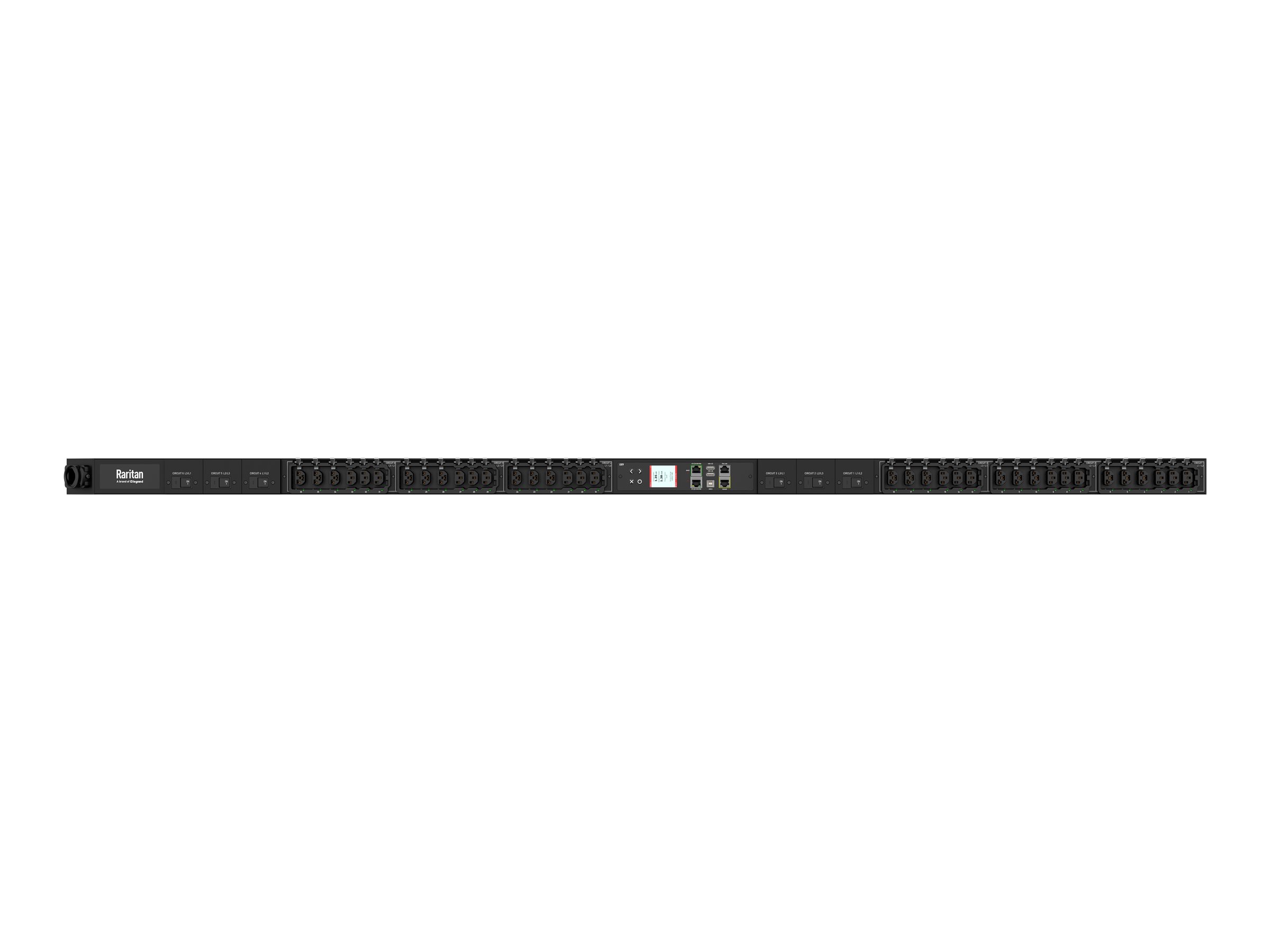

Raritan PX4-532A-E7V2
- Power distribution strip (rack-mountable)
- AC 208 V
- 17300 VA
- 3-phase delta
- RS-232, USB, Ethernet 10/100/1000
- input: IEC 60309 3P+E
- output connectors: 36 (18 x IEC 60320 C13, 18 x IEC 60320 Cx)
- 0U
- 3 m cord
- blue
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | PX4-532A-E7V2K2 |
| SHI Part #: | 47227694 |
| Category: | Power distribution units PDUs |
| UNSPSC: | 39121017 |
| Manufacturer: | Legrand |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Power distribution units PDUs |
| Description | Raritan PX4-532A-E7V2 - Power distribution strip (rack-mountable) - AC 208 V - 17300 VA - 3-phase delta - RS-232, USB, Ethernet 10/100/1000 - input: IEC 60309 3P+E - output connectors: 36 (18 x IEC 60320 C13, 18 x IEC 60320 Cx) - 0U - 3 m cord - blue |
| Manufacturer | Legrand |
| MSRP | $4,313.00 |
| UNSPSC | 39121017 |
| Main Specifications | |
| Dimensions & Weight / Depth | 6.5 cm |
| Dimensions & Weight / Height | 178 cm |
| Dimensions & Weight / Weight | 11.1 kg |
| Dimensions & Weight / Width | 5.6 cm |
| General / Subcategory | Power distribution devices |
| Header / Brand | Raritan |
| Miscellaneous / Product Color | Blue |
| Networking / Remote Management Interface |
|
| Packaged Quantity | 1 |
| Power Device / Form Factor | Rack-mountable |
| Power Device / Output Connector Qty | 36 |
| Power Device / Power Capacity (VA) | 17300 VA |
| Power Device / Voltage Required | AC 208 V |
| Product Type | Power distribution strip |
| Service & Support / Type | 2-year warranty |
| Dimensions & Weight | |
| Depth | 6.5 cm |
| Height | 178 cm |
| Weight | 11.1 kg |
| Width | 5.6 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 12.5 cm |
| Shipping Height | 194 cm |
| Shipping Weight | 13.7 kg |
| Shipping Width | 25.5 cm |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Max Operating Temperature | 60 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Color | Blue |
| Cord Length | 3 m |
| Device Type | Power distribution strip - rack-mountable |
| Height (Rack Units) | 0U |
| Image Color Disclaimer | The displayed product image may be a different color |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Cables Included | Power cable 3 m |
| Compliant Standards | UL, ICES-003, RoHS, FCC Part 15 A, Redfish API |
| Features | Vertical orientation, tool-less button mount, extruded aluminum housing, LCD display, current meter, LED indicators, cascadable, active power meter, real power meter, energy meter, power factor meter, Raritan SecureLock Ready, remote outlet switching, metering per input line, metering per branch circuit breaker, metering per output receptacle, replaceable controller, rotating display, bottom-front feed cord entry, voltage meter, 6 x J62-X0 overload protection |
| Networking | |
| Remote Management Interface | RS-232, USB, Ethernet 10/100/1000 |
| Remote Management Protocol | SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH, JSON-RPC, SMTP, Modbus TCP |
| Power Device | |
| Frequency Required | 50/60 Hz |
| Input Connectors | Power IEC 60309 3P+E |
| Input Voltage | AC 208 V |
| Input Voltage Range | AC 208 - 240 V |
| Input Wiring | 3-phase delta |
| Max Electric Current | 60 A |
| Output Voltage | AC 208 V |
| Power Capacity | 17300 VA |
| Power Capacity Details | 17.3 kVA at 208 V, 20 kVA at 240 V |
| Power Output Connectors Details |
|
