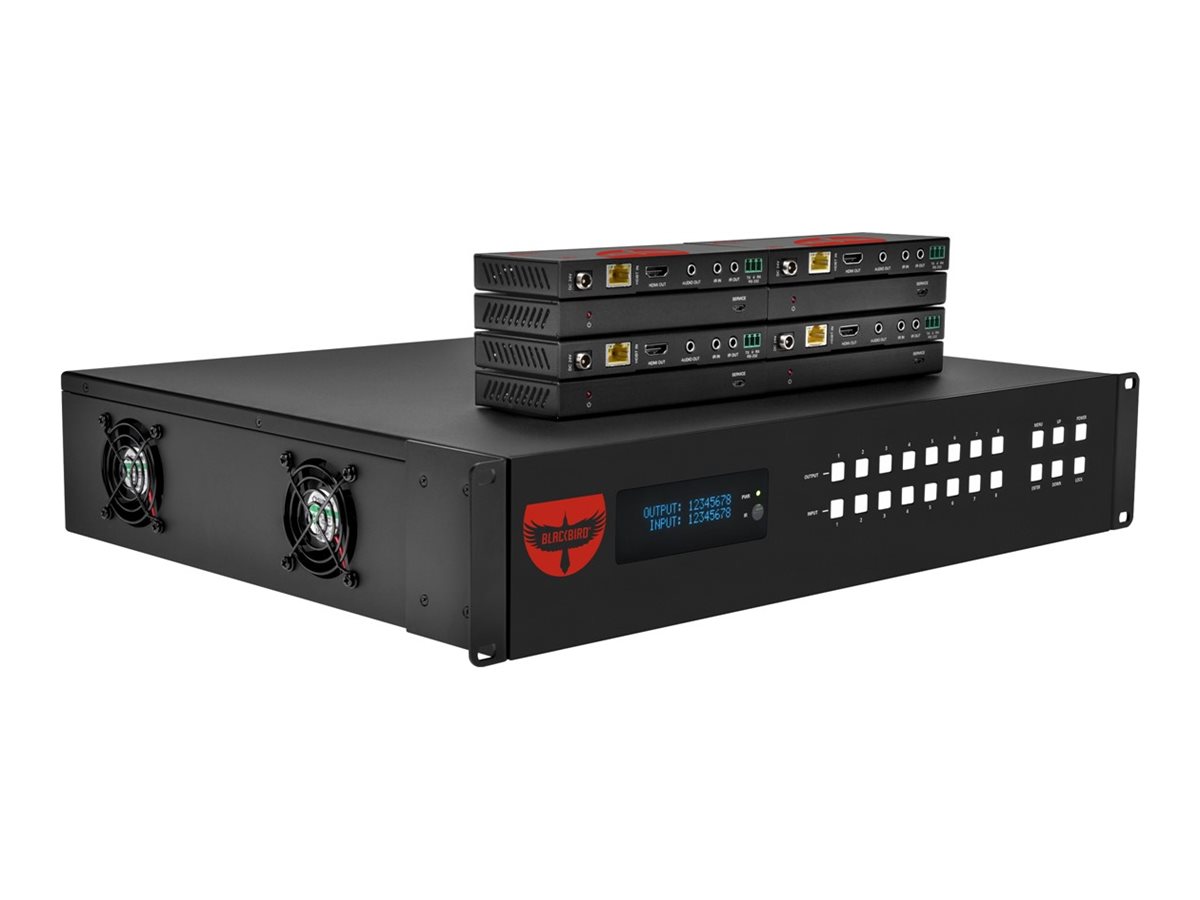

Monoprice Blackbird - 8x8 matrix switcher

$3,074.00
Monoprice Blackbird - 8x8 matrix switcher
Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
Monoprice Blackbird - 8x8 matrix switcher
  Additional Details
Price: $3,074.00
Mfr Part #: 44568
SHI Part #: 47224935
Category: Media control systems
UNSPSC: 45111801
Manufacturer: Monoprice
Product Type: Hardware
General Information
CategoryMedia control systems
DescriptionMonoprice Blackbird - 8x8 matrix switcher
ManufacturerMonoprice
MSRP$2,399.99
UNSPSC45111801
Main Specifications
Dimensions & Weight / Depth37.4 cm
Dimensions & Weight / Height8.86 cm
Dimensions & Weight / Weight6.54 kg
Dimensions & Weight / Width44 cm
Header / BrandMonoprice
Environmental Parameters
Humidity Range Operating20 - 90% RH (non-condensing)
Max Operating Temperature40 °C
Min Operating Temperature10 °C
General
Depth37.4 cm
Height8.86 cm
Type8x8 matrix switcher
Weight6.54 kg
Width44 cm
Kit Content
Kit Content
  • (1) x audio/video switcher
  • (8) x HDBaseT receiver
  • (1) x IR remote control
  • (1) x power cable
  • (1) x serial cable
  • (1) x IR emitter cable
  • (1) x IR receiver cable
  • (4) x rack mount ears
  • (2) x 3-position Phoenix-style connectors
Manufacturer Warranty
Warranty1 year limited warranty
Power
Frequency50/60 Hz
Power Consumption125 Watt
Voltage RequiredAC 120/230 V AC 100-240 V
Studio & Production Equipment
FeaturesEDID support, HDCP 2.2 compliant, HDCP 1.x compliant, HDR10+ support, 4K60 4:4:4 signal support, Dolby Vision support, HLG support, LPCM support, Dolby TrueHD support, DTS-HD Master Audio support, web interface, CEC device control, built-in OLED display, 2U rack-mountable, DTS HRA support, DTS-X support, Dolby Digital Plus support, DTS-ES support
Terminals
Terminals
  • (8) x HDMI input - 19 pin HDMI Type A
  • (8) x HDMI output - 19 pin HDMI Type A
  • (8) x HDBaseT output - RJ-45
  • (8) x coaxial digital audio output - mini-phone stereo 3.5 mm
  • (8) x balanced audio output - 5 pin Phoenix type
  • (9) x remote control input - mini-phone stereo 3.5 mm
  • (9) x remote control output - mini-phone stereo 3.5 mm
  • (1) x network - RJ-45
  • (1) x RS-232 - 9 pin D-Sub (DB-9)
  • (1) x HDBaseT input - RJ-45 - receiver
  • (1) x HDMI input - 19 pin HDMI Type A - receiver
  • (1) x audio output - mini-phone stereo 3.5 mm - receiver
  • (1) x remote control input - mini-phone stereo 3.5 mm - receiver
  • (1) x remote control output - mini-phone stereo 3.5 mm - receiver
  • (1) x RS-232 - 3 pin Phoenix type - receiver
  • (1) x service port - mini-USB Type B - receiver
