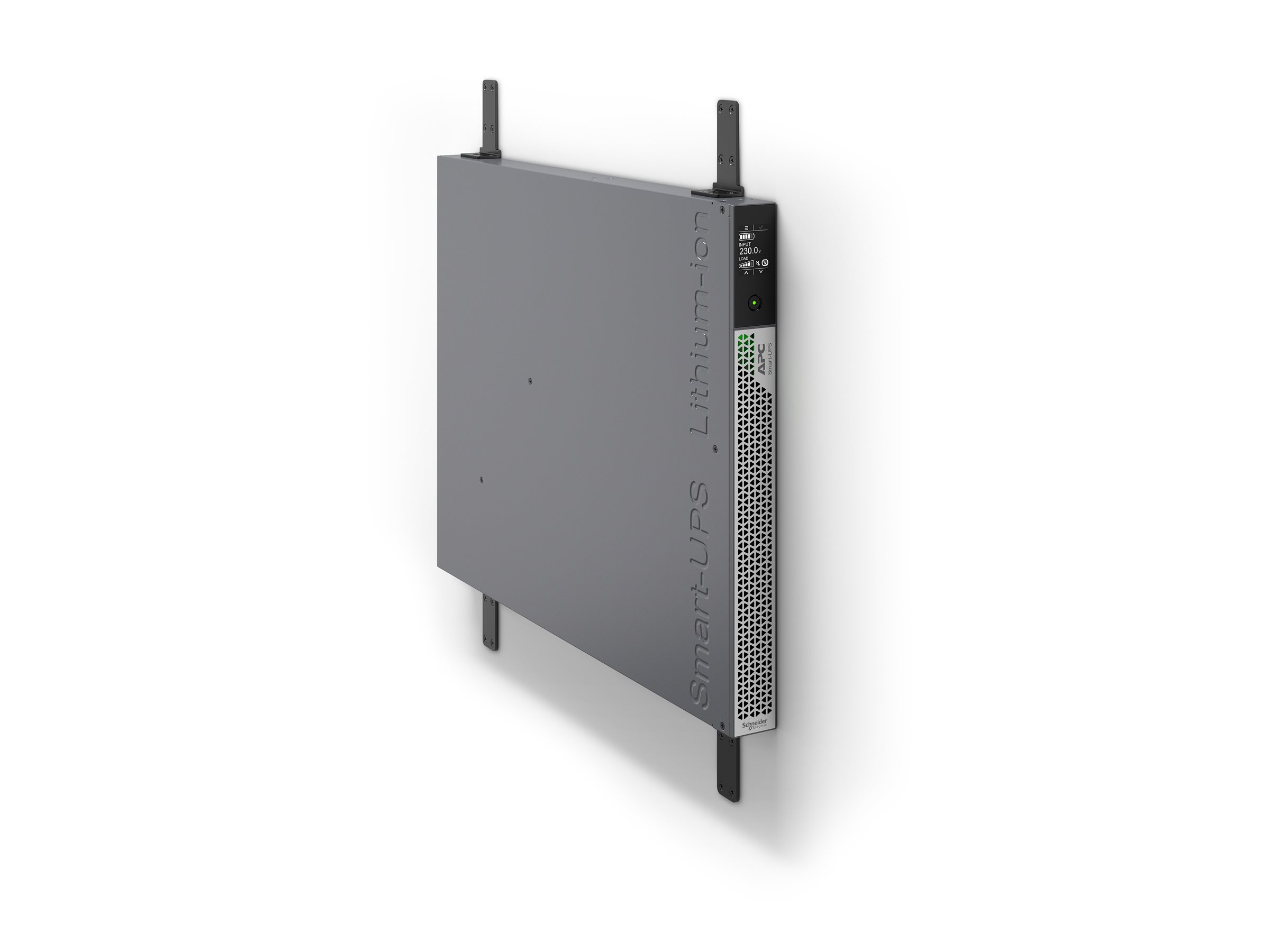

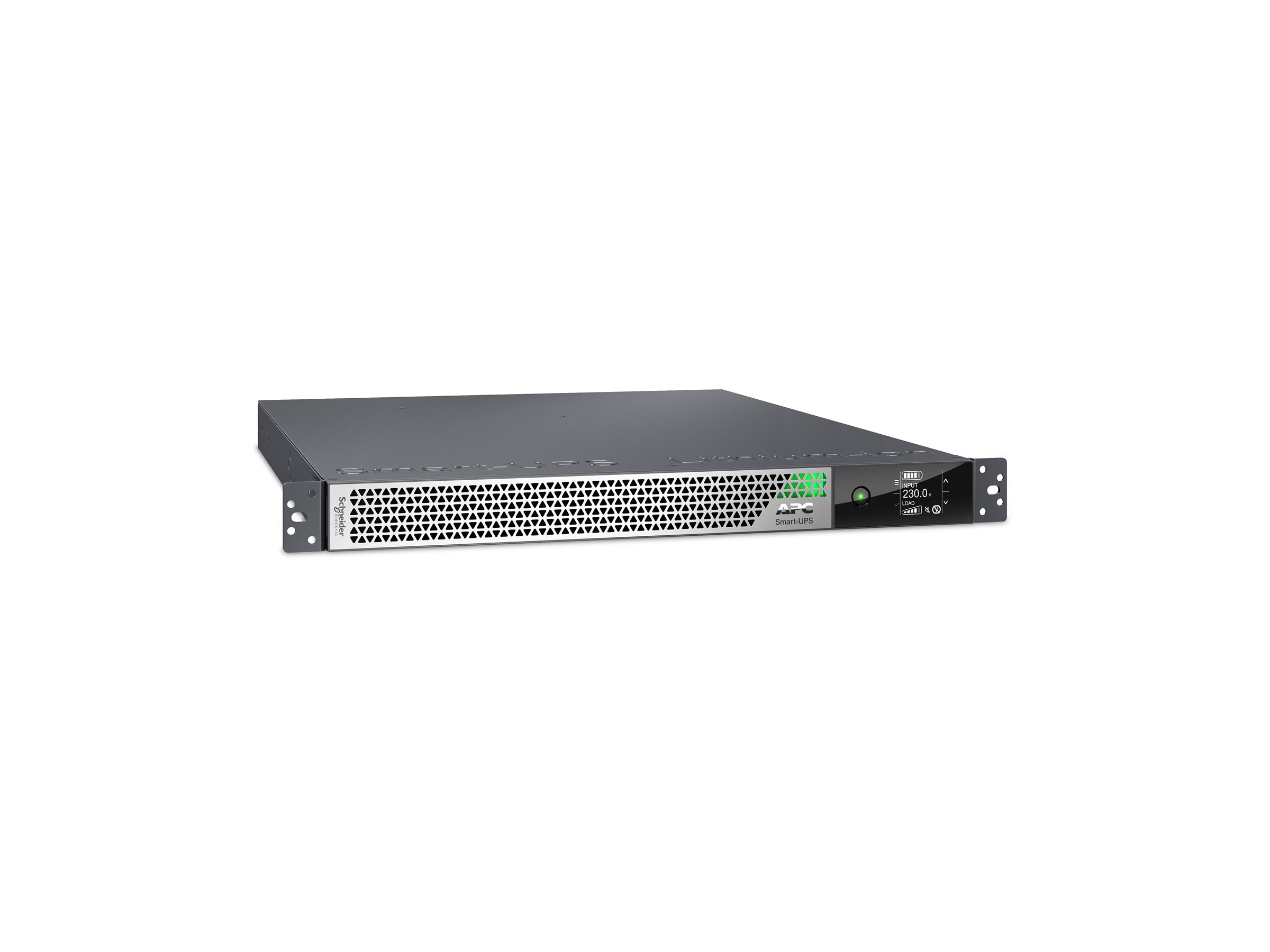

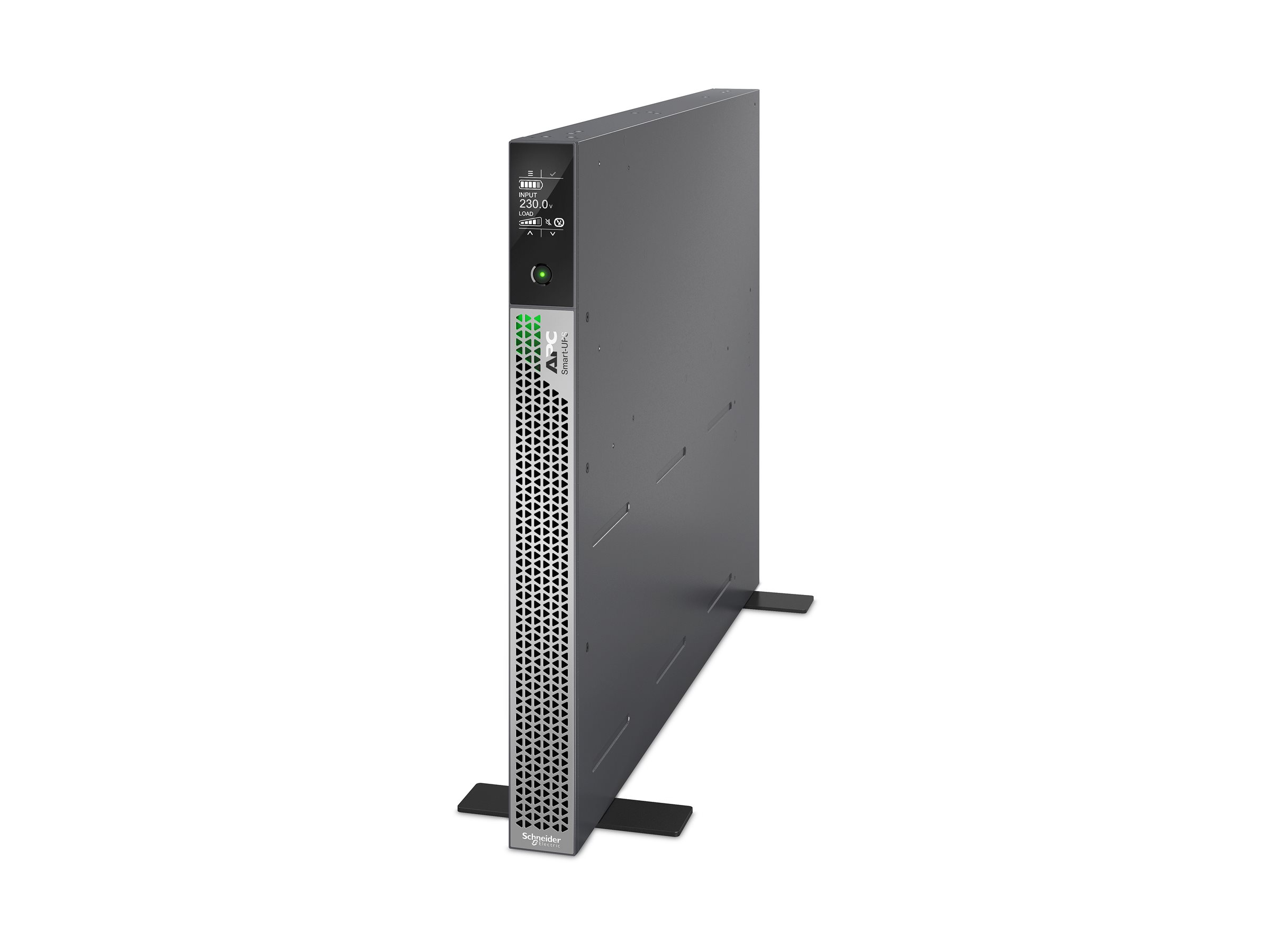

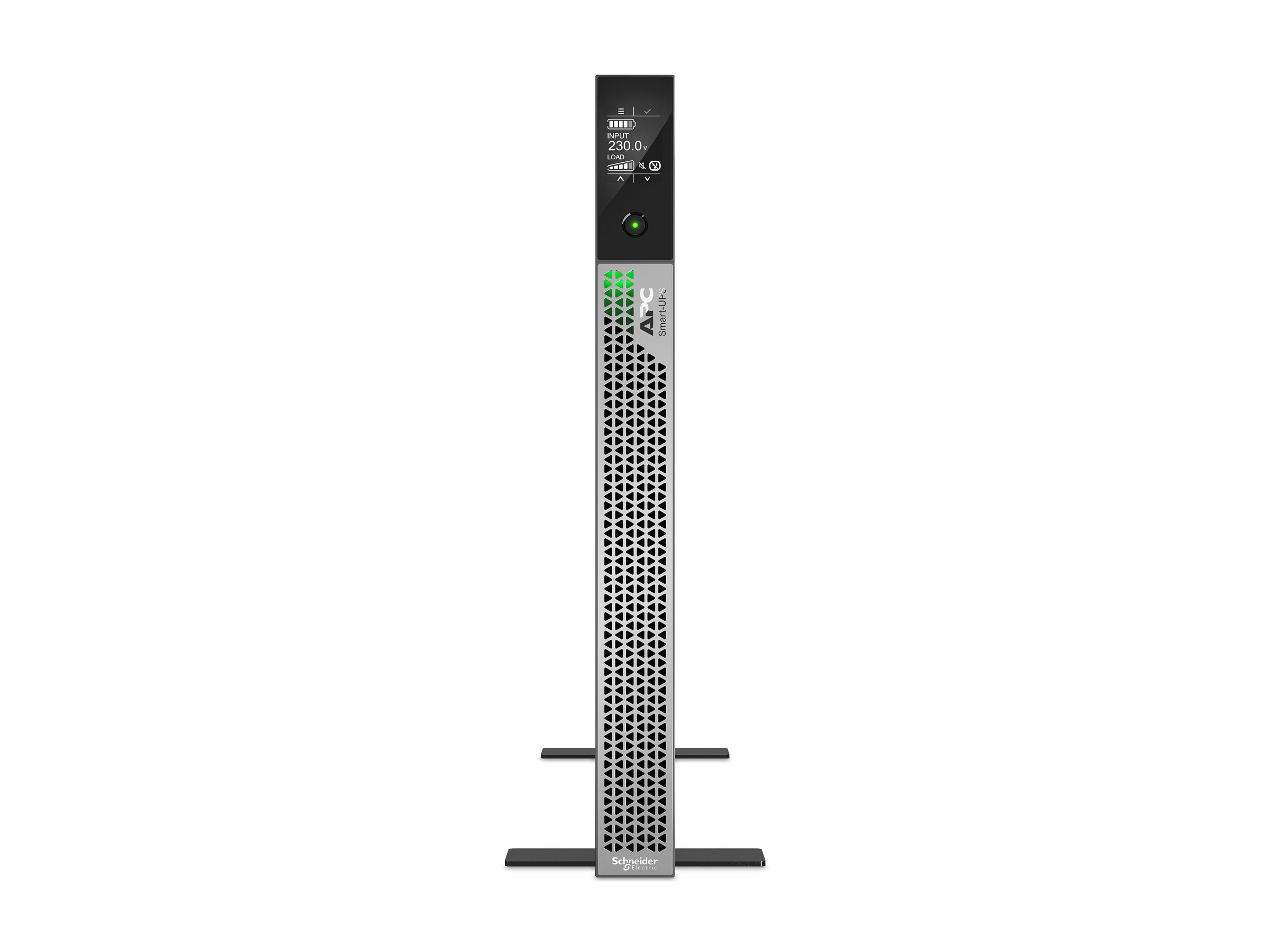

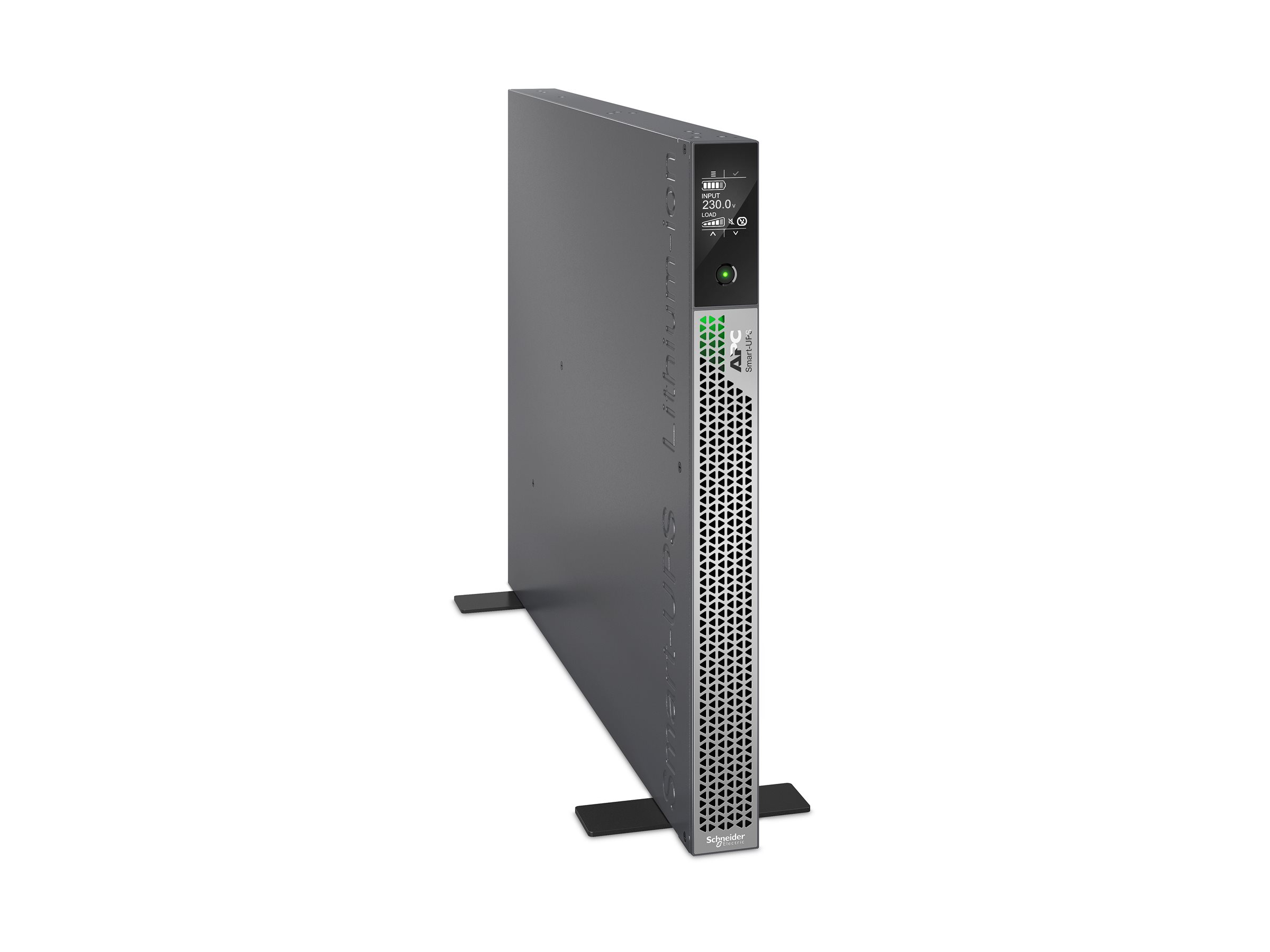

APC Smart-UPS Ultra - UPS (rack-mountable / external)

MSRP$7,040.00
$5,256.00
APC Smart-UPS Ultra - UPS (rack-mountable / external)
Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • extended runtime, 3 x C13, 2 x C19 IEC outlets, SmartConnect, on-line, tower, with rail kit
  • AC 208/240 V
  • 2200 Watt
  • 2200 VA
  • 1-phase
APC Smart-UPS Ultra - UPS (rack-mountable / external)
  • extended runtime, 3 x C13, 2 x C19 IEC outlets, SmartConnect, on-line, tower, with rail kit
  • AC 208/240 V
  • 2200 Watt
  • 2200 VA
  • 1-phase
  • lithium ion
  • Ethernet, USB
  • output connectors: 5
  • 1U
  • 2.4 m cord
  • silver gray
  • for P/N: SRTL50RMBP1U-LI
  Additional Details
Price: $5,256.00
MSRP: $7,040.00
Mfr Part #: SRTL2K2RM1UWC
SHI Part #: 47224837
Category: Rechargeable batteries
UNSPSC: 26111701
Manufacturer: APC by Schneider Electric
Product Type: Hardware
General Information
CategoryRechargeable batteries
DescriptionAPC Smart-UPS Ultra - UPS (rack-mountable / external) - extended runtime, 3 x C13, 2 x C19 IEC outlets, SmartConnect, on-line, tower, with rail kit - AC 208/240 V - 2200 Watt - 2200 VA - 1-phase - lithium ion - Ethernet, USB - output connectors: 5 - 1U - 2.4 m cord - silver gray - for P/N: SRTL50RMBP1U-LI
ManufacturerAPC by Schneider Electric
MSRP$7,040.00
UNSPSC26111701
Main Specifications
Dimensions & Weight / Depth56 cm
Dimensions & Weight / Height4.3 cm
Dimensions & Weight / Weight15.9 kg
Dimensions & Weight / Width43.2 cm
Header / BrandAPC
Miscellaneous / Product Color
  • Gray
  • Silver
Networking / Remote Management Interface
  • Ethernet
  • USB
Packaged Quantity1
Power Device / Form FactorRack-mountable / external
Power Device / Output Connector Qty5
Power Device / Power Capacity (VA)2200 VA
Power Device / UPS TechnologyOn-line
Power Device / Voltage Required
  • AC 208-240 V
  • AC 208/240 V
Product TypeUPS
Service & Support / Type5-year warranty
Battery
Quantity1
Recharge Time1.5 hours
TechnologyLithium ion lithium ion
TypeExpandable
Voltage Provided50 V
Compatibility Information
Designed ForP/N: SRTL50RMBP1U-LI
Dimensions & Weight
Depth56 cm
Height4.3 cm
Weight15.9 kg
Width43.2 cm
Dimensions & Weight (Shipping)
Shipping Depth76.4 cm
Shipping Height27.82 cm
Shipping Weight24.18 kg
Shipping Width56.4 cm
Environmental Parameters
Humidity Range Operating0 - 95% (non-condensing)
Max Operating Temperature40 °C
Min Operating Temperature0 °C
Sound Emission55 dB
Expansion / Connectivity
Interfaces
  • 1 x EPO (emergency power off)
  • 1 x serial - RJ-45
  • 1 x management (USB) - 4 pin USB Type A
  • 1 x SmartConnect - RJ-45
General
ColorSilver gray
Cord Length2.4 m
Device TypeUPS - rack-mountable / external
Height (Rack Units)1U
Manufacturer Warranty
Service & SupportLimited warranty - replace or repair - 5 years
Miscellaneous
Cables Included
  • USB cable - external
  • Network cable - external
  • RJ-45 cable - external
Compliant StandardsVDE, IEC 62040-2, IP20, EAC, RCM, IEC/EN 61000-4-8, EN 61000-4-4 Level 3, EN 61000-4-6 Level 3, EN 61000-4-5 Level 3, IEC 61000-4-5 Level 3, IEC 61000-4-6 Level 3, UKCA, IEC/EN 62040-1, FCC CFR 47 Part 15 Class A, UK PSTI, IEC 61000-4-4 Level 4
FeaturesAlarm, vertical mount, horizontal mount, LCD display, internal bypass, Auto-Sensing Technology, EcoStruxure Ready
Included AccessoriesScrews, rack mounting brackets, washer, stabilization feet, rail extension
Rack Mounting KitIncluded
Networking
Remote Management InterfaceEthernet, USB
Power Device
Efficiency97%
Frequency Provided50/60 Hz ± 3Hz
Frequency Required50/60 Hz
Input Connectors1 x power BS 1363A
Input VoltageAC 208/240 V
Input Voltage RangeAC 160 - 275 V
Input Wiring1-phase
Output VoltageAC 208/240 V 50/60 Hz
Output WaveformSinewave
Power Capacity2200 watt / 2200 VA
Power Output Connectors Details
  • 3 x power IEC 60320 C13
  • 2 x power IEC 60320 C19
Surge Energy Rating1600 joules
Surge SuppressionYes
Total Harmonic Distortion (THD)2 %
UPS TechnologyOn-line
Software / System Requirements
Software IncludedSmartConnect
Sustainability Information
Packaging Recycled ContentMade of recycled cardboard
