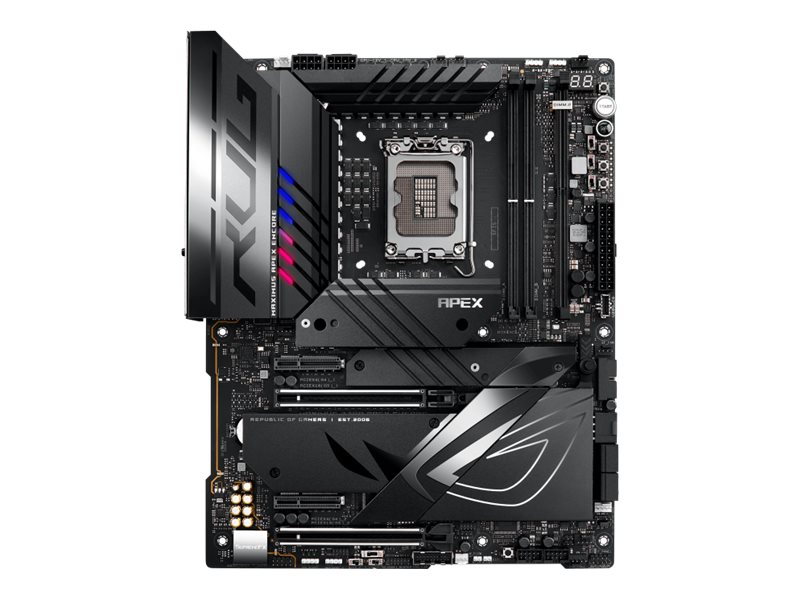

ASUS ROG MAXIMUS Z790 APEX ENCORE

$733.00
ASUS ROG MAXIMUS Z790 APEX ENCORE
Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • Motherboard
  • ATX
  • LGA1700 Socket
  • Z790 Chipset
  • USB 3.2 Gen 1, USB 3.2 Gen 2, USB4, USB-C 3.2 Gen 2x2
ASUS ROG MAXIMUS Z790 APEX ENCORE
  • Motherboard
  • ATX
  • LGA1700 Socket
  • Z790 Chipset
  • USB 3.2 Gen 1, USB 3.2 Gen 2, USB4, USB-C 3.2 Gen 2x2
  • 2.5 Gigabit LAN, Wi-Fi 7, Bluetooth
  • onboard graphics (CPU required)
  • HD Audio (8-channel)
  Additional Details
Price: $733.00
Mfr Part #: ROG MAXIMUS Z790 APEX ENCORE
SHI Part #: 47187342
Category: motherboards or daughterboards
UNSPSC: 43201513
Manufacturer: ASUS
Product Type: Hardware
General Information
Categorymotherboards or daughterboards
DescriptionASUS ROG MAXIMUS Z790 APEX ENCORE - Motherboard - ATX - LGA1700 Socket - Z790 Chipset - USB 3.2 Gen 1, USB 3.2 Gen 2, USB4, USB-C 3.2 Gen 2x2 - 2.5 Gigabit LAN, Wi-Fi 7, Bluetooth - onboard graphics (CPU required) - HD Audio (8-channel)
ManufacturerASUS
MSRP$649.99
UNSPSC43201513
Main Specifications
Dimensions & Weight / Depth24.4 cm
Dimensions & Weight / Width30.5 cm
Header / BrandASUS
Mainboard / Chipset TypeIntel Z790
Mainboard / Processor SocketLGA1700 Socket
Networking / Data Link Protocol
  • 2.5 Gigabit Ethernet
  • 802.11ax
  • Bluetooth 5.4
  • Ethernet
  • Fast Ethernet
  • Gigabit Ethernet
  • IEEE 802.11a
  • IEEE 802.11ac
  • IEEE 802.11b
  • IEEE 802.11be (Wi-Fi 7)
  • IEEE 802.11g
  • IEEE 802.11n
Packaged Quantity1
Video Output / TypeGraphics adapter (CPU required)
Audio
Audio CodecRealtek ALC4080
Compliant StandardsHigh Definition Audio, DTS Sound Unbound
TypeHD Audio (8-channel)
Expansion / Connectivity
Expansion Slots
  • 1 x CPU
  • 2 x DIMM 288-pin
  • 2 x PCIe 5.0 x16
  • 2 x PCIe 4.0 x4
  • 2 x M.2 socket (2242/2260/2280/22110 M.2 Key M slot)
  • 3 x M.2 socket (2242/2260/2280 M.2 Key M slot)
Interfaces
  • 4 x USB 3.2 Gen 1
  • 5 x USB 3.2 Gen 2
  • 1 x USB-C 3.2 Gen2x2
  • 2 x antenna
  • 1 x PS/2 keyboard
  • 1 x PS/2 mouse
  • 1 x LAN (2.5Gigabit Ethernet)
  • 1 x audio line-in - mini-jack
  • 1 x audio line-out - mini-jack
  • 1 x microphone - mini-jack
  • 1 x audio line-out (center/subwoofer)
  • 1 x audio line-out (rear)
  • 1 x SPDIF out
Internal Interfaces
  • 4 x USB 2.0 - header
  • 4 x USB 3.2 Gen 1 - header
  • 1 x USB-C 3.2 Gen 2x2 - header
  • 1 x audio - header
  • 1 x Thunderbolt - header
Power Connectors24-pin main power connector, 2 x 8-pin ATX12V connectors, 8-pin PCI Express power connector
RAID FeaturesIntel Rapid Storage Technology
Storage Interfaces
  • SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5
  • SATA-600 / PCIe 4.0 -connectors: 1
  • PCIe 4.0 -connectors: 1 x M.2
  • PCIe 5.0 -connectors: 1 x M.2
  • PCIe 4.0 -connectors: 2 x DIMM.2
Features
BIOS FeaturesUEFI BIOS, ASUS EZ Flash 3, ASUS UEFI BIOS EZ Mode
BIOS TypeAMI
Hardware FeaturesDualBIOS, ASUS Q-Fan, ASUS Q-Design, Q-DIMM, ASUS EZ DIY, Q-LED, Q-Slot, ProbeIt, ASUS Extreme Engine Digi+, CrashFree BIOS 3, Intel Turbo Boost Technology 2.0, ASUS DIGI+ VRM, ASUS ROG Extreme OC, Q-Code, ASUS DIGI+ Power Control, ASUS SSD Secure Erase, Preboot eXecution Environment (PXE), Clear CMOS Button, LANGuard, Sonic Studio, ASUS SafeSlot, ASUS SafeDIMM, M.2 heatsink, pre-mounted I/O shield, Intel Turbo Boost Max Technology 3.0, LN2 Switch, ASUS Aura Sync, condensation detection, FlexKey button, ASUS ProCool II, M.2 Q-Latch, ReTry button, Start button, PCIe Slot Q-Release, CPU Socket lever protector, Quick Charge 4+, Safe boot button, VRM heatsink design, BIOS FlashBack button, ASUS Enhanced Memory Profile (AEMP) II, Slow Mode switch, M.2 heatsink backplate, Q-Antenna, Q-Connector, 24+0+2 Phase Power Design, differential sensing
Sleep / Wake UpWake on LAN (WOL), wake on PME
General
Chipset TypeIntel Z790
Compatible Processors(supports 12th/13th and 14th Generation Intel Core / Pentium Gold / Celeron)
Max Processors Qty1
Processor SocketLGA1700 Socket
Product TypeMotherboard - ATX
LAN
Network Interfaces2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax/be (Wi-Fi 7), Bluetooth 5.4
Miscellaneous
Depth24.4 cm
Included AccessoriesThermal pad for M.2 SSD, Q-Connector, USB drive, ROG VIP card, ROG DIMM.2 with heatsink, ROG DIMM.2 M.2 pad, 2 ROG DIMM.2 M.2 screw packages, 3 x M.2 backplate Q-Latch, 3 x M.2 backplate rubber package, ASUS Wi-Fi Q-antenna
Software IncludedASUS CPU-Z, ASUS AI Suite III, PC Cleaner, MemTest86, MyAsus, Armoury Crate, ASUS Fan Xpert 4, Adobe Creative Cloud (1 month trial), WinRAR (40 days trial), USB Wattage Watcher
Width30.5 cm
Supported RAM
Bus Clock5800 MHz (O.C.), 6000 MHz (O.C.), 4800 MHz, 6200 MHz (O.C.), 6400 MHz (O.C.), 6600 MHz (O.C.), 7000 MHz (O.C.), 6800 MHz (O.C.), 7200 MHz (O.C.), 5200 MHz, 5000 MHz, 5600 MHz, 5400 MHz, 7400 MHz (O.C.), 7600 MHz (O.C.), 7800 MHz (O.C.), 8000 MHz (O.C.), 8200 MHz (O.C.), 8400 MHz (O.C.)
FeaturesDual channel memory architecture, Intel Extreme Memory Profiles (XMP)
Max Size96 GB
Registered or BufferedUnbuffered
Supported RAM Integrity CheckNon-ECC
TechnologyDDR5
