LG MAGNIT LBAF015-G1
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with

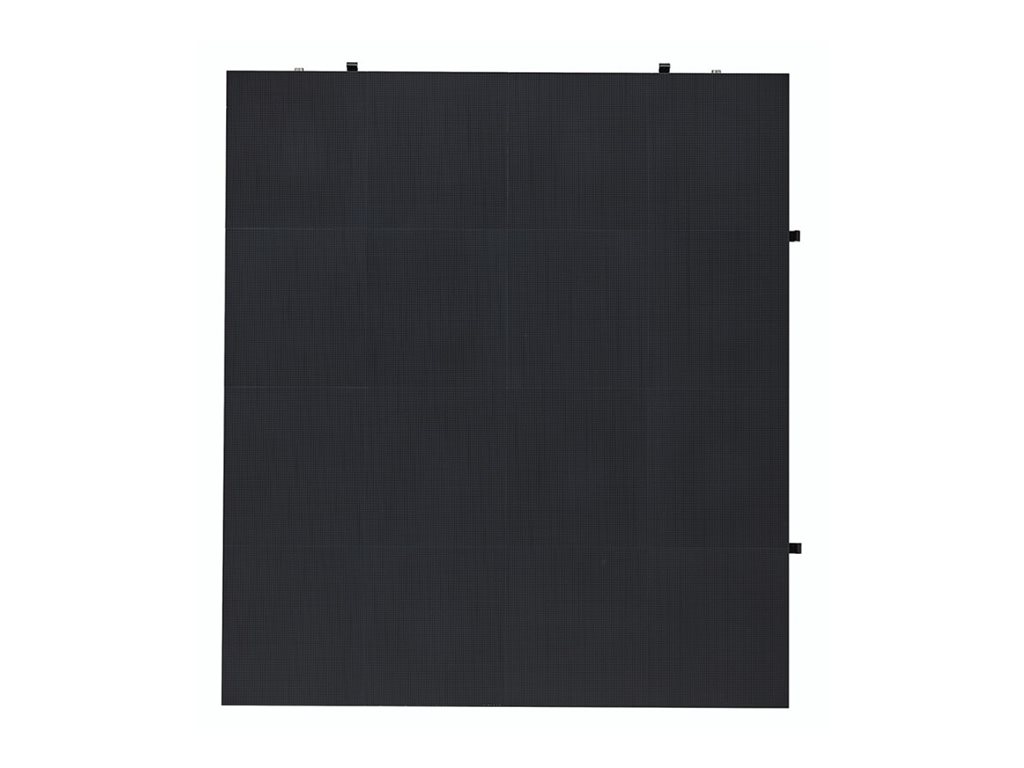

LG MAGNIT LBAF015-G1
- LBAF Studio Series LED display unit
- Direct View LED
- digital signage
- webOS 96 x 108 (LED unit) / 384 x 432 (cabinet) per unit
- Chip On Board (CoB)
- HDR
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | LBAF015-G1 |
| SHI Part #: | 46798938 |
| Category: | Televisions |
| UNSPSC: | 52161505 |
| Manufacturer: | LG Electronics |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Televisions |
| Description | LG MAGNIT LBAF015-G1 - LBAF Studio Series LED display unit - Direct View LED - digital signage - webOS 96 x 108 (LED unit) / 384 x 432 (cabinet) per unit - Chip On Board (CoB) - HDR |
| Manufacturer | LG Electronics |
| MSRP | $17,500.00 |
| UNSPSC | 52161505 |
| Main Specifications | |
| Dimensions & Weight / Depth | 7.98 cm |
| Dimensions & Weight / Height | 67.5 cm |
| Dimensions & Weight / Weight | 15.5 kg |
| Dimensions & Weight / Width | 60 cm |
| Header / Brand | LG |
| Miscellaneous / Product Color | Black |
| Television / Brightness | 1500 cd/m² |
| Television / Image Contrast Ratio | 100000:1 |
| Television / Type | LED display unit |
| Television / Viewing Angle | 160° |
| Dimensions & Weight Details | |
| Dimensions & Weight Details |
|
| Display | |
| Additional Features | 16-bit color processing, 95% brightness uniformity |
| Brightness | 1500 cd/m² |
| Color Temperature | 3200 - 9300K |
| Commercial Features | Curved installation supported, CBAF-0151 controller |
| Frame Rate & Enhancement Technology | 120 Hz Frame Rate, 100 Hz Frame Rate, 7680 Hz Refresh Rate, 96 Hz Frame Rate |
| Image Contrast Ratio | 100000:1 |
| Viewing Angle | 160° |
| Viewing Angle (Vertical) | 160° |
| Environmental Parameters | |
| Humidity Range Operating | 10 - 80% RH |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| General | |
| Commercial Use | Yes - digital signage |
| Depth | 7.98 cm |
| Dimensions | Display units assembly |
| HDR Capable | Yes |
| HDR Format | HDR10 |
| HDR Technology | HDR10 Pro |
| Height | 67.5 cm |
| Picture Enhancements | Wide Viewing Angle, Full Black Coating technology, Phase Shift, V-Sync, Custom 3D-LUT |
| Platform | webOS |
| Product Type | LED display unit - Direct View LED |
| Series | LBAF Studio Series |
| TV Tuner | No tuner |
| TV Tuner Presence | No |
| Weight | 15.5 kg |
| Width | 60 cm |
| Miscellaneous | |
| Compliant Standards | FCC, RoHS, ETL, REACH |
| Power | |
| Heat Generation Details |
|
| Input Voltage | AC 100-240 V |
| Power Device | Power supply |
| Video Wall Display Unit Power Consumption (Max) | 220 W |
| Video Wall Display Unit Power Consumption (Typical) | 175 W |
| Video Wall Power Consumption (Max) | 519 W/m² |
| Video Wall Display Unit | |
| Area | 0.405 m² |
| Cabinet Frame Material | Die-casting magnesium |
| LED Lifetime | 100000 hours |
| LED Type | Chip On Board (CoB) |
| Maintenance | Rear |
| Modules Configuration (Per Cabinet) | 4x4 |
| Pixel Density | 409600 pixels/m² |
| Pixel Pitch | 1.56 mm |
| Resolution | 96 x 108 (LED unit) / 384 x 432 (cabinet) |
