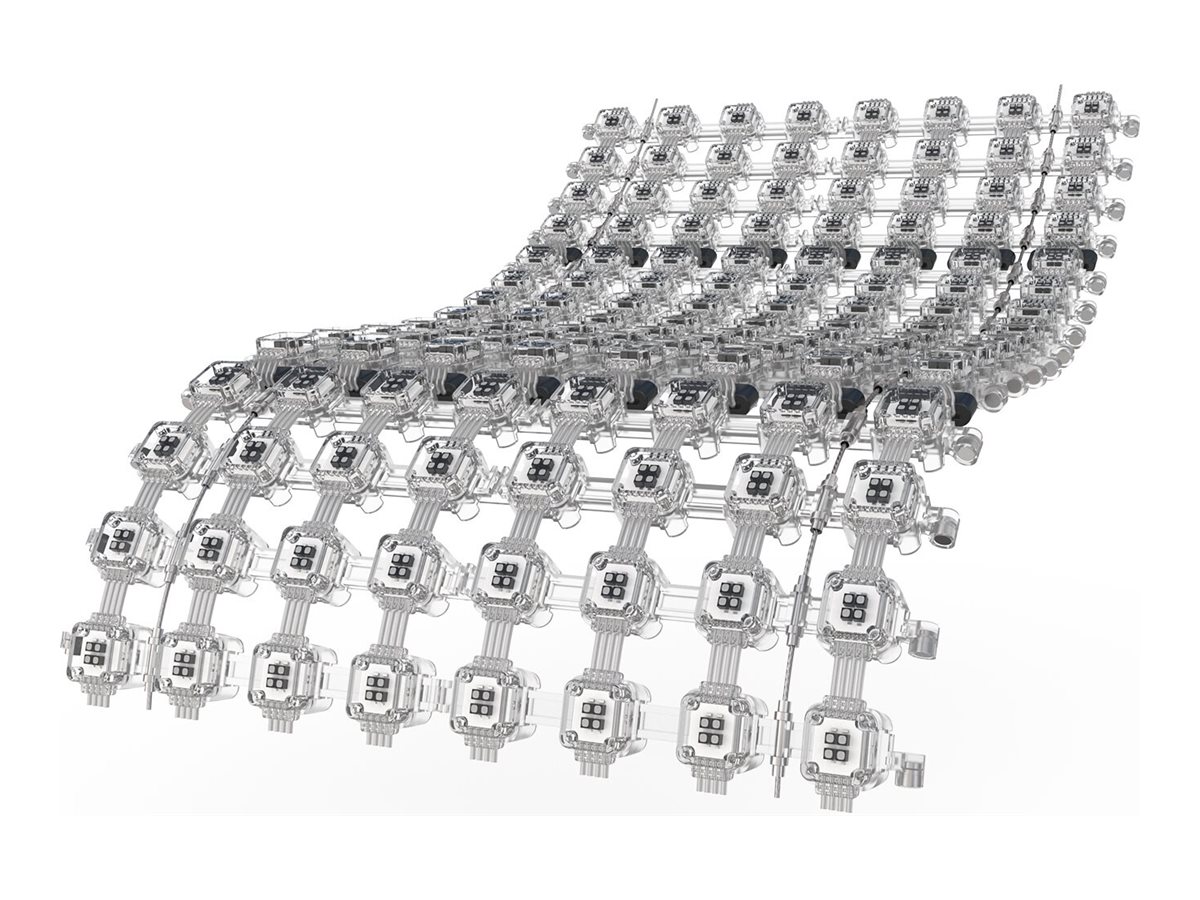

LG GMBD035-GN4 - GMBD Series flexible mesh LED display unit
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
LG GMBD035-GN4 - GMBD Series flexible mesh LED display unit
- digital signage outdoor
- full sun 1 x 80 (LED unit) / 8 x 80 (cabinet) per unit
- 4-in-1 SMD
- HDR
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | GMBD035-GN4 |
| SHI Part #: | 46798933 |
| Category: | Televisions |
| UNSPSC: | 52161505 |
| Manufacturer: | LG Electronics |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Televisions |
| Description | LG GMBD035-GN4 - GMBD Series flexible mesh LED display unit - digital signage outdoor - full sun 1 x 80 (LED unit) / 8 x 80 (cabinet) per unit - 4-in-1 SMD - HDR |
| Manufacturer | LG Electronics |
| MSRP | $3,985.00 |
| UNSPSC | 52161505 |
| Main Specifications | |
| Dimensions & Weight / Height | 280 cm |
| Dimensions & Weight / Weight | 0.52 kg |
| Dimensions & Weight / Width | 18 cm |
| Header / Brand | LG |
| Miscellaneous / Product Color | Black |
| Television / Brightness | 7500 cd/m² |
| Television / Image Contrast Ratio | 20000:1 |
| Television / Type | Flexible mesh LED display unit |
| Television / Viewing Angle | 120° |
| Dimensions & Weight Details | |
| Dimensions & Weight Details |
|
| Display | |
| Additional Features | 90% brightness uniformity, 12-bit processing |
| Brightness | 7500 cd/m² |
| Color Temperature | 18000 - 25000K |
| Commercial Features | 90°corner installation supported, LCLY006 controller |
| Frame Rate & Enhancement Technology | 60 Hz Frame Rate, 50 Hz Frame Rate, 20000 Hz Refresh Rate |
| Image Contrast Ratio | 20000:1 |
| Viewing Angle | 120° |
| Viewing Angle (Vertical) | 120° |
| Environmental Parameters | |
| Humidity Range Operating | 10 - 90% RH |
| Max Operating Temperature | 60 °C |
| Min Operating Temperature | -40 °C |
| General | |
| Commercial Use | Yes - digital signage |
| Design | Lightweight Design |
| Dimensions | Display unit |
| HDR Capable | Yes |
| HDR Format | HDR10 |
| HDR Technology | HDR10 Pro |
| Height | 280 cm |
| Outdoor | Yes |
| Product Type | Flexible mesh LED display unit |
| Series | GMBD Series |
| Sun Exposure | Full sun |
| TV Tuner | No tuner |
| TV Tuner Presence | No |
| Weight | 0.52 kg |
| Width | 18 cm |
| Miscellaneous | |
| Compliant Standards | CB, FCC, RoHS, cTUVus, REACH, IP66 |
| Power | |
| Heat Generation Details |
|
| Input Voltage | 15 V |
| Power Device | Power supply |
| Video Wall Display Unit Power Consumption (Max) | 640 W |
| Video Wall Display Unit Power Consumption (Typical) | 213 W |
| Video Wall Power Consumption (Max) | 816 W/m² |
| Video Wall Display Unit | |
| Area | 0.784 m² |
| Cabinet Frame Material | Plastic body and silicon cable |
| LED Lifetime | 100000 hours |
| LED Type | 4-in-1 SMD |
| Maintenance | Rear and front |
| Modules Configuration (Per Cabinet) | 8x1 |
| Pixel Density | 816 pixels/m² |
| Pixel Pitch | 35 mm |
| Resolution | 1 x 80 (LED unit) / 8 x 80 (cabinet) |
