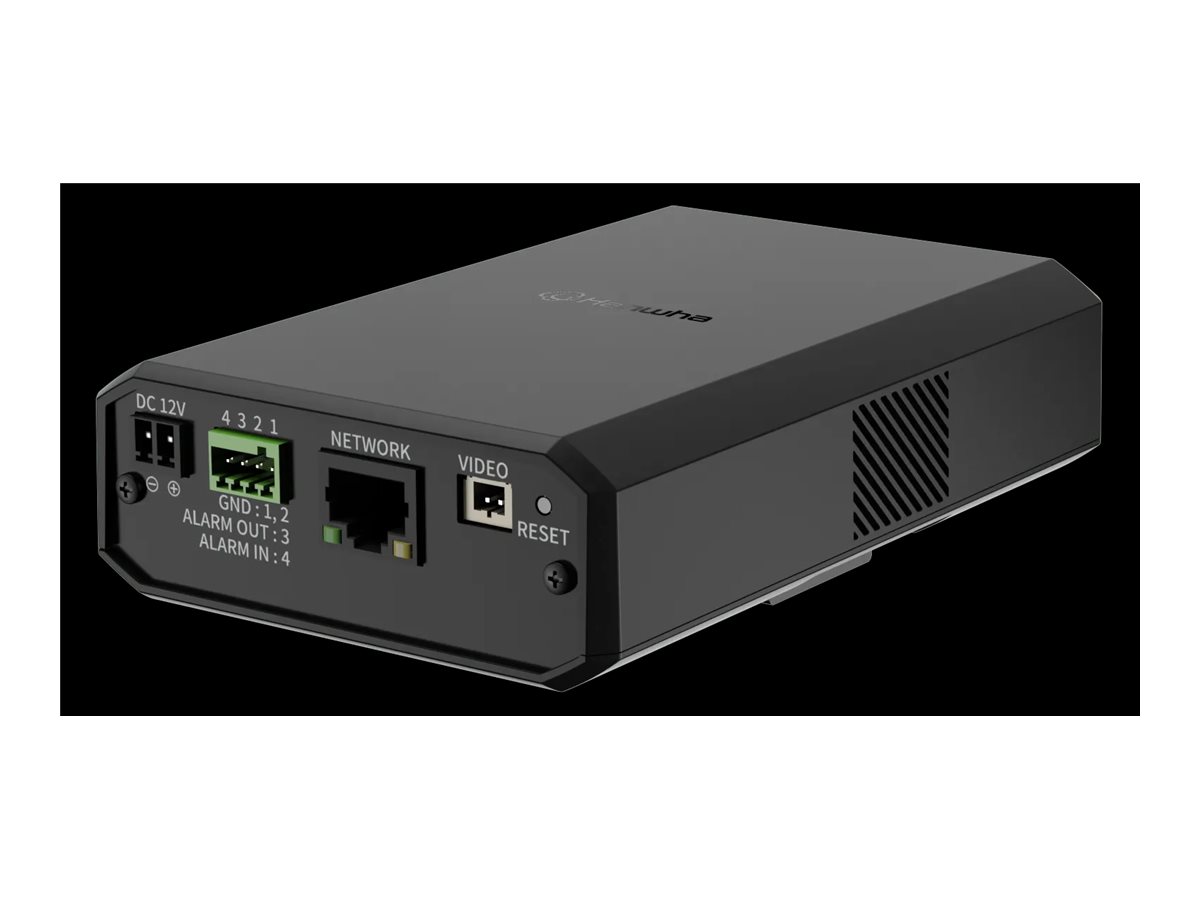

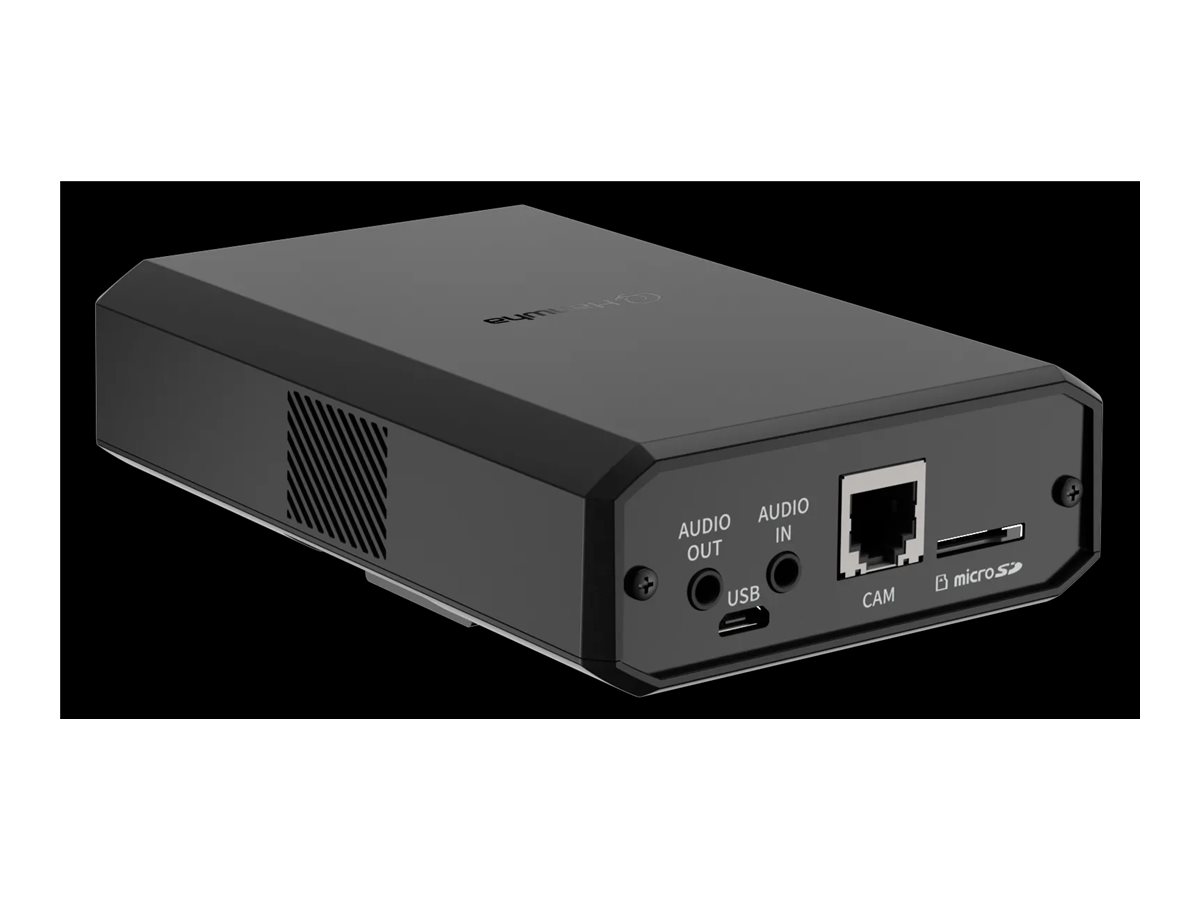

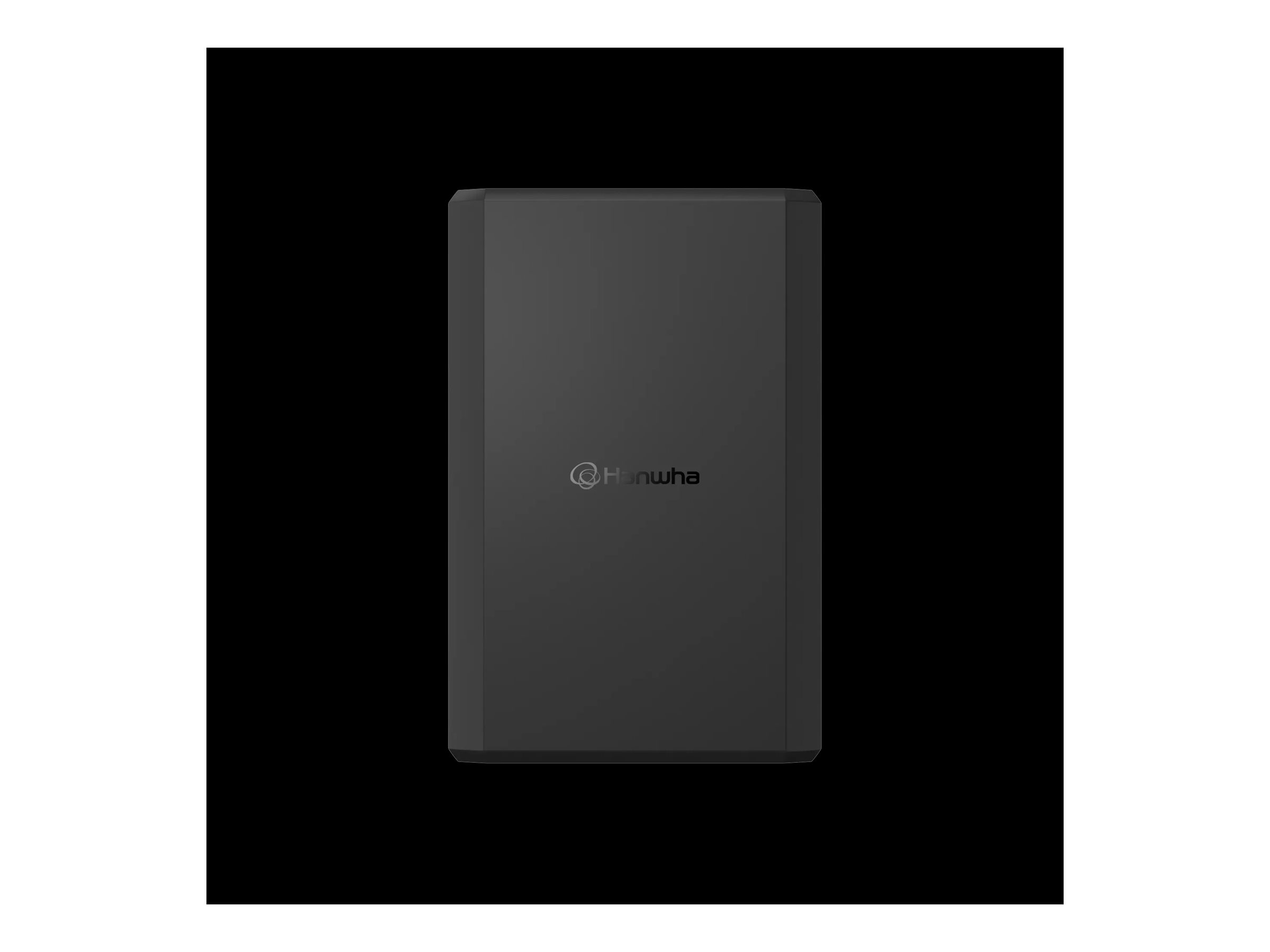

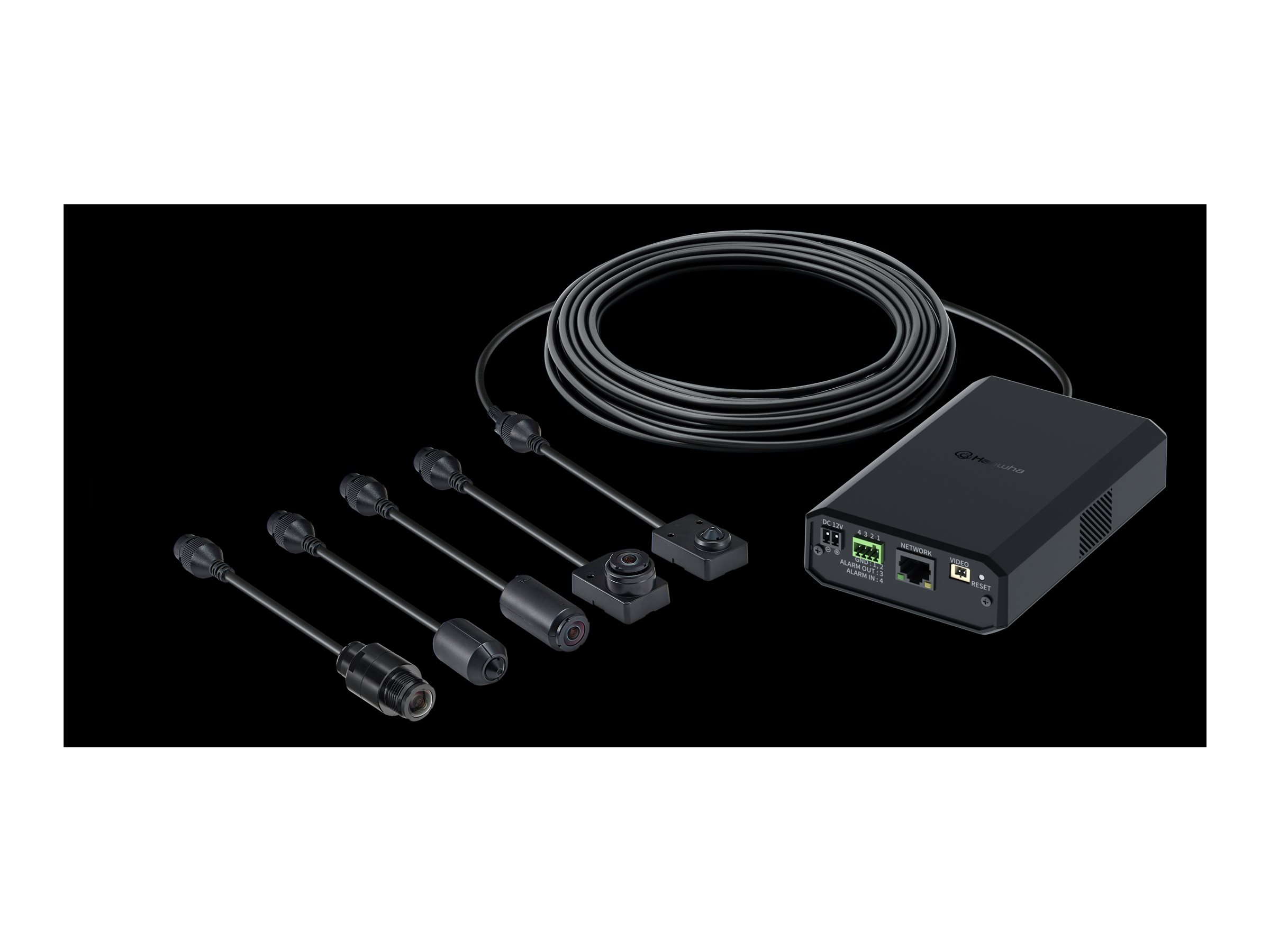

Hanwha Vision WiseNet X XNB-6002

MSRP$570.00
$478.00
Hanwha Vision WiseNet X XNB-6002
Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • Network surveillance camera (no lens)
  • color (Day&Night)
  • 1920 x 1080
  • audio
  • composite
Hanwha Vision WiseNet X XNB-6002
  • Network surveillance camera (no lens)
  • color (Day&Night)
  • 1920 x 1080
  • audio
  • composite
  • LAN 10/100
  • H.264, H.265, MJPEG
  • DC 12 V / PoE Class 3
  • TAA Compliant
  Additional Details
Price: $478.00
MSRP: $570.00
Mfr Part #: XNB-6002/KEX
SHI Part #: 46787185
Category: Security cameras
UNSPSC: 46171610
Manufacturer: HANWHA VISION
Product Type: Hardware
General Information
CategorySecurity cameras
DescriptionHanwha Vision WiseNet X XNB-6002 - Network surveillance camera (no lens) - color (Day&Night) - 1920 x 1080 - audio - composite - LAN 10/100 - H.264, H.265, MJPEG - DC 12 V / PoE Class 3 - TAA Compliant
ManufacturerHANWHA VISION
MSRP$570.00
UNSPSC46171610
Main Specifications
Dimensions & Weight / Depth8.6 cm
Dimensions & Weight / Height3.35 cm
Dimensions & Weight / Weight420 g
Dimensions & Weight / Width13.11 cm
Header / BrandHanwha Vision
Miscellaneous / Product ColorBlack
Packaged Quantity1
Camera
Digital Video FormatH.264, H.265, MJPEG
Exposure Range2 sec - 1/12000 sec
FeaturesHandover, Backlight Compensation (BLC), Wide Dynamic Range (WDR), Highlight Compensation (HLC), face detection, people counting, tamper-detection, Defog, loitering detection, Directional Motion Detection, fog detection, Multicast Streaming, Unicast Streaming, Variable Bitrate (VBR), Constant Bitrate (CBR), digital PTZ function, Smart Codec, WiseStream II support, Samsung Super Noise Reduction (SSNRV), Heat Map, ONVIF (Profile S) support, ONVIF (Profile G) support, ONVIF (Profile T) support, Hallway View, image flip, image mirror, Digital Image Stabilization (DIS), Lens Distortion Compensation (LDC), Samsung Super Dynamic Range (SSDR), Privacy Mask Function, Motion Detection Technology, IP address filtering, Defocus Detection, auto white balance, auto gain control, Audio Detection
Max Digital Video Resolution1920 x 1080
Motion DetectionYes
TypeColor - Day&Night - fixed
Video Capture1920 x 1080 @ 60 fps
Environmental Parameters
Max Operating Temperature55 °C
Min Operating Temperature-10 °C
Relative Humidity (operating)0 - 90% RH (non-condensing)
Expansion / Connectivity
Ports
  • LAN/power - RJ-45
  • Composite video
  • USB - Micro-USB Type B
  • Audio line-in/microphone
  • Audio line out
  • Alarm I/O - terminal block
Supported Memory CardsSD Memory Card, SDXC Memory Card, SDHC Memory Card
General
Audio FormatsG.726, ADPCM, AAC-LC, G.711 u-law
Audio SupportYes: two-way audio capability
Connectivity TechnologyWired
Depth8.6 cm
Device TypeNetwork surveillance camera (no lens)
Height3.35 cm
Weight420 g
Width13.11 cm
Interfaces
Alarm Inputs Qty1
Alarm Outputs Qty1
Network InterfaceEthernet 10Base-T/100Base-TX
Network ProtocolsDDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP 1, SNMP 2c, SNMP 3, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, PPPoE, IGMP, SSL, QOS, SSM, EAP
VideoComposite video
Miscellaneous
ColorBlack, RAL 9005
Compliant StandardsIEC/EN 63000, UL 62368-1, CAN/CSA-C22.2 No.62368-1, FCC 47 CFR Part 15 B Class A, ICES-3(A)/NMB-3(A), UKCA, EN 55032 Class A, EN 50130-4, EN 61000-3-2, BS EN 61000-3-3, VCCI-CISPR 32 Class A, RCM Class A, KS C 9832 Class A, KS C 9835, NDAA
TAA CompliantYes
Power
Power Device10.5 Watt
Power RequirementsDC 12 V / PoE Class 3
