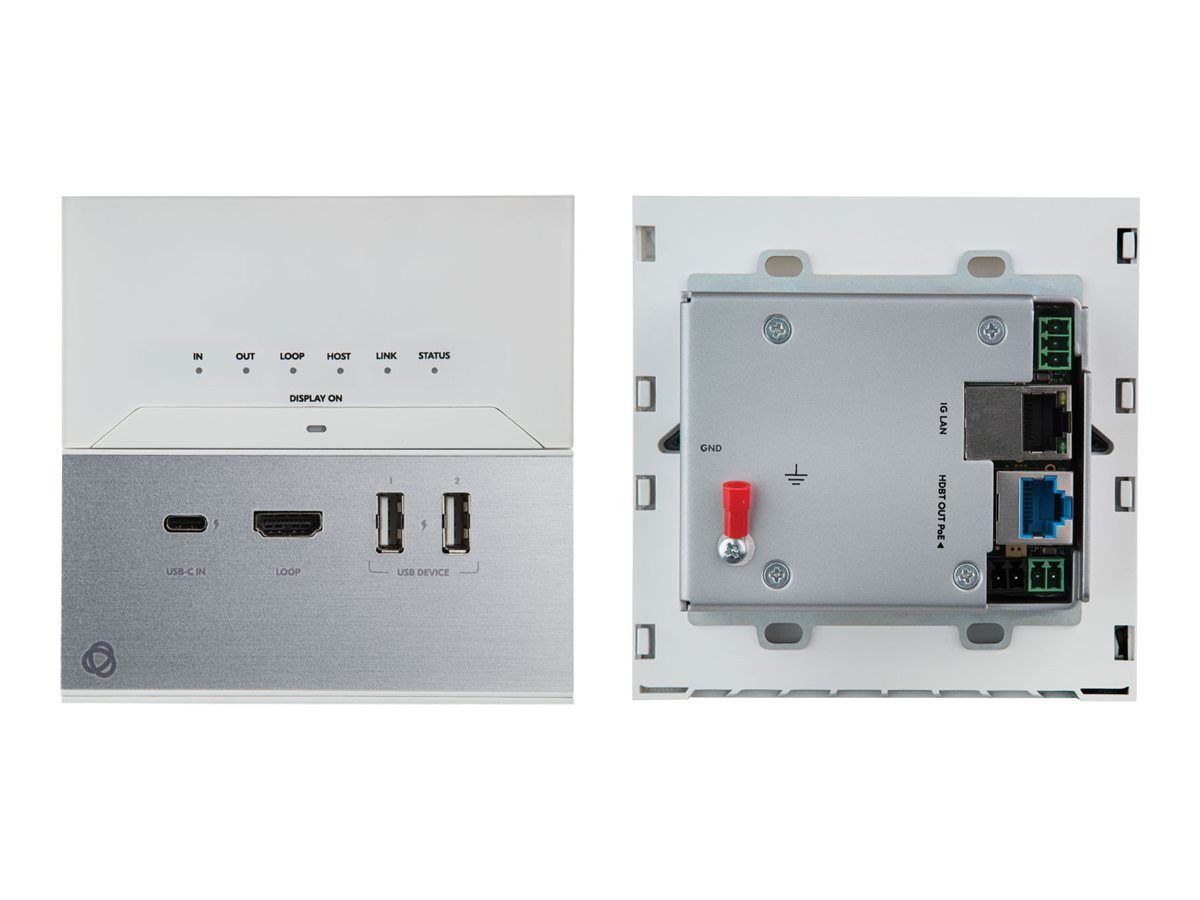

Kramer EXT3-C-WP-XR-T/US(W)
MSRP$1,195.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
Kramer EXT3-C-WP-XR-T/US(W)
- Video/audio/infrared/serial/USB/network/power extender
- 1GbE, HDMI, HDBaseT 3.0
- USB
- 1000Base-T
- up to 90 m
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $1,195.00 |
| Mfr Part #: | 50-80581095 |
| SHI Part #: | 46767097 |
| Category: | Serial port cards |
| UNSPSC: | 43201559 |
| Manufacturer: | Kramer Electronics |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Serial port cards |
| Description | Kramer EXT3-C-WP-XR-T/US(W) - Video/audio/infrared/serial/USB/network/power extender - 1GbE, HDMI, HDBaseT 3.0 - USB - 1000Base-T - up to 90 m |
| Manufacturer | Kramer Electronics |
| MSRP | $1,195.00 |
| UNSPSC | 43201559 |
| Main Specifications | |
| Dimensions & Weight / Depth | 12.1 cm |
| Dimensions & Weight / Height | 4.7 cm |
| Dimensions & Weight / Weight | 97 g |
| Dimensions & Weight / Width | 12.1 cm |
| Header / Brand | Kramer |
| Header / Country Kits | United States |
| Networking / Connectivity Technology | Wired |
| Networking / Data Link Protocol |
|
| Networking / Data Transfer Rate | 18 Gbps |
| Networking / Form Factor | Wall mountable |
| Networking / Type | Video/audio/infrared/serial/USB/network/power extender |
| Packaged Quantity | 1 |
| Dimensions & Weight | |
| Depth | 12.1 cm |
| Height | 4.7 cm |
| Weight | 97 g |
| Width | 12.1 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Weight | 666 g |
| Environmental Parameters | |
| Humidity Range Operating | 10 - 90% RH (non-condensing) |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Built-in Devices | USB hub |
| Color | White decora |
| Device Type | Video/audio/infrared/serial/USB/network/power extender |
| Form Factor | Wall mountable |
| Localization | United States |
| Miscellaneous | |
| Cables Included | USB-C cable - 1 m |
| Compliant Standards | RoHS, WEEE, UKCA |
| Networking | |
| Cabling Type | 1000Base-T |
| Compliant Standards | USB 1.1, USB 2.0, HDCP 2.3 |
| Connectivity Technology | Wired |
| Data Link Protocol | 1GbE, HDMI, HDBaseT 3.0 |
| Data Transfer Rate | 18 Gbps |
| Features | 3D support, 4K resolution support, 2K resolution support, Dolby TrueHD support, x.v.Color support, DTS-HD support, HDR10 support, aluminum housing, 4:4:4 chroma subsampling support, Deep Color support, LED status indicators, Video ALT mode |
| Keyboard / Mouse Interface | USB |
| Max Resolution | 4K @ 60 Hz |
| Max Transfer Distance | 90 m |
| Status Indicators | Power, host, input, output, link |
| Power | |
| Power Consumption Operational | 88 Watt |
| Power Device | External power adapter |
| Voltage Required | DC 20 V |
