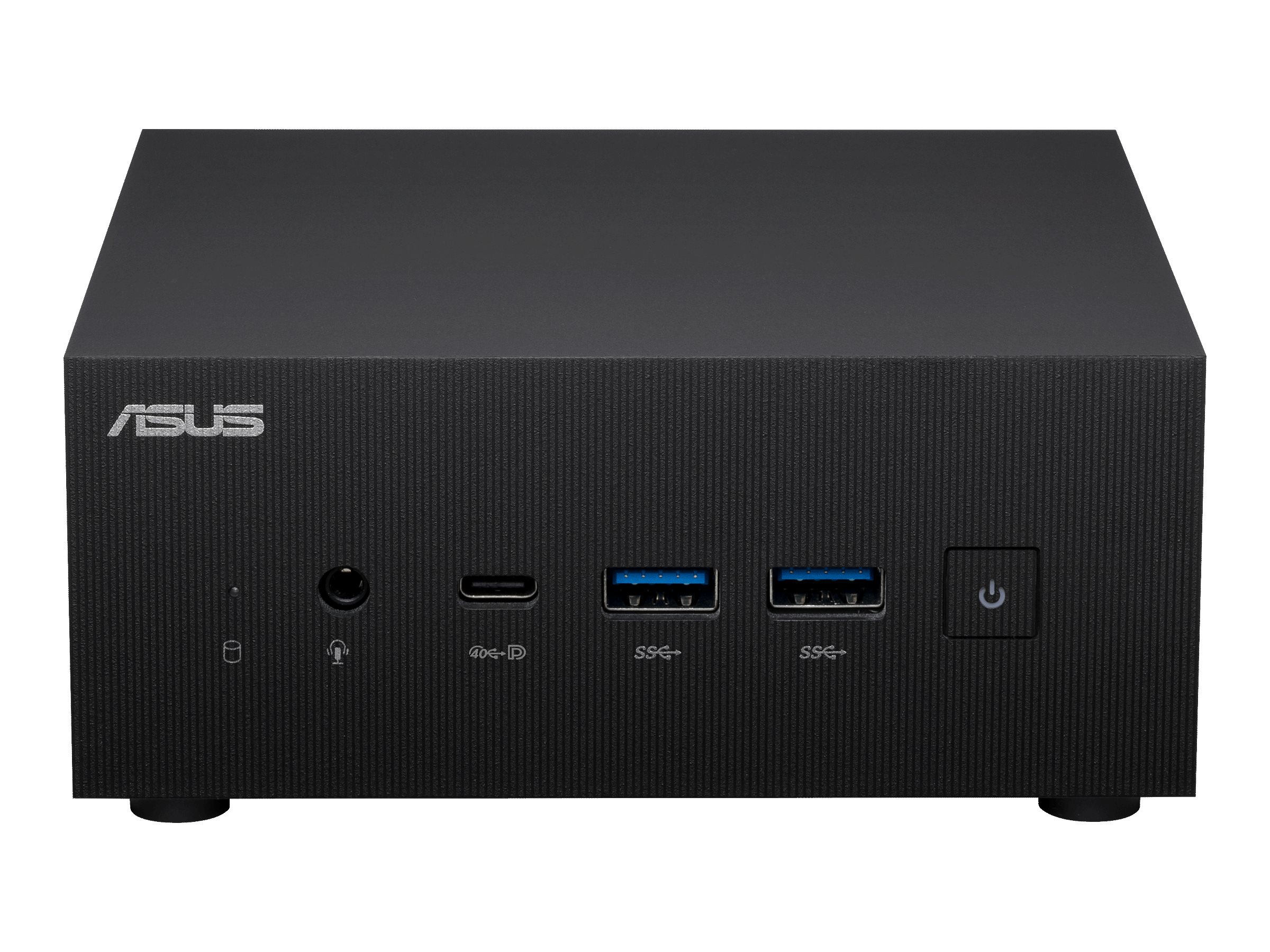

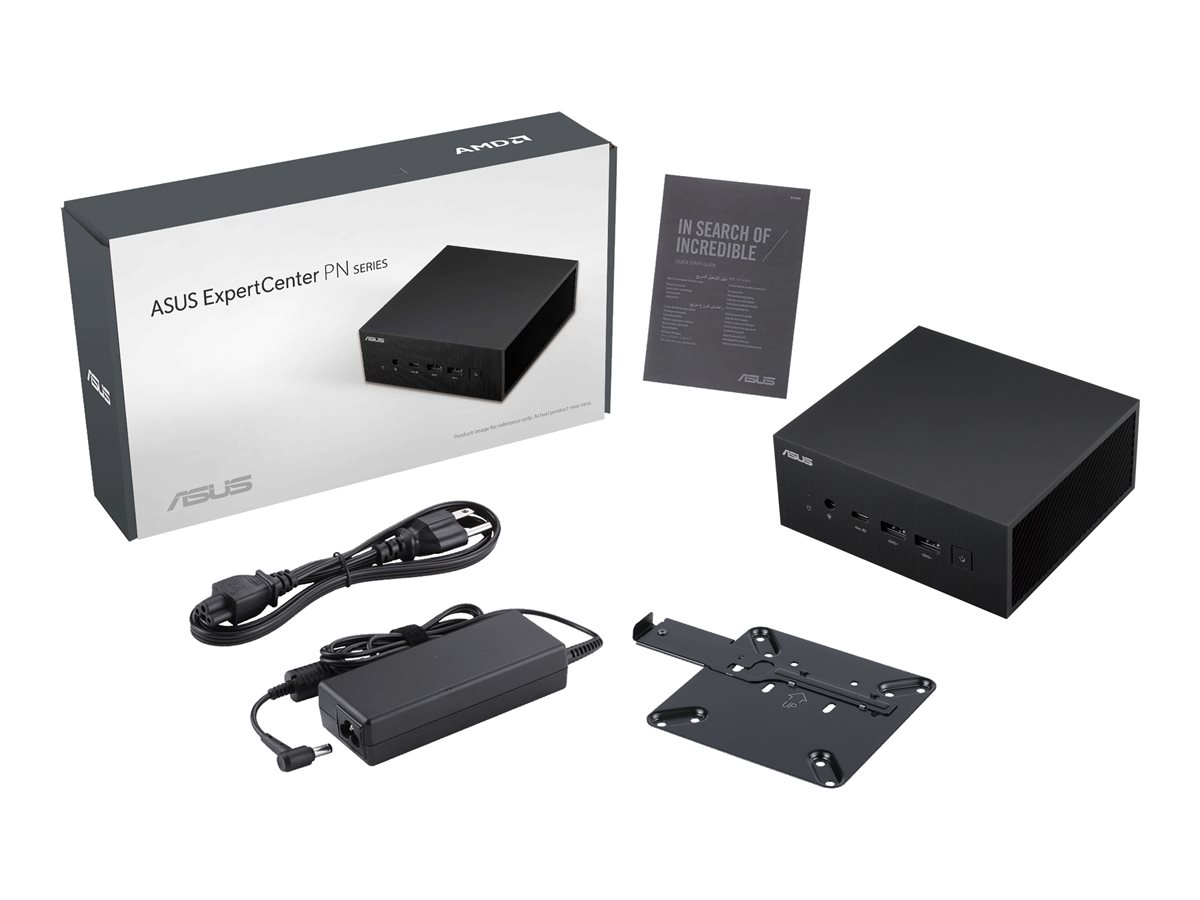

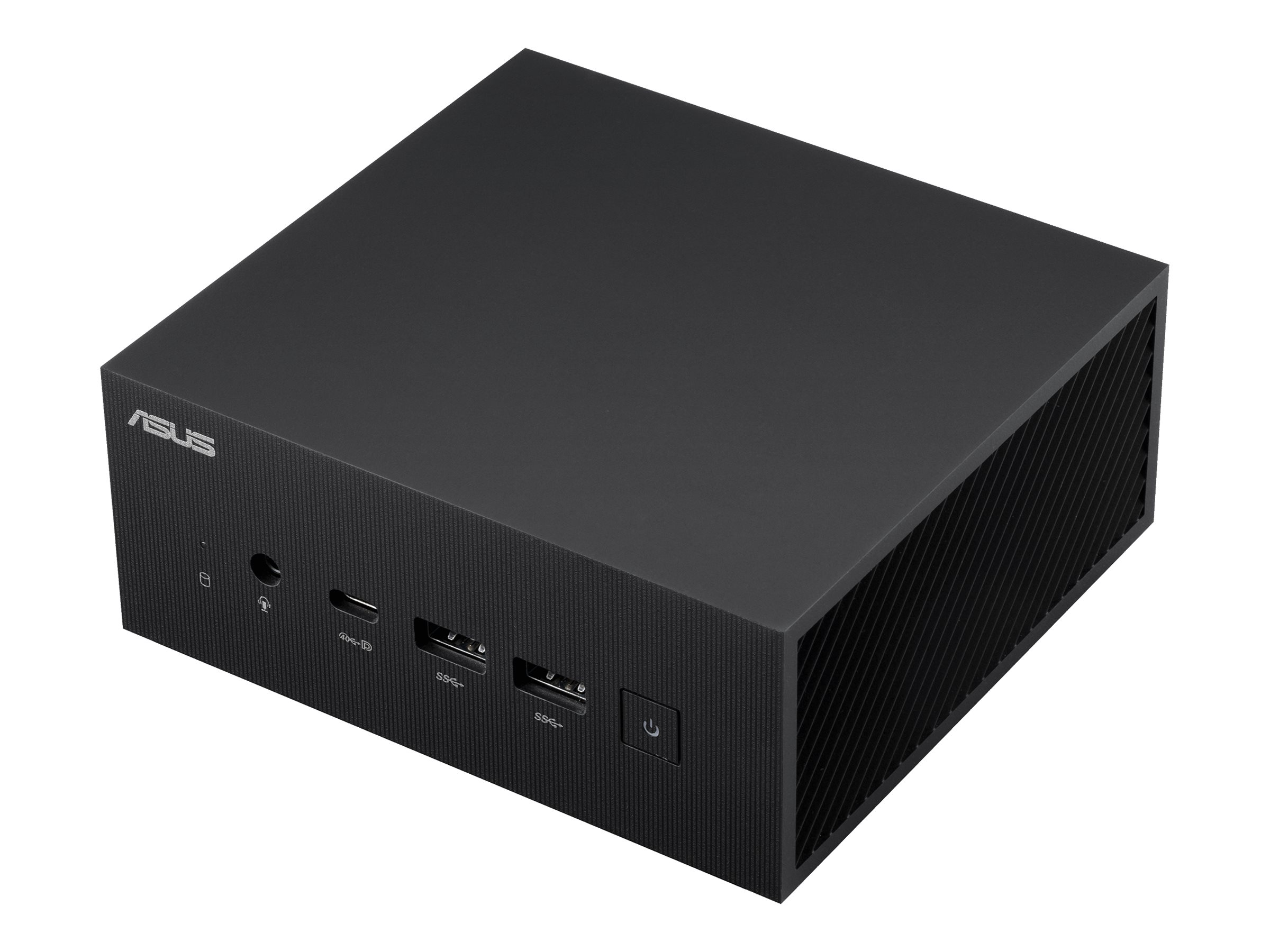

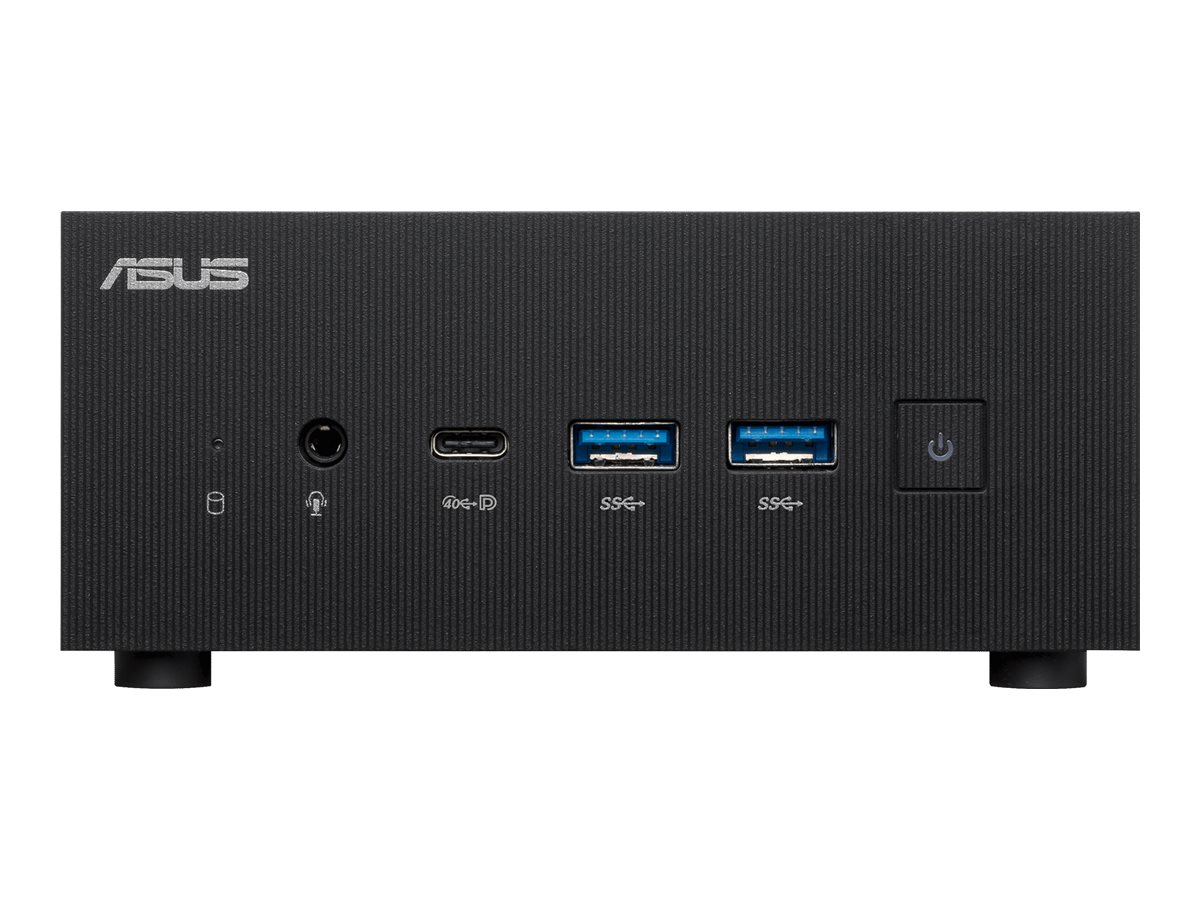

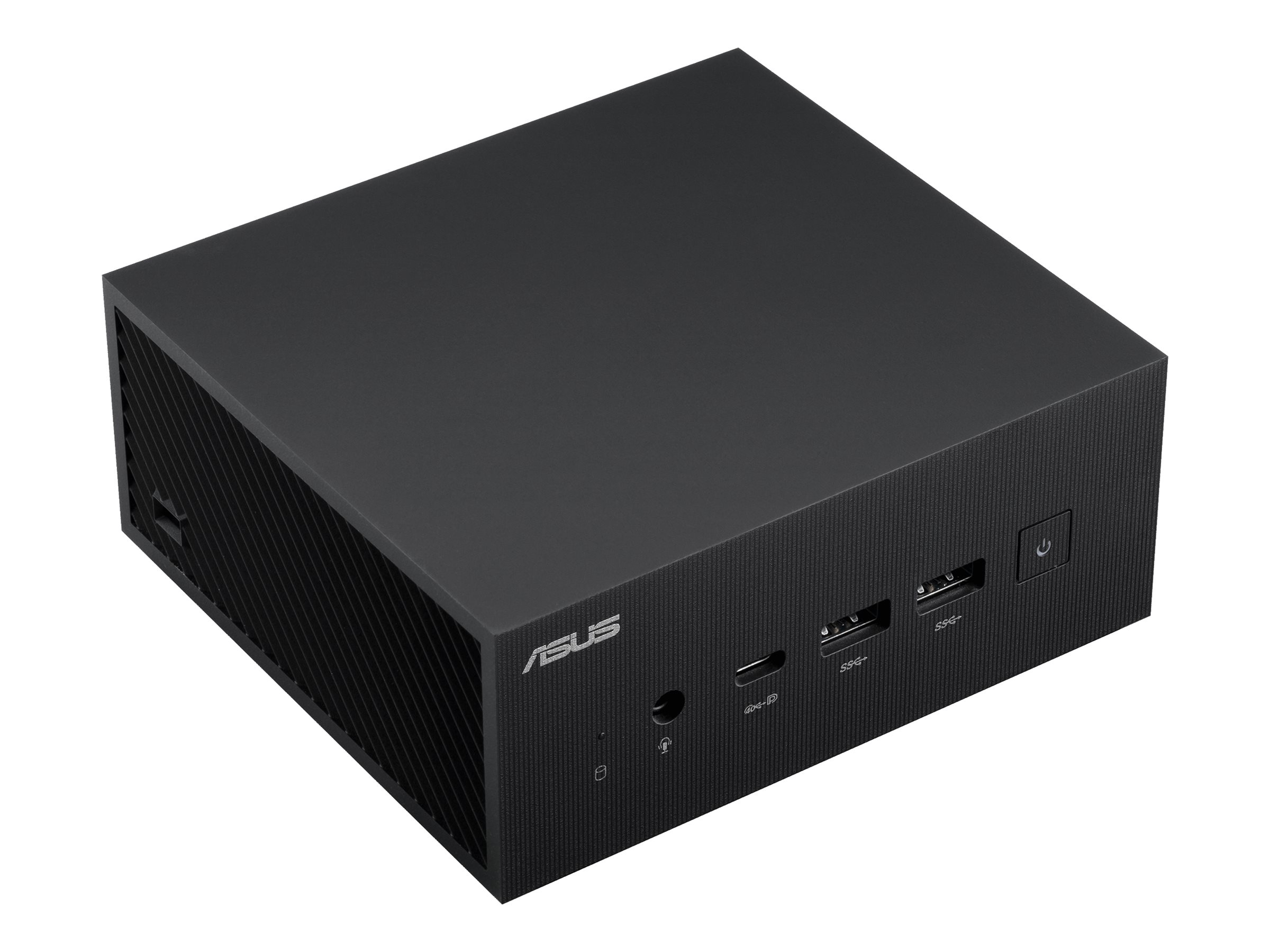

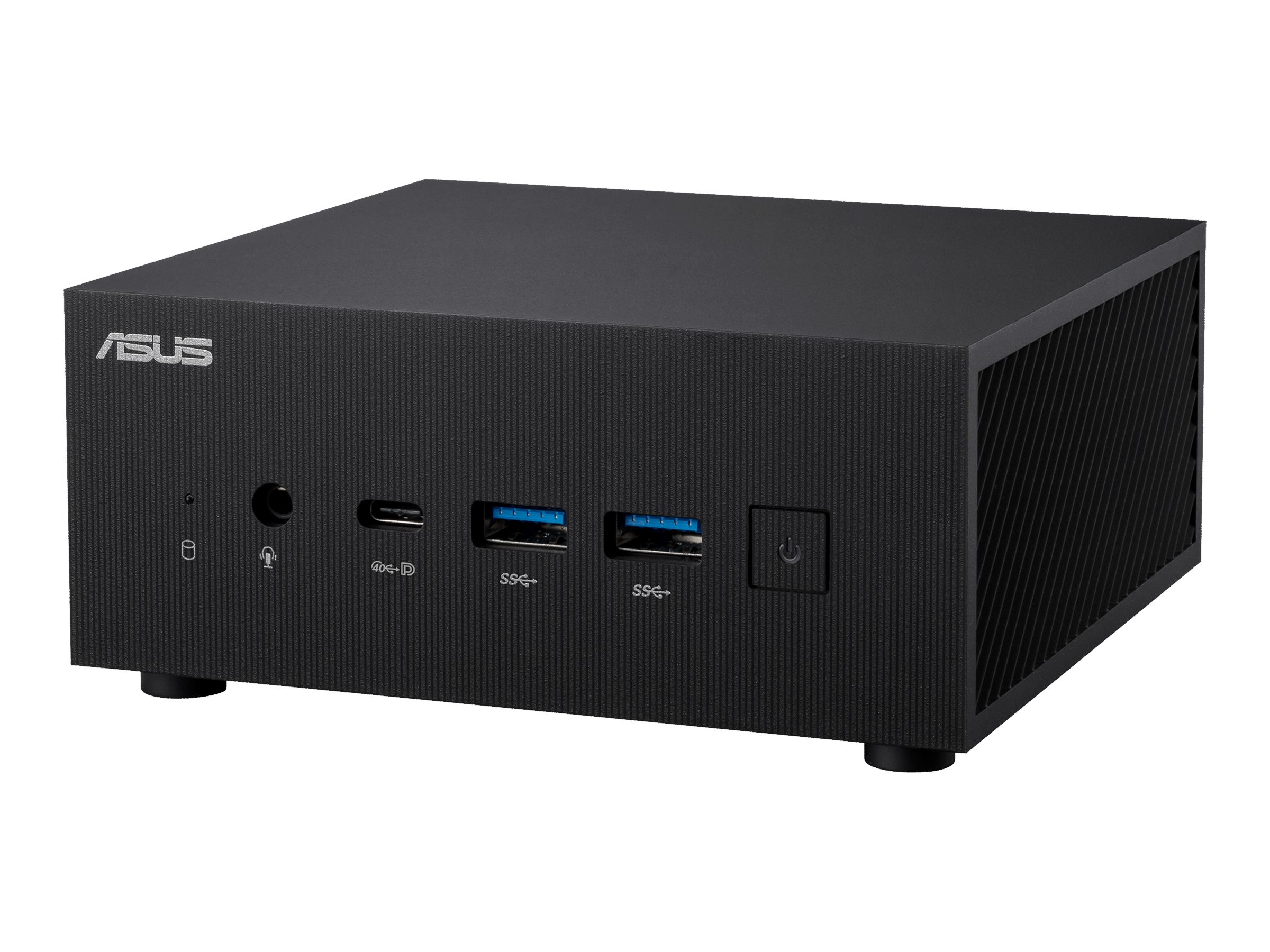

ASUS ExpertCenter PN53 SYS582PX1TDR
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
ASUS ExpertCenter PN53 SYS582PX1TDR
- Mini PC Ryzen 5 7535HS / up to 4.55 GHz
- RAM 8 GB
- SSD 256 GB
- NVMe
- Radeon Graphics
- Gigabit Ethernet, 2.5 Gigabit Ethernet, Bluetooth 5.2, IEEE 802.11ax (Wi-Fi 6E), Bluetooth 5.3
- Win 11 Pro
- monitor: none
- black
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | PN53-SYS582PX1TDR |
| SHI Part #: | 46744253 |
| Category: | Desktop computers |
| UNSPSC: | 43211507 |
| Manufacturer: | ASUS |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Desktop computers |
| Description | ASUS ExpertCenter PN53 SYS582PX1TDR - Mini PC Ryzen 5 7535HS / up to 4.55 GHz - RAM 8 GB - SSD 256 GB - NVMe - Radeon Graphics - Gigabit Ethernet, 2.5 Gigabit Ethernet, Bluetooth 5.2, IEEE 802.11ax (Wi-Fi 6E), Bluetooth 5.3 - Win 11 Pro - monitor: none - black |
| Manufacturer | ASUS |
| MSRP | $629.00 |
| UNSPSC | 43211507 |
| Main Specifications | |
| Chassis / Form Factor | Ultra small form factor |
| Dimensions & Weight / Depth | 13 cm |
| Dimensions & Weight / Height | 5.8 cm |
| Dimensions & Weight / Weight | 900 g |
| Dimensions & Weight / Width | 12 cm |
| Display / Type | None. |
| Hard Drive / Capacity | 256 GB |
| Hard Drive / Interface | PCI Express 4.0 |
| Hard Drive / Interface Type | PCI Express 4.0 |
| Header / Brand | ASUS |
| Miscellaneous / Product Color | Black |
| Networking / Data Link Protocol |
|
| Networking / Wireless LAN Supported | Yes |
| Networking / Wireless Protocol |
|
| Optical Storage / Drive Type | No optical drive |
| Optical Storage / Type | None |
| OS Provided / Type | Windows 11 Pro |
| Packaged Quantity | 1 |
| Processor / Clock Speed | 3.3 GHz |
| Processor / Manufacturer | AMD |
| Processor / Number of Cores | 6-core |
| Processor / Processor Number | 7535HS |
| Processor / Type | Ryzen 5 |
| RAM / Form Factor | SO-DIMM 262-pin |
| RAM / Technology | DDR5 SDRAM |
| Service & Support / Type | 3-year warranty |
| System / Hard Drive Capacity | 256 GB |
| System / Type | Personal computer |
| Video Output / Graphics Processor | AMD Radeon Graphics |
| Cache Memory | |
| Cache Per Processor | 16 MB |
| Installed Size | 16 MB |
| Dimensions & Weight | |
| Depth | 13 cm |
| Height | 5.8 cm |
| Weight | 900 g |
| Width | 12 cm |
| Expansion / Connectivity | |
| Bays | 1 (total) / 0 (free) x internal 2.5" |
| Interfaces |
|
| Slots | 2 (total) / 1 (free) x M.2 Card - 2280 |
| General | |
| Color | Black |
| Embedded Security | Firmware Trusted Platform Module (TPM) Security Chip |
| Product Form Factor | Mini PC |
| Type | Personal computer |
| Graphics Controller | |
| Graphics Processor | AMD Radeon Graphics |
| Video Interfaces | HDMI, DisplayPort |
| Hard Drive | |
| Capacity | 1 x 256 GB |
| Features | NVM Express (NVMe) |
| Interface Type | PCI Express 4.0 |
| Type | SSD - M.2 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Compliant Standards | UL, VCCI, C-Tick, BSMI, CB, CCC, FCC |
| Security Slot Type | Kensington security slot |
| Theft/Intrusion Protection | Security lock slot (cable lock sold separately) |
| VESA Mounting Interface | Yes |
| Monitor | |
| Monitor Type | None. |
| Networking | |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, 2.5 Gigabit Ethernet, 802.11ax, Bluetooth 5.2, IEEE 802.11ax (Wi-Fi 6E), Bluetooth 5.3 |
| Ethernet Ports | 2.5 Gigabit Ethernet |
| Features | Dual stream (2x2) |
| Wireless LAN Supported | Yes |
| Operating System / Software | |
| OS Provided | Windows 11 Pro |
| Optical Storage | |
| Type | No optical drive |
| Power | |
| Device Type | Power adapter |
| Power Provided | 150 watt |
| Processor / Chipset | |
| Clock Speed | 3.3 GHz |
| CPU | AMD Ryzen 5 7535HS |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
| Max Turbo Speed | 4.55 GHz |
| Number of Cores | 6-core |
| RAM | |
| Form Factor | SO-DIMM 262-pin |
| Installed Size | 8 GB (installed) / 16 GB (max) |
| Slots | 2 (total) / 2 (empty) |
| Technology | DDR5 SDRAM |
| Storage Controller | |
| Controller Interface Type | SATA 6Gb/s |
| Type | 1 x SATA |
| Sustainability Information | |
| ENERGY STAR Certified | Yes |
| EPEAT Compliant | EPEAT Silver |
