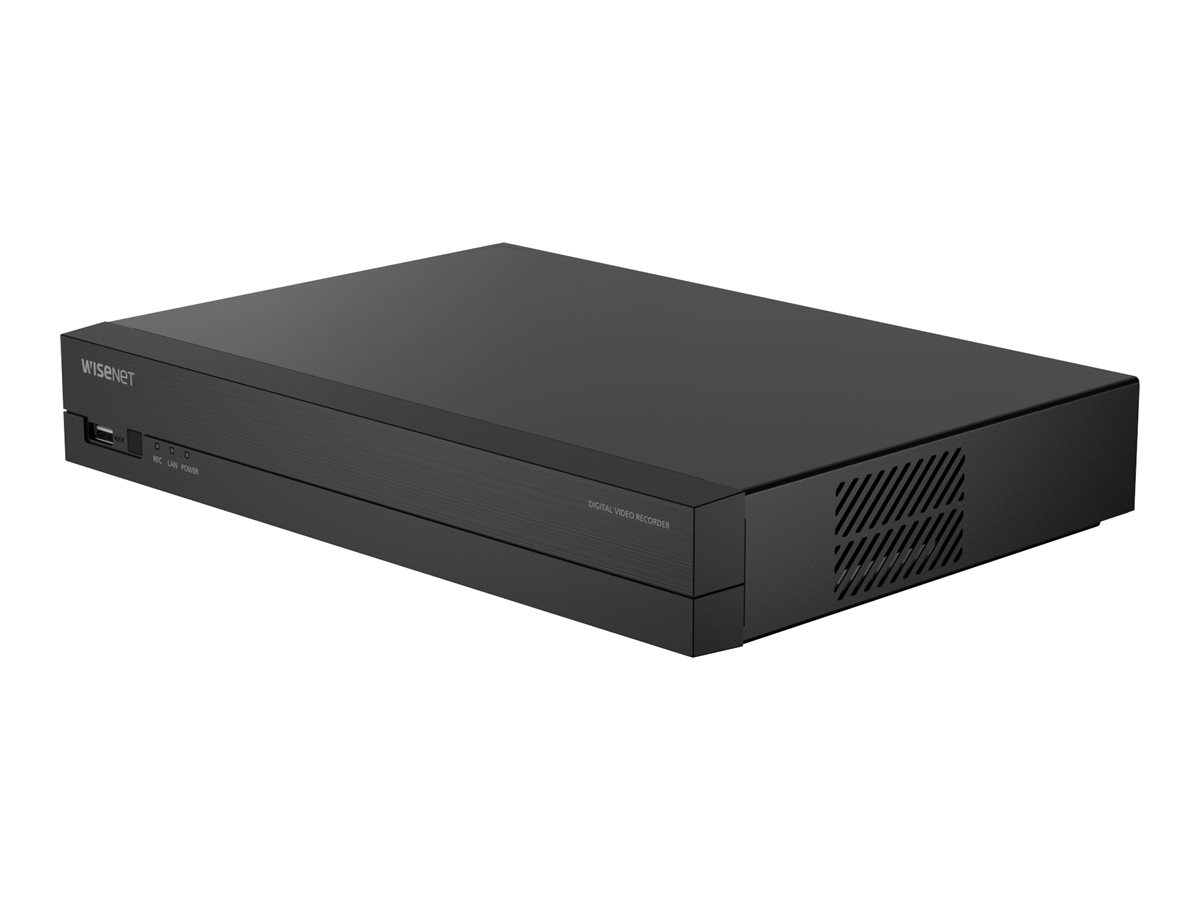

Hanwha Techwin WiseNet A Series ARD-810
MSRP$387.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
Hanwha Techwin WiseNet A Series ARD-810
- Standalone DVR
- 8 channels
- networked
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $387.00 |
| Mfr Part #: | ARD-810 |
| SHI Part #: | 46730211 |
| Category: | Surveillance video or audio recorders |
| UNSPSC: | 46171621 |
| Manufacturer: | HANWHA VISION |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Surveillance video or audio recorders |
| Description | Hanwha Techwin WiseNet A Series ARD-810 - Standalone DVR - 8 channels - networked |
| Manufacturer | HANWHA VISION |
| MSRP | $387.00 |
| UNSPSC | 46171621 |
| Main Specifications | |
| Dimensions & Weight / Depth | 20.87 cm |
| Dimensions & Weight / Height | 4.7 cm |
| Dimensions & Weight / Weight | 1.1 kg |
| Dimensions & Weight / Width | 30 cm |
| Header / Brand | Hanwha Vision |
| Miscellaneous / Product Color | Black |
| Packaged Quantity | 1 |
| Connections | |
| Alarm Ports | Alarm input x 4, alarm output x 1 |
| Audio Output Ports | RCA x 1, mini-phone 3.5 mm x 1 |
| Camera Control Interface (PTZ) | RS-485 |
| Network Port | 10/100Base-T |
| Other Ports | USB 2.0 x 2, relay output x 1 |
| Video Input Ports | BNC x 8 |
| Video Input Signal Level | 1.0Vp-p 75 Ohm |
| Video Output Ports | HDMI x 1, VGA x 1, BNC x 1 |
| Dimensions & Weight | |
| Comments | Without HDD |
| Depth | 20.87 cm |
| Height | 4.7 cm |
| Weight | 1.1 kg |
| Width | 30 cm |
| Environmental Parameters | |
| Humidity Range Operating | 20 - 85% RH |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| General | |
| Color | Black |
| Compliant Standards | FCC, cULus, EAC, NDAA, UL, KC |
| Compression Format | H.264, H.265, MJPEG, AVI, G.711, G.726 |
| Device Type | Standalone DVR |
| Image Resolution | 3840x2160, 2560x1440, 1920x1080, 1280x1024, 1280x720 |
| OS Provided | Linux |
| Video Channels | 8 |
| Hard Drive | |
| Interface | Serial ATA |
| Quantity Supported | 1 |
| Removable | Yes |
| Supported Max Total Capacity | 6 TB |
| Networking | |
| DDNS Support | Yes |
| Features | P2P support, ONVIF support, virtual lanes, automatic shutdown, multicast mode, IP address filtering, 802.1x authentication, Source-Specific Multicast (SSM), CGI support, user access log |
| Network Interfaces | Ethernet 10Base-T/100Base-TX |
| Supported Protocols | SUNAPI, ONVIF, TCP/IP, UDP/IP, RTP, UDP, TCP, RTSP, NTP, HTTP, DHCP, PPPoE, SMTP, ICMP, IGMP, ARP, DNS, DDNS, UPnP, HTTPS, SNMP |
| Power | |
| Power Consumption | 20.4 Watt |
| Power Consumption Details | With HDD |
| Voltage | 12 V |
| Security DVR | |
| Display Modes | 2 split screens, 3 split screens, 4 split screens, 6 split screens, 1+5 split screens, 1+7 split screens, 9 split screens |
| Features | Analog High Definition (AHD), recording data rate up to 40 Mbps, e-mail alarm notifications, event notification, 300 PTZ position presets, Auto Recovery Backup (ARB), 2-way audio communication, Webviewer, metal housing |
| Frame Rate (Playback) | 120 fps |
| Frame Rate (Record) | 12 fps, 15 fps |
| Networked | Yes |
| Playback Search | Date/time, event, text, motion detection, smart search |
| Record Events | Manual, scheduled, continuous, event, pre-event, dual track, alarm, video loss, motion detection, tamper detection, sensor, analytics, passing detection, appear/disappear detection, face detection, audio detection, defocus detection |
| Video Recording Resolution | 5 Megapixels, 4 Megapixels, 1920x1080, CIF |
| System Requirements | |
| Browser | Edge/Safari/Google Chrome |
| Operating Systems | Android, Apple iOS, Apple macOS 11 or later, Windows 10 |
