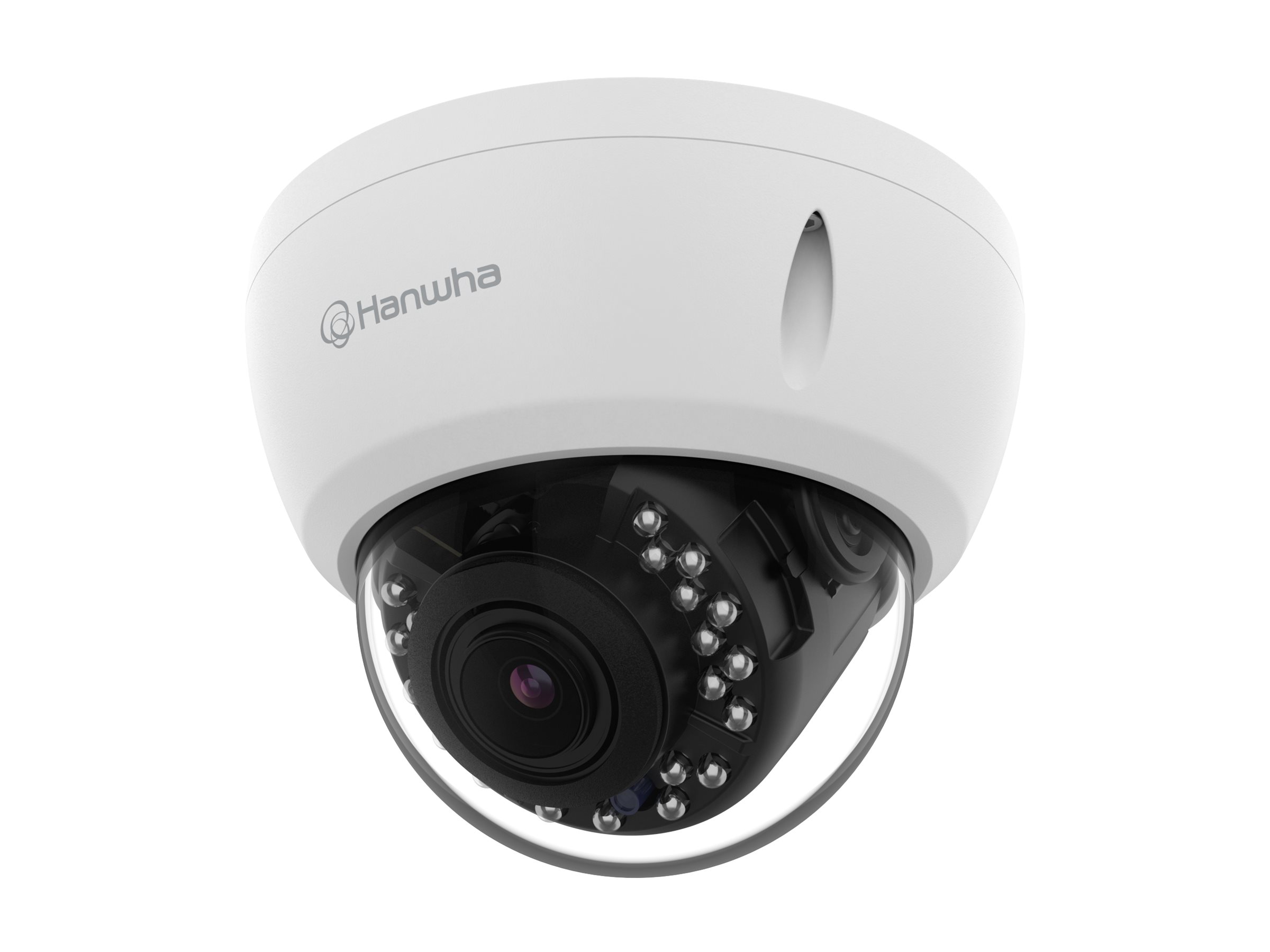

Hanwha Techwin WiseNet A-Series ACV-8080R
MSRP$194.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
Hanwha Techwin WiseNet A-Series ACV-8080R
- Surveillance camera
- PTZ
- dome
- color (Day&Night)
- 5 MP
- 2592 x 1944
- motorized
- TVI, AHD, CVI, CVBS
- DC 12 V
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $194.00 |
| Mfr Part #: | ACV-8080R |
| SHI Part #: | 46730204 |
| Category: | Digital cameras |
| UNSPSC: | 45121504 |
| Manufacturer: | HANWHA VISION |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Digital cameras |
| Description | Hanwha Techwin WiseNet A-Series ACV-8080R - Surveillance camera - PTZ - dome - color (Day&Night) - 5 MP - 2592 x 1944 - motorized - TVI, AHD, CVI, CVBS - DC 12 V |
| Manufacturer | HANWHA VISION |
| MSRP | $194.00 |
| UNSPSC | 45121504 |
| Main Specifications | |
| Dimensions & Weight / Depth | 13.2 cm |
| Dimensions & Weight / Height | 10.3 cm |
| Dimensions & Weight / Weight | 550 g |
| Dimensions & Weight / Width | 13.2 cm |
| Header / Brand | Hanwha Vision |
| Miscellaneous / Product Color | White |
| Packaged Quantity | 1 |
| Camera | |
| Digital Video Capture Resolution | 2592 x 1944, 2560 x 1440 |
| Exposure Range | 1/30 sec - 1/50000 sec |
| Features | Auto ICR, Backlight Compensation (BLC), Wide Dynamic Range (WDR), 2D digital noise reduction (DNR), 3D digital noise reduction (DNR), Automatic Tracing White (ATW), Automatic White Balance Control (AWC), Gain Control, vertical flip and mirror |
| Frame Rate (max) | 30 frames per second |
| Infrared Distance | 20 m |
| Max Digital Video Resolution | 2592 x 1944 |
| Minimum Illumination |
|
| Type | Color - Day&Night - pan / tilt / zoom |
| Environmental Parameters | |
| Max Operating Temperature | 55 °C |
| Min Operating Temperature | -30 °C |
| Relative Humidity (operating) | 0 - 90% RH |
| Expansion / Connectivity | |
| Ports | Video output - BNC |
| General | |
| Connectivity Technology | Wired |
| Depth | 13.2 cm |
| Device Type | Surveillance camera |
| Form Factor | Dome |
| Height | 10.3 cm |
| Weight | 550 g |
| Width | 13.2 cm |
| Image Sensor | |
| Type | 5 MP CMOS 1/2.5" |
| Interfaces | |
| Video | TVI, AHD, CVI, CVBS |
| Lens Construction | |
| Diagonal Field of View (degree) | 43 - 112 |
| Focal Length | 4.3 mm - 10.5 mm |
| Focus Adjustment | Motorized |
| Horizontal Field of View (degree) | 34 - 88 |
| Lens Iris | F/1.6 |
| Min Focus Distance | 80 cm |
| Optical Zoom | 2.44 x |
| Type | Motorized zoom |
| Vertical Field of View (degree) | 26 - 63 |
| Miscellaneous | |
| Color | White |
| Compliant Standards | IP66, IK10, NDAA, FCC 47 CFR Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), CAN/CSA-C22.2 No. 62368-1, UL 62368-1, IEC 62471 |
| Included Accessories | Mounting template, hex key, screws, anchors |
| Power | |
| Power Device | 7.2 Watt |
| Power Requirements | DC 12 V |
