ASRock Rack 1U1G-W680/2L2T
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with

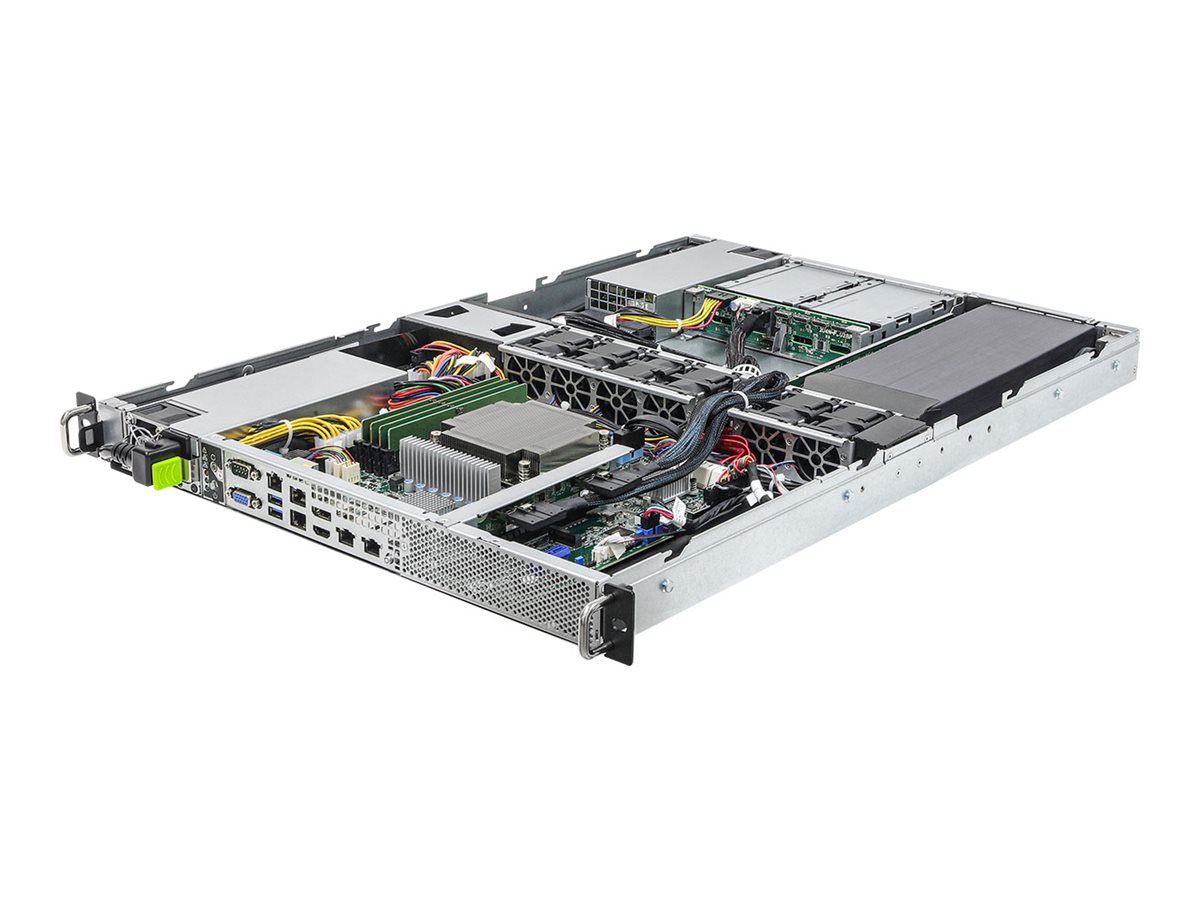

ASRock Rack 1U1G-W680/2L2T
- Server
- rack-mountable 1U
- 1-way
- no CPU
- RAM 0 GB
- SATA
- hot-swap 2.5" bay(s)
- no HDD
- AST2600
- 10 Gigabit Ethernet, Gigabit Ethernet
- no OS
- monitor: none
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | 1U1G-W680/2L2T |
| SHI Part #: | 46725267 |
| Category: | Servers |
| UNSPSC: | 43211501 |
| Manufacturer: | ASRock |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Servers |
| Description | ASRock Rack 1U1G-W680/2L2T - Server - rack-mountable 1U - 1-way - no CPU - RAM 0 GB - SATA - hot-swap 2.5" bay(s) - no HDD - AST2600 - 10 Gigabit Ethernet, Gigabit Ethernet - no OS - monitor: none |
| Manufacturer | ASRock |
| UNSPSC | 43211501 |
| Main Specifications | |
| Chassis / Form Factor | Rack-mountable |
| Chassis / Server Storage Bays | Hot-swap |
| Chassis / Server Swappable Drive Interface | SATA |
| Dimensions & Weight / Depth | 65 cm |
| Dimensions & Weight / Height | 4.35 cm |
| Dimensions & Weight / Width | 43.8 cm |
| Display / Type | None. |
| Header / Brand | ASRock Rack |
| Mainboard / Chipset Type | Intel W680 |
| Mainboard / Processor Socket | LGA1700 Socket |
| Miscellaneous / Product Color |
|
| Networking / Data Link Protocol |
|
| Optical Storage / Drive Type | No optical drive |
| Optical Storage / Type | None |
| OS Provided / Type | No operating system |
| Packaged Quantity | 1 |
| Processor / Type | No CPU |
| RAM / Form Factor | DIMM 288-pin |
| RAM / Technology | DDR4 SDRAM |
| System / Hard Drive Capacity | 0 GB |
| System / Type | Server |
| Video Output / Graphics Processor | ASPEED AST2600 |
| Dimensions & Weight | |
| Depth | 65 cm |
| Height | 4.35 cm |
| Width | 43.8 cm |
| Environmental Parameters | |
| Max Operating Temperature | 35 °C |
| Min Operating Temperature | 10 °C |
| Expansion / Connectivity | |
| Bays |
|
| Interfaces |
|
| Slots |
|
| General | |
| Built-in Devices | LED panel, 6 x 40 mm fan |
| Internal Bays Qty | 8 |
| Product Form Factor | Rack-mountable - 1U |
| Sensors | Temperature sensor |
| Server Scalability | 1-way |
| Type | Server |
| Graphics Controller | |
| Graphics Processor | ASPEED AST2600 |
| Video Interfaces | VGA, HDMI, DisplayPort |
| Hard Drive | |
| Type | No HDD |
| Miscellaneous | |
| Compliant Standards | ACPI 6.4, Plug and Play, SMBIOS 3.6.0 |
| Monitor | |
| Monitor Type | None. |
| Networking | |
| Data Link Protocol | 10 Gigabit Ethernet, Gigabit Ethernet, Fast Ethernet, Ethernet |
| Ethernet Controller | 2 x Intel I210, 2 x X710, Realtek RTL8211F |
| Ethernet Ports | 2 x 10 Gigabit Ethernet, 2 x Gigabit Ethernet |
| Operating System / Software | |
| OS Provided | No operating system |
| Optical Storage | |
| Type | No optical drive |
| Power | |
| 80 PLUS Certification | 80 PLUS Platinum |
| Device Type | Power supply |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Power Provided | 800 Watt |
| Power Redundancy | Yes |
| Power Redundancy Scheme | 1+1 |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Processor / Chipset | |
| Chipset Type | Intel W680 |
| CPU | No CPU |
| CPU Socket | LGA1700 Socket |
| CPU Upgradability | Upgradable |
| Max CPU Qty | 1 |
| Motherboard Name | ASRock Rack W680D4U-2L2T/G5 |
| RAM | |
| Features | Unbuffered, ECC, supported ECC modules operate in non-ECC mode |
| Form Factor | DIMM 288-pin |
| Installed Size | 0 GB (installed) / 192 GB (max) |
| Slots | 4 (total) / 4 (empty) |
| Technology | DDR4 SDRAM |
| Storage Controller | |
| Type | 1 x SATA |
| Storage Controller (2nd) | |
| Controller Interface Type | PCI Express |
| Type | 1 x NVMe |
